Antwerpen, 29 January 2020 |
 |
| Antwerpen 29/01/20 |
|
Name |

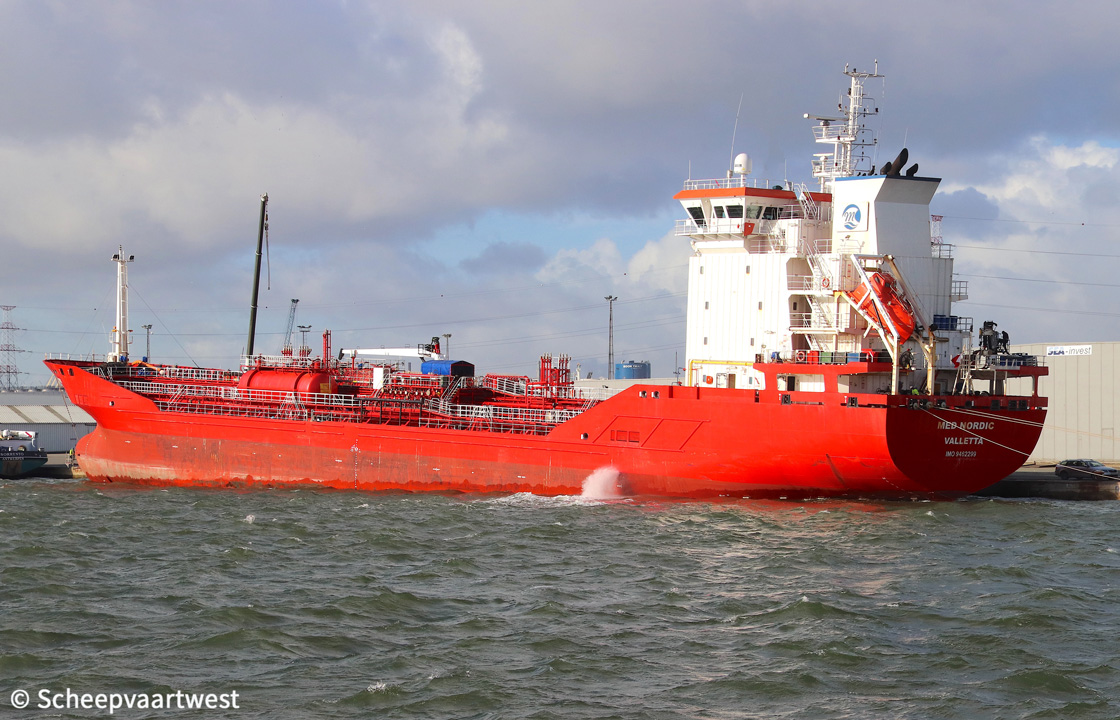

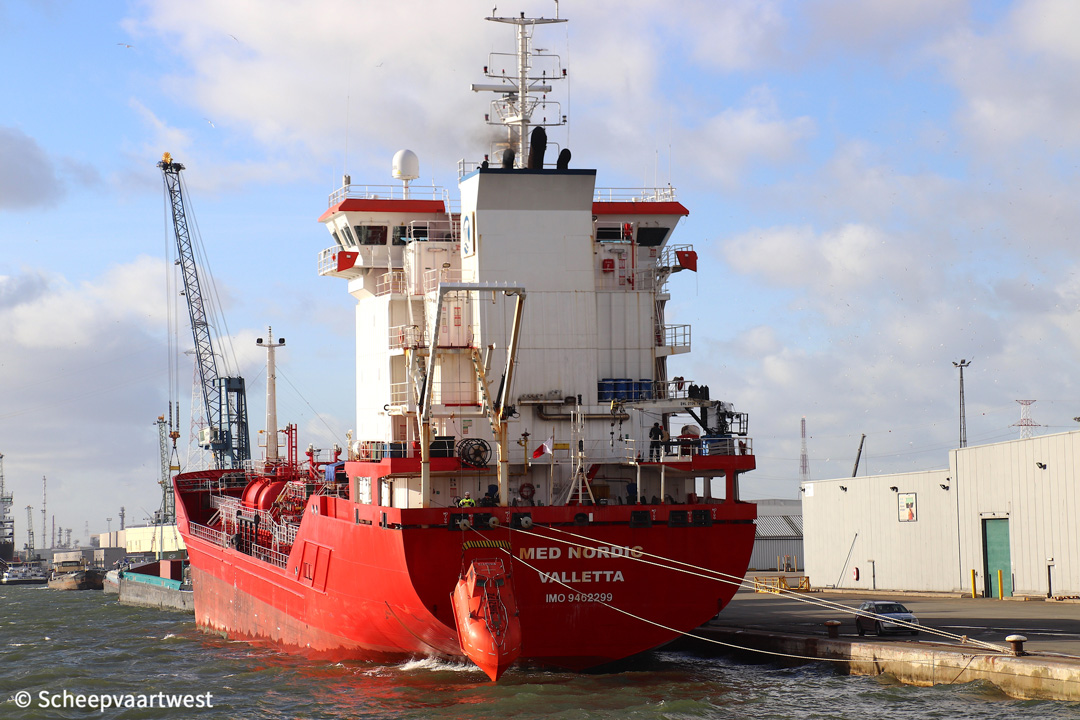

MED NORDIC |
|
Previous names |
Launch as: Nordic Energy |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9462299 |
|
Call sign |
9HA2172 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
5.651 t |
|
DWT |
Summer: 8.280,26 t |
|
NT |
2.602 t |
|
Length |
123,90 m overall 116,27 m between perpendiculars |
|
Breadth |
17,20 m extreme |
|
Draught |
Summer: 7,24 m |
|
Height from keel to mast |
36,62 m |
|
Air draft |
In ballast: 30,96 m Loaded: 29,38 m |
|
Freeboard |
1.977 mm |
|
Depth |
9,20 m moulded |
|
Speed |
Max: 14,0 knots |
|
Built |
2009 |
|
Date of completion |
24/02/2009 |
|
Builder |
Med Yilmaz Shipyard (Med Marine Kilavuzluk Ve Romorkaj Hizmetleri Insaat Sanayi Ve Tic. A.S.) Turkey |
|
Yard number |
08 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartment |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK-Caterpillar 8M32C - 4 stroke8 cylinder 4.000 kW / 5.435 hp combustion engine at 600 rpm |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
1x CHR 48,00 m² - 10,0 bar 2x CHO 65,00 m² - 10,0 bar |
|
Generators |
3x MAN D2876 LE 301 main diesel generatorset each 731 kVA - 585 kW - 842 hp at 1.800 rpm |
|
Emergency generator |
1x Diesel generatorset 250 kVA - 200 kW - 296 hp |
|
Bow thruster |
1x 424 kW / 576,65 bhp |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 98% |
8.927 m³ |
|
No. of segregations |
14x Double valves |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
184 m³ |
|
Pumps |
12x cargo pumps each 500 m³/h |
|
Manifolds |
Distance from bow to centre manifold :61,62 m Distance from stern to centre manifold: 54,71 m Distance between manifolds: 0,75 m Distance from ship side to manifold :2,65 m Distance from deck / tray to manifold: 2,12 m |
|
Tank capacities |
Fuel: 343,59 m³ Ballast: 3.824 m³ |
|
Lifting equipment |
1x Crane -SWL 5,0 t |
|
Crew size |
18 |
|
Operator |
YMN Tanker Deniz Isletmeciligi Altunizade Mah. Ord. Prof. Fahrettin Kerim Gökay Cad. Denizciler İş Merkezi, A Blok No:18/1 34662 Üsküdar, Istanbul Turkey |
|
Registered owner |
Sea Tankers 1 Ltd. |
|
Latest data adjustment |
24 April 2020 |
