Name |

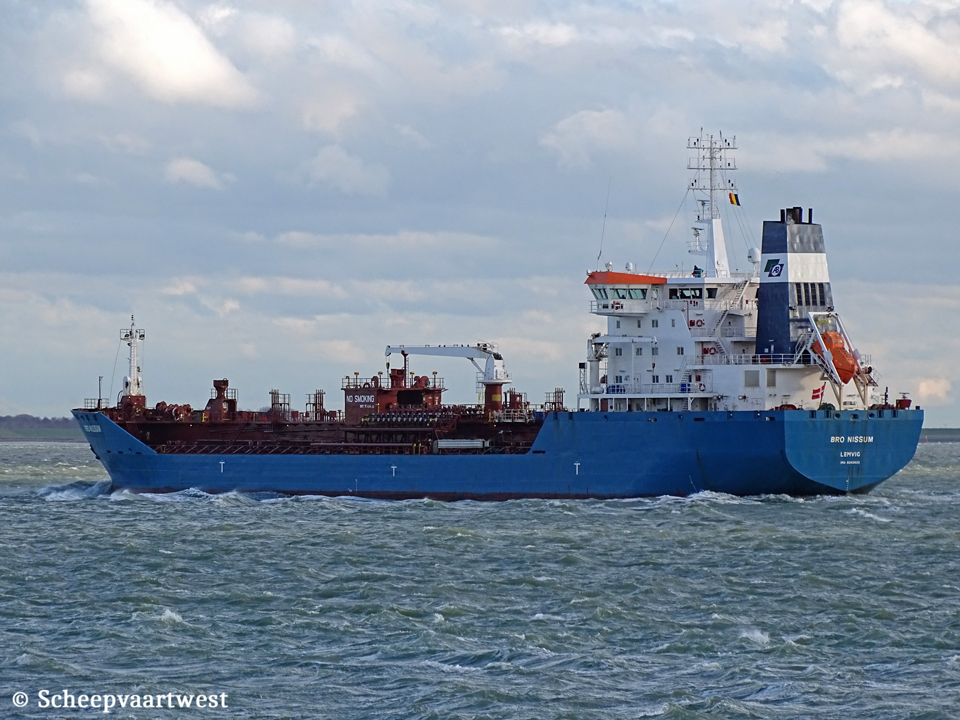

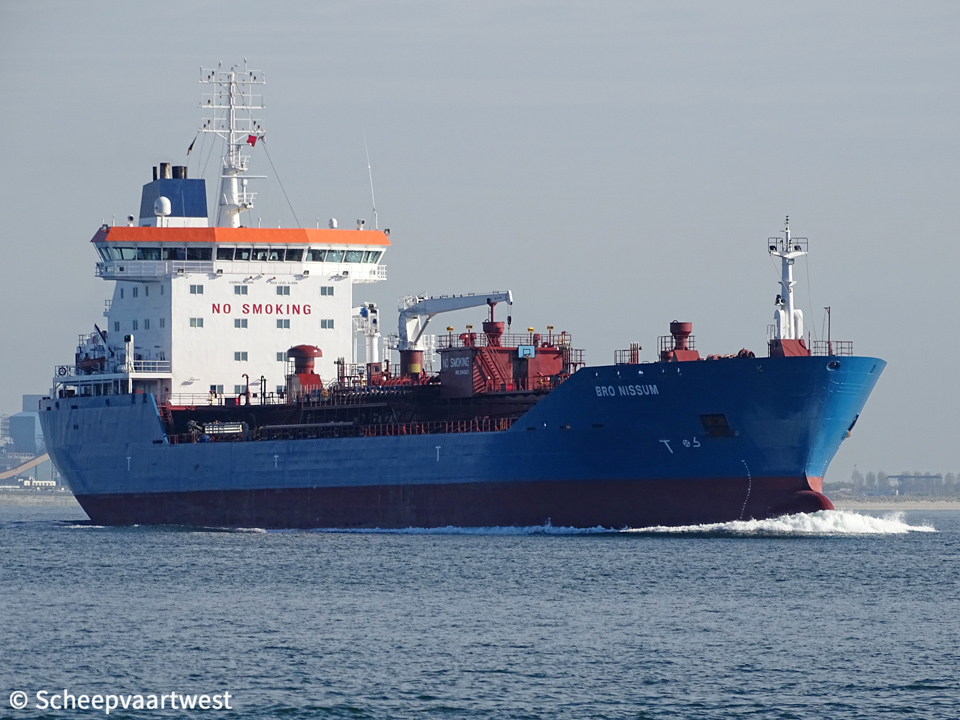

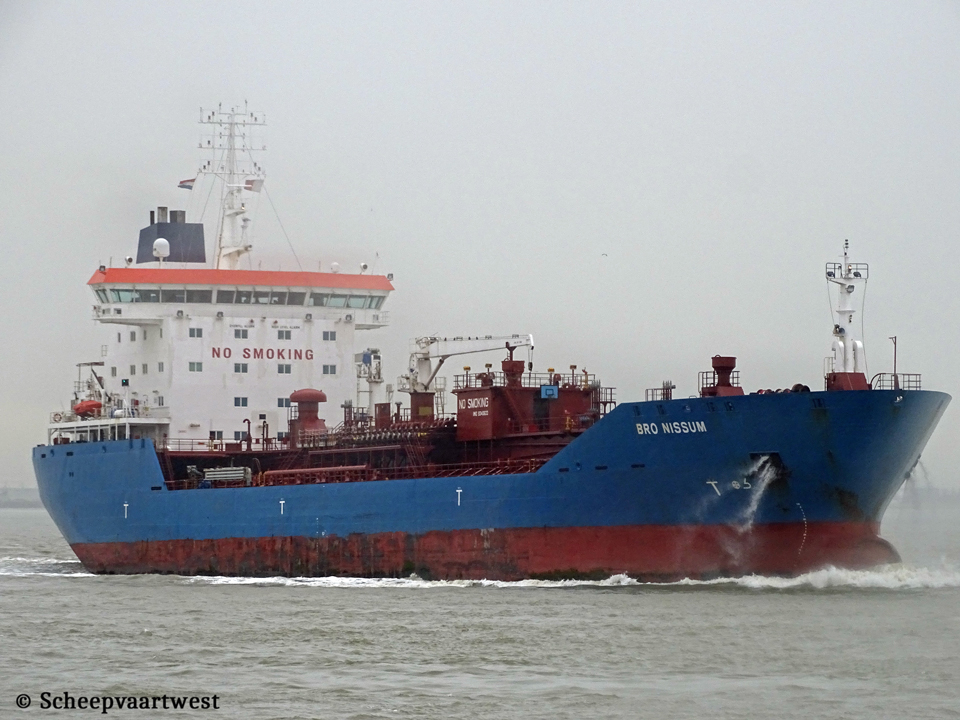

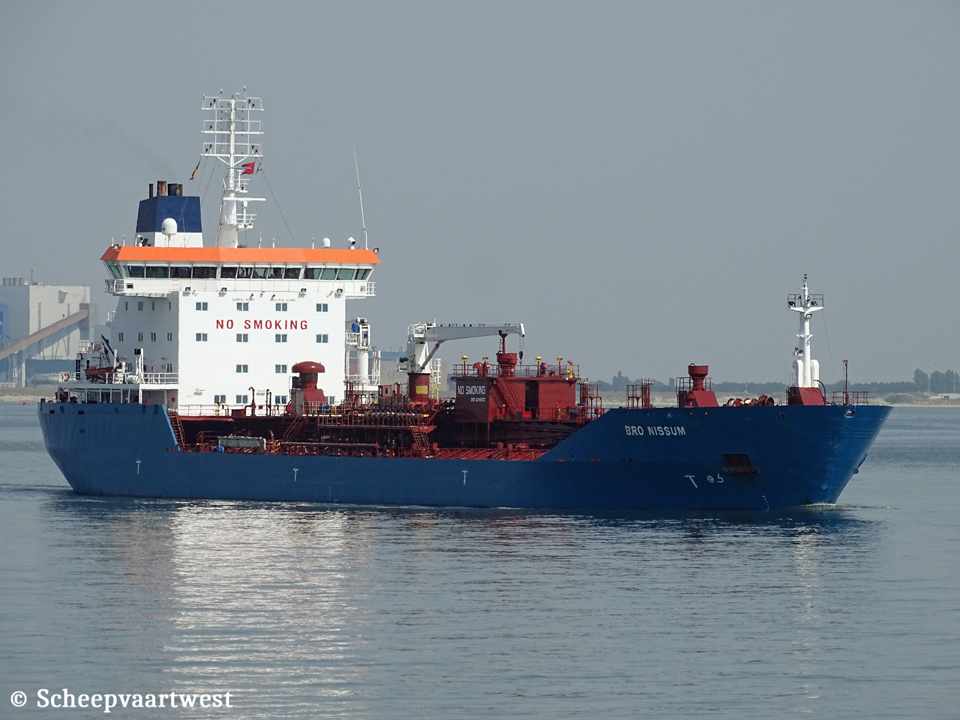

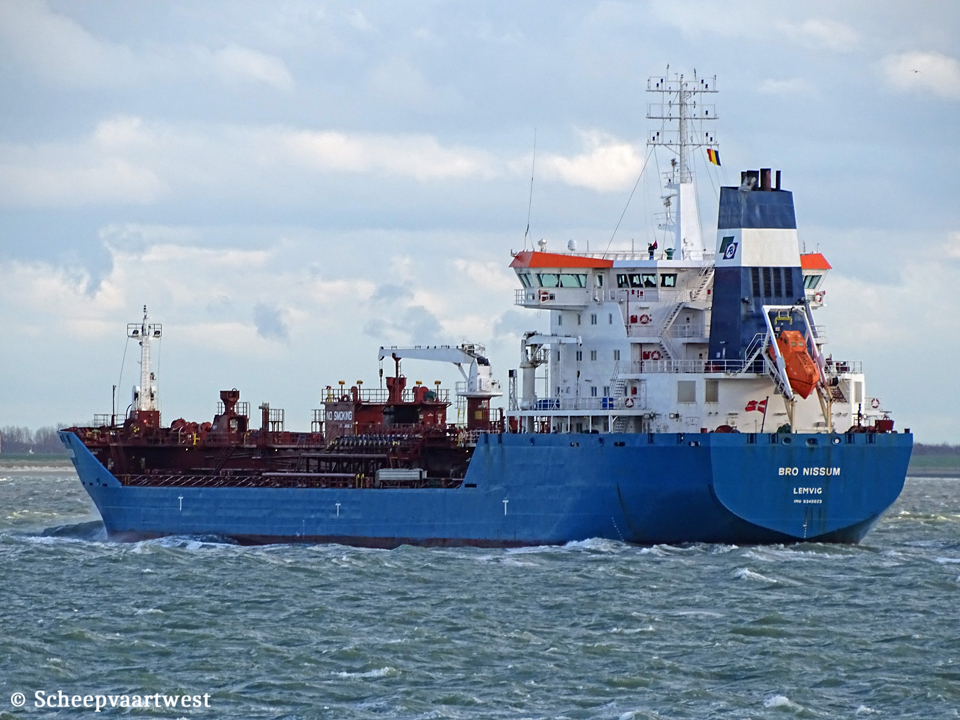

BRO NISSUM |
|
Previous names |
2008 - 06/2013 Nissum Maersk |
|
Type |
Chemical & oil product tanker |
|
IMO-number |
9340623 |
|
Call sign |
OXHS2 |
|
Flag |
Denmark |
|
Port of registry |
Lemvig |
|
GT |
12.105 t |
|
DWT |
Summer: 16.674,7 t |
|
NT |
5.056 t Panama: 10.180 t |
|
Displacement |
22.800 t |
|
Length |
144,18 m overall 133,80 m between perpendiculars |
|
Breadth |
23,00 m moulded |
|
Draught |
Max: 8,90 m |
|
Keel to mast end |
44,41 m |
|
Freeboard |
3.508 mm |
|
Depth |
12,40 m moulded |
|
Speed |
Max: 15,0 knots |
|
Built |
2008 |
|
Keel laid |
20/04/2007 |
|
Launch date |
26/09/2007 |
|
Delivery date |
09/07/2008 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. No. 988, Chang Xing Jiang Nan Avenue Changxing Island Shanghai, 201913 China |
|
Yard number |
H2342 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 8 Longitudinal: 1 |
|
Main engine |
1x Wärtsilä 6L46C - 6 cylinder 460 x 2.664 mm combustion engine 6.330 kW at 500 rpm Manufacturer: Wärtsilä Finland Oy |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Composite boiler AQ-16 1x Oil fired boiler AQ-9 Manufacturer: Aalborg Industries |
|
Shaft generator |
1x AVK type DSU 99 K1-6 |
|
Generators |
3x Wärtsilä 6L20 - 6 cylinder 225 x 320 mm combustion engines each 960 kW at 900 rpm connected with AVK DSG 86 L1-8W generators each 910 kW |
|
Bow thruster |
1x 750 kW |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
Liquid: 19.500 m³ |
|
Number of pumps |
12x Cargo pumps each 300 m³/h |
|
Tank capacities |
Fresh water: 491,20 m³ Lube oil: 102,20 m³ Ballast: 8.556,40 m³ Diesel oil: 56,20 m³ Fuel oil: 606,30 m³ |
|
Anchor equipment |
Length: 522,50 m Diameter: 60 mm |
|
Lifting equipment |
1x Cargo hose handling crane - SWL 10,0 t 1x Engine room crane - SWL 1,5 t 1x Provision crane port - SWL 3,0 t |
|
Commercial manager |
Broström AM Esplanaden 50 1263 Copenhagen, DK Denmark |
|
ISM manager |
Maersk Tankers A/S Holmbladsgade 133 2300 Copenhagen, DK Denmark |
|
Registered owner |
Maersk Product Tankers A/S Holmbladsgade 133 2300 København S Denmark |
|
Latest data adjustment |
12 August 2022 |
