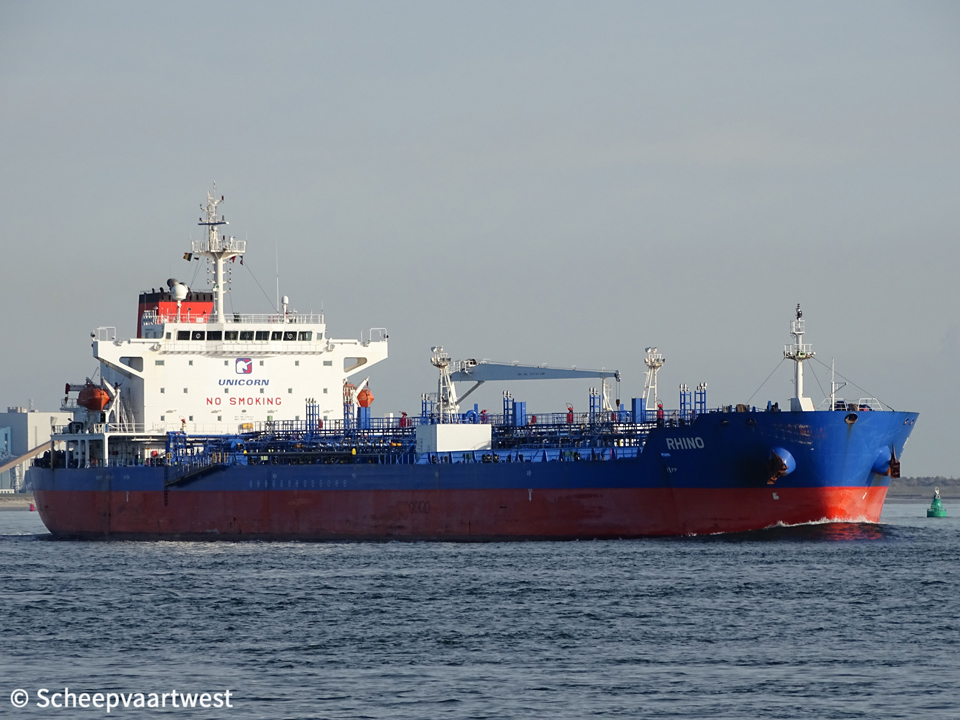

Westerschelde 20 October 2018 |
|
Name |
RHINO |
|
Previous names |
2010 - 10/2011 Kalypso |
|
Type |
Chemical & oil product tanker |
|
IMO-number |
9444508 |
|
Call sign |
9V8875 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
25.432 t |
|
DWT |
Summer: 39.710,42 t |
|
NT |
9.897 t |
|
Displacement |
49.010,42 t |
|
Length |
175,98 m overall 168,00 m between perpendiculars |
|
Breadth |
31,03 m moulded |
|
Draught |
Max: 11,11 m |
|
Freeboard |
6.114 mm |
|
Depth |
17,20 m moulded |
|
Speed |
Max: 15,0 knots |
|
Built |
2010 |
|
Keel laid |
02/11/2009 |
|
Delivery date |
31/08/2010 |
|
Builder |
SLS Shipbuilding Co. Ltd. Head Office 227 Donam-Dong Tongyeong Gyeongnam, 650-150 South Korea |
|
Yard number |
106 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Doosan/MAN-B&W 6S50MC-C - 6 cylinder 500 x 2.000 mm combustion engine 8.580 kW at 127,0 rpm Manufacturer: STX Engine Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Sil La Metal Co. |
|
Boilers |
1x Auxiliary boiler MISSION O - 9,0 bar 1x Exhaust gas boiler MISSION XW - 12,0 bar |
|
Generators |
1x Yanmar 6N21AL-EV - 6 cylinder 210 x 209 mm combustion engine 970 kW at 720 rpm connected to a generator 900 kW 2x Yanmar 6N21AL-SV - 6 cylinder 210 x 290 mm combustion engines each 880 kW at 720 rpm connected with generators 780 kW Manufacturer: Yanmar Co. Ltd. / Taiyo Electric Co. |
|
Number of cargo tanks |
14 |
|
Cargo tank capacity |
43.721,10 m³ |
|
Tank capacities |
Ballast: 20.673,09 m³ Lub oil: 113,95 m³ Fresh water: 286,10 m³ Fuel oil: 1.511,38 m³ Diesel oil: 233,14 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 2,5 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 3,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Manager |
Island View Shipping Intl Pte 06-04, Southpoint, 200, Cantonment Road Singapore. 089763 republic of Singapore |
|
Operator |
Unicorn Shipping 200 Cantonment Road, #03-01 Southpoint Singapore, 089763 Republic of Singapore |
|
Registered owner |
Unicorn Ross Pte Ltd. |
|
Latest data adjustment |
25 April 2020 |
