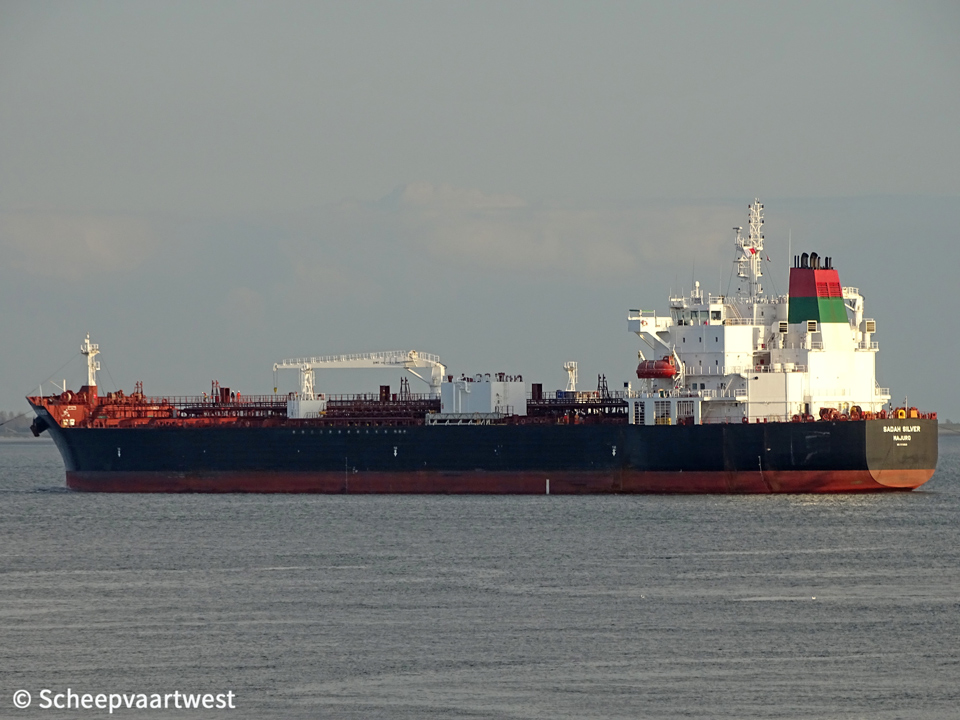

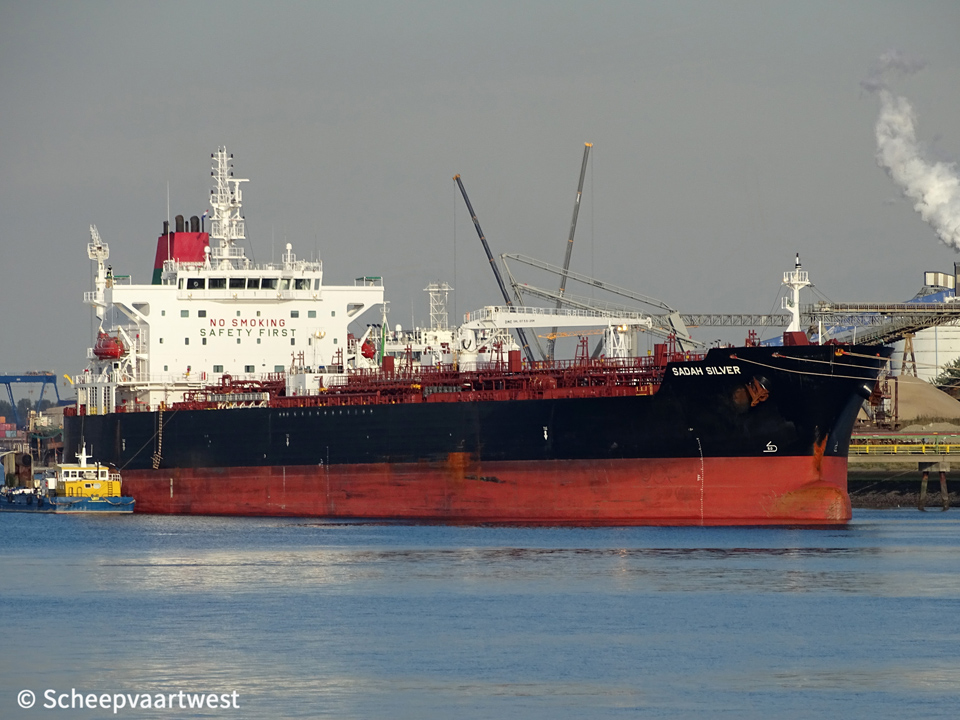

Vlissingen, The Netherlands 19 October 2018 |
 |
| Westerschelde 19/10/18 |
|
Name |
SADAH SILVER |
|
Type |
Chemical & oil product tanker |
|
IMO-number |
9718820 |
|
Call sign |
V7NT8 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
29.354 t Suez: 31.104,81 t |
|
DWT |
Summer: 49.734 |
|
NT |
13.664 t Suez: 27.314,74 t Panama: 24.371,17 t |
|
Displacement |
40.254 t |
|
Length |
183,06 m overall 174,00 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Max: 13,22 m |
|
Freeboard |
9.737 mm |
|
Depth |
19,10 m moulded |
|
Speed |
13,0 knots |
|
Built |
2016 |
|
Keel laid |
29/12/2015 |
|
Launch date |
19/08/2016 |
|
Delivery date |
28/10/2016 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
|
Yard number |
2539 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x HHI/MAN-B&W 6G50ME-B9.3 - cylinder 500 x 2.500 mm combustion engine 7.700 kW at 93,5 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
1x Auxiliary boiler - 8,83 bar 1x Composite boiler - 8,83 bar Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x Hyundai/Himsen 6H21/32 - 6 cylinder 210 x 320 mm combustion engines each 960 kW at 720 rpm connected with generators HFC7 508-10P each 900 kW Manufacturer: HHI Engine & Machinery Div. / HHI Electro Electric System |
|
Cargo tank capacity |
54.387,60 m³ |
|
Tank capacities |
Diesel oil: 245,10 m³ Fresh water: 259,40 m³ Hydraulic oil: 18,20 m³ Ballast: 21.876,70 m³ Lub oil: 110/80 t Fuel oil: 1.421,50 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane starboard - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Crew |
27 |
|
Manager |
Oman Shipping Company Muscat Oman |
|
Operator |
Oman Ship Management Co SAOC A75 OSC Building: 3rd Floor Dohat Al Adab Street Muscat 118 Oman |
|
Registered owner |
Sadah Silver Maritime Transportation Company Limited |
|
Latest data adjustment |
25 April 2020 |
