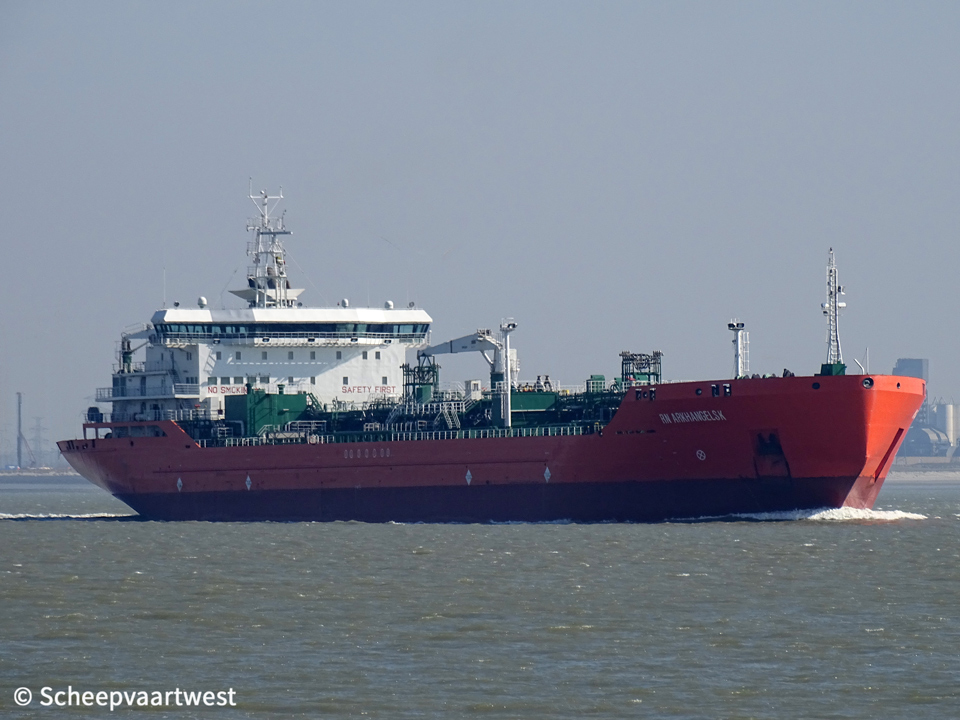

Westerschelde 14 March 2016 |
|
Name |
RN ARKHANGELSK |
|
Previous names |
2008 build as: Arkhangelsk |
|
Type |
Chemical and oil product carrier |
|
IMO-number |
9384435 |
|
Call sign |
5BJQ2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
19.986 t |
|
DWT |
Summer: 30.720 t |
|
NT |
9.194 t |
|
Displacement |
40.043 t |
|
Lightship |
9.323 t |
|
Length |
176,10 m overall 169,93 m between perpendiculars |
|
Breadth |
29,80 m extreme |
|
Draught |
Max: 9,92 m |
|
Depth |
14,00 m |
|
Speed |
Max: 15,0 knots |
|
Built |
2008 |
|
Keel laid |
20/09/2006 |
|
Date of completion |
31/10/2008 |
|
Builder casco |
Navantia Carenas Puerto Real Puerto Real Spain |
|
Builder Completion |
Factorias Vulcano, S.A. Vigo Spain |
|
Yard number |
508 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 9L48/60B - 4 stroke 9 cylinder combustion engine output 10.800 kW at 500 rpm |
|
Propellers |
1x Kamewa Ulstein controllable pitch propeller - aft at 110 rpm Diameter: 6.100 mm |
|
Boilers |
2x Thermal oil heater, oil fired 1x Thermal oil heater, exhaust heated |
|
Shaft generator |
1x AVK 1.250kW |
|
Generators |
3x MAN-B&W 6L21/31 combustion engine 1.290 kW at 1.000 rpm connected with AVK generators 1.225 kW |
|
Emergency generator |
1x MAN D2876 diesel engine 375 kW at 1.500 rpm connected with a Newage HMC 534 E2 generator 375 kW Builder: MAN Truck & Bus AG - GE Motoren-Nürnberg |
|
Bow thruster |
1x 1.000kW at 1.480 rpm |
|
Number og cargo tanks |
12 |
|
Cargo tank capacity |
34.669 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
691 m³ |
|
Pumps |
12x cargo pumps each 500 m³/h 2x Cargo pumps each 200 m³/h |
|
Tank capacities |
Heavy fuel: 1.282 m³ Diesel oil: 195 m³ Lub oil: 120 m³ Fresh water: 261 m³ Water ballast: 15.133 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 64 mm |
|
Crew size |
21 |
|
Manager |
SCF Management Services (Dubai) Ltd. |
|
Previous managers |
Provision crane - SWL 3,0 t |
|
Registered owner |
Rubio Holdings Ltd. Cyprus |
|
Latest data adjustment |
29 April 2020 |
