Westerschelde 03 July 2016 |
|
Name |

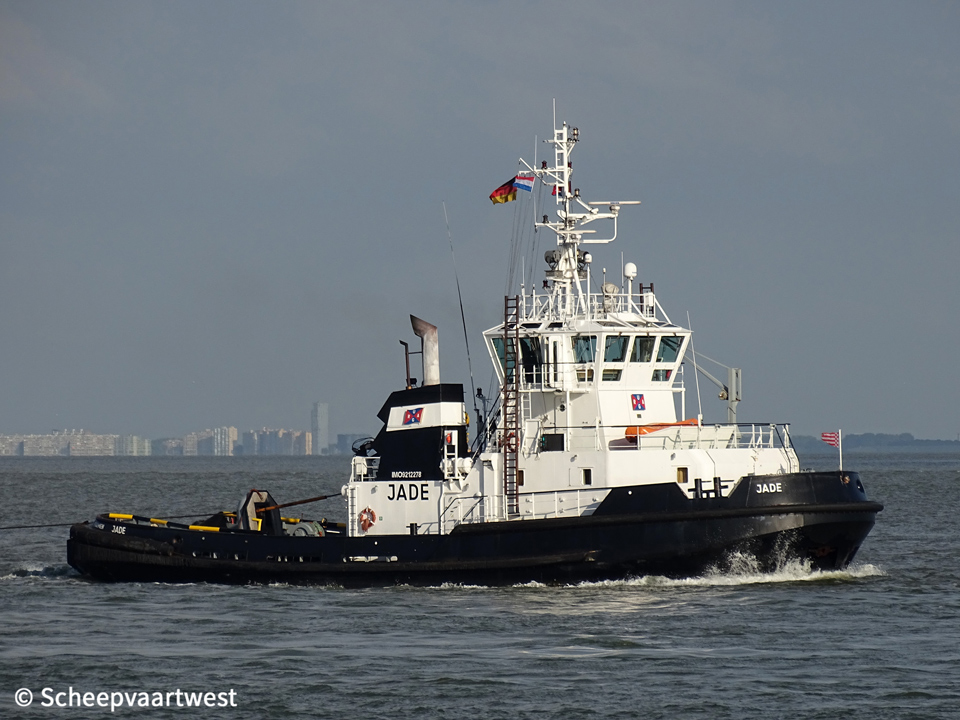

JADE |
|
Type |
Voith-Schneider tug |
|
IMO-number |
9212278 |
|
Call sign |
DDUT |
|
Flag |
Germany |
|
Port of registry |
Bremen |
|
GT |
518 t |
|
DWT |
Summer: 211 t |
|
NT |
155 t |
|
Length |
33,46 m overall 30,11 m between perpendiculars |
|
Breadth |
12,50 m extreme |
|
Draught |
Summer: 3,56 m |
|
Air draft |
14,50 m |
|
Depth |
4,50 m |
|
Speed |
Max: 13,0 knots |
|
Built |
2000 |
|
Keel laid |
01/06/1999 |
|
Launch date |
02/01/2000 |
|
Builder casco |
01/08/2000 |
|
Date of completion |
Nauta-Hull Sp. z o.o. Poland |
|
Builder completion |
J.G. Hitzler Schiffswerft Und Maschinenfabrik Gmbh & Co. Kg Lauenburg/Elbe Germany |
|
Yard number |
818 |
|
Hull material |
Steel |
|
Main engine |
2x Krupp MaK 8M25 - 8 cylinder combustion engine each 2.500 kW / 3.400 bhp at 750 rpm |
|
Propellers |
2x Fixed pitch cycloidal propellers |
|
Boilers |
Auxiliary boiler, oil/gas fired |
|
Generators |
1x Hatz 4L41 C main diesel generatorset 2x MAN D2866 E - 4 stroke 6 cylinder 128 x 155 diesel generatorsets each 150 kW |
|
Emergency generator |
1x Hatz 1D81 main diesel generatorset |
|
Tank capacities |
Ballast: 38,2 m³ |
|
Lifting equipment |
1x Hydraulic crane HAP BTLI 10-2 - SWL 0,7 t |
|
Crew size |
6 |
|
Manager |
Unterweser Reederei GmbH Am Weser-Terminal 10 28217 Bremen Germany |
|
Registered owner |
URAG International GmbH Care of Unterweser Reederei GmbH Am Weser-Terminal 10 28217 Bremen Germany |
|
Renamed |
2017 VB Jade Germany, Bremen - Call sign: DDUT Reg. Owner: URAG International GmbH Manager: Unterweser Reederei GmbH Operator: Boluda Towage Europe |
|
Latest data adjustment |
03 October 2020 |
