Stavanger, Norway 21 August 2017 |
|
Name |

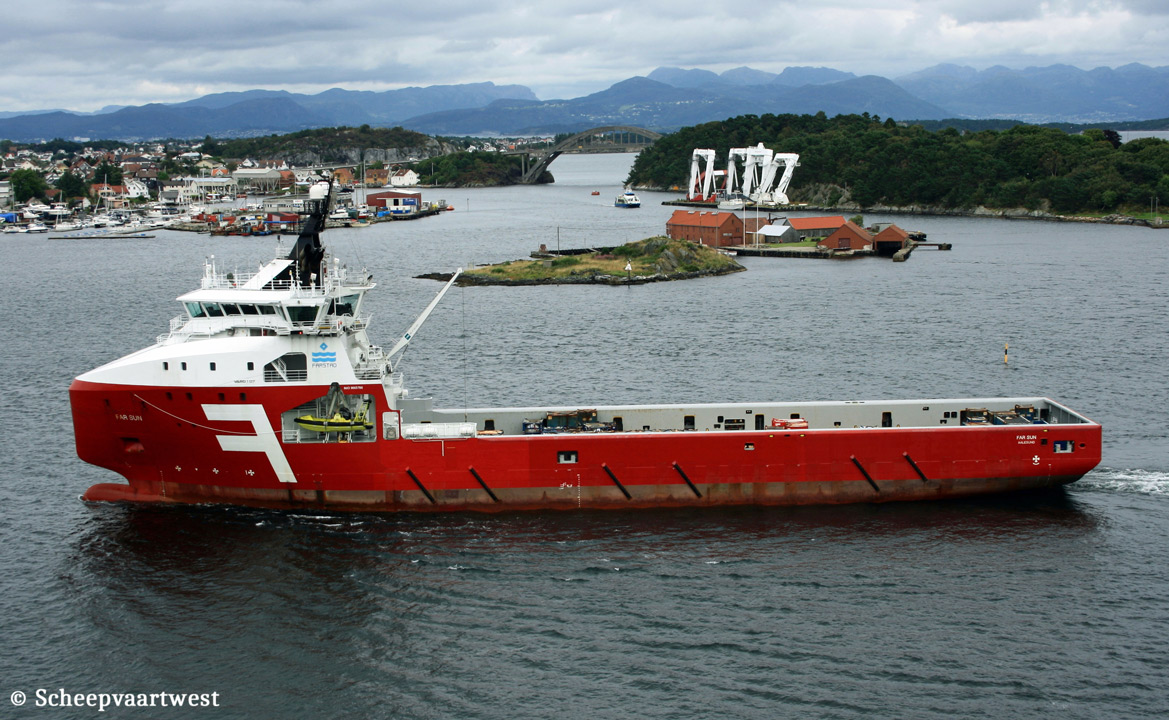

FAR SUN |
|
Type |
Offshore support vessel - Platform supply vessel |
|
IMO-number |
9665786 |
|
Call sign |
LGPT |
|
Flag |
Norway |
|
Port of registry |
Aalesund |
|
GT |
4.797 t |
|
DWT |
Summer: 5.580 t |
|
NT |
1.911 t |
|
Length |
94,68 m overall 84,75 m between perpendiculars |
|
Breadth |
21,00 m extreme |
|
Draught |
Summer: 7,03 m |
|
Depth |
8,50 m |
|
Speed |
12,0 knots |
|
Built |
2014 |
|
Keel laid |
17/04/2013 |
|
Launch date |
18/01/2014 |
|
Date of completion |
10/07/2014 |
|
Builder casco |
Vard Braila SA |
|
Builder |
Vard Group AS Avd Langsten Tomrefjord Norway |
|
Yard number |
815 |
|
Hull material |
Steel |
|
Hull type |
Single hull - Double bottom |
|
Main engine |
Diesel/electric: 3x Bergen Engines C25:33L-8 - 8 cylinder combustion engines each 2.560 kW connected with ABB generators each 2.200 kW |
|
Propulsion thruster |
2x Kongsberg AZP 120 controllable pitch |
|
Generators |
1x Diesel generatorset 600 kW |
|
Emergency generator |
1x Scania CV AB DI16M diesel generatorset 160 kW |
|
Thrusters |
2x Bow thrusters 1.632 bhp 1x Azimuth Thrusters (Bow) 1.200 bhp |
|
Dry Bulk |
301m³ / 10.628 ft³ (6 tanks) |
|
Cargo deck |
Deck dimensions :1.170 m² (58,50 x 20,00 m) Deck load: 3.500 t Deck strength: 10,0 t/m² |
|
Tank capacities |
Fuel oil: 1.331 m³ Pot water: 813 m³ Drill water / WB: 2.751 m³ Mud: 1.003 m³ Brine: 785 m³ Base oil: 152 m³ Methanol :151 m³ |
|
Anchor equipment |
Length: 522,50 m Diameter: 50 mm |
|
Accommodation |
14x 1 persons cabins 7x 2 persons cabins |
|
Manager |
Solstad Shipping AS Nesavegen 39 4280 Skudeneshavn Norway |
|
Registered owner |
Farstad Supply AS Skansekaia 4a 6002 Ålesund Norway |
|
Renamed |
2019 Normand Sun Norway, Skudeneshavn - Call sign: LGPT Manager: Solstad Shipping AS Owner: Farstad Supply AS |
|
Latest data adjustment |
20 December 2020 |
