Stavanger, Norway 21 August 2020 |
|
Name |

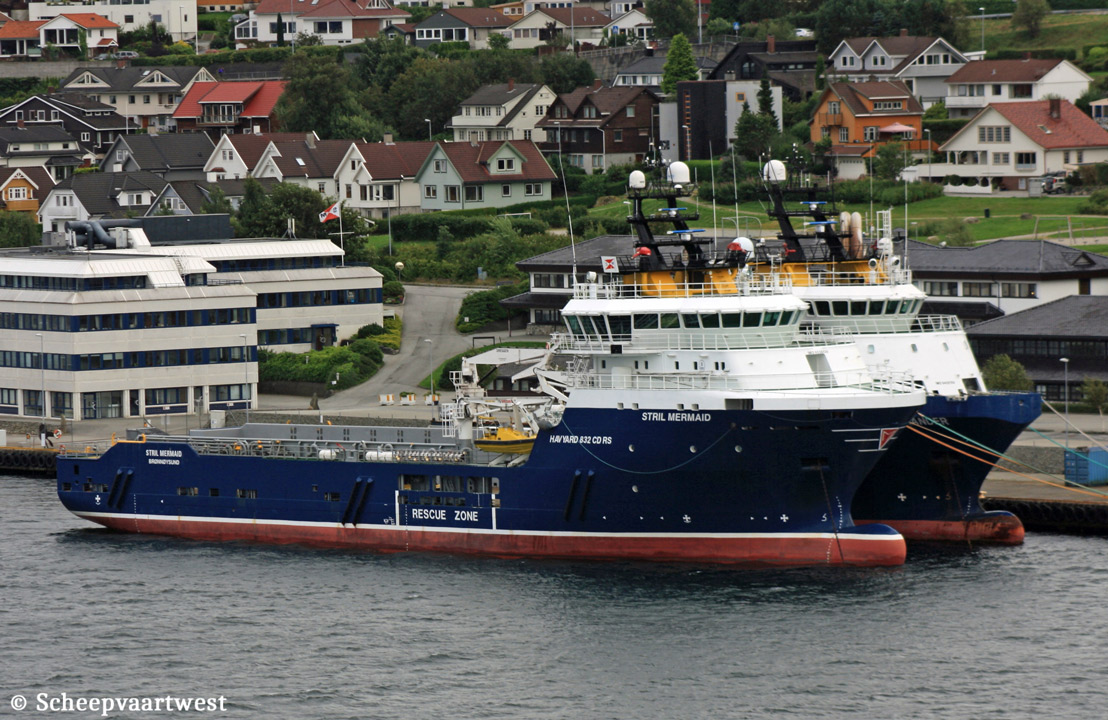

STRIL MERMAID |
|
Type |
Platform offshore supply vessel - Support - Fire fighting Type Havyard 832 CD |
|
IMO-number |
9538529 |
|
Call sign |
LGVY |
|
Flag |
Norway |
|
Port of registry |
Brønnøysund |
|
GT |
3.129 t |
|
DWT |
Summer: 3.743 t |
|
Length |
78,60 m overall 69,00 m between perpendiculars |
|
Breadth |
17,60 m extreme 17,38 m moulded |
|
Draught |
Summer: 6,56 m |
|
Depth |
7,70 m |
|
Speed |
15,0 knots |
|
Built |
2010 |
|
Keel laid |
30/05/2009 |
|
Launch date |
16/01/2010 |
|
Date of completion |
26/03/2010 |
|
Builder |
Simek AS Flakkefjord Norway |
|
Yard number |
122 |
|
Hull material |
Steel |
|
Main engine |
Diesel/electric 2x Cummins QSK 60-M/-(D)M combustion engines each 1.900 kW |
|
Propulsion thrusters |
2x Ulstein Aquamaster US205 CRP azimuth propeller each 1.500 kW Builder: Kongsberg Maritime Finland OY |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Generators |
2x Cummins KTA 50-M2 diesel generators each 1.300 kW |
|
Emergency generator |
1x John Deere 6068TFM50 diesel generatorset |
|
Bow thruster |
2x Kamewa Ulstein thrusters type TT 2000 DPN FP. Each 800 kW |
|
Deck area |
755 m² |
|
Deck load |
2.500 t |
|
Tank capacities |
Fuel oil: 859 m³ Fresh water: 815 m³ Drill water: 2.846 m³ Base oil: 132 m³ Mud: 959 m³ Brine: 959 m³ Methanol: 178 m³ Ballast: 2.846 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 42 mm |
|
Accommodation |
14x Single cabins 4x Double cabins 1x Four man cabins Total beds: 26 1x Hospital, 1 bed |
|
Manager |
Simon Møkster Shipping AS Skogstøstraen 37 4029 Stavanger Norway |
|
Registered owner |
North Sea Safety KS Havnegata 40 8900 Brønnøysund Norway |
|
Latest data adjustment |
28 December 2020 |
