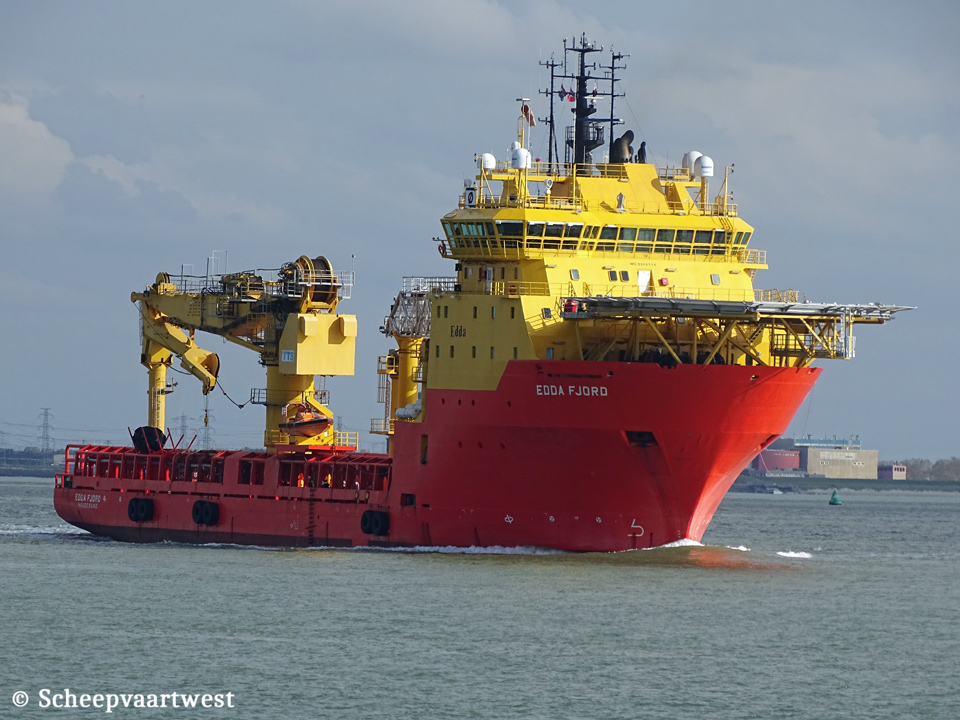

Edda Fjord IMO 9246119 01

Westerschelde 16 October 2020

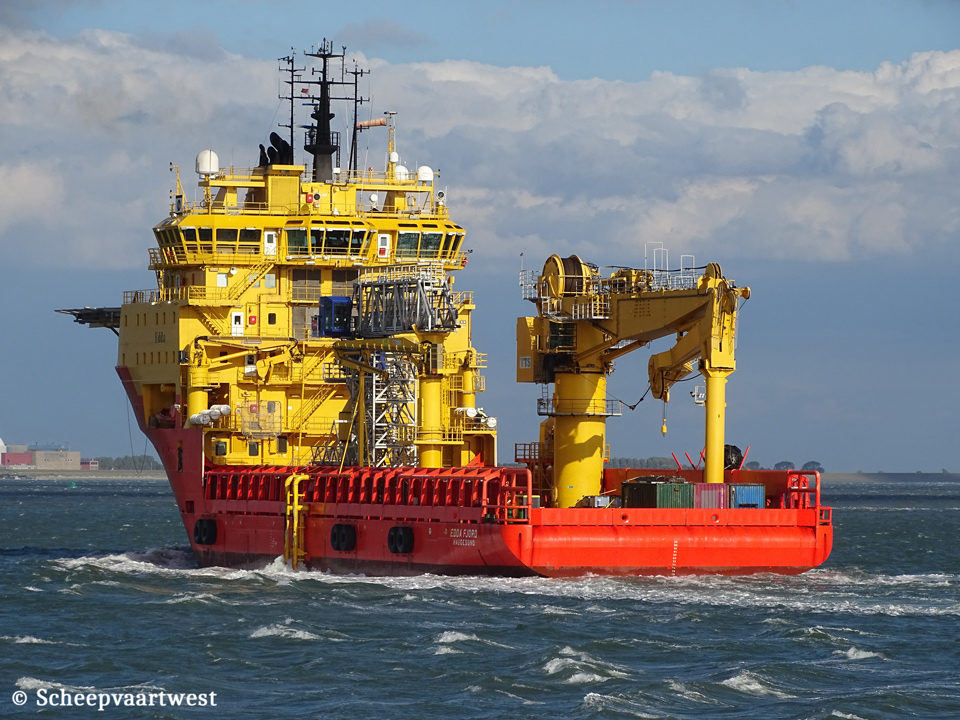

Edda Fjord IMO 9246114 03
Westerschelde 28/08/20


Name

EDDA FJORD

Type

Multi-purpose platform supply vessel

IMO-number

9246114

Previous classification

Lloyd's Register Of Shipping

Call sign

LACU8

Flag

Norway

Port of registry

Haugesund

Previous flags

Marshall Islands, Majuro - Call sign: V7ZA8

GT

5.886 t

DWT

Summer: 6.600 t

NT

1.765 t

Lightweight

4.952 t

Length

98,16 m overall

82,50 m between perpendiculars

104,85 m incl. helideck

Breadth

22,00 m

Draught

Summer: 8,22 m

Air draft

44,00 m

Depth

10,00 m

Speed

Max: 13,0 knots

Built

2002

Keel laid

05/09/2002

Launch date

11/05/2002

Date of completion

24/09/2002

Builder

Flekkefjord Slipp & Maskinfabrikk AS

Flekkefjord

Norway

Yard number

173

Hull material

Steel

Propulsion

  • General: 2x Diesel-electric driven contollable pitch propellers (Diameter: 4.000mm) with variable rpm

  • Main engines: 2x Wärtsilä 8L32, 1x Wärtsilä 12V 32

  • Generator set: 2x 3.600 kW, 1x 5.400 kW. Total: 12.600 kW

  • Horse power ration: 2x 3.600 kW, 1x 5/400 kW. Total: 12.600 kW

  • Fuel type:MDO / MGO

Main propellers

  • Type: PR 100, variable pitch

  • Speed: 153 rpm

  • Diameter: 4.000 mm

  • Manoeuvring machinery:Two AC asynchronus water cooled motors. Each rating 4.500 kW at 900 rpm - 2x high-lift spade rudders - 2x steering gears for parallel and split running

Auxiliaries / Electrical power

  • Generators: 2x 3.600 kW, 1x 5.400 kW. Total: 12.600 kW

  • Harbour generator: 700 kW, 450 Volt, 60 Hz at 1.800 rpm

  • Emergency generator: Caterpillar 3508B:140 kW, 450 Volt, 60 Hz at 1.800 rpm

Thrusters

Bow thrusters: 2x Brunvoll Tunnel thrusters each 1.200 kW

Bow azimuth thruster:1x Brunvoll Retractable azimuth thruster 1.500 kW

Stern thruster:2x Brunvoll Tunnel thrusters each 1.000 kW

Deck loading capacity

  • Deck measurements: 64,30 m 5 pipe lengths a’ 12,20 m

  • Outside deck area: 1.270 m² - 1.450 m² with removed cargo rails

  • Deck cargo capacity: 3.500 t VCG 1,00 m above main deck without main crane on board. Max 10 t/m²

Deck equipment

  • Anchor chain: 19 shackles PS, 20 shackles SB. Type: 58 mm Grade NVK3 Stud Link chain

  • Anchors:2x Type: SPEK, Mass of anchor: 5.225 kg

  • Anchor Windlass / Mooring Winch: 2x Anchor windlass/mooring winches forward

  • Mooring winch: 2x anchor windlass/mooring winches forward - 2x capstans aft type: Karmøy Winch

  • Deck cranes: PS: 1x 100 t/10 t at 10,00 m type: Hydramarine - SB: 1x 30 t/3 t at 10,00 m type: Hydramarine - PS aft: Red Rock 2 t. active heave compensated

  • Tugger winches: 2x 15 t type: Karmøy Winch

  • Capstans:2x type: Karmøy Winch 10 t

  • Deck power supply: Moonpool cabinet: 3p 2000 A at 440 VAC. Breaker setting from 1000 A to 2000 A

  • Offshore crane:Single part: 100 t at 15,00m 30 t at 32,00 m - Double part: 200 t at 9,00 m 28 t at 32,00 m - Wire Max hook travel: 1.560 m active heave compensated - Aux winch: 10 t at 35,00 m. Wire length 560 m

Liquid tank capacities

Marine gas oil: 1.941 m³

POT water: 1.486 m³

Drill water/ballast: 2.120 m³

Slop tanks: 80 m³

Mud: 1.177 m³ (SG 2,5)

Special products LFL/LFL: 474 m³

Misc.tanks: 221 m³

Fresh water production unit: 1x 80 m³/24h

Liquid discharge

POT water: 1x 250 m³/h at 10,0 bar

Fuel oil pumps: 1x 250 m³/h at 10,0 bar

Brine pumps: 2x 160 m³/h at 24,0 bar

Liquid Mud pumps: 4x 75 m³/h at 24,0 bar

Special products pumps: 2x 75 m³/h at 9,0 bar

Drill water pumps: 2x 250 m³/h at 10,0 bar

Methanol pumps: 2x 100 m³/h at 10,0 bar

Discharge piping:4"

Bulk tank capacities

Bulk cement tanks: 5x tanks, each 81 m³ Total 405 m³

Bulk Discharge:2x compressors each 26,6 m³/min at 5,6 bar

Tank capacities

Ballast: 1.502 m³

Lifesaving / rescue

  • Approved lifesaving appliances for: LSA approved for 90 persons

  • Liferafts: 12x 25 persons

  • Rescue/MOB boat:- NorSafe 655 with 170 hp - Brude HD720ASI - BUKH+Steyr SOLAS 236, 212 hp with Almarin 230 waterjet with 212 hp

  • Fire-fighting/foam:Unitor Water/Foam pump/monitor covering cargo deck area and helicopter deck

Accommodation

  • Total no. Berths: 90 Beds

  • Total no. of cabins: 62

  • Single cabins: 34x Single cabins

  • Double cabins: 28x Double cabins. Mixed separate double bedroom, shared bathroom and cabins with bathroom

  • Office: 4x Offices. Office space on bridge - 1x Client operation room

  • Hospital: 1x Hospital

  • Ventilation/A-C for accommodation: High pressure single-pipe fully redundant ventilation system. Full heating/AC throughout the accommodation 2x 20 m³ + 1x 17 m³ pr day

  • Other: Conference room, Lounges, Gymnasium and Sauna, 2x Laundries, Wardrobe

Other

  • Helicopter deck: Helicopter deck designed for Super Puma (9,3 t). Helideck designed and equipped in accordance with relevant authorities from Norway, Denmark, United Kingdom and Netherlands. Helicopter monitoring system

  • Helicopter Reception: 1

  • Moonpools: 1x Moonpool 7,20 x 7,20 m with removable bottom hatch - 1x Mini-moonpool diameter 1.200 mm prepared for Multibeam Echo sounder

  • Anti roll system: 3x Passive roll reduction tanks

  • Anti heeling system: 1x Anti heeling pump Framo 2.100 m³/h at 7.000 mmwc - Automatic-/manual system

  • Deck power supply: Moonpool cabinet can deliver 3p 2/000 A at 440 VAC. Breaker setting from 1.000 A to 2.000 A

Navigation equipment

  • Radar:1x Furuno FR-2825 3 cm ARPA -1x Furuno FR-2835S 10 cm ARPA.

  • Electronic Chart System: 1x Kongsberg K-ECDIS system

  • Compass: 3x S.G. Brown Meridian Gyro

  • Autopilot: 1x Robertson AP9 Mk 3

  • Echo Sounder: 1x Furuno FE 700 with digital depth indicator

  • Navtex: 1x Furuno NX 700

  • DGPS: GPS Navigator GP-170 and GPS Navigator GP-150

  • AIS: 1x Furuno Universal AIS FA-100

  • Voyage data recorder: 1x Furuno VR 3000s

  • Sound direction finder: 1x Taiyo TD-L1550A

  • Log: 1x Furuno DS 80

  • Helideck Monitoring System: 1x Kongsberg Seatex HMS 100

Communication equipment

  • General: GMDSS installation in accordance with IMO regulations for vessels operating within Sea Area A3

  • GMDSS Radio MF/HF Transceivers & DSC: 1x Furuno FS-2575C

  • GMDSS VHF with DSC: 1x Furuno DSC-FM8800S/D - 1x Furuno DSC-FM8900S

  • GMDSS VHF portable: 3x Jotron Tron TR20

  • VHF: 4x Sailor RT2048 simplex

  • GMDSS EPIRB: 1x Jotron 40S - 1x Jotron 45 SX

  • GMDSS SART: 2x Jotron Tron

  • GMDSS Inmarsat C: 1x Furuno Felcom 15 - 1x Furuno Felcom 18

  • UHF: 10x portable Motorola GP900 (6 channels with HelmetCom head sets)

  • Sattelitte sytem: SEVSAT High speed data, phone, fax

  • Mobile Telephone: 2x Phillips and 2 x Gigaset

  • Telefax: SatCom F

  • Helicopter Communication: Fixed and portable VHF’s and Radio beacon

Manager

Østensjø Rederi AS

Smedasundet 97B

5525 Haugesund

Norway

ISM manager

Østensjø Rederi AS

Smedasundet 97B

5525 Haugesund

Norway

Registered owner

West Supply VIII AS

Smedasundet 97

5525 Haugesund

Norway

Latest data adjustment

18 February 2021
