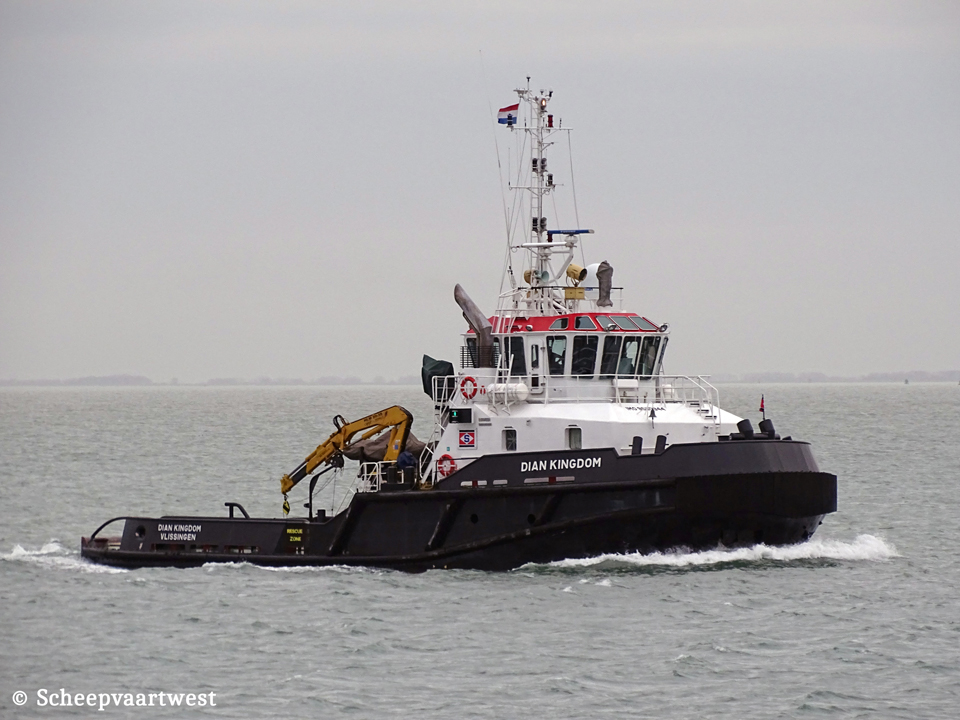

Dian Kingdom IMO 9660944 03

Westerschelde 07 December 2019

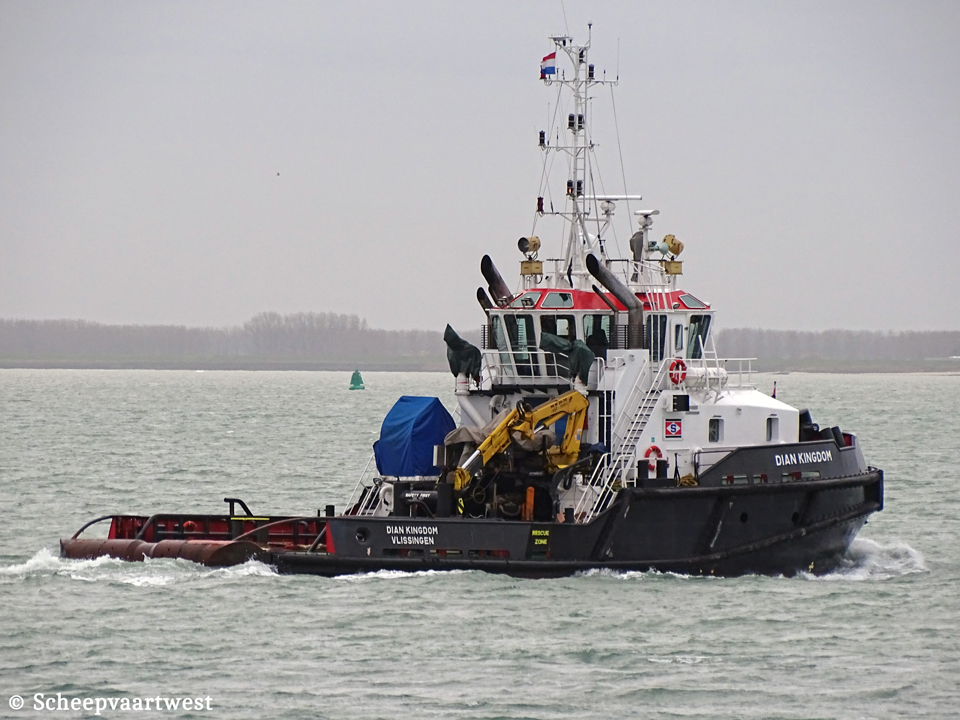

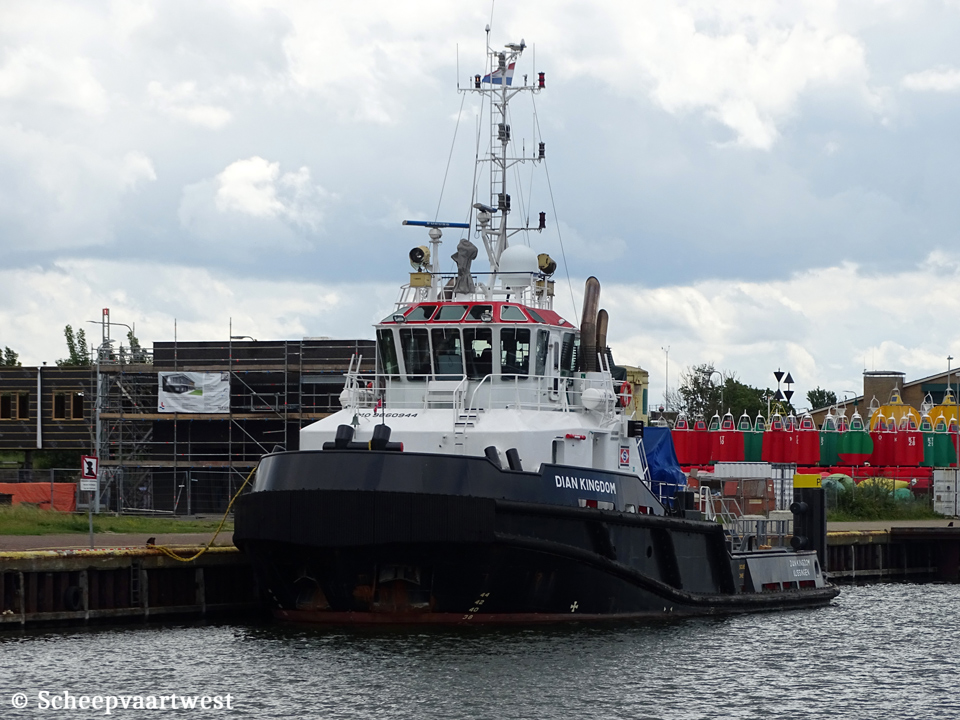

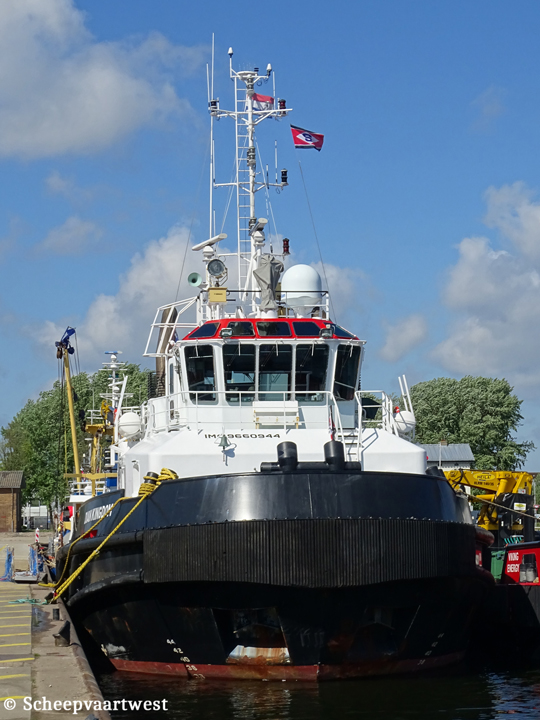

Dian Kingdom IMO 9660944 04   Dian Kingdom IMO 9660944 01   Dian Kingdom IMO 9660944 02
Westerschelde 07/12/19   Vlissigen 16/06/19   Vlis 02/05/20


Name

DIAN KINGDOM

Type

Tug / Pusher - Fire fighting ship - Water spraying - Stan Tug 3011

IMO-number

9660944

Call sign

PCTG

Flag

The Netherlands

Port of registry

Vlissingen

GT

365 t

DWT

Summer: 200 t

NT

109 t

Length

30,66 m overall

27,50 m between perpendiculars

Breadth

11,13 m overall

Draught

Min: 4,80 m

Max: 5,20 m

Air draft

Min: 12,31 m

Max: 17,49 m

Freeboard

230 mm

Depth

4,60 m

Speed

Service: 11,2 knots

Max: 13,0 knots

Economic: 8,0 knots

Built

2015

Builder cargo

Damen Song Cam Shipyard

Hai Phong

Vietnam

Yard number

511802

Hull material

Steel

Watertight compartments

5

Continuous decks

1

Main engine

2x MTU 16V4000 M63R - 4 stroke 16 cylinder 170 x 210 mm combustion engines each 1.840 kW at 1.600 rpm

Total: 3.680 kW / 4.935 hp

Builder: MTU Friedrichshafen GmbH, Friedrichshafen - Germany

Propellers

2x Fixed pitch propeller - aft at 220 rpm

Generators

2x CAT 6.6 TA main diesel generatorsets each 125 kVA - 100 kW - 159 hp

Bow thruster

288 bhp, hydraulic driven

Bollard pull

70 t

Free deck space

73 m²

Deck strength

3,0 t/m²

Deck equipment

  • Towing winch: 80 t / 180 t (pull / hold) 800 m x 50 mm

  • Anchor handling winch: 40 t / 180 t (pull / hold) 150 m x 50 mm

  • Tugger winch: 2x Dromec 12,0 t

  • Towing pins: Karmoy fork SWL 300 t

  • Push bow: Full length rubber fendered - incl. towingbit SWL 40 t

  • Stern roller: SWL 100 t

Fire fighting FiFi

1x Nijhuis pump HGTF1-350.650 - 2.800 m³/h

Tank capacities

Fuel oil: 173,0 m³

Fresh water: 16,0 m³

Lub oil: 1,5 m³

Hydraulic oil: 1,5 m³

Dirty oil: 2,9 m³

Sewage: 4,7 m³

Bilge water: 3,8 m³

Lifting equipment

1x Heila HLM 0020-3S crane - SWL 1,7 t at 10,00 m

Accommodation

Persons: 10

Single cabins: 2

Double cabins: 4

Manager

Seacontractors BV

Gortstraat 36

4331 LC Middelburg

The Netherlands

Registered owner

Global Ship Leasing 28 BV

Middelburg

The Netherlands

Latest data adjustment

26 July 2022
