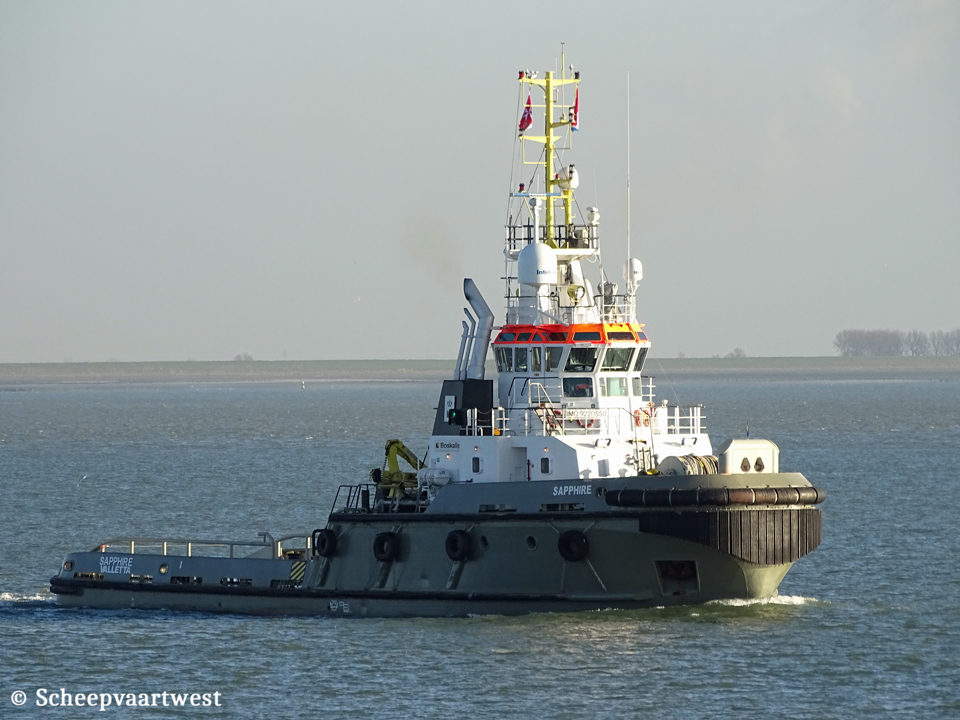

| Westerschelde 12 December 2018 |
|
Name |
SAPPHIRE |
|
Previous names |
2001 - 12/2018 Union Sapphire |
|
Type |
Seagoing tug - Offshore vessels / anchor handling tug (AHT) |
|
IMO-number |
9220550 |
|
Call sign |
9HA4927 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
Belgium, Antwerpen - Call sign: ORLL |
|
GT |
498 t |
|
DWT |
383 t |
|
NT |
149 t |
|
Length |
35,75 m overall 28,70 m between perpendiculars |
|
Breadth |
11,51 m extreme |
|
Draught |
Max.: 5,05 m Min.: 4,70 m |
|
Depth |
5,60 m moulded |
|
Speed |
Max: 13,0 knots Economic: 10,0 knots |
|
Built |
2001 |
|
Keel laid |
04/05/2000 |
|
Launch date |
09/05/2001 |
|
Date of completion |
01/08/2001 |
|
Builder |
Astilleros Armon SA Navia Spain |
|
Yard number |
512 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
2x ABC type 8 MDZC - 4 stroke 8 cylinder 256 x 310 mm combustion engines total 3.700 kW / 5.028 hp at 1.000 rpm |
|
Propellers |
2x Schottel type SRP1515FP full azimuth propellers in Kort nozzles |
|
Generators |
2x Scania DS 9 95M diesel engines each 196 kW connected with generators each 180 kVA / 150 kW - 3x 380 Volt - 50 Hz 1x Diesel generatorset for harbour duties 90 kVA / 75 kW |
|
Bow thruster |
1x Schottel SST 100CP - 200 kW |
|
Bollard pull |
Ahead: 65 t Astern: 60 t |
|
Winch aft |
For towing a Robust waterfall winch Brusselle type SLH-130/50/2-1 with one warping head on aft deck is fitted, Brake holding: 130 t, dynamic: 44 t at 10 m/min, slack rope speed: 50 m/min. |
|
Winch for deck |
Combined towing/anchor winch Brusselle type SLH-130.50/2-2-2 on forecastle deck with double drum1.600 x 700 x 2 x 600 mm Brake holding: 130 t, dynamic: 44 t at 10 m/min, slack rope speed: 50 m/min. |
|
Tugger winch |
1x BRUSSELLE type HL 15 / 1-0 - pull 15 t |
|
Stern roller |
SWL 200 t - 4,00 m length, 1.250 mm diameter |
|
Towing pins |
Karmoy Karm towing pins 160 t |
|
Stopper pins |
Karmoy Karm Fork, MBL 300 t |
|
Towing equipment |
900 m / 48 mm |
|
Deck area |
85 m² |
|
Deck strength |
5,0 t/m² |
|
Max deck cargo |
20 t |
|
Auxiliaries |
Hydraulic pumps for propulsion system are main engine driven All our tugs are fully equipped for salvage assistance s.a. external power supply, oxy-acetylene cutting and welding, salvage pumps |
|
Lifting equipment |
1x Palfinger - SWL 700 kg @ 9,20 m 1x Davit for rescue boat - SWL 1,25 t |
|
Accommodation |
3 single and 3 double cabins provide air-conditioned accommodation for 9 persons |
|
Navigational equipment |
2x X-band radar, Furuno FAR-2117 2x GPS navigator, Furuno GP 36 & OP-150 1x Satellite compass, Furuno SC-50 1x Gyro compass system Robertson 1x echo-sounder, Skipper 1x Autopilot system, Robertson 1x AIS system, McMurdo 1x ECDIS Transas Navisailor 4000 |
|
Owner |
Boskalis Offshore Transport Services NV 3350 AA Papendrecht The Netherlands |
|
Latest data adjustment |
19 December 2021 |
