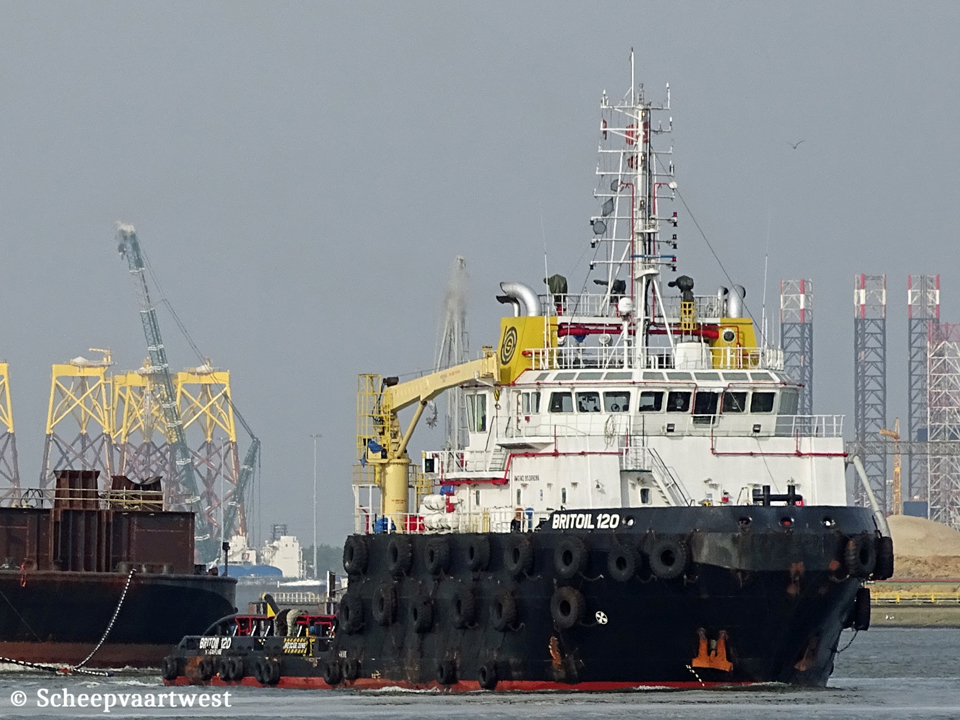

| Vlissingen, The Netherlands 23 April 2019 |
|
Name |
BRITOIL 120 |
|
Type |
Ocean anchor handling tug - Fire fighting vessel |
|
IMO-number |
9538696 |
|
Call sign |
9V7116 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
2.375 t Suez: 2.677 t |
|
DWT |
1.481,81 t |
|
NT |
712 t Suez: 1.220,26 t |
|
Displacement |
4.080,96 t |
|
Length |
59,00 m overall 49,50 m between perpendiculars |
|
Breadth |
16,00 m moulded |
|
Draught |
Summer: 7,50 m |
|
Freeboard |
836 mm |
|
Depth |
7,50 m moulded |
|
|
Service: 13,0 knots |
|
Built |
2010 |
|
Keel laid |
08/06/2009 |
|
Launch date |
30/05/2010 |
|
Date of completion |
26/07/2010 |
|
Builder |
P. T. Britoil Offshore Indonesia - Batam Yard 3rd Floor Komplek Regency Park Blok A1 No. 11 Pulau Batam Indonesia |
|
Yard number |
H200423 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
2x MaK 9M32C - 4 Stroke single acting 9 cylinder 320 x 480 mm combustion engines each Mcr 4.501 kW / 6.120 bhp at 600 rpm Total: Mcr 9.002 kW / 12.240 hp Builder: Caterpillar Motoren GmbH & Co. KG - Germany |
|
Gearboxes - |
2 x Reintjes LAF 7750 gearboxes - ratio 4.636 :1 |
|
Propellers |
2x Controllable pitch propellers Diameter: 4.200 mmm - 4 blads Manufacturer: Berg Propoulsion Production AB |
|
Shaft generator |
2x 1.960 kW / 380 Volt 50 Hz Manufacturer: Anhaltische Elektromotorenwerk Dessau GmbH |
|
Generators |
2x Caterpillar 3508B - 4 stroke 8 cylinder 170 x 190 mm diesel engines each Mcr 800 kW connected with generators each 800 kW / 380 Volt 50 Hz |
|
Emergency generator |
1x Caterpillar C4.4 diesel generator 86 kW / 380 Volt 50 hz |
|
Bow thruster |
2x Brunvoll FU-63-LTC-1550 tunnel thruster 750 kW / 1,020 bhp, forward 1x Brunvoll FU-63-LTC-1550 tunnel thruster 750 kW / 1.020 bhp, aft |
|
Bollard pull |
150 t |
|
Towing / Anchor winch |
Brattvaag double drum waterfall type SL300W/BSL300 hydraulic winch with remote controls in wheelhouse & Brattvaag spooling device: 300,8 ton pull @ 12,80 m/min 177,7 ton pull @ 21,7m/min 119,2 ton pull @ 32,4m/min Wire Capacity: 2.000m x 76 mm diameter Brake holding: 400 ton |
|
Stern roller |
6,40 m - Diameter: 2,4 m 400 ton |
|
Tugger winch |
2x Brattvaag, 10 ton line pull @ 0-38,50 m/min |
|
Wire storage reels |
2 x Brattvaag, 10 ton line pull @ 0-33 m/min, storage reels will contain 1.500 m x 76 mm diameter 1x Brattvaag, 21 ton line pull @ 0-32 m/min, storage reels will contain 1.500 m x 76 mm diameter |
|
Towing pins / Shark jaws |
1x Triplex guide pins, type S-200 2x Karmfork shark jaws 1x Triplex shark jaw, type H-350-N |
|
Fire monitors |
2x Fixed fire monitors of 1.200 m³/hr each 2x Fire pump of 1.717 m³/hr each. 1x Fixed foam/water fire monitors of 360 m³/hr 1x Foam pump of 10 m³/hr |
|
Clear deck space |
23,00 x 12,30 m |
|
Deck strength |
7,5 t/m² |
|
Tank capacities |
Lub oil: 35,10 m³ Fuel oil: 1.291,20 m³ Hydraulic oil: 5,70 m³ Fresh water: 373,50 m³ |
|
Anchor equipment |
2x 2.280 kg stock-less anchors Anchor chain: 2x 412,50 m x 38 mm diameter |
|
Lifting equipment |
1x North pacific crane - SWL 2,5 t at 25,00 m |
|
Safety equipment |
Liferafts: 4x 25 man Rescue boat: 1x 6 man |
|
Accommodation |
Fully air-conditioned for 48 men |
|
ISM & commercial manager |
Britoil Offshore Services Pte 79, Tech Park Crescent, Tuas Techpark Singapore 638068 Republic of Singapore |
|
Registered owner |
Britoil Offshore Services Private Ltd. 79, Tech Park Crescent, Tuas Techpark Singapore 638068 Republic of Singapore |
|
Latest data adjustment |
13 April 2022 |
