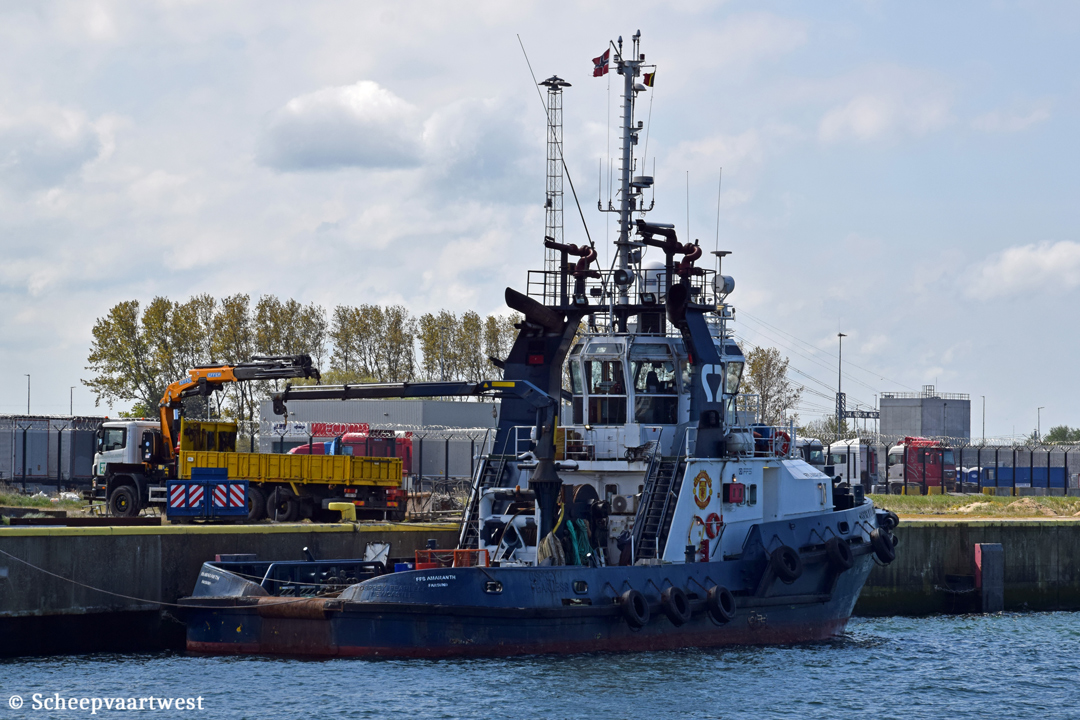

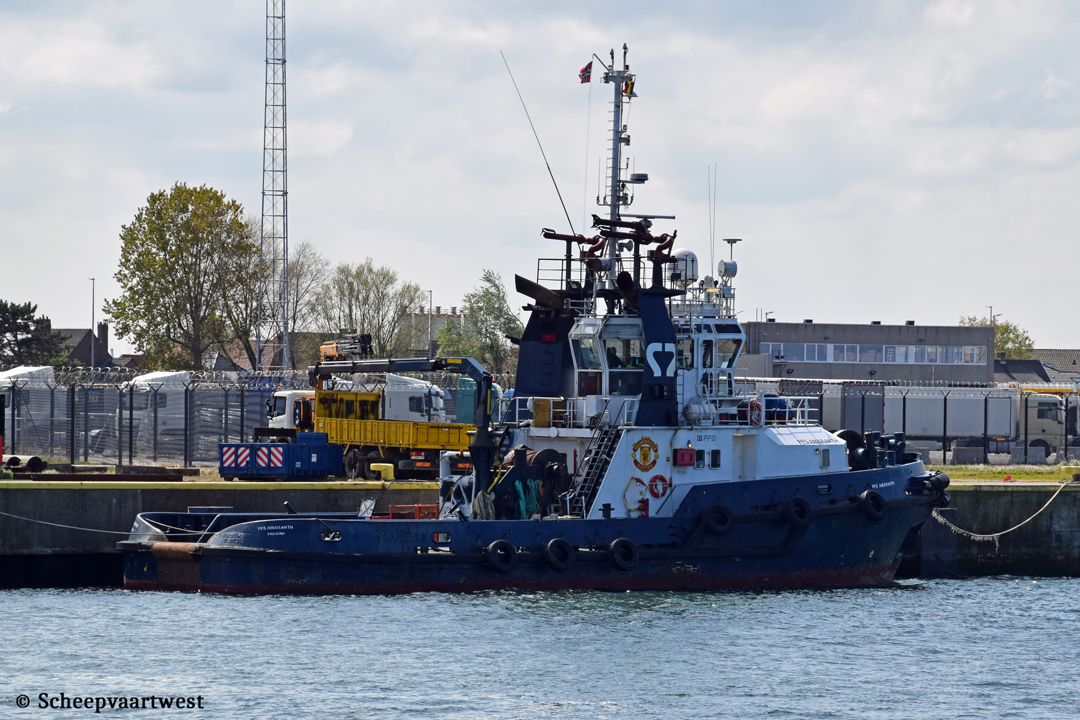

| Zeebrugge 27 April 2022 |
 |
| Zeebrugge 27/04/22 |
|
Name |
FFS AMARANTH |
|
Previous names |
1997 - 2011 Orion 2011 - 2014 Paolo Parante 2014 - 2017 Osprey Fearless |
|
Type |
Deep sea/Harbour ASD Tug |
|
IMO-number |
9161912 |
|
Call sign |
LFBJ |
|
Flag |
Norway |
|
Port of registry |
Farsund |
|
Previous flags |
Italy - Call sign: ILSG until 2014 2014 - 2017 United Kingdom- Call sign: 2HVG3 |
|
GT |
360 t |
|
DWT |
285 t |
|
NT |
108 t |
|
Length |
30,00 m |
|
Breadth |
9,85 m |
|
Draught |
Summer: 4,70 m |
|
Depth |
5,35 m |
|
Speed |
Max: 13,2 knots |
|
Built |
1997 |
|
Keel laid |
27/12/1996 |
|
Launch date |
17/09/1997 |
|
Date of completion |
16/12/2997 |
|
Builder |
Astilleros Armon Vigo S.A. Vigo Pontevedra Spain |
|
Yard number |
424 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
2x MaK 8M20 - 8 cylinder combustion engine each 1.520 kW at 1.000 rpm |
|
Propellers |
2x Lips azimuth stern thrusters 4 blades - Diameter 2.300 mm |
|
Generators |
2x Caterpillar 3306 diesel generatorsets each 44 kW - 380 - 50 Hz |
|
Bow thruster |
1x Lips thruster 150 kW/ 250 bhp |
|
Bollard pull |
Max: 52 t |
|
Deck equipment |
1x Fore harbour towing winch with: 1 drum with 100 m length and 88 mm diameter synthetic rope 1x Aft waterfall towing winch: 2 drums:
1x Towing hook SWL 50,0 t 2x Fork towing pins SWL 100 t stroke 500 mm |
|
Fire fighting |
2x Fire pumps: 1x 1.200 m³ 1x 1.400 m³ |
|
Tank capacities |
Gasoil: 200 m³ Lub/Hydraulic oil: 8 m³ Balast: 100 m³ Rec- oil: 2x18 m³ Foam: 12 m³ Fresh water: 66 m³ |
|
Lifting equipment |
1x Deck crane BS 300M4 max. 30,0 t 15 t @ 1,5 m 6,8 t @ 4,0 m 2,2 t @ 12,44 m |
|
Accommodation |
Fully air-conditioned Single cabins: 2 for 2 crew Double cabins: 4 for 8 crew Total beds 10 |
|
Crew |
6 |
|
Navigation equipment |
2x Radars GPS GPS compass Navtex Electronic chart plotter Autopilot Echo-sounder Magnetic compass GMDSS AREA A1 + A2 |
|
Registered owner |
FFS Marine AS Strandgaten 10 4550 Farsund Norway |
|
Renamed |
2023 Chambon Mistral Falg: 08/2023 Republic of Panama, Panama City - Call sign: HOA3122 Flag: 27/2023 France - Call sign: FMXO Owner: Montaigne Finance Manager: Compagnie Maritime Chambon - France |
|
Latest data adjustment |
05 December 2023 |
