| Westerschelde 23 October 2019 |
|
Name |

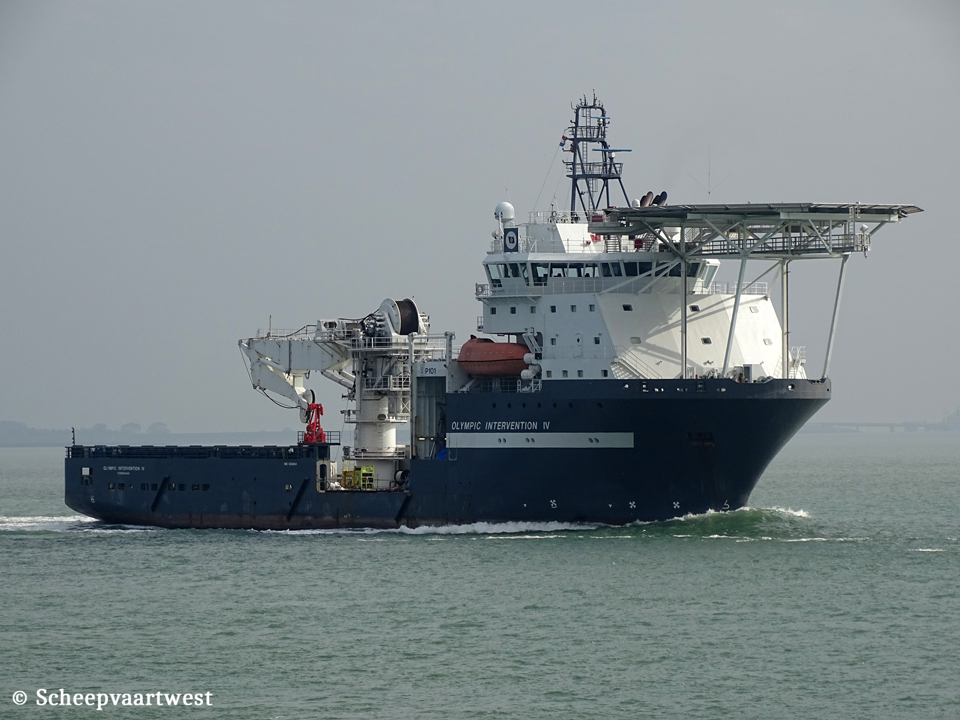

OLYMPIC INTERVENTION IV |
|
Type |
Offshore support vessel |
|
IMO-number |
9396854 |
|
Call sign |
LAFQ3 |
|
Flag |
Norway |
|
Port of registry |
Fosnavaag |
|
GT |
5.974 t |
|
DWT |
3.782 t |
|
NT |
1.784 t |
|
Length |
95,00 m overall 82,00 m between perpendiculars |
|
Breadth |
20,50 m |
|
Draught |
Summer: 7,00 m |
|
Depth |
9,00 m |
|
Speed |
Service: 14,0 knots Max: 18,0 knots |
|
Built |
2008 |
|
Keel laid |
01/06/2007 |
|
Delivery date |
11/07/2008 |
|
Builder casco |
Maritim Shipyard Sp z oo Gdansk Poland |
|
Builder completion |
Ulstein Verft AS Ulsteinvik Norway |
|
Yard number |
280 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
Diesel electric: 4x Bergen C25:33L9P - 4 stroke single acting 9 cylinder 250 x 330 mm combustion engines each 2.500 kW / 3.399 hp at 900 rpm connected 4 generators each 2.500 kW Builder: Rolls-Royce Marine AS - Norway |
|
Propulsion |
2x Azimuth electric drive units total Power: Mcr 10.000 kW /13.596 hp |
|
Emergency generator |
1x Scania DI 12 diesel generatorset 236 kW |
|
Thruster |
2x Controllable pitch thruster 1.500kW / 2.039 bhp, forward 1 Retract. directional thruster 1.500kW / 2.039 bhp, forward |
|
Deck aera |
1.110 m² |
|
Tank capacities |
Fuel oil (MDO) 1.423 m³ Fresh water: 906 m³ Ballast water: 2.615 m³ Brine: 965 m³ |
|
Cargo gear |
1x Crane - SWL 150 t 1x Crane - SWL 25 t |
|
Accommodation |
100 persons |
|
Registered owner |
Olympic Subsea ASA |
|
Renamed |
2021 Intervention Liberia, Monrovia - Call sign: 5LAD2 |
|
Latest data adjustment |
20 July 2022 |
