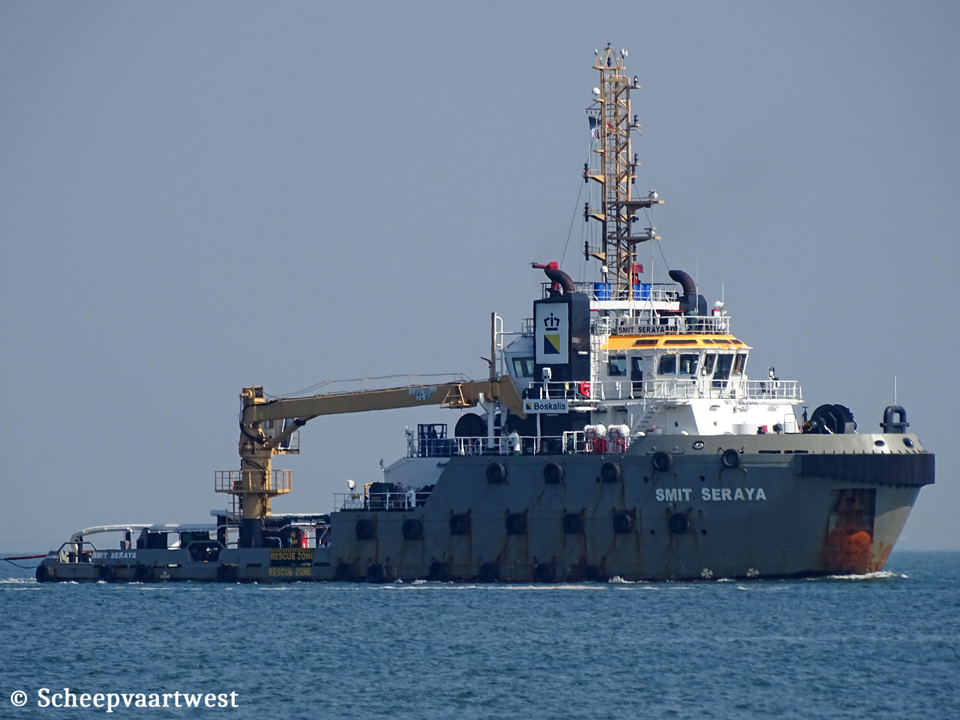

Smit Seraya - IMO 9662368

Name

SMIT SERAYA

Type

AHT - Anchor Handling Tug - Fire fighting ship - Water spraying vessel

IMO-number

9662368

Call sign

9V9845

Flag

Republic of Singapore

Port of registry

Singapore City

GT

1.463 t

DWT

925 t

NT

439 t

Length

51,80 m overall

44,40 m between perpendiculars

Breadth

15,00 m moulded

Draught

Max: 6,20 m

Air draft

23,60 m

Freeboard

812 mm

Depth

6,50 m moulded

Speed

Max: 13,5 knots

Economic: 8,0 knots

Built

2013

Keel laid

02/12/2011

Launch date

20/11/2012

Delivery date

23/07/2013

Builder

Guijiang Shipbuilding Co., Ltd. - Wuzhou GX Yard

China

Yard number

GJ01-2010-20

Hull material

Steel

Continuous decks

1

Main engine

2x Wärtsilä 8L26 - 4 stroke 8 cylinder 260 x 320 mm combustion engine each 2.720 kW / 3.646 bhp at 1.000 rpm

Total: 5.440 kw / 7.300 hp

Builder: Wärtsila Italia S.p.A., Trieste, Italy

Propellers

2x Kawasaki 900CB/150G controllable pitch propellers in Kort nozzles - aft at 166,0 rpm

Diameter: 3.500 mm

Shaft generator

2x 1.000 kW each

Generators

2x Main diesel generatorsets each 531 kVA - 425 kW - 632 hp

1x Main diesel generatorset 425 kVA - 340 kW - 505 hp

Emergency generator

1x Diesel generatorset 90 kVA - 72 kW - 124 hp

Thruster

2x Controllable pitch thrusters each 388 kW, forward

1x Controllable pitch thruster 388 kW, stern

Bollard pull

120,6 t

Deck equipment

• Capstan: 2x 5,0 t at 0 - 15,00 m/min

• Tugger winch: 2x 10,0 t at 15,00 m/min

• Anchors: 2x HHP, AC-14 - 1.440 kg each

• Anchor chain: 2x 14 lengths, 34 mm diameter

Towing and anchor handling

• AH towing winch: Roll-Rpyce drum reverse, Waterfall with spooling device

• Drum capacity: 1.200 m x 64 mm

• Brake holding: 275 t

• Line pull @ 1st layer: 200 t @ 7,00 m/min - 100 t @ 13,00 m/min

• Storage reels: 3x hydraulic 1.000 m x 64 mm

• Karm fork: 2x 300 t SWL

• Towing pin: 2x Closed type

• Stern roller: 4,50 m x 2,00 m - SWL 300 t

Free deck space

153 m²

Deck loading

5,0 t/m²

Watermaker

5,0 t per day

Fire fighting

Monitor: 2x Water/foam - remote control

Water/foam: 2x 1.200 m³/h

Pump capacity: 2x 1.600 m³/h

Tank capacities

Fuel oil: 860,2 m³, 1x 100 m³/h @ 60,00 m head

Potable water: 120,4 m³, 1x 70 m³h @ 60,00 m head

Water ballast: 153 m³

Foam: 17 m³

Detergent: 13 m³

Lub oil: 15,3 m³

Dirty oil: 7,4 m³

Sewage: 15,0 m³

Bilge water: 12,5 m³

Lifting equipment

1x Deck crane

SWL 15,0 t @ 3,00 m

SWL 10,0 t @ 7,50 m

Accommodation

24 persons

Cabins: 4x 1 single berth - 10x 2 berth cabins

Life rafts: 4x 16 persons

Navigation & communication equipment

2x Radar

1x Magnetic compass

1x Speed log

1x Echo sounder

1x Navtex

GMDSS Area A1, A2, A3

1x Gyro compass

1x Azimuth circle

1x GPS

2x VHF

3x VHF portable

1x Inmarsat C

1x AIS

Previous owners

Smit Shipping Singapore Private Limited.

23, Gul Road, Jurong

Singapore

republic of Singapore

Sister ships

Smit Sentosa

Renamed

2018 Seraya

Malta, Valletta - Call sign: 9HA4875

Owner: Boka Boskalis, Rotterdam - The Netherlands

11/2023 Sea Seraya

The Netherlands, Vlissingen - Call sign: PHIT

Owner: Seacontractors, 4382 ZA Vlissingen - The Netnerlands

Latest data adjustment

01 October 2024
