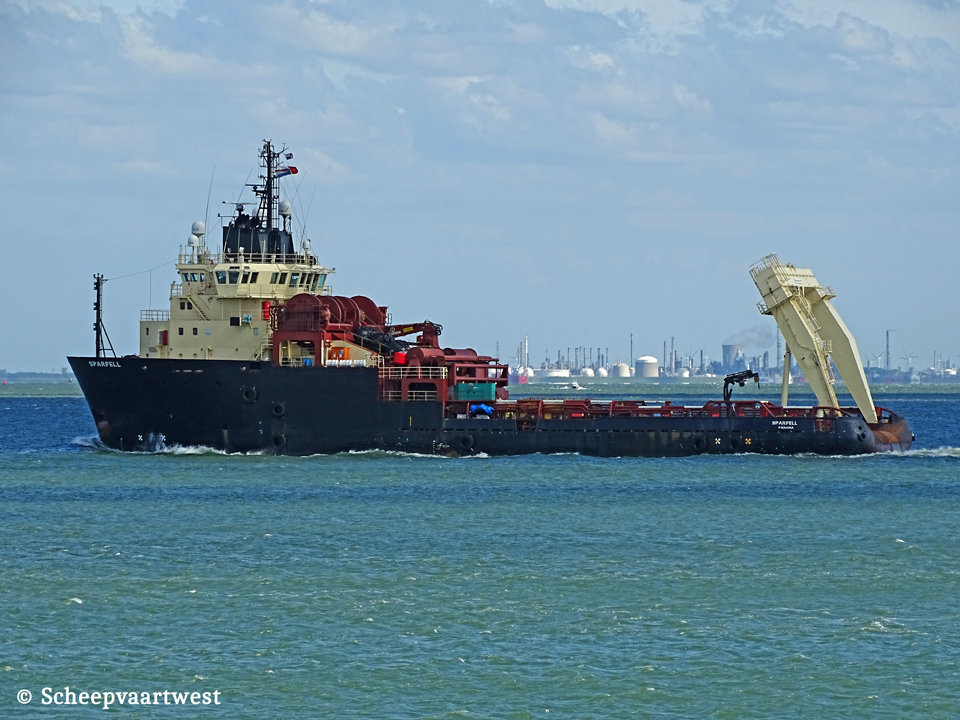

| Westerschelde 13 May 2020 |
|
Name |
SPARFELL |
|
Previous names |
05/1998 - 10/2018 Maersk Blazer |
|
Type |
Anchor handling supply tug |
|
IMO-number |
9151589 |
|
Classification |
International Naval Surveys Bureau |
|
Call sign |
J8B6204 |
|
Flag |
Saint Vincent and the Grenadines |
|
Port of registry |
Kingstown |
|
Previous flags |
1998 - 10/2018 Denmark - Call sign: OZPB2 10/2018 - 05/2022 Republic of Panama, Panama City - Call sign: 3FQO |
|
GT |
4.368 t |
|
DWT |
4.201 t |
|
NT |
1.308 t |
|
Length |
84,60 m overall 75,00 m between perpendiculars |
|
Breadth |
18,85 m |
|
Draught |
Summer: 7,52 m |
|
Depth |
9,00 m to main deck |
|
Speed |
Service: 11,0 knots Max: 17,0 knots |
|
Built |
1998 |
|
Keel laid |
11/1997 |
|
Launch date |
03/1998 |
|
Date of completion |
14/05/1998 |
|
Builder |
Sigbjørn Iversen Mekaniske Verksted A/S (Simek A/S) Flekkefjord Norway |
|
Yard number |
95 |
|
Hull material |
Steel |
|
Main engine |
4x MaK 8M32 - 4stroke 8 cylinder 320 x 480 mm combustion engines each 3.520 kW Total: 14.080 kW / 19.144 bhp |
|
Propellers |
2x Controllable pitch propeller |
|
Generators |
2x Caterpillar type 3412 - 4 stroke 12 cylinder 137 x 152 mm diesel engines connected with generatorsets each 435 kW - 440 Volt 60 Hz 2x Caterpillar type 3304T- 4 stroke 4 cylinder 121 x 152 mm diesel engine connected with generatorsets each 2.500 kW - 440 Volt 60 Hz |
|
Thruster |
2x Stern thrusters each 800 bhp 1x 1.200 bhp, forward 1x Retractable Azimuth propeller forward 1.200 bhp |
|
Bollard pull |
240 t |
|
Towing winch |
Ulstein Brattvåg/Huse double drum each with 3.000 m wire 77 mm, 400 tons and an anchor handling drum with 6.700 m wire 77 mm, 500 tons 2x Secondary winches 120 tons each |
|
Stern roller |
Double roll each 4,00 x 3,25 m force 800 tons |
|
Deck space |
43,00 x 16,00 m |
|
Deck Load |
1.700 t |
|
Dry bulk |
319 m³ |
|
Tank capacities |
Fuel oil: 995 m³ Drill water: 1.485 m³ Potable water: 483 m³ |
|
Lifting equipment |
1x crane - SWL 15,0 t |
|
Person capacity |
Crew: 24 Passengers: 12 Total: 36 |
|
Manager |
Sparfell Ltd. Care of Perenco SA 7, rue de Logelbach 75017 Paris Franc |
|
Registered owner |
Dermor Inc Care of Llyr Marine NL BV Spicalaan 35 2132 JG Hoofddorp The Netherlands |
|
Latest data adjustment |
06 July 2023 |
