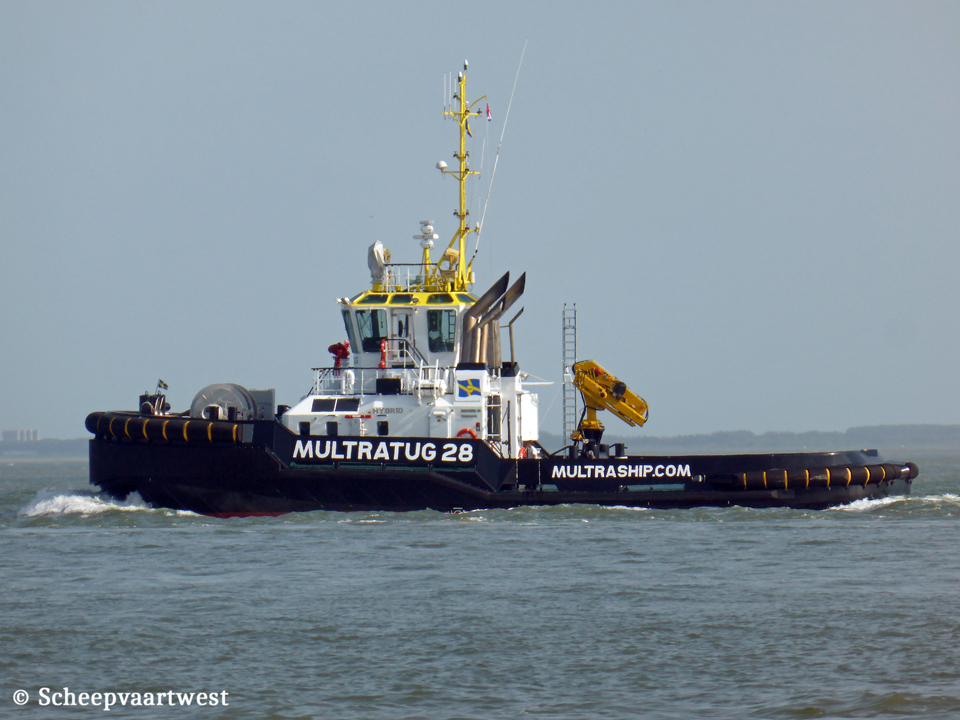

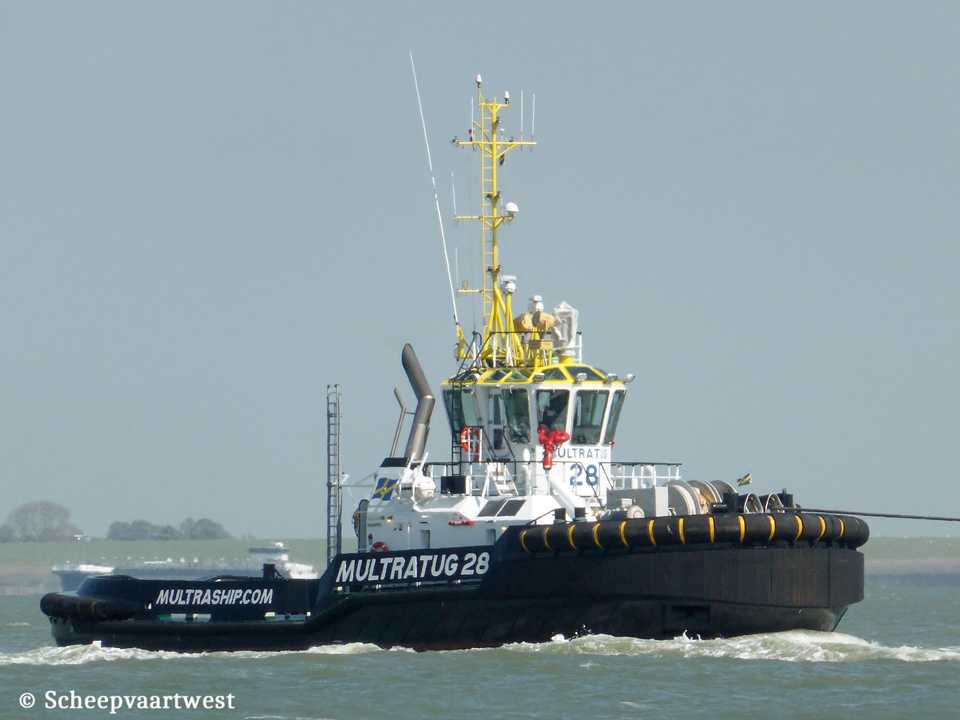

Multratug 28 - IMO 9668037

Name

MULTRATUG 28

Type

Tug - Damen ASD 2810 Hybrid

IMO-number

9668037

Call sign

PCBI

Flag

The Netherlands

Port of registry

Terneuzen

GT

294 t

NT

145 t

Length

28,67 m

Breadth

9,80 m

Draught

4,90 m

Air draft

15,00 m

Speed

13,8 knots

Built

2015

Keel laid

14/06/2013

Launch date

29/11/2013

Date of completion

10/02/2015

Builder casco

Şantierul Naval Damen

Galati

Romania

Builder completion

Damen Shipyard Gorinchem

Gorinchem

The Netherlands

Yard number

512320

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

2x MTU 16V4000M63R - 16 cylinder combustion engines total 3.680 kW / 4.935 bhp at 1.600 bhp

Built: 2014

Propellers

2x Rudder propellers Azimuth Stern Drive

Shaft generator

1x MTU 12V 2000 M41B - 800 kVA / 440 Volt 60Hz

Generators

1x Caterpillar C4.4 diesel generatorset 107 kVA - 400 Volt 50 Hz

Battery pack

120 kWh

Bollard pull

62 t

Deck lay-out

Anchor/towing:

• Type DMT ATW221-E19 electrically driven two speed winch, winch with split drum and warping head, speed up to 28 m/min

• Capacity: Pull 35 t at 9,10 m/min, slack rope

• Brake Capacity: 150 t

Towing winch aft:

• DMT TW-H350kN electrically driven, two speed, single drum, 48 mm wire, 600 m

• Capacity: Pull 40 t, 9,00 m/min

• Brake capacity: 150 t

Wire speed : 28,00 m/min

Towing hook: Aft Mampaey SWL 65 t

Capstan: 5 t at 15,00 m/min electrically driven

Deck space

40 m²

FIFI system

Diesel driven pump capacity: 1x 1200 m³/h

FIFI Monitors: 1x 1.200 m³/h - water/foam

Tank capacities

Fuel oil : 72,3 m³

Fresh water: 14,9 m³

Lubrication oil: 9,0 m³

Foam: 6.5 m³

Dirty oil: 3,1 m³

Bilgewater : 5,1 m³

Sludge: 3,1 m³

Hydraulic oil: 0,36 m³

Sewage: 2,2 m³

Lifting equipment

1x Deck crane Heila HLM 20-3S - SWL 1,7 t at 10,56 m

Owner

Damen Marine Services BV

Hardinxveld

The Netherlands

Previous owners

2015 - 2016 Multratug 28 BV, Terneuzen - The Netherlands

Renamed

2016 - 2016 Experience - Damen Marine Services BV, Hardinxveld - The Netherlands

2016 - 2021 Svitzer Experience - Damen Marine Services BV in Hardinxveld - The Netherlands

2021 Med Polaris

The Netherlands - Call sign: PCBI

Owner: Medtugs Towing & Salvage (MedTug SA)

Operator: MSC

2023 VB Ivy

The Netherlands, Rotterdam - Call sign: PCBI

Registered owner: MedTug Antwerp NV - Belgium

Latest data adjustment

07 January 2024
