| Westerschelde 23 April 2020 |
|
Name |

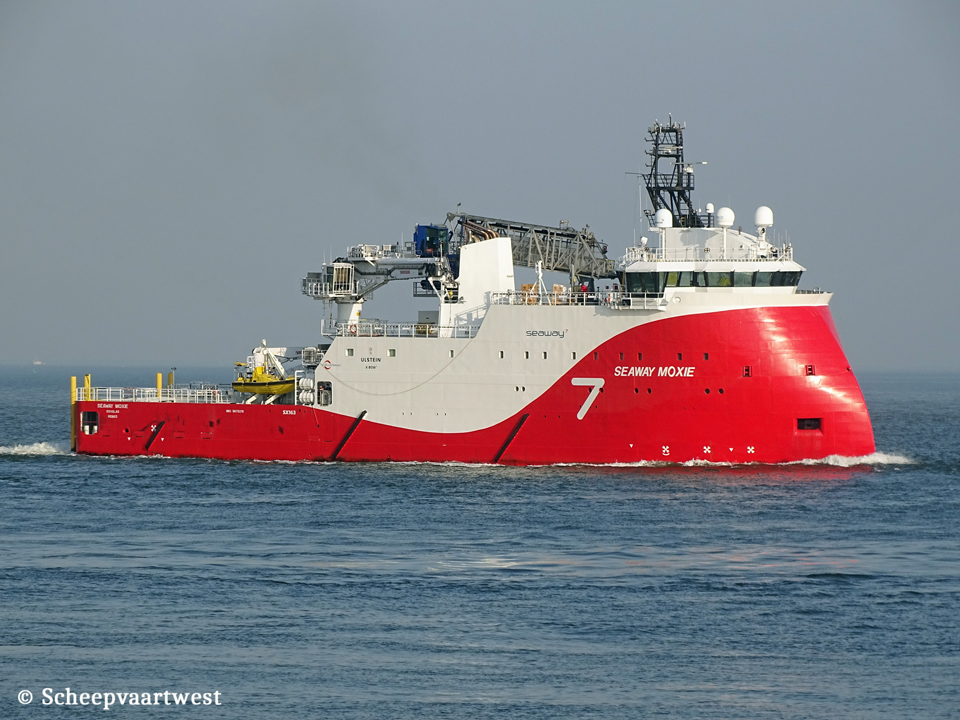

SEAWAY MOXIE |
|
Previous names |
2014 - 2018 Siem Moxie |
|
Type |
Supply vessel - Offshore support vessel |
|
IMO-number |
9676216 |
|
Call sign |
MDBO3 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
Previous flags |
2014 - 2018 Norway - Call sign: LARE7 |
|
GT |
4.367 t |
|
DWT |
2.835 t |
|
NT |
1.311 t |
|
Length |
74,00 m overall 70,70 m between perpendiculars |
|
Breadth |
17,00 m extreme |
|
Draught |
Summer: 6,40 m |
|
Depth |
8,00 m from deck |
|
Speed |
Max: 10,0 knots Economic: 8,0 knots |
|
Built |
2014 |
|
Keel laid |
02/01/2013 |
|
Launch date |
15/09/2013 |
|
Date of completion |
07/04/2014 |
|
Builder casco |
ADA Denizcilik ve Tersane Isletmeciligi A.S Istanbul Turkey Yard number: 109 |
|
Builder completion |
Kvaerner Fjellstrand AS Omastrand Norway Yard number: 1697 |
|
Hull material |
Steel |
|
Main engine |
Diesel-Electric type 2x MTU 12V4000M - 12 cylinder combustion engine each 1.380 kW at 1.800 rpm 2x MTU 16V4000M - 16 cylinder combustion engine each 1.840 kW at 1.800 rpm |
|
Main propellers |
2x Voith Schneider ECS propellers and cycloidal Power: each 1.850 kW Number of blades: 5 |
|
Emergency generator |
1x Scania DI12 diesel generatorset |
|
Bow thruster |
1x Brunvoll azimuth thruster 850 kW 2x Brunvoll tunnel thrusters each 1.200 kW |
|
Deck area |
190 m² |
|
Deck load |
500 t 5,0 t/m² |
|
Tank capacities |
Ballast water: 1.876,9 m³ Fuel oil: 955,69 m³ Lub oil: 32,78 m³ Fresh water: 779,80 m³ Technical water: 1.876,90 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 44 mm |
|
Lifting equipment |
1x Macgregor cranes - SWL 5,0 t 25,00 m outreach 30,00 m above sea level |
|
Person capacity |
60 |
|
DP system |
2x Wind sensors with heating 3x Motion reference units (x-y direction) 2x Differential GPS systems 1x Cyscan laser reference system 1x Radarscan relative position sensor |
|
ISM & commercial manager |
Subsea 7 International Contracting Limited Prospect Road, Arnhall Business Park Westhill, AB32 6FE United Kingdom |
|
Registered owner |
Subsea 7 Offshore Resources UK Care of Subsea 7 International Contracting Ltd , Prospect Road, Arnhall Business Park Westhill, AB32 6FE United Kingdom |
|
Previous owners |
Siem Offshore Rederi AS, Kristiansand - Norway |
|
Latest data adjustment |
19 January 2024 |
