| Westerschelde 14 June 2015 |
 |
|
| Westerschelde 14/06/15 | |
|
Name |

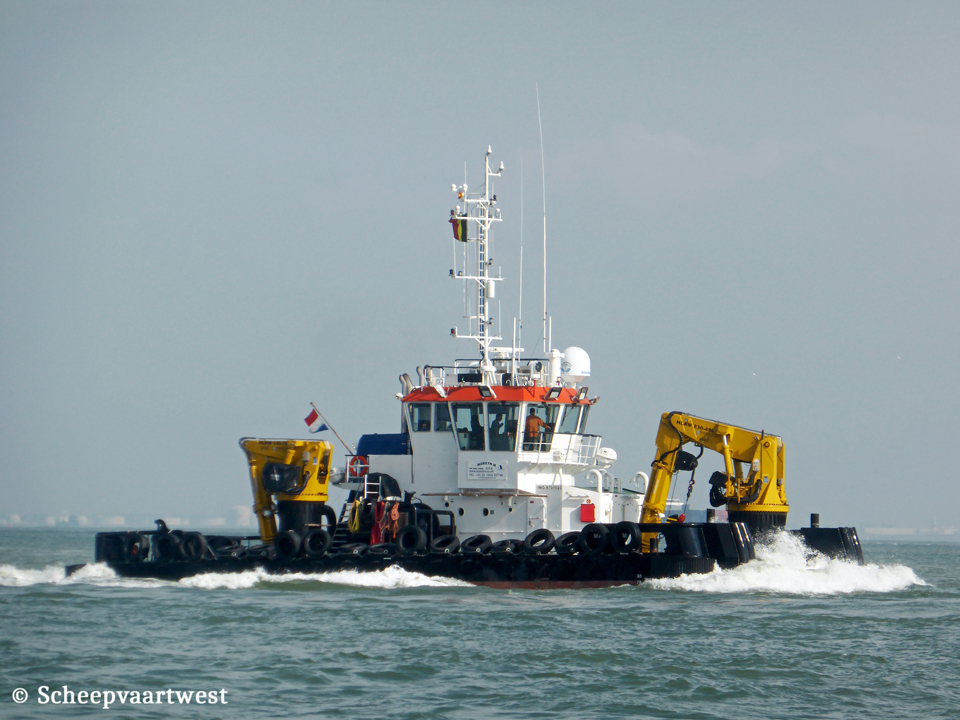

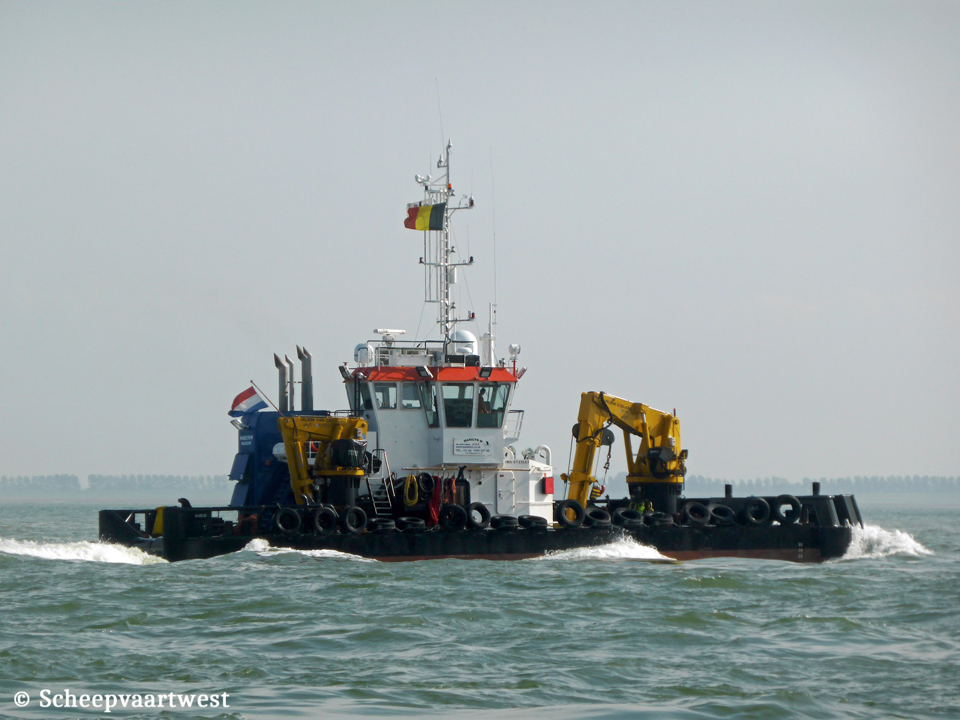

MARILYN M |
|
Type |
Tug - Multi purpose ship Eurocarrier 2611 |
|
Main functions |
Dredge support, cable laying, anchor handling, barge support, wind farm operations and port and harbour construction |
|
IMO-number |
9731523 |
|
Call sign |
PCFM |
|
Flag |
The Netherlands |
|
Port of registry |
Maassluis |
|
GT |
225 t |
|
NT |
76 t |
|
Length |
26,48 m overall 23,65 m between perpendiculars |
|
Breadth |
11,00 m |
|
Draught |
Summer: 2,61 m |
|
Depth |
3,45 m |
|
Speed |
10,0 knots |
|
Built |
2015 |
|
Date of completion |
20/03/2015 |
|
Builder |
Neptune Shipyards BV Aalst The Netherlands |
|
Yard number |
447 |
|
Hull material |
Steel |
|
Watertight compartments |
4 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar C32 - 4 stroke 12 cylinder 145 x 162 mm combustion total 1.940 kW / 2.636 hp at 1.800 rpm |
|
Propelling system |
Screw propeller solid at 1.800 rpm |
|
Generators |
2x Caterpillar C9 diesel generatorsets each 250 kVA - 200 kW - 292 hp / 400 Volt |
|
Bow thruster |
250 hp |
|
Bollard pull |
33 t |
|
Deck equipment |
3x Winches 100 t double drum anchor handling winch 50 t towing winch 15 t Tugger winch Bow roller Stern roller Double push bow Towing hook/bit Hydraulic towing pins Hydraulic shark jaws Deck flood lights |
|
Deck area |
125 m² |
|
Deck load |
6,0 t/m² |
|
Tank capacities |
Fuel: 107,5 m³ Fresh water: 60,0 m³ |
|
Lifting equipment |
2x Hydraulic deck cranes: 1x Heila 230 - 4SL crane 25 t, forward 1x Heila 140 - 3SL crane 14 t, aft |
|
Accommodation |
Number of persons 12 Number of cabins 3 single & 2 double Messing facilities Heated & air-conditioned |
|
Navigation equipment |
Magnetic compass Electronic compass Radar (D)GPS Electronic chart plotter Echo sounder Watch keeper alarm AIS Navtex Talkback unit Speed log |
|
Communication equipment |
Cell (GSM) phone Satellite phone MF/HF radio 2x VHF radio |
|
Operator |
GSS Maine Services Haven 27 3143 BC Maassluis The Netherlands |
|
Renamed |
09/2022 Neptun Mariner The Netherlands, Aalst - Call sign: PCFM Registered owner: Stalenhoek B.V. |
|
Latest data adjustment |
22 January 2024 |
