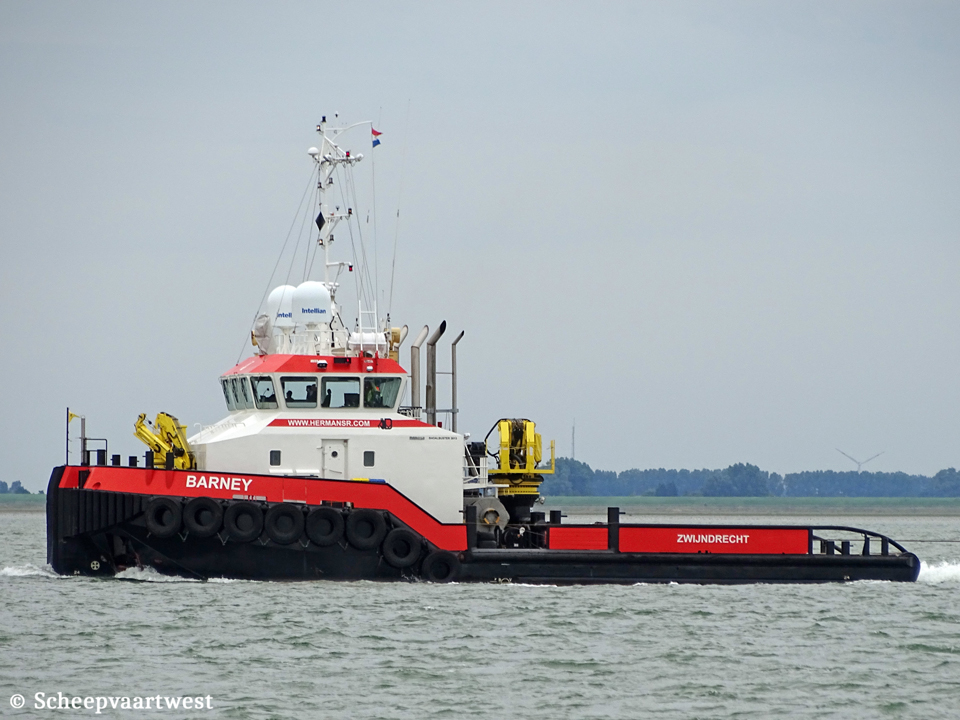

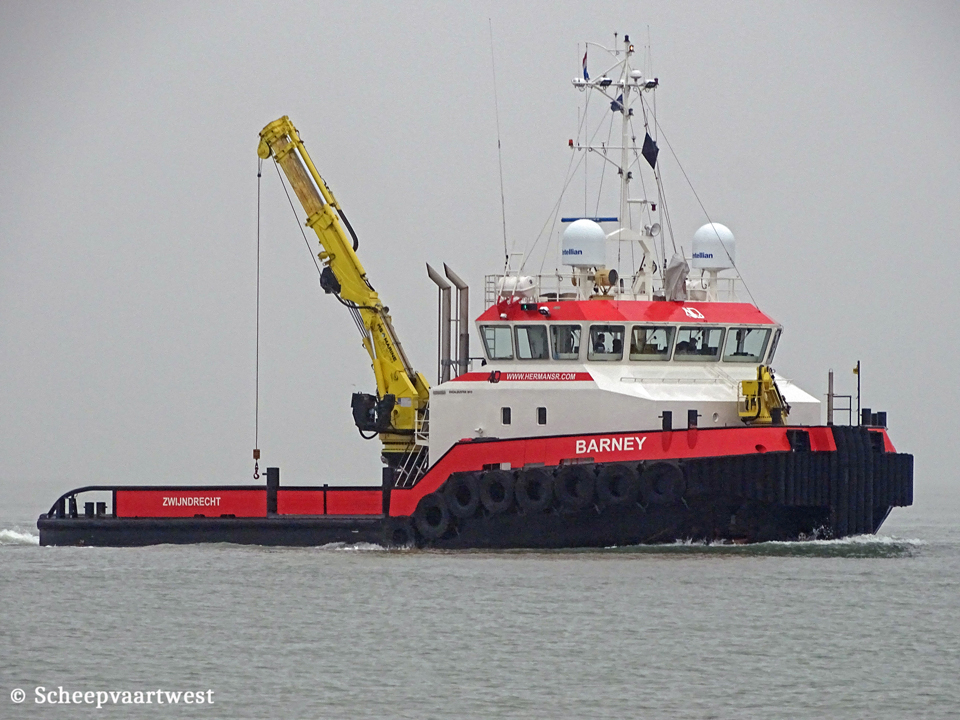

Barney - IMO 9740938

Name

BARNEY

Type

Towing, Anchor handling tug, Dredge Support, Supply vessel

Damen Shoal Buster 3013

IMO-number

9740938

Call sign

PCZU

Flag

The Netherlands

Port of registry

Zwijndrecht

GT

382 t

NT

114 t

Length

30,02 m overall

27,33 m between perpendiculars

Breadth

13,46 m

Draught

Summer: 2,15 m

Min: 1,80 m

Freeboard

625 mm

Depth

3,20 m

Speed

10,5 knots

Built

2015

Launch date

03/12/2014

Date of completion

01/05/2015

Builder casco

Safe Engineering

Gdansk

Poland

Builder completion

Damen Shipyards Hardinxveld

Hardinxveld

The Netherlands

Yard number

571709

Hull material

Steel

Watertight compartments

4

Continuous decks

1

Main engine

3x Caterpillar C18 Acert- 4 stroke 6 cylinder 145 x 183 mm combustion engines total 1.599 kW / 2.145 bhp at 1.825 rpm

Manufacturer: Caterpillar, Mossville - USA

Gearbox

3x Reintjes WAF 364L reduction 5,435:1

Propellers

1x Fixed pilch propeller inox - at 341 rpm

2x Fixed pilch propellers inox (oil -closed) - at 341 rpm

Diameter 1.600 mm in nozzles 1.612 mm - 3 blades

Generators

2x Caterpillar C-4.4TA -diesel generatorsets each 107 kVA - 86 kW - 126 hp / 230/204 Volt 50 Hz

Bow thruster

1x Hydraulic driven 250 bhp

Ballard pull

30,0 t

Deck layout

• Anchors: 2x 340 kg Pool (HHP)

• Chain: 19 mm short-link anchor chain 220 mm

• Anchor winch: 2x DMT hydraulic driven, 2x drum with pull 5,5 t @ 1 st layer, wire 300 m diameter 24 mm

• Winches: 3x Drum from 50 t each of winch 2 towing winches with 650 m at 38 mm each, anchor handling 1x 150 m at 44 mm, speed 6,00 m/min 75 t BHF

• Towing pins: 4x Hydraulic anchor handling pins

• Wire/Chain stopper: 1x Wire / Chain stopper SWL 50 t

• Tugger winch: 2x Dromic PPV-12000 - 12,0 t at 12,00 m/min

• Moonpool: 1x Diameter 386 mm - 1x 600 x 800 mm

• Max deck load: 10,0 t/m²

• Free deck space: 150 m³

• A-frame: SWL 25,0 t

Tank capacities

Fuel oil: 138,22 m³

Fresh water: 56,0 m³

Sewage: 18,70 m³

Dirty oil: 2,30 m³

Lub oil: 3,40 m³

Hydraulic oil: 2,00 m³

Gearbox oil: 0,50 m³

Bilge water: 3,40 m

Lifting equipment

1x HS Marine AKC 185 HE4 deck crane aft- SWL 6.440 kg at 17,07 m

1x HS Marine AK 20 LE1 deck crane front - SWL 2.055 kg at 7,28 m

Accommodation

Heated and air-conditioned living spaces for 12 persons

1x Single cabin

5x Double cabins

Gallery, Mess and sanitary facilities

Nautical & communication equipment

• According GMDSS: Aera A3

• Search lights: 2x Pesch 3.000 W

• Gyro compass: 1x Anschuetz Std 22 Compact

• Radar system: 1x Furuno FAR-2117

• D-GPS: 1x Simrad MX 521-A

• AIS: Furuno ECDIS

• Autopilot: 1x Simrad FU-80

• Echosunder: 1x Furuno FE 700

• Watch alarm: 1x Furuno BR-540

• VHF radio telephone: 3x Sailor RT 62222 25W

• Navtex: 1x Furuno NX 700

• SSB/DSC: Salor 6310

• Inmarset-C: Salor 6110

• Satellite: 1x Irridium telephone

Manager

Hermansr

Ebweg 56

2991 LT, Barendrecht

The Netherlands

Registered owner

Mc Yogi B.V.

Ebweg 56

2991 LT, Barendrecht

The Netherlands

Latest data adjustment

11 August 2024
