Brugge - IMO 8603004

Details
Written by: Werner Goes
Category: Tugs
Hits: 5426

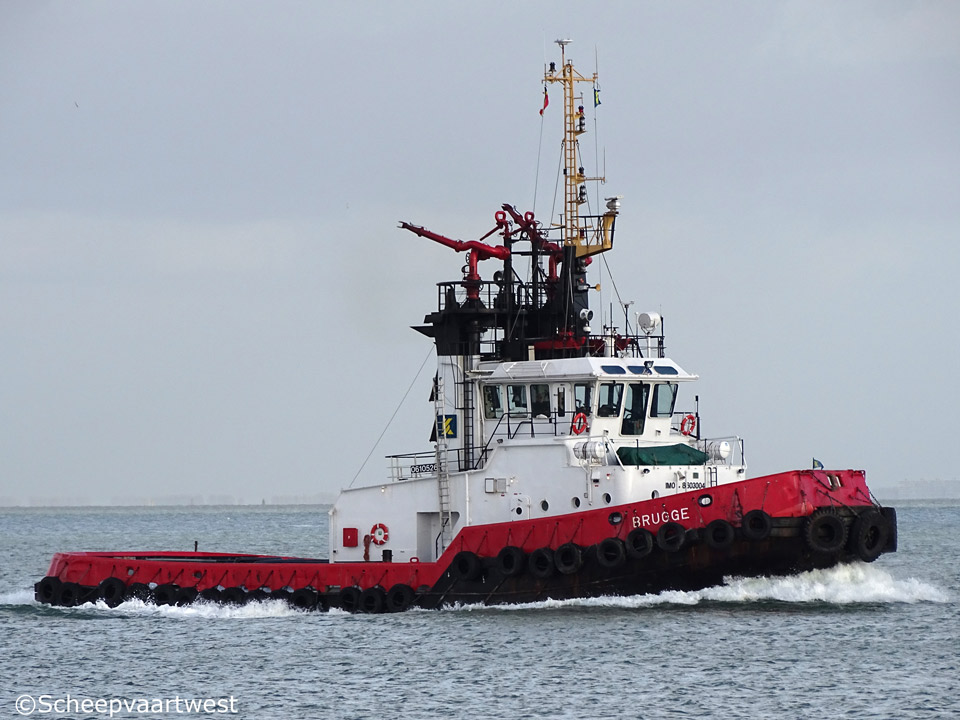

Brugge 31
Westerschelde 05 April 2017

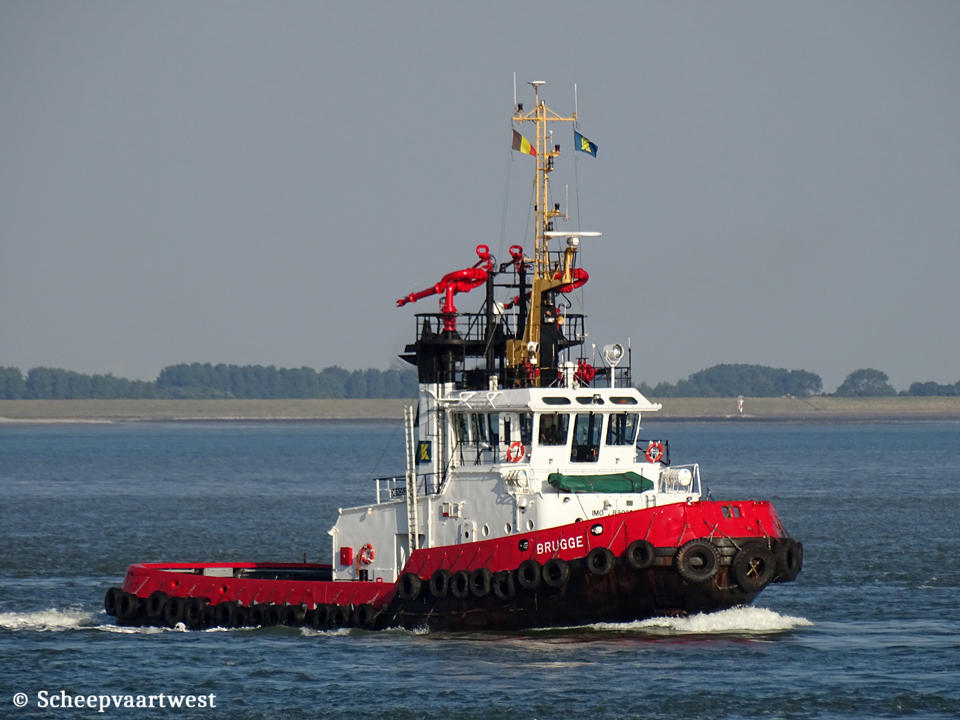

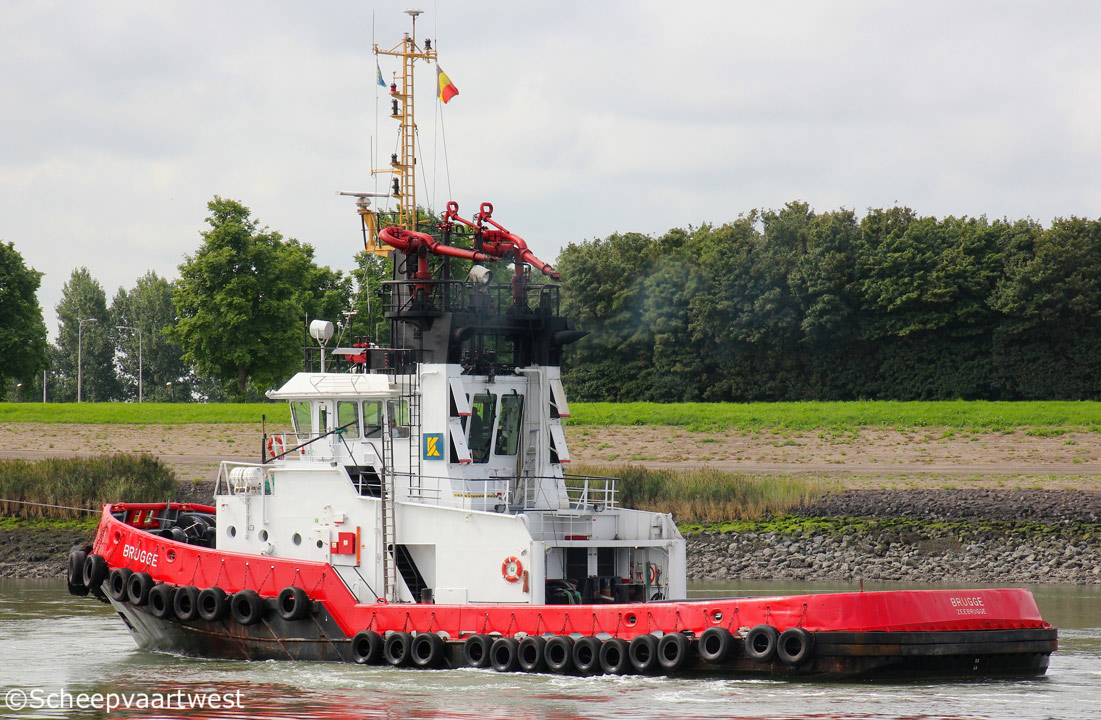

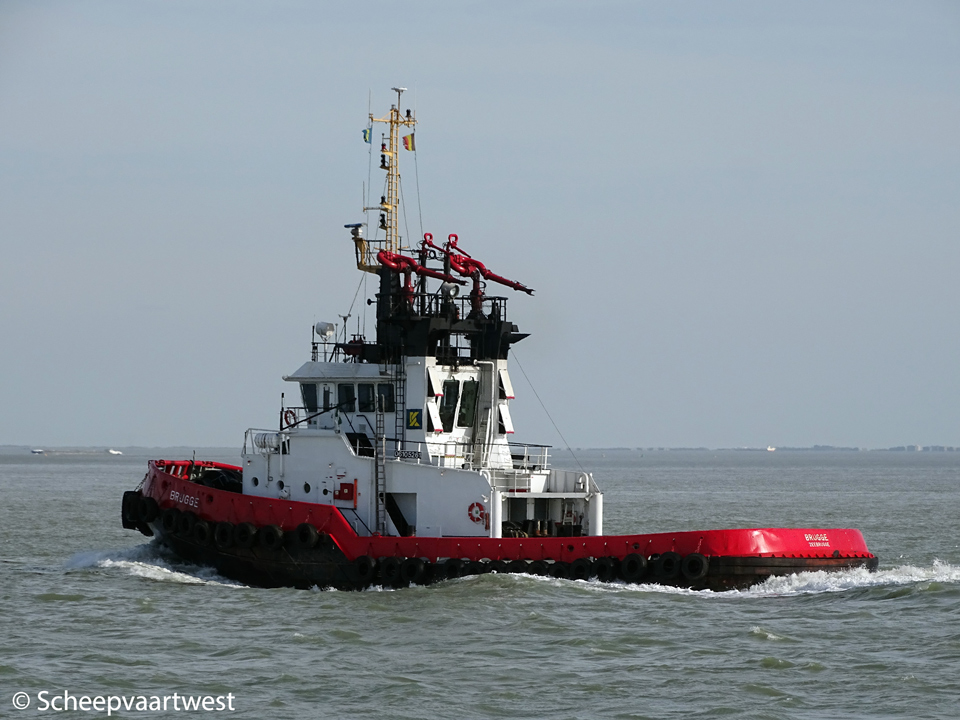

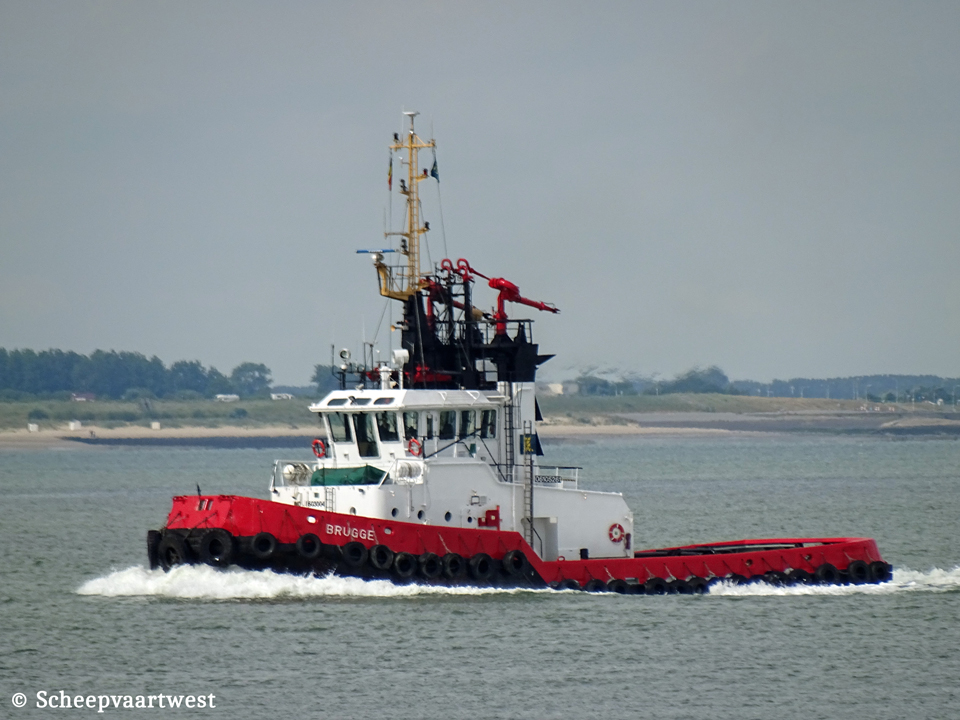

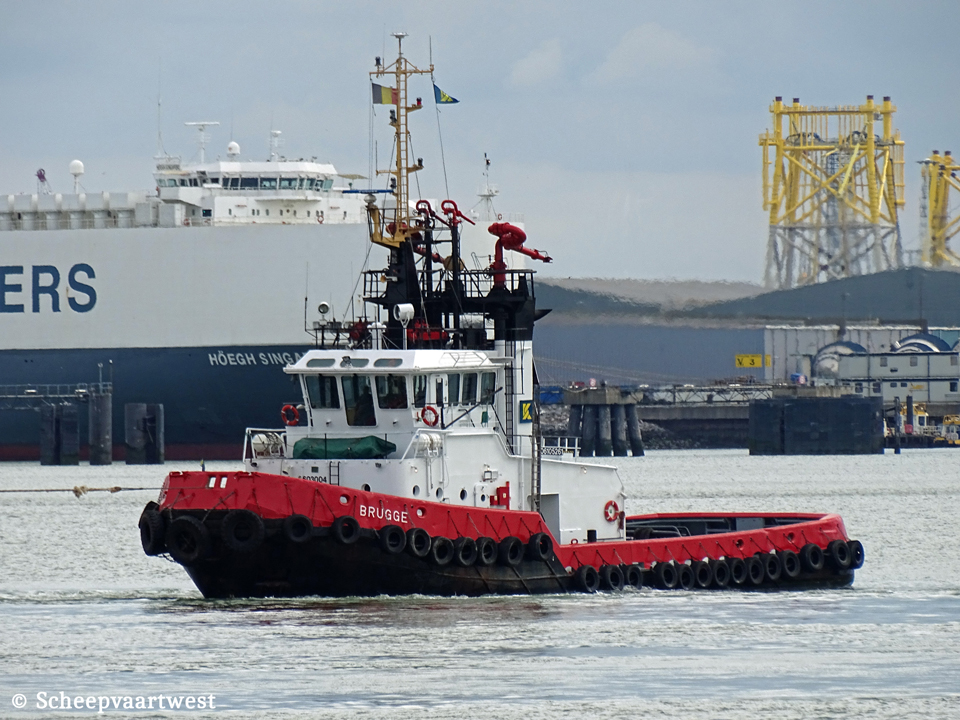

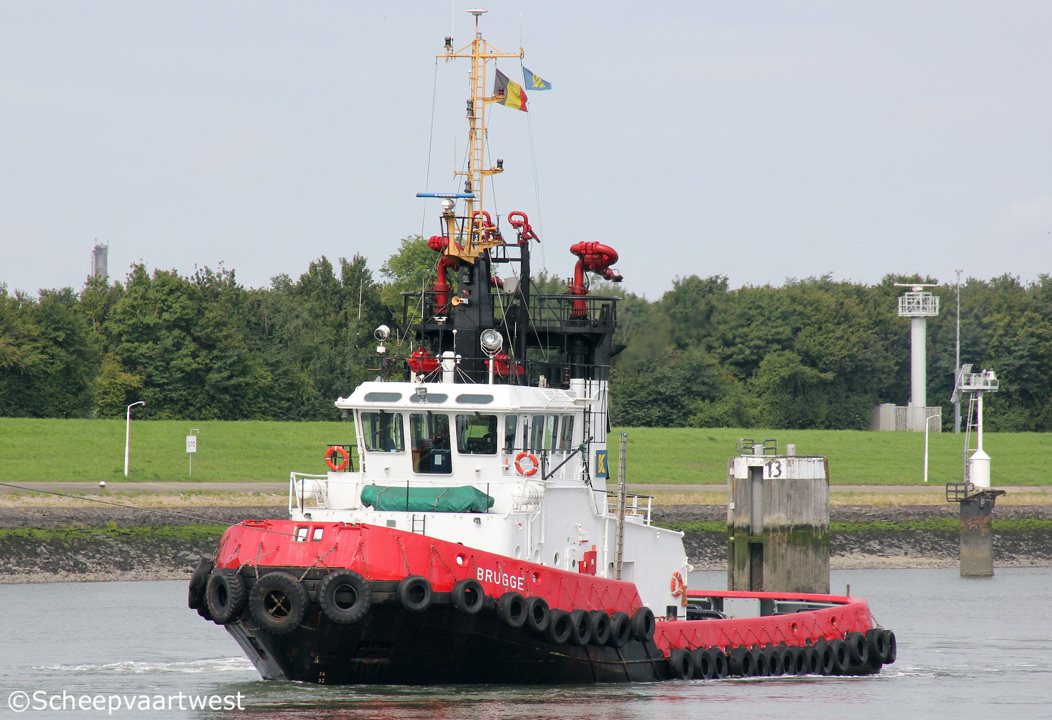

Brugge 32   Brugge 33   Brugge 34   Brugge IMO 8603004 35   Brugge IMO 8603004 36   Brugge IMO 8603004 37
Terneuzen 21/08/17 Terneuzen 21/08/17 Westerschelde 30/03/17   Westerschelde 31/07/18   Westerschelde 31/07/18   Westerschelde 17/08/16

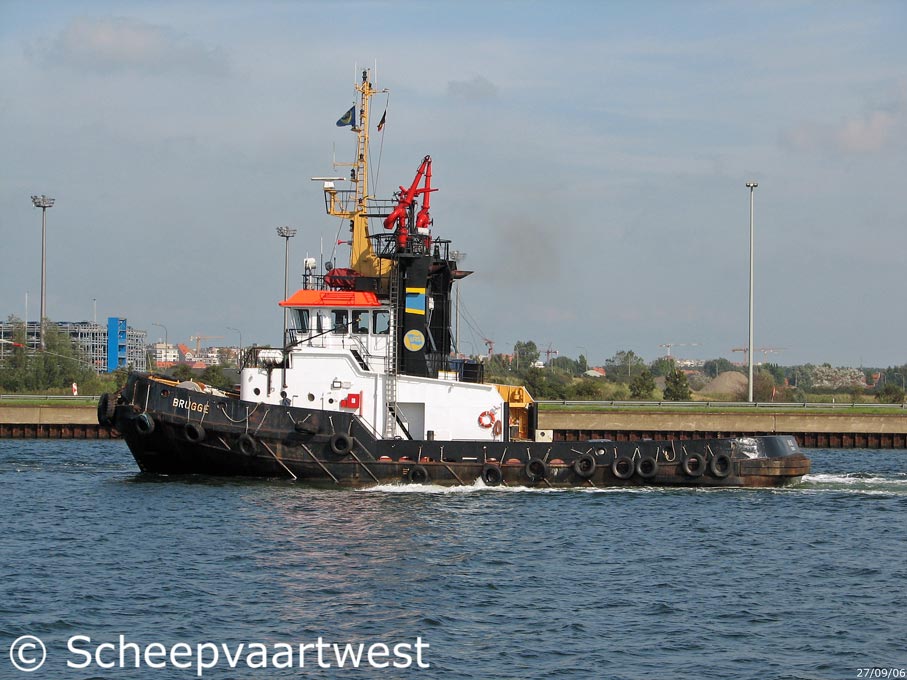

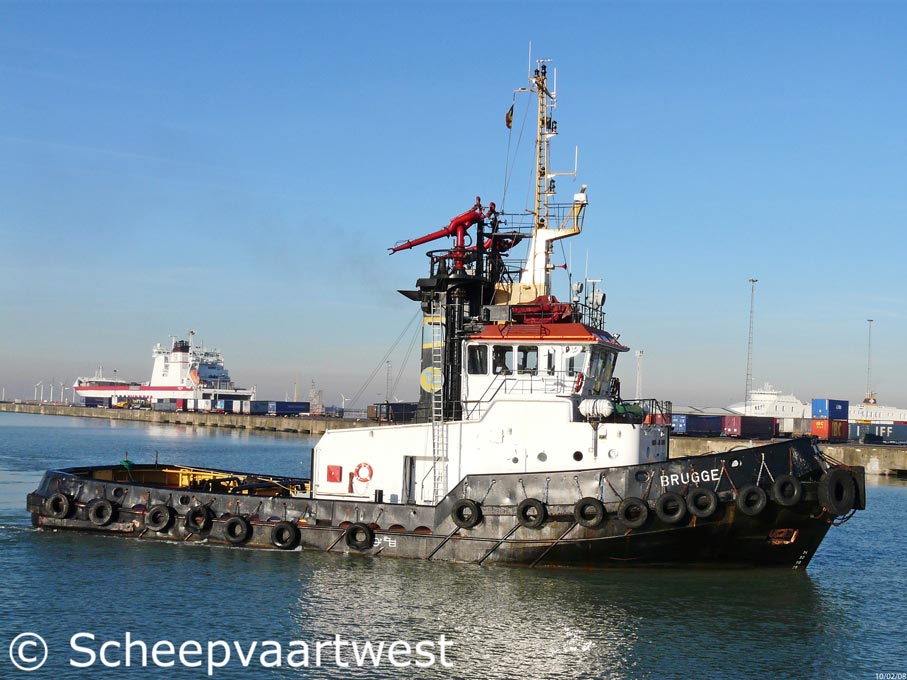

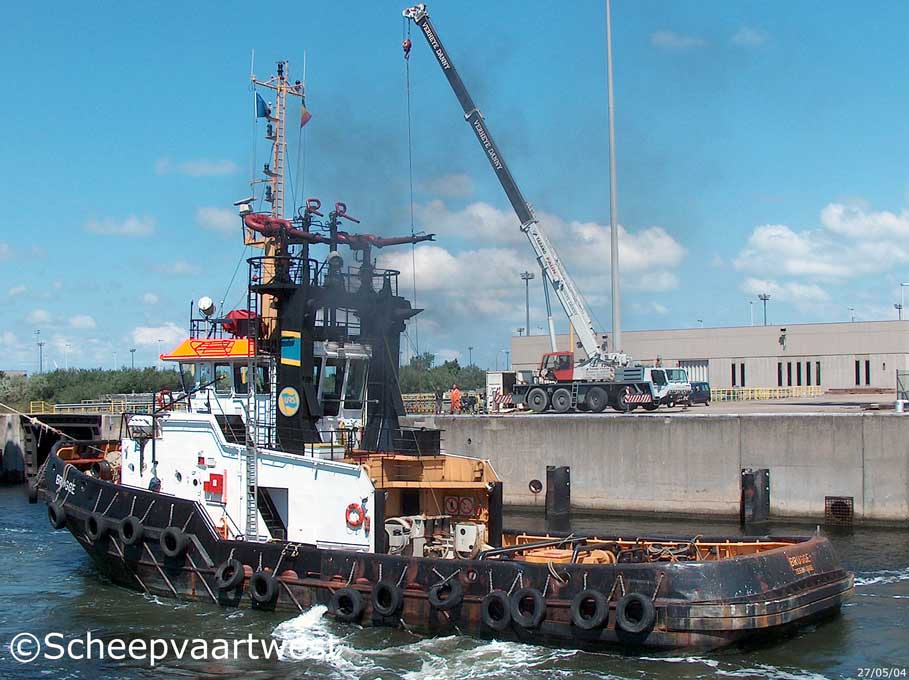

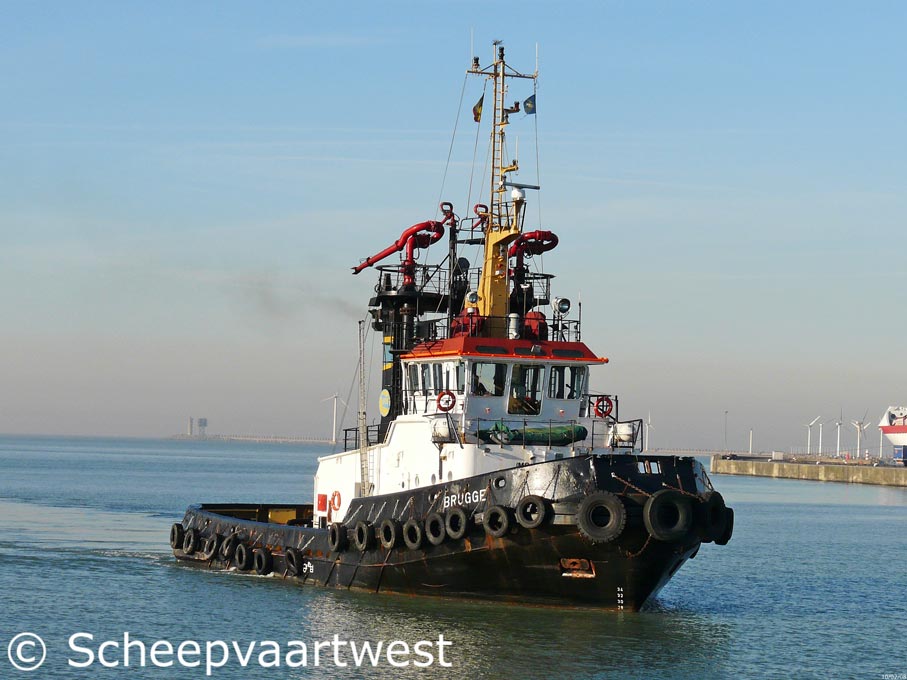

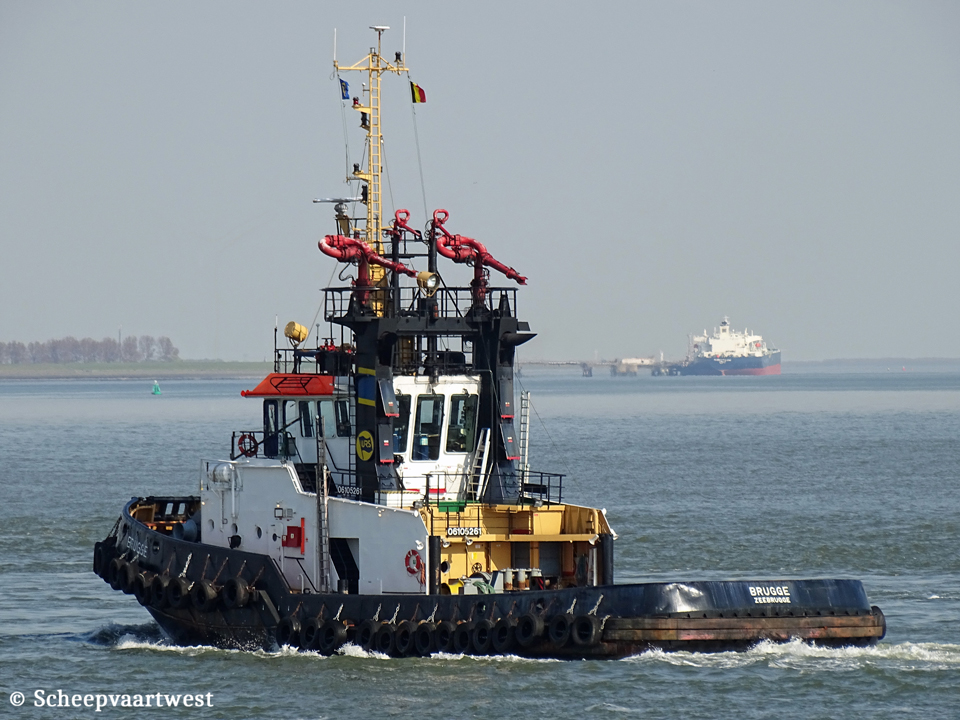

Brugge 02   Brugge 03   Brugge 05   Brugge 08   Brugge   Brugge IMO 8603004 38
Zeebrugge 10/02/08 Zeebrugge 10/02/08 Zeebrugge 10/02/08 Zeebrugge 27/09/06   Zeebrugge 27/05/04   Westerschelde 04/05/16


Name

BRUGGE

Type

Tug boat - Fire fighting ship

IMO-number

8603004

Registration number

01 00264 1996

Call sign

ORNF

Flag

Belgium

Port of registry

Zeebrugge

GT

375 t

DWT

125 t

NT

112 t

Length

33,51 m overall
30,50 m between perpendiculars

Breadth

10,50 m over all

Draught

4,75 m

Air draft

17,50 m

Freeboard

437 mm

Depth

4,75 m

Speed

13,5 knots
Economic: 9,0 knots

Built

1987

Keel laid

26/02/1986

Date of completion

04/03/1988

Builder

Chantiers de Naval Rupelmonde
Rupelmonde
Belgium

Yard number

0457

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

2x Deutz type SBV8M6288 - 4 stroke 8 cylinder 240 x 280 mm medium speed combustion engines totalling 2.720 kW / 3.696 hp at 900 rpm
Built: 1986
Each engine drives an azimuth Aquamaster 2x Azimuth Truster - at 207 rpm propeller in Kort nozzle via a step-up gearbox, fluid coupling and twin cardan shaft

Propulsion

2x Fixed pitch ASD propeller

Electrical installation

Power voltage: 380 V
Lighting voltage: 220 V

Generators

2x Scania DS 11 diesel engines each 188 hp connected with generators each 153 kVA / 122 kW / 3x 380 Volt - 50 Hz

Bollard pull

Ahead - 45 t
Astern - 38 t

Deck equipment

  • Hydraulic towing winch combined with anchor windlass on forecastle deck

  • Fitted with separate bridle winch

  • Towing winches: Brake holding: 80-95 tons, dynamic: 28 tons at 26 m/min, Slack rope speed: 50 m/min

  • Bridle winch: Brake holding: 53 tons - dynamic: 10 tons at 26 m/min. 45 tons SWL towing hook with 3 hydraulic releases

Navigation equipment

All our tugs have the most modern navigational aids s.a. radar, echosounder, DGPS, compass, electronic charting, multiple VHF sets, ...

Fire fighting equipment

  • 2x fire-fighting pumps, each 1.800 m³/h at 18 bar delivering water to four monitors (two for water and two for foam)

  • The monitors and the complete FiFi-plant is computer remote controlled.

  • Two distribution boxes at each side: connections with variable pressure of 4x 75 mm, 2x 100 and 2x 150 mm

  • Foam capacity: 30.000 litres

Tank capacities

Potable water: 16 m³
Fuel oil: 123 m³
Foam: 30 m³

Accommodation

The air-conditioned accommodation provides for 10 men

Operator

URS Belgium, Antwerpen - Belgium

Joint venture

Koninklijke Boskalis Westminster N.V. & KOTUG International B.V.

Head quarters

Kotug Smit Towage
Wilhelminakade 300
3072 AR Rotterdam
The Netherlands

Previous owners

URS Belgium N.V. (Unie van Redding- en Sleepvaart)
Italiëlei 3 bus 2
2000 Antwerpen
Belgium

Remarks

A.S.D - Twin Azimuth Stern Drive (Z-drive) Propulsion
F.F - Fire Fighting

Renamed

02/2019 Protey
Russia, Saint Petersburg - Call sign: UBVR2
Owner: Northern Alliance LLC - Office 10N, ul Turistskaya 23-1, St Petersburg, 197082, Russia

Latest data adjustment

04 May 2024
