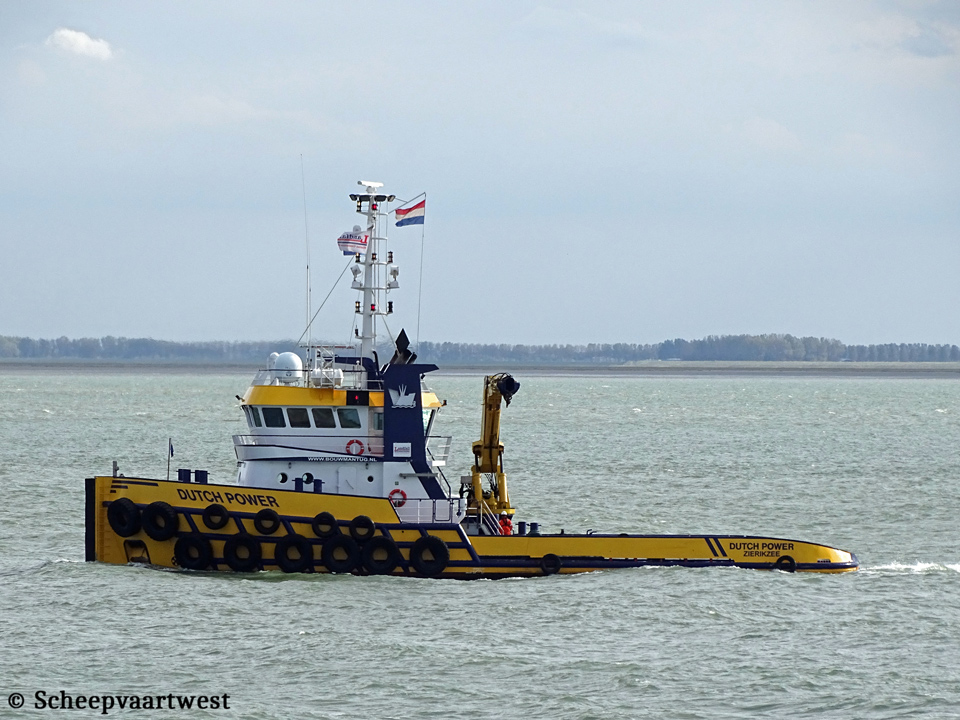

Dutch Power IMO 9547879 06

Westerschelde 09 October 2020

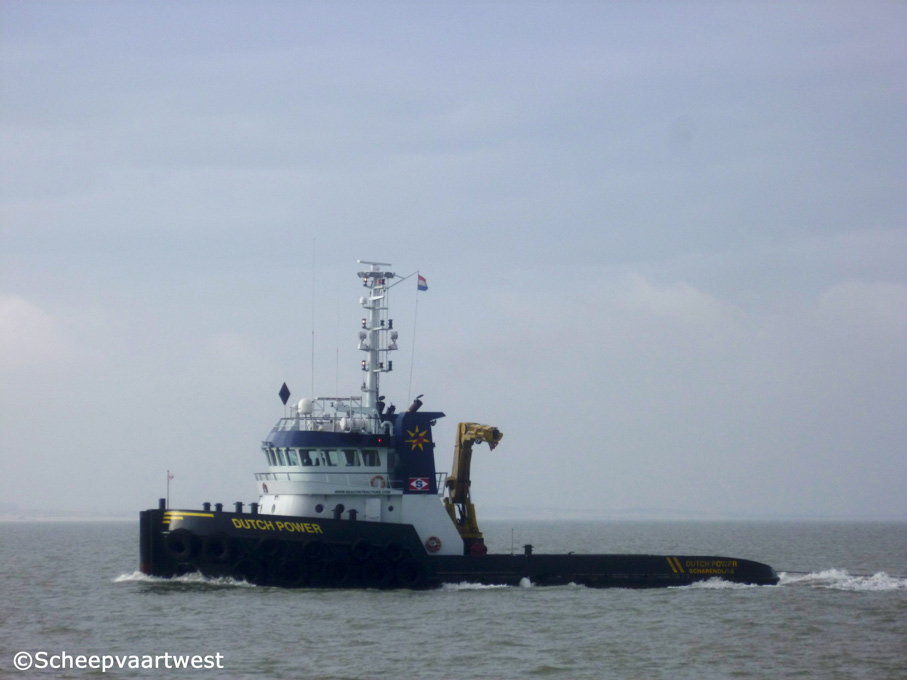

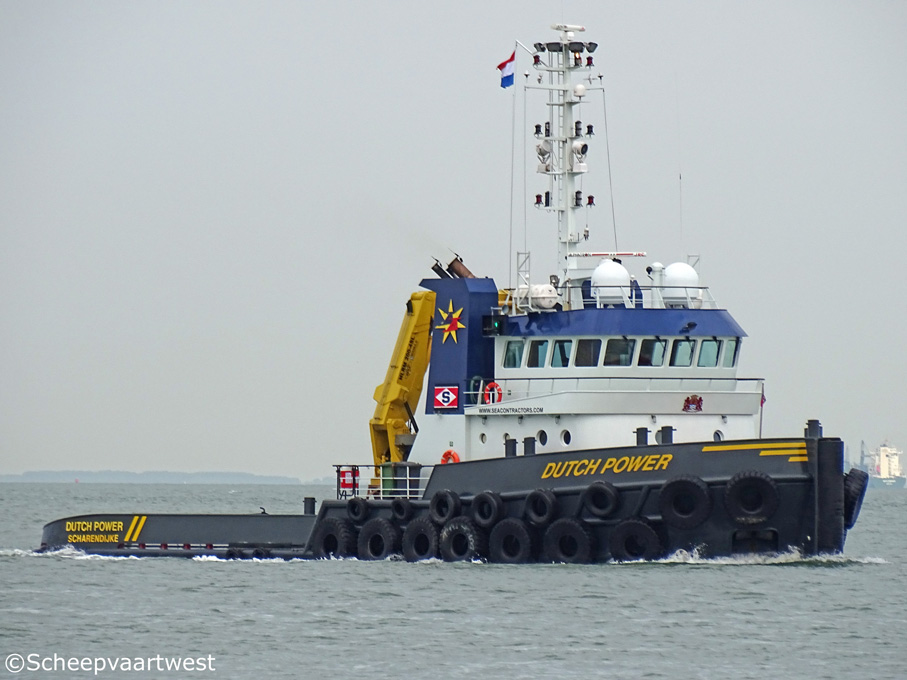

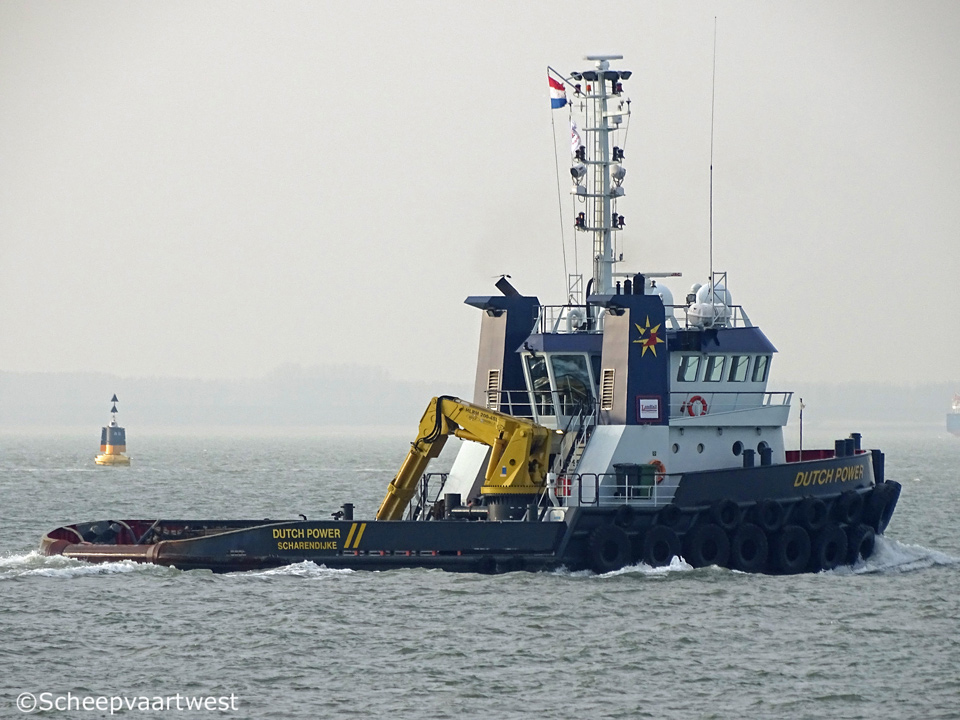

Dutch Power 04   Dutch Power 03   Dutch Power 02   Dutch Power 05
Westerschelde 07/07/16 Westerschelde 19/02/14 Vlissingen 14/12/12 Westerschelde 04/11/17


Name

DUTCH POWER

Type

Shallow draft anchor handling tug / Utility vessel

IMO-number

9547879

Call sign

PBTZ

Flag

The Netherlands

Port of registry

Zierikzee

Previous flag

The Netherlands, Scharendijke - Call sign: PBTZ

GT

257 t

NT

77 t

Displacement

363 t

Length

31,10 m overall

27,82 m between perpendiculars

Breadth

9,50 m

Draught

Min: 2,60 m

Max: 3,10 m

Air draft

Min: 9,50 m

Max: 16,00 m

Freeboard

207 mm

Depth

3,10 at sides

Speed

Max: 12,5 knots

Built

2009

Date of completion

09/2009

Builder

Scheepswerf Gebroeders Kooiman

Zwijdrecht

The Netherlands

Yard number

189

Hull material

Mild steel

Number of decks

1

Main engine

2x Mitsubishi S16R-MPTA - 4 stroke single acting 16 cylinder 170 x 180 mm diesel engine each 1.591 bhp total 2.340 kW / 3.182 bhp at 1.600 rpm

Starter Type: Compressed air

Built: 2008

Manufacturer: Mitsubishi Heavy Industries Ltd.

Gearboxes

2x Reintjes WAF 763 reduction: 5.750:1

Propeller

2x Solid propellers at 278 rpm + nozzle: Van Voorden

Diameter: 2,10 m - 4 blades

Generators

2x Mitsubishi 6D16T - 6 cylinder 118 x 115 mm diesel engine each 57 kW / 88 hp at 1.500 rpm coupled with Stamford UCM274C generators each 71,5 kVA

Built: 2009

Manufacturer: Mitsubishi Heavy Industries Ltd.

Hydraulic-power plant

1x Mitsubishi S6A3-MPTA - 6 cylinder 150 x 175 mm diesel engine 560 kW at 1.800 rpm

Built: 2009

Manufacturer: Mitsubishi Heavy Industries Ltd.

Auxiliary equipment

Transfer pumps: Water and Fuel

Fresh watermaker: 3.500 l/24 h

Gas oil Separator: 2x Alfa Laval 5000 l/24 h

Bow thruster

Tunnel thrusters Verhaar Omega VB-1199 - 340 kW

Bollard pull

45,1 t

Deck Equipment

  • Winch: Maaskant Waterfall winch type M2-H2-453 kN

  • Towing drum: Pull Force 45 t, Holding forward 90 t 700 meters x 42 mm

  • Anchor handling drum: Pull Force 60 t, Holding forwaed 120 t 400 meters x 42 mm

  • Working wire: 1x 400 meters, 42 mm

  • Tuggerwinch: 2x 8 t on aft deck

  • Towing pins, wire catcher: Delta pins + Wire catcher

  • Push bow: Rubber Fender 900 mm

  • Stern roller: 4.840 mm x diameter 700 mm

  • Moonpool: Dimensions 700 mm x 700 mm

Clear deck area

108 m²

Cargo deck load

15,0 t/m²

Lifting equipment

1x Crane Heila HLRM 200 4 SL - SWL 9,5 t at 16,31 m

Tank capacities

Fuel oil: 112 m³

Potable Water: 31 m³

Sewage: 12,72 m³

Luboil: 2,65 m³

Dirty oil: 2,65 m³

Hydraulic Oil: 1 m³

Accommodation

Air-conditioned, 8 berths

Nautical & communication

1x Alphatron Alphaminicourse Gyro Compass

1x Alphatron Alphaseapilot MFA Autopilot

1x Alphatron Alpharpilot Riverpilot

1x Alphatron Alphaturn Rate of Turn Indicator

1x Alphatron Alphachart T ECDIS

1x JRC JMA-609 Radar

1x JRC JMA-5210 Radar

1x JRC NWZ-4570 GPS

1x JRC JFE-380 Echo Sounder

1x JRC JHS-182 AIS

1x JRC NCR-333 Navtex

1x JCR JUE-33 Inmarsat

2x Sailor RT-5022 VHF

1x Sailor System 4000 SSB Radio 150 W

2x Sailor Satcom-C

2x Sailor SP-3520 Handheld VHF

1x McMurdo E3 EPIRB

1x McMurdo S4 SART

Operator

Landfall Marine Contractors B.V.

De Schans 38

2983 GT, Ridderkerk

The Netherlands

Previous operator

Seacontractors Brokerage BV

Bellamypark 50-52

4381 CK Vlissingen

The Netherlands

Registered owner

Bouwmantug B.V.

Engelse Kade 5

4301 NA Zierikzee

The Netherlands

Previous owner

VOF F.J.M. Hubregtse-Van Den Berge

Carlstraat 1a

4322BA Scharendijke

The Netherlands

Last data adjustment

18 February 2021
