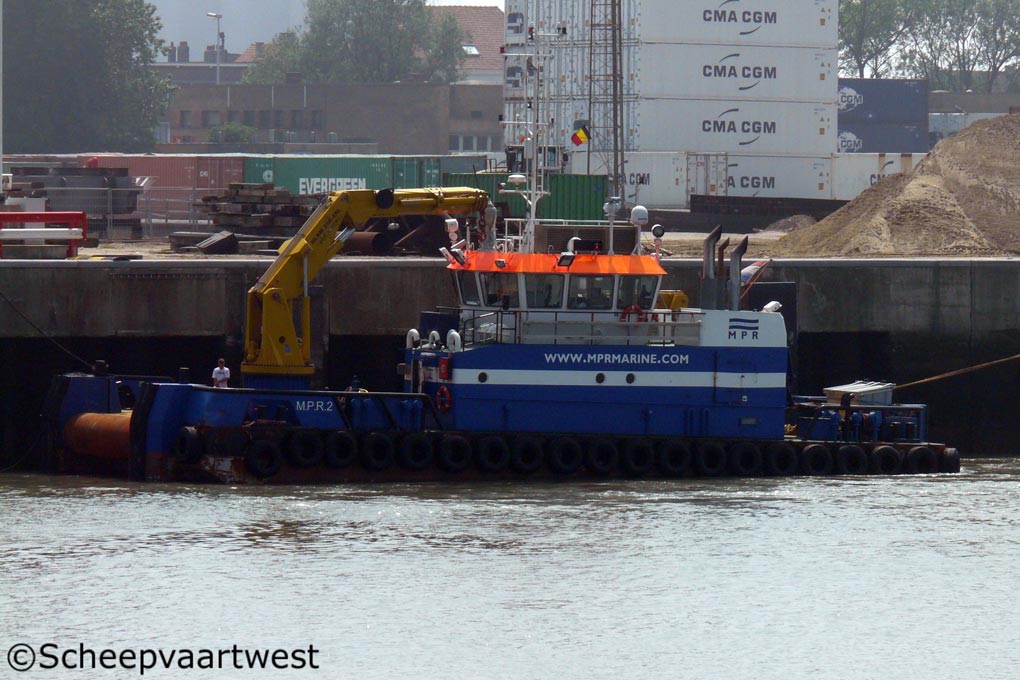

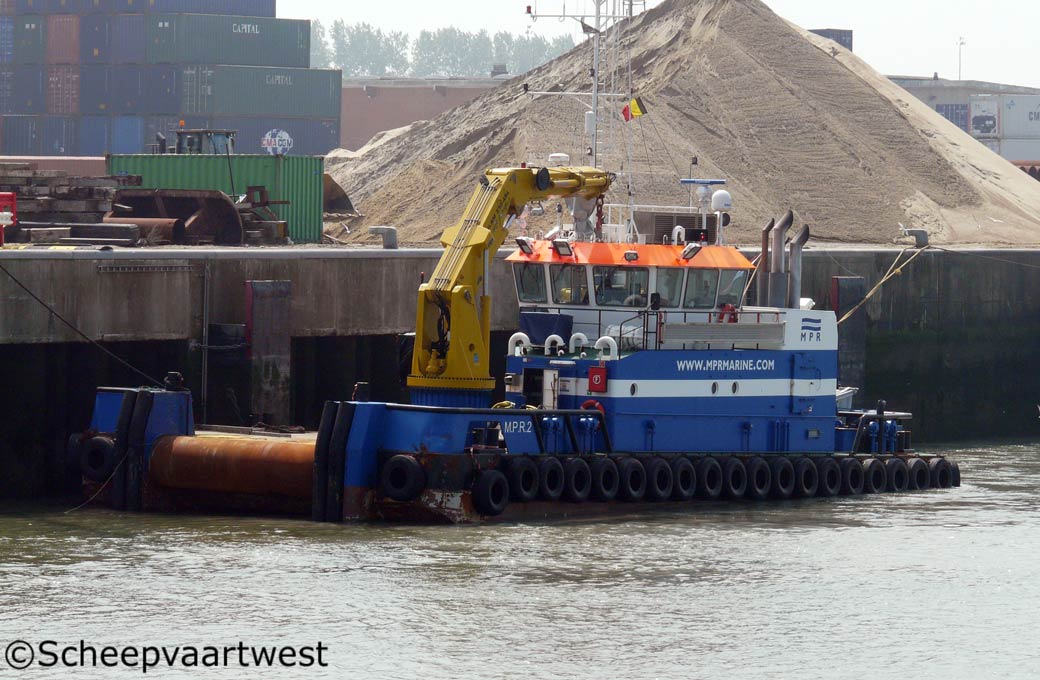

| Zeebrugge 30 May 2012 |
 |
| Zeebrugge 30/05/12 |
|
Name |
M.P.R.2 |
|
Type |
Tug - Special service - Multi-purpose ship |
|
IMO-number |
9593256 |
|
Call sign |
PBQL |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
254 t |
|
DWT |
239 t |
|
NT |
76 t |
|
Length |
26,48 m overall 24,50 m between perpendiculars |
|
Breadth |
11,00 m |
|
Draught |
Summer: 2,65 m |
|
Freeboard |
874 mm |
|
Depth |
3,50 m |
|
Speed |
10,0 knots |
|
Purpose |
Provisions & water |
|
Built |
2010 |
|
Date of completion |
03.12.2010 |
|
Builder casco |
M.A.C. Scheepsbouw & Reparatie B.V. |
|
Builder completion |
Neptune Marine Service BV |
|
Yard number |
374 |
|
Hull material |
Steel |
|
Main engine |
2x Caterpillar C32 Acert electronic - 12 cylinder diesel engines - each 970 kW / 1.318 hp total 1.940 kW / 2.636 hp at 1.800 rpm Builder: Caterpillar Inc. |
|
Gearbox |
2x Disc reduction gearboxes |
|
Propeller |
2x Screw propeller solid |
|
Generators |
1x Caterpillar C4.4 diesel engine 51 kW - 76 hp coupled with Leroy Somer LSAM 43,2L8 generator 64 kVA |
|
Bollard pull |
30,0 t |
|
Deck Load |
6,0 t/m² |
|
Deck area |
100 m² |
|
Deck load |
350 t |
|
Deck Equipment |
Hydrauvision winches 80 t Anchor handling winch 50 t Towing winch 10 t Tugger winch |
|
Tank capacities |
Fuel oil: 106 m³ Fresh water: 43 m³ |
|
Lifting equipment |
1x Heila HLRM Crane 230-4SL 10.500 kg at 16,30 m 24.500 kg at 7,75 m 1x Heila HLRM Crane 140 |
|
Other equipment |
Towing hook Push bow Bow /stern roller Fuel Supply pump Freshwater supply pump Anchor handling equipment Forward / aft AHT Pins / Hydraulic stopper |
|
Crew |
5 |
|
Accommodation |
Heated and air conditioned for up to 7 persons |
|
Manager |
Marine Project Rotterdam BV |
|
Owner |
Marine Projects Rotterdam B.V. |
|
Registered owner |
Multicat M.P.R. 2 B.V |
