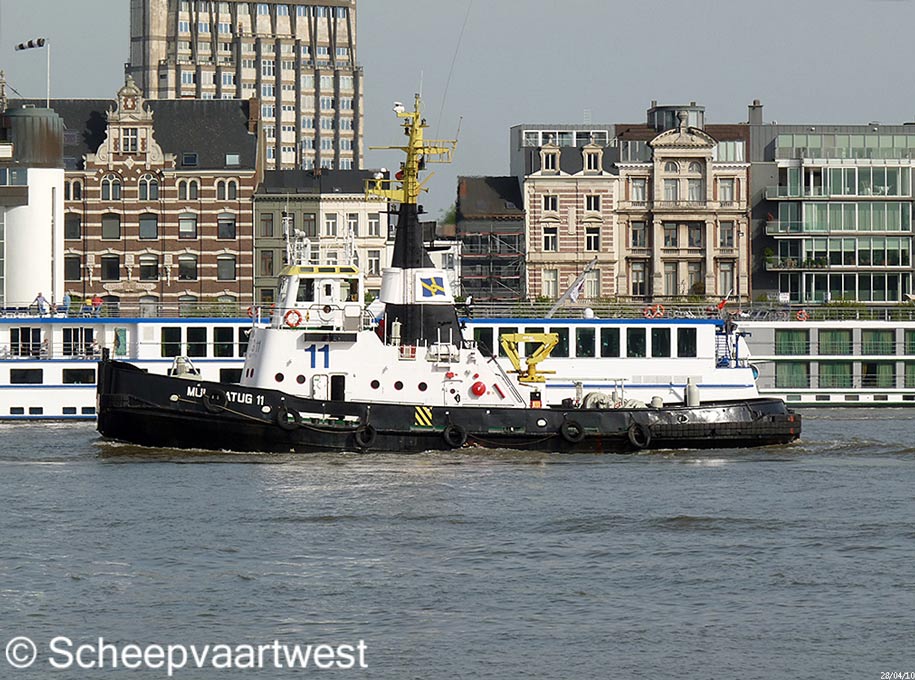

| Antwerpen 28 April 2010 |
 |
 |
 |
 |
 |
||||

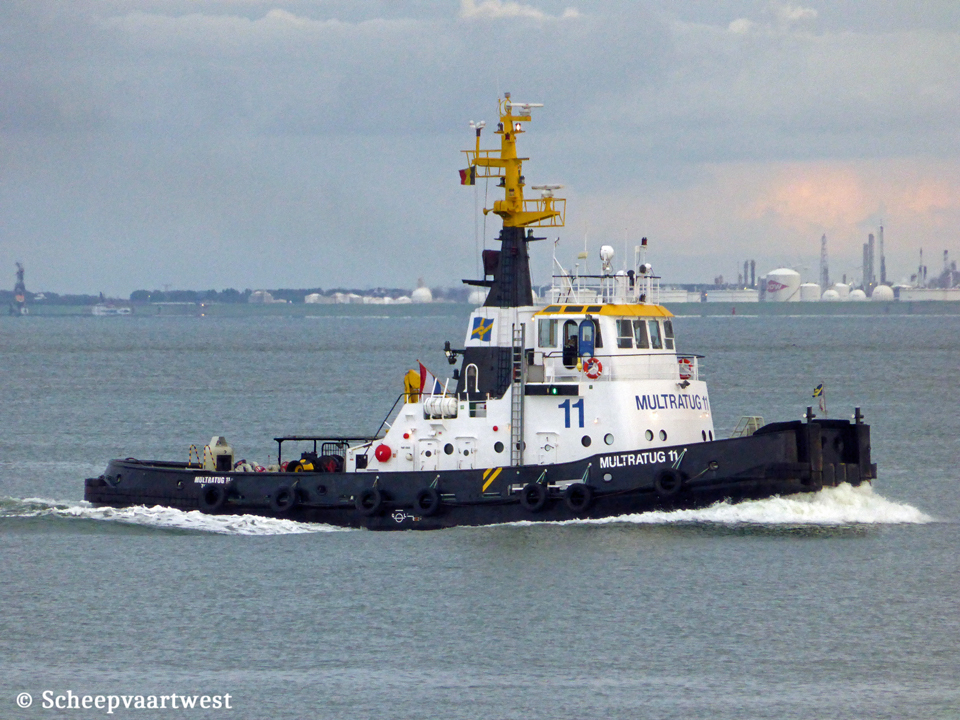

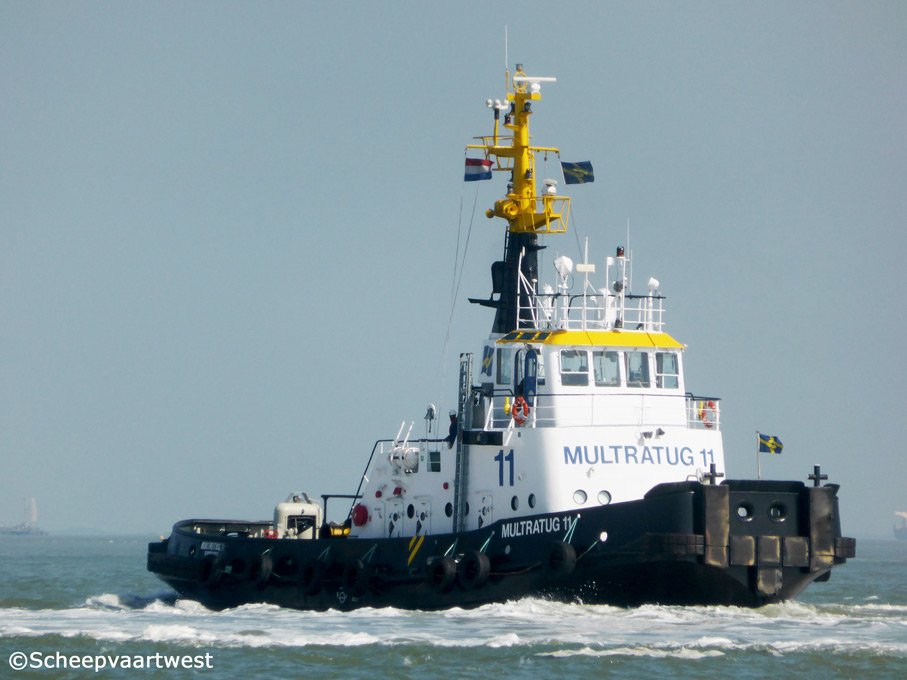

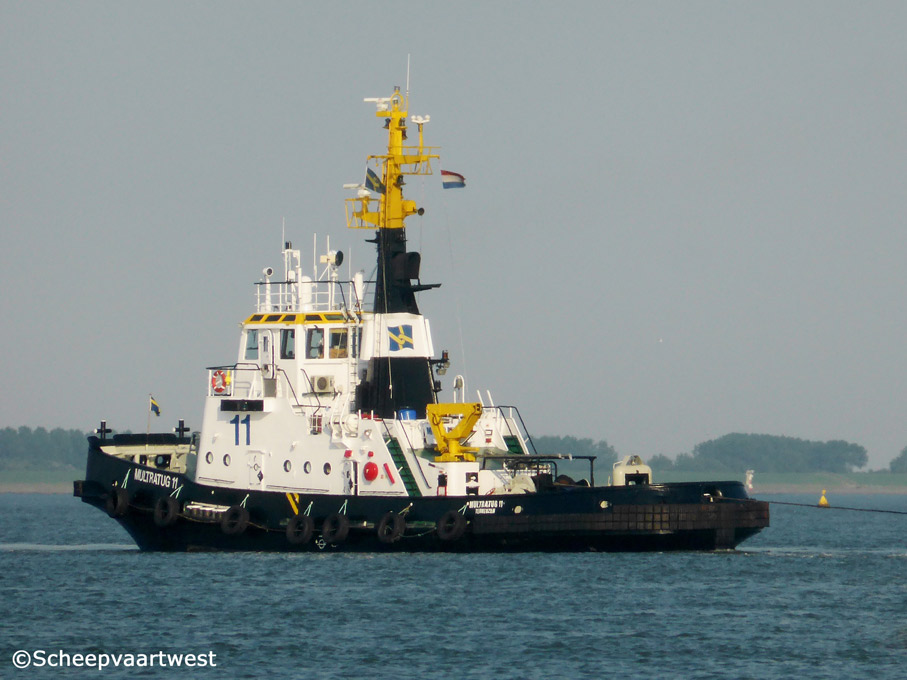

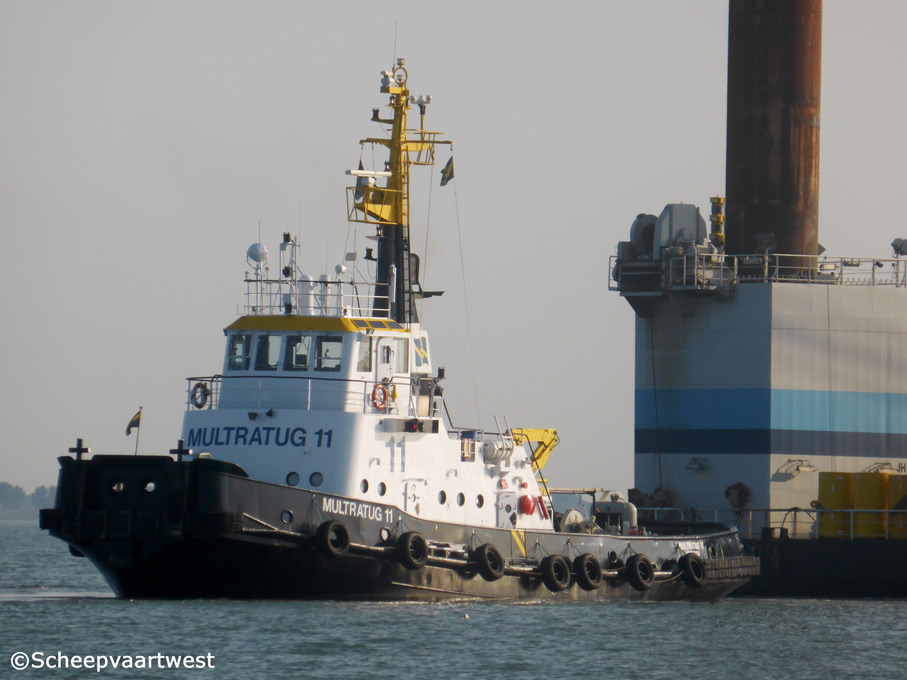

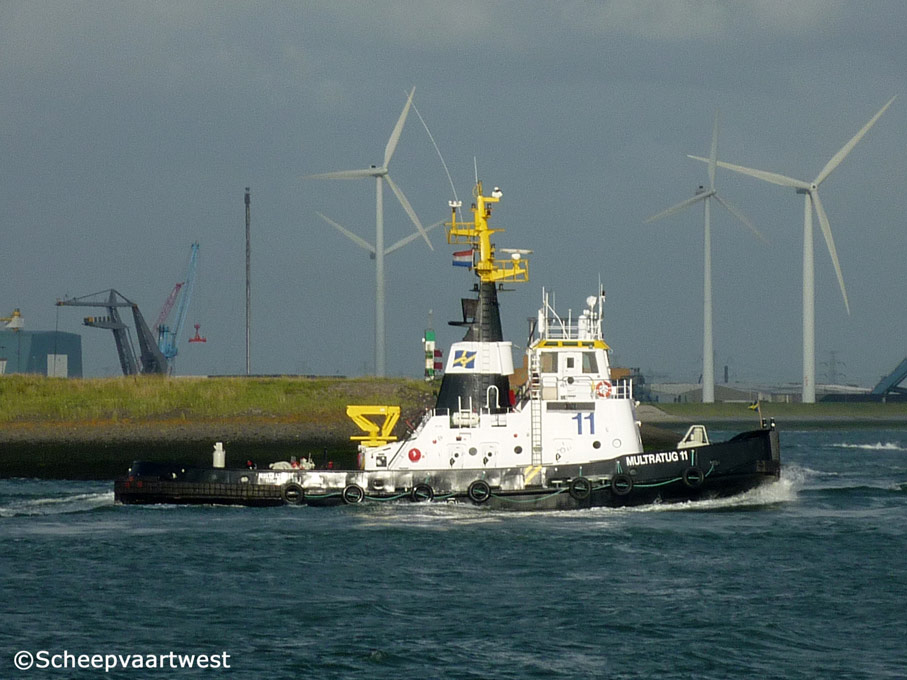

| Vlissingen 13/07/12 | Westerschelde 17/05/14 | Westerschelde 17/07/14 | Westerschelde 17/0/14 | Westerschelde 07/09/15 | ||||
|
Name |
MULTRATUG 11 |
|
Previous names |
1972 - 22/09/2000 Mercur 2000 - 2004 Multratug 11 2004 - 2009 Serwal 2 2009 Multratug 11 |
|
Type |
Tug - Strengthened for pushing |
|
IMO-number |
7232626 |
|
Call sign |
PFBB |
|
Flag |
The Netherlands |
|
Port of registry |
Terneuzen |
|
Previous flags |
2004 - 2009 Poland, Stettin |
|
GT |
243 t |
|
NT |
73 t |
|
Length |
29,50 m overall 28,08 m between perpendiculars |
|
Breadth |
9,20 m overall |
|
Draught |
Max: 4,65 m |
|
Depth |
3,60 m moulded |
|
Speed |
12,0 knots |
|
Built |
1972 |
|
Keel laid |
30/06/1972 |
|
Launch date |
23/09/1972 |
|
Date of completion |
18/12/1972 |
|
Builder |
Jadewerft Wilhelmshaven GmbH Banter Deich 4 Wilhelmshaven Federal Republic of Germany |
|
Yard number |
130 |
|
Hull type |
Single hull |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
2x Deutz SBA8M528 - 4 stroke single acting 8 cylinder 220 x 280 mm combustion engines -ach 736 kW at 900 rpm Total: 1.472 kW Year of manufacture: 1972 Manufacturer: Klöckner-Humboldt-Deutz AG 51057 Köln Federal Republic of Germany |
|
Propellers |
2x Voith-Schneider propeller - at 62 rpm |
|
Electric installations |
1x Plant 400/220 V - 112 kVA 1x Plant 400 V - 8 kVA |
|
Generators |
2x Deutz F6L515 main diesel generatorsets each 56 kVA / 380 Volt 50 Hz |
|
Harbour generator |
1x x Deutz FL410D diesel generatorset 8 kVA / 380 Volt 50 Hz |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bollard pull |
30 t |
|
Deck lay-out |
Anchor: 1x 1.543 kg Chain: 251,40 m, diameter: 38 mm Towing winch: Norwinch 102048 Towing hook: H 30 system, Wieckhoff 30 ton Deck crane: Type AK 4006B-2, max. WLL 1.250 kg, length 8,00 m |
|
Tank capacities |
Fuel oil : 80,40 m³ Fresh water : 11,0 m³ Lubrication oil : 1,47 m³ Hydraulic oil : 0,305 m³ Dirty oil : 1,0 m³ Bilge water : 12,0 m³ Sewage : 7,30 m³ |
|
Accommodation |
1-man cabin: 4 2-men cabin: 1 Messroom: 1 Galley: 1 |
|
Operator |
Multraship Towage & Salvage Schuttershofweg 1 4530 AB Terneuzen The Netherlands |
|
Owner |
Multratug BV Schuttershofweg 1 4530 AB Terneuzen The Netherlands |
|
Previous names & owners |
|
|
Latest data aqjustment |
23 March 2024 |
