| Westerschelde 06 October 2012 |
 |
 |
 |
 |
 |
||||

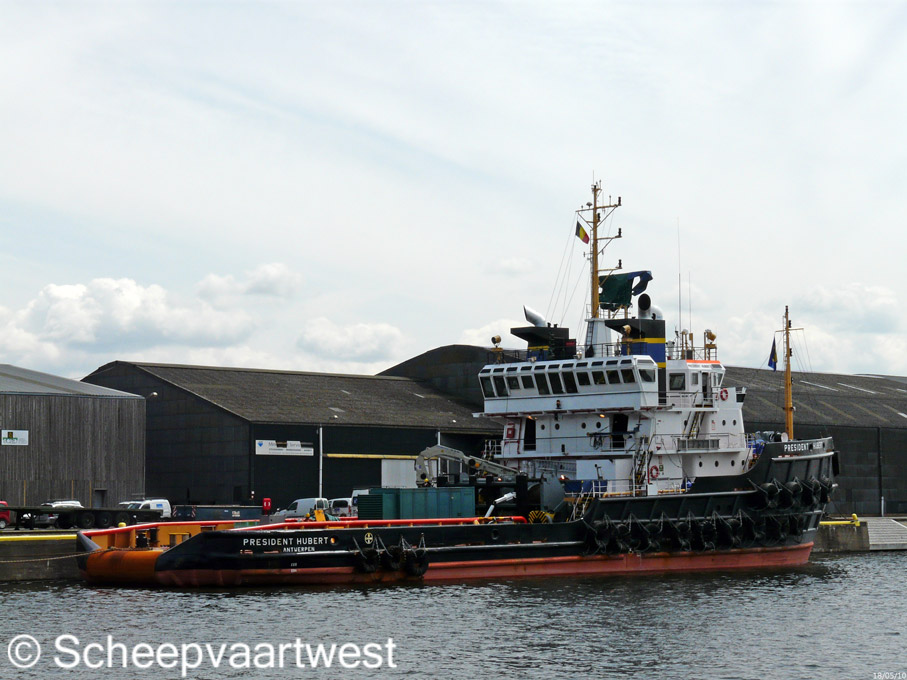

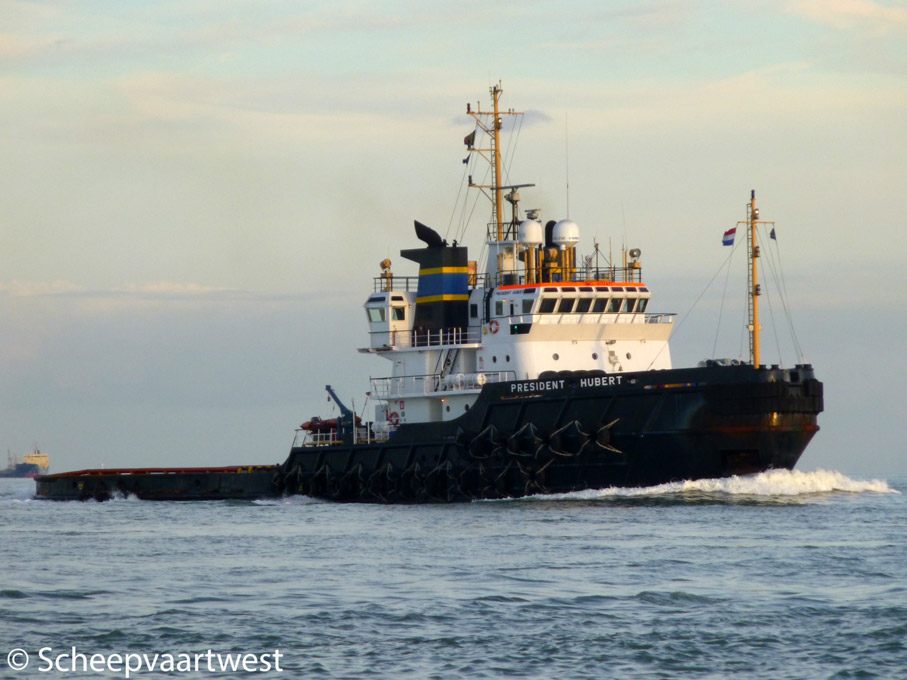

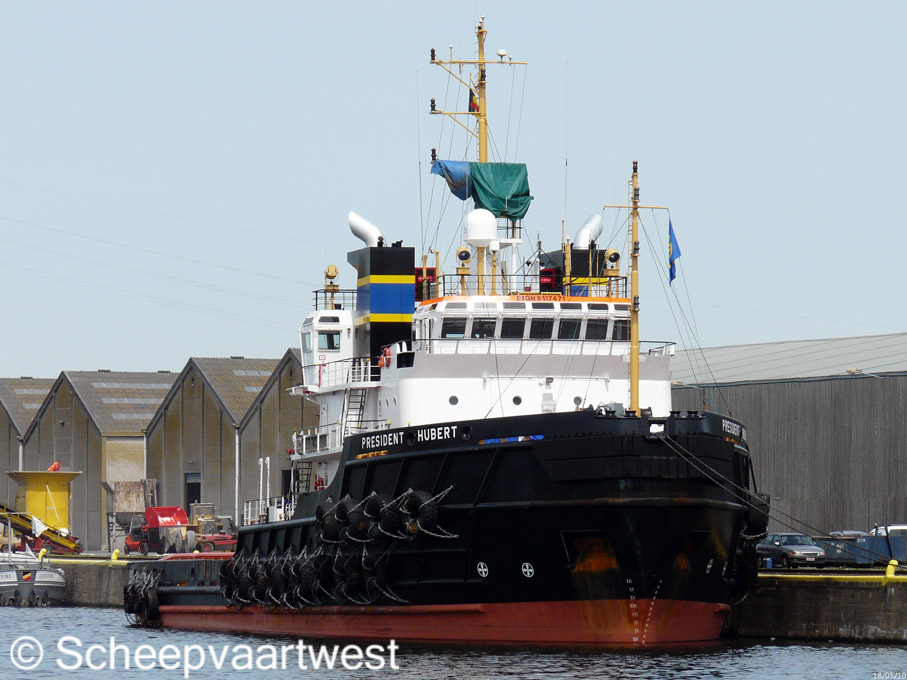

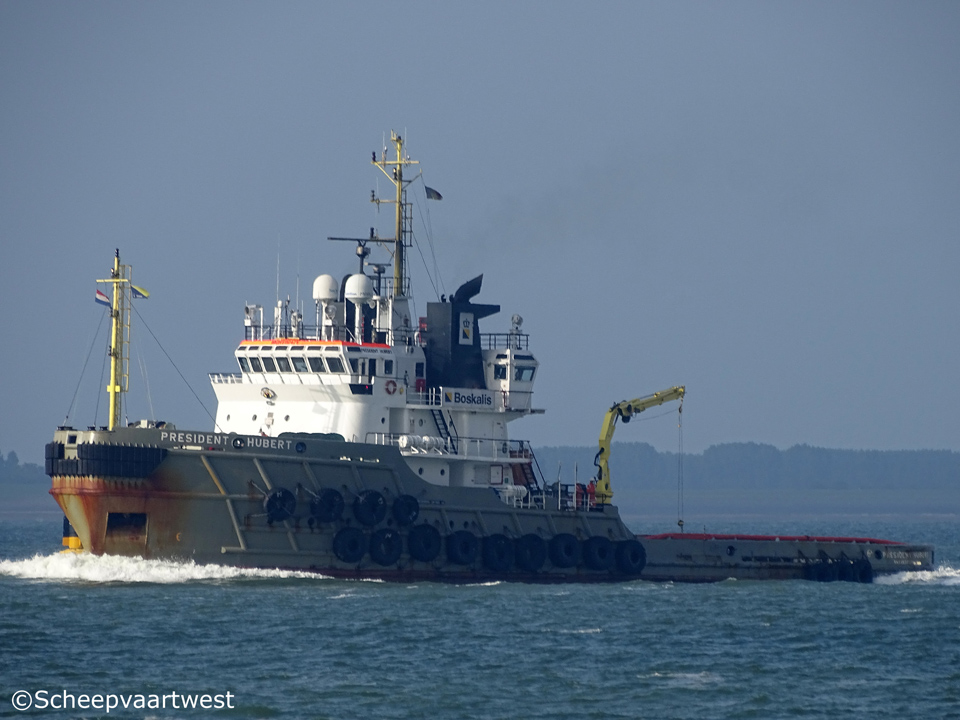

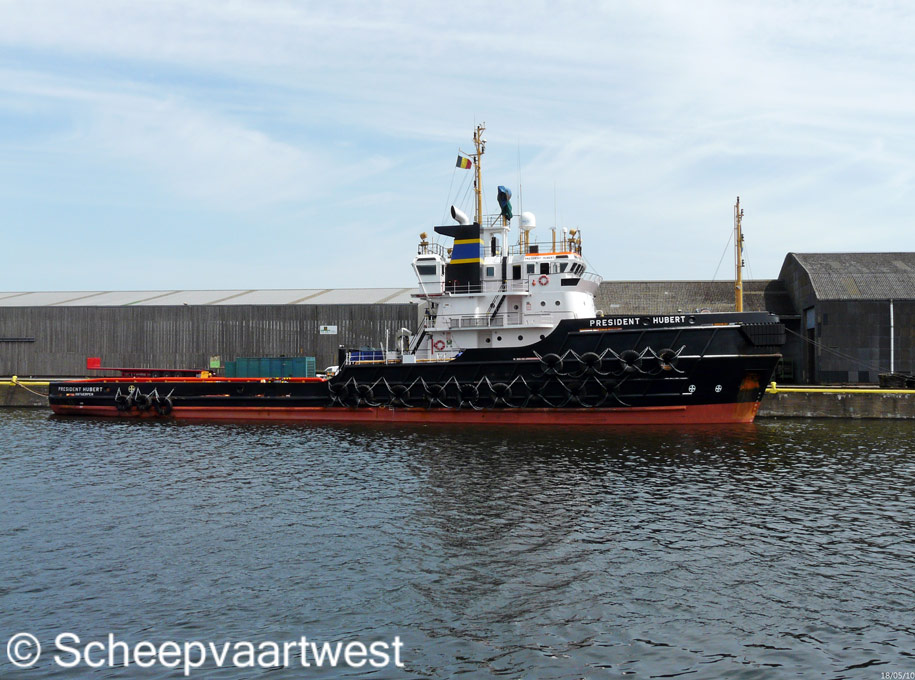

| Brugge 18/05/10 | Brugge 18/05/10 | Brugge 18/05/10 | Westerschelde 05/08/17 | Westerschelde 13/07/17 | ||||
|
Name |
PRESIDENT HUBERT |
|
Type |
Tug - Offshore vessel / Anchor handling Tug (AHT) |
|
IMO-number |
8117471 |
|
Registration number |
01 00308 1996 |
|
Call sign |
ORLD |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
GT |
1.738 t |
|
DWT |
1.745 t |
|
NT |
521 t |
|
Length |
60,46 m overall |
|
Breadth |
15,02 m overall |
|
Draught |
Max.: 7,00 m Min.: 3,90 m |
|
Depth |
7,04 m |
|
Speed |
16,0 knots |
|
Built |
1982 |
|
Launch date |
17.07.1982 |
|
Date of completion |
11.10.1982 |
|
Builder |
Royal Niestern Sander |
|
Yard number |
509 |
|
Hull type |
Single hull |
|
Main engine |
2x Atlas-MAK-16M453 - 16 cylinder diesel engines - totalling 9.000 kW / 12.237 bhp at 600 rpm |
|
Propellers |
2x Lips C.P. propellers in Kort nozzles |
|
Shaft generators |
2x Shaft generators each 350 kW |
|
Generators |
3x Caterpillar diesel engines each 470 bhp coupled with Indar generator each 332 kW 3x 440 V - 60 Hz. 1x Diesel generator for harbour duties 105 kW |
|
Bow thruster |
2x Bow thrusters 300 kW 1x Stern thruster all with C.P. propellers |
|
Deck equipment |
Powerfull and robust towing winch Brusselle double dum towing/ anchorhandling winch, each drum with a capacity of 1.800 m diameter 72 mm steel wire. Brake holding: 300 t., tower shift control, pulling, force up to 200 t., slack rope speed: 115 m/min. Two declutchable gypsy wheels for achor chains up to 4” diameter (pulling force of 190 t.) and 2x 70 m³ chain lockers. Several achorhandling support winches, capstan, hydraulic deck crane, Karm forks. Free deck space 220 m² with a deck load up to 15 t/m² |
|
Towing / anchor handling |
2x Storage reels (under deck): 2x 1.500 m x diameter 76 mm 2 x Gipsy chain wheels :5 Speed + 1 reverse 2 Indenpendent drums, make Brusselle: Power 170 t at 6,7 m/min Stalling power: 200 t Brake holding power / load: 300 t Wire capacity: 2 x 1500 m |
|
Bollard pull |
157 t |
|
Tank capacities |
Fuel oil: 1.750 m³ Potable water: 48 m³ |
|
Lifting equipment |
1x Hydraulic deck /provision crane at PS - SWL 2,0 t at 10,25 m / 5,0 t at 5,00 m |
|
Navigation equipment |
Radar |
|
Accommodation |
Air-conditioned |
|
Crew |
11 |
|
Operator |
URS België N.V. Italiëlei 3 bus 2 B-2000 Antwerpen |
|
Owner |
N.V. Borkalis Offshore Transport Services Head office: Royal Boskalis Westminster N.V. |
|
Previous owner |
N.V. URS Ocean Towage N.V. Smit Transport Belgium 2000 Antwerpen |
|
Latest data adjustment |
17 January 2015 |
