| Spijkenisse, The Netherlands 19 March 2011 |
 |
| Spijkenisse 08/04/16 |
|
Name |

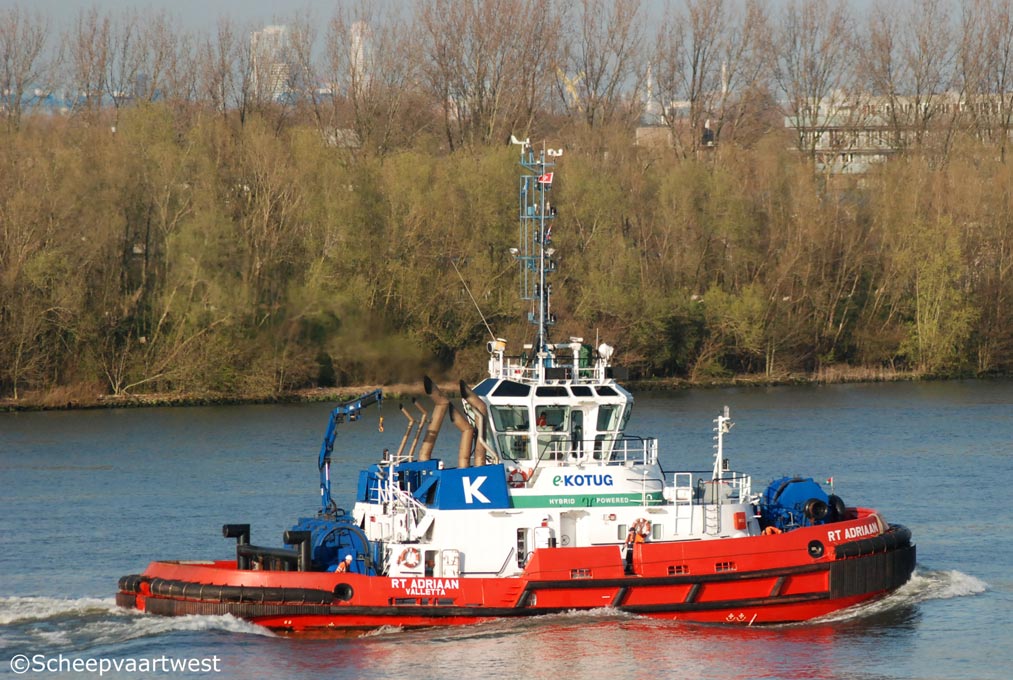

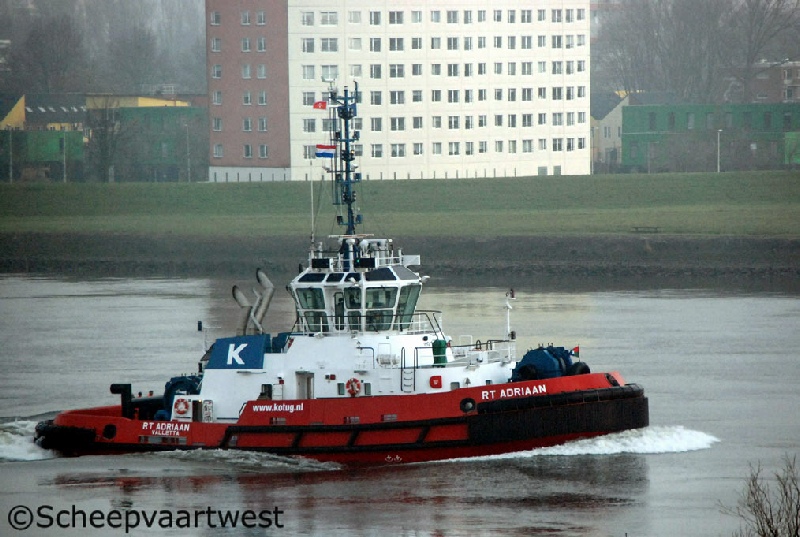

RT ADRIAAN |
|
Type |
Hybrid rotor tug |
|
IMO-number |
9489936 |
|
Call sign |
9HTI9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
463 t |
|
DWT |
Summer: 275 t |
|
NT |
138 t |
|
Length |
31,63 m overall 29,07 m waterline |
|
Breadth |
12,80 m |
|
Draught |
5,95 m Max.: 6,45 m |
|
Air draft |
12,00 m |
|
Depth |
5,40 m |
|
Speed |
12,5 knots |
|
Built |
2010 2012 Hybrid Retrofit |
|
Date of completion |
25.11.2009 |
|
Builder |
Niigata Shipbuilding & Repair |
|
Yard number |
36 |
|
Continuous decks |
1 |
|
Main engine |
3x Caterpillar 3512 C-HD - 4 stroke 12 cylinder 170 x 215 mm diesel engine - each 1.765 KW / total 5.295 kW 6.884 bhp at 1.800 rpm Starter type: Electrical starter Built: 2009 Manufacturer: Caterpillar Tractor Co. |
|
Propellers |
3x Schottel SRP-1215-FP - Azimuth Z-Drive Diameter: 2.400 mm - 4 blades |
|
Break horse power |
7.100 hp |
|
Hybrid |
Hybrid system: Xeropoint Hybrid provisions: Lithium polymer batteries package Motor/Generators: 3x Westinghouse Motor/Generator Kilowatt (transit): From 500 kW - to 1.765 kW Max. speed: 10 knots transit mode |
|
Electric voltage |
400/230 Volt - 50 Hz |
|
Generators |
2x Caterpillar C.9 - 6 cylinder 112 x 149 mm diesel engines each 250 kW at 1.500 rpm with 2 generators each 202,5 kVA Built: 2009 Manufacturer: Caterpillar Tractor Co. |
|
Emergency generator |
1x Caterpillar C.4.4 - 4 cylinder 105 x 127 mm diesel engine 36 kW at 1.500 rpm with a generator 45 kVA Built: 2009 Manufacturer: Caterpillar Tractor Co. |
|
Bollard pull |
82 t ahead |
|
Towing equipment |
Aft towing winch: Double drum 600 m - 56 mm steel wire with hawser + amsteelblue pennant 1x Ultraline (200 m / 80 mm) with Ko-link + amsteelbleu pennant For towing winch: 1x Ultraline (200 m / 80 mm) with Ko-link + amsteelbleu pennant |
|
Tank capacities |
Fuel: 157 t Fresh water: 34 t Ballast water: 62 t |
|
Lifting equipment |
1x Hiab 121 deck crane - SWL 900 kg at 10,00 m |
|
Accommodation |
2 single cabins, 2 double cabins Smokers cabin with 2 hinged bunks |
|
Communication & Navigation |
GMDSS A2 2 x Radar Autopilot Satellite compass Magnetic compass GPS MF/HF Radio DSC 2x VHF DSC 2x VHF Handheld Navtex Epirb Lritt Sart Ais Joystick GSM Mobile phone Speedlog Echo sounder |
|
Manager |
Kotug International BV 3072 AR Rotterdam |
|
Operator |
Kotug International B.V. |
|
Owner |
Elisabeth Ltd. |
|
Latest data adjustment |
06 June 2016 |
