Name |

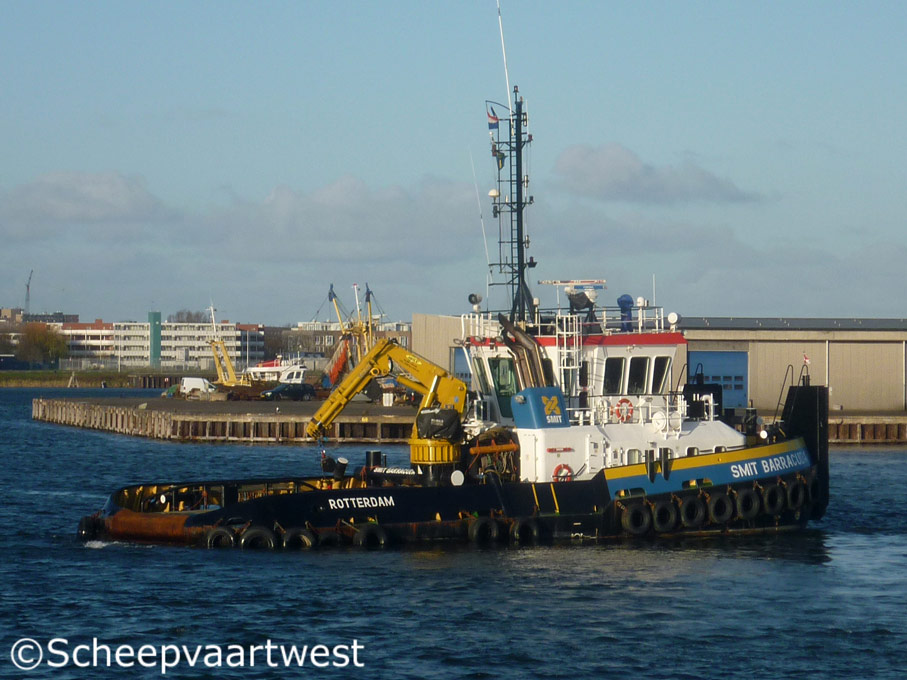

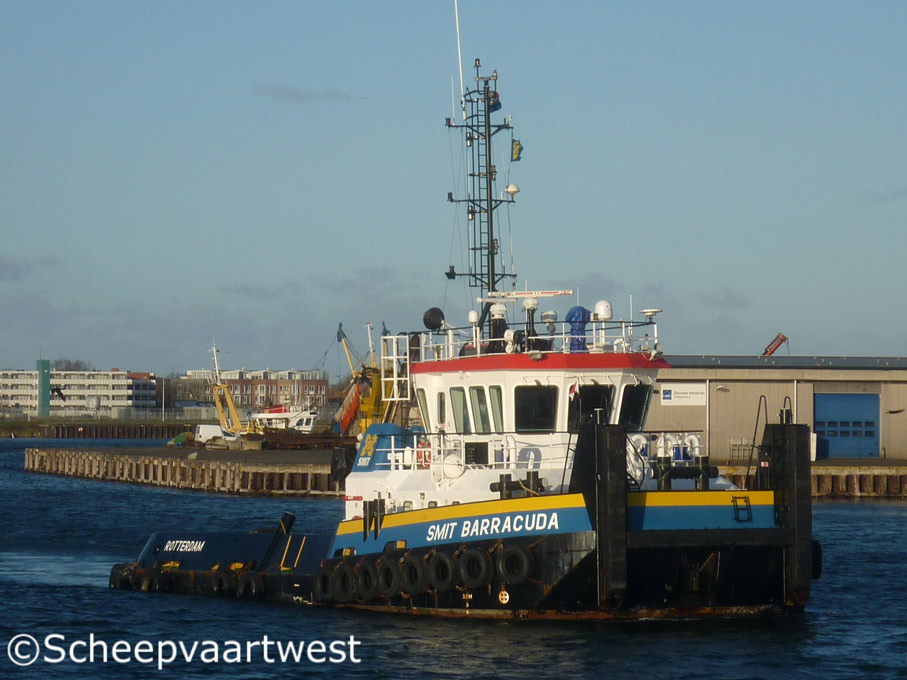

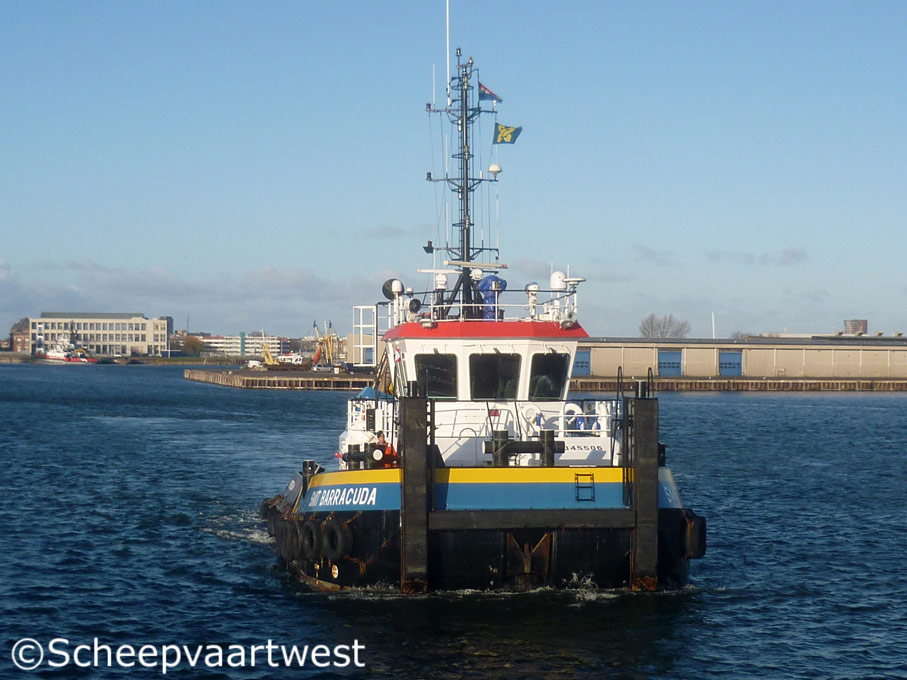

SMIT BARRACUDA |
|
Type |
Tug boat - Delta multi purpose pusher |
|
Belgium register number |
01 00828 2014 |
|
IMO-number |
9345506 |
|
Call sign |
ORRL |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
Previous flags |
2006 - 2014 The Netherlands, Rotterdam - call sign: PHFW |
|
GT |
230 t |
|
DWT |
Summer: 120 t |
|
NT |
69 t |
|
Length |
25,80 m overall 23,67 m between perpendiculars |
|
Breadth |
10,05 m |
|
Draught |
Summer: 3,17 m |
|
Air draft |
8,75 m |
|
Freeboard |
740 mm |
|
Depth |
3,45 m |
|
Speed |
11,0 knots |
|
Built |
2006 |
|
Date of completion |
01.08.2006 |
|
Builder |
IHC Beaver Dredgers BV |
|
Yard number |
11017 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3508B - 4 stroke 8 cylinder 170 x 190 mm diesel engine - each 746 kW total 1.492 kW / 2.028 hp at 1.600 rpm Built: 2005 Builder: Caterpillar Inc., Lafayette, IN - USA |
|
Propelling system |
2x Screw propeller solid - at 295 rpm |
|
Electrical installation |
Power voltage: 400 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Generators |
2x Caterpillar 3056T diesel generatorset each 84 kW - 129 hp - 105 kVA |
|
Bow thruster |
150 kW |
|
Bollard pull |
28 t |
|
Deck equipment |
Towing anchor handling winch Kraaieveld, hydraulic driven Holding power: 70 t Pulling: 50 t Tow drum capacity 700 m, diameter 38 mm Anchor handling drum capacity 200 m, diameter 44 mm Towing hook - SWL 35 t Stern roller - SWL 100 t Anchor handling gear - Towing pins and wire stopper |
|
Pumps |
Bilge pumps 24 m³/h Fuel supply pump 12 m³/h Water supply pump 12 m³/h Fuel oil separator 600 litres/h |
|
Tank capacities |
Fuel oil: 64 m³ Fresh water:33 m³ |
|
Lifting equipment |
1x Deck crane - Heila type HLRM 140-3S, hydraulic driven Capacity load: 26 t at 5,65 m Capacity reach: 10 t at 12,25 m |
|
Navigational & communication |
Radar 1: JRC JMA 5104 Radar 2: JRC JMA 609 Magnetic compass: Clarens & Plath GPS compass: JRC JLR10 Autopilot: Ratheon/Anschutz GPS: JRC Nav 500 Echosounder: Furuno FE 700 VHF: Sailor RT 4822 and Sailor RT 2048 VHF portable: McMurdo R2 Navtex: JRC NCR 333 MF/HF Sailor HT 4610 AIS: Furuno FA 150 Mini-M: Sailor/Thrane & Thrane |
|
Accommodation
|
Accommodation for 6 people, fully air-conditioned, sewage treatment unit |
|
Operator |
URS België N.V. Italiëlei 3 bus 2 Belgium |
|
Owner |
Boskalis Offshore Marine Services B.V. The Netherlands |
|
Previous owner |
Smit Transport Europe BV The Netherlands |
|
Optional modular units |
Fire-figthing (fifi) unit, double drum mooring winch, pump unit for ballast / salvage purposes, diving / decompression unit, survey equipment, oil spill response unit |
|
Latest data adjustment |
17 January 2014 |
