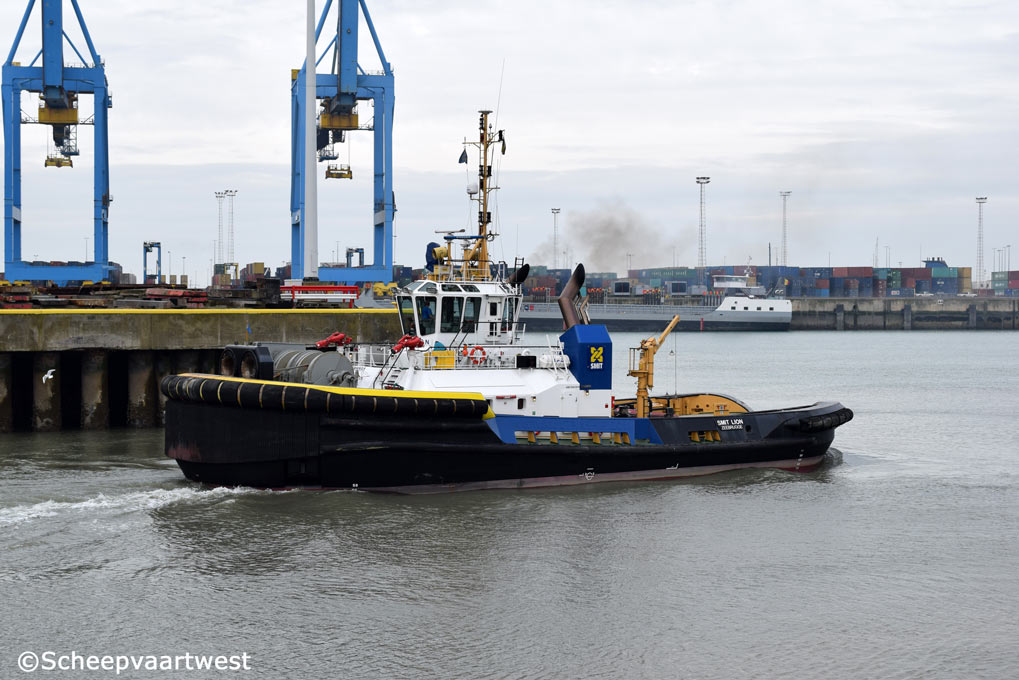

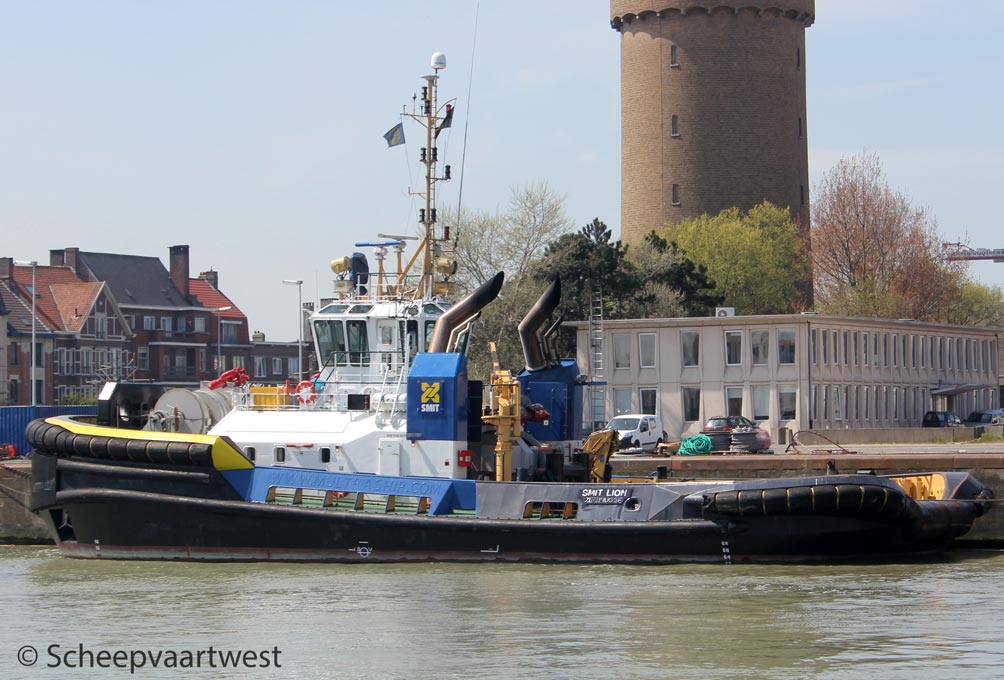

| Zeebrugge 03 May 2013 |
 |
 |
 |
 |
 |
 |
|||||

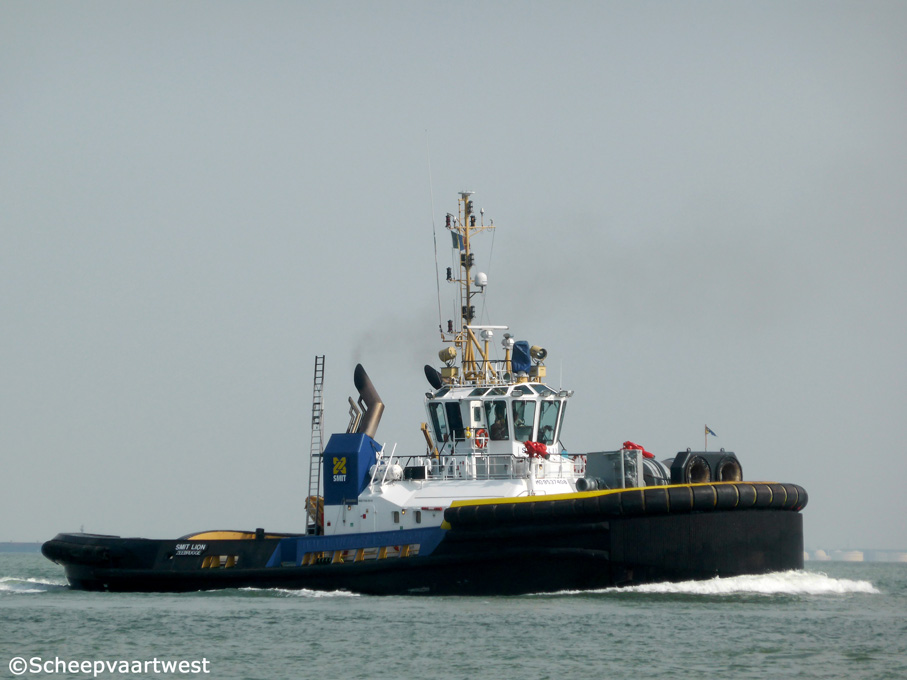

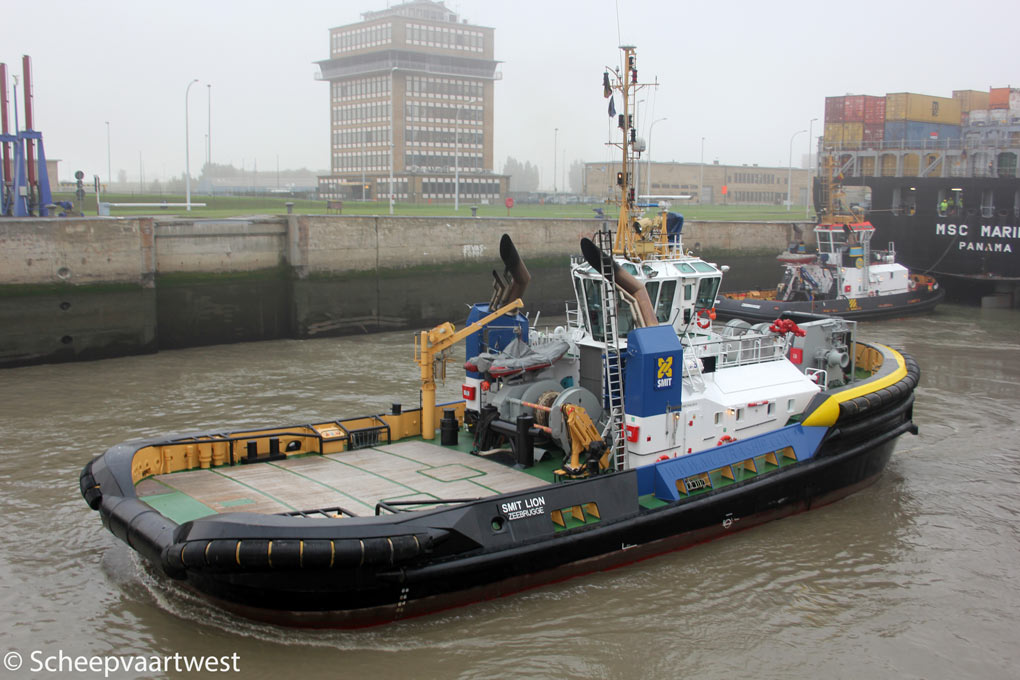

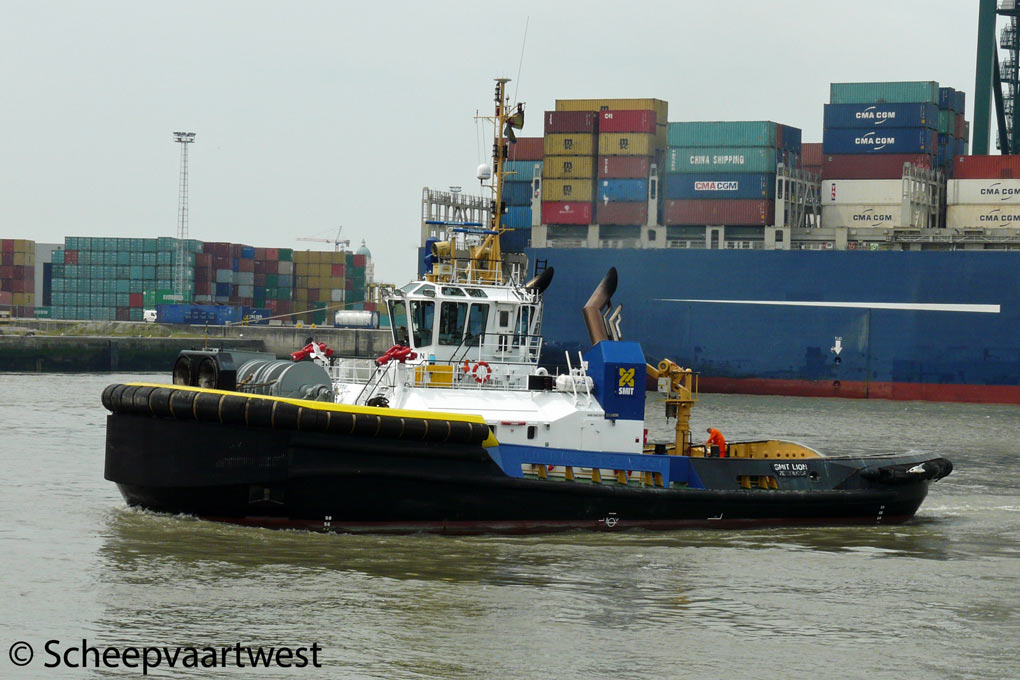

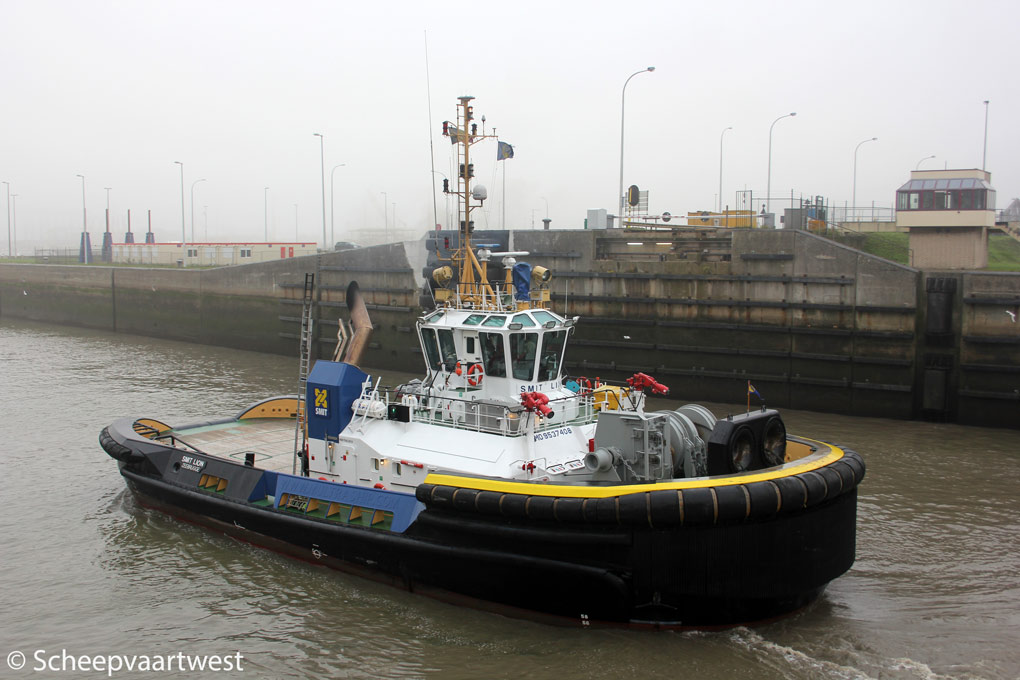

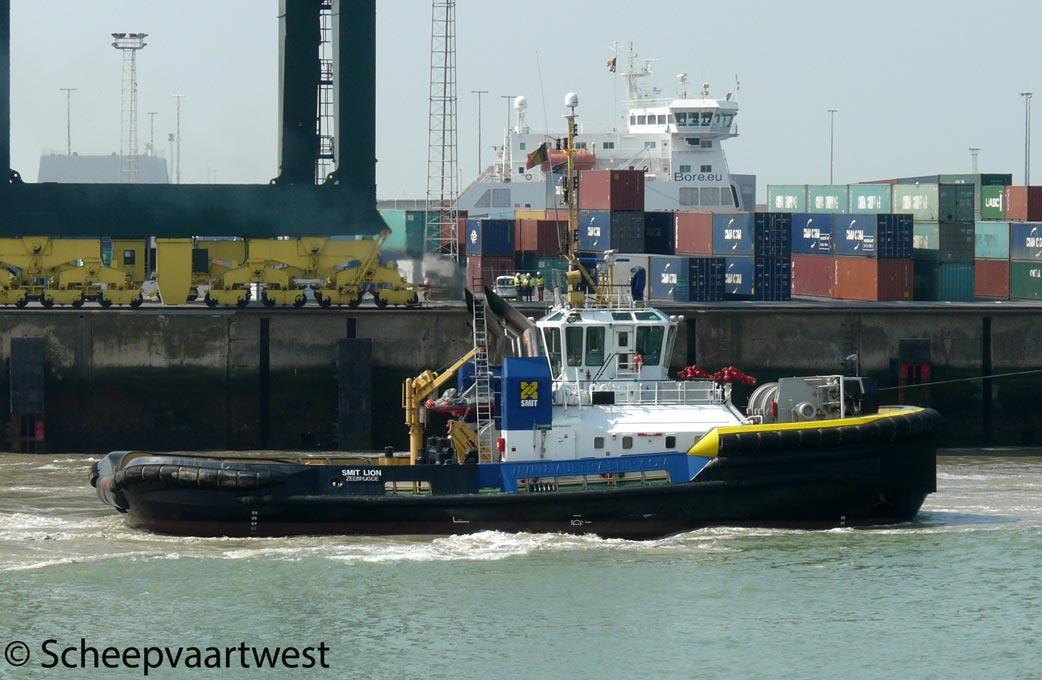

| Zeebrugge 02/05/13 | Zeebrugge 18/06/13 | Antwerpen 18/10/13 | Antwerpen 18/10/13 | Zeebrugge 07/03/14 | Westerschelde 30/05/14 | |||||
 |
 |
|

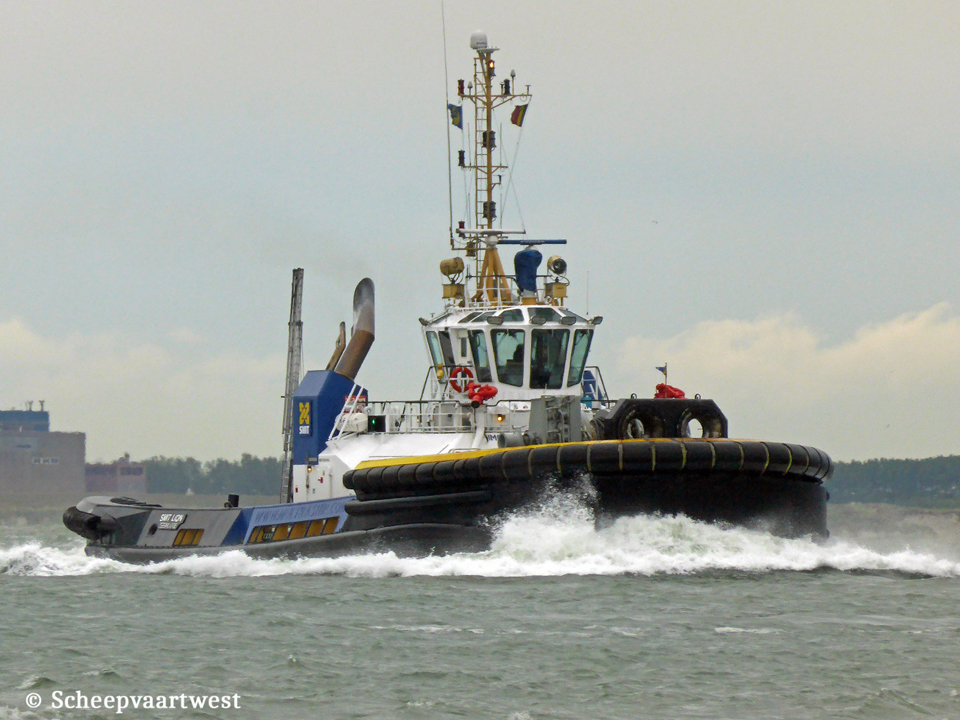

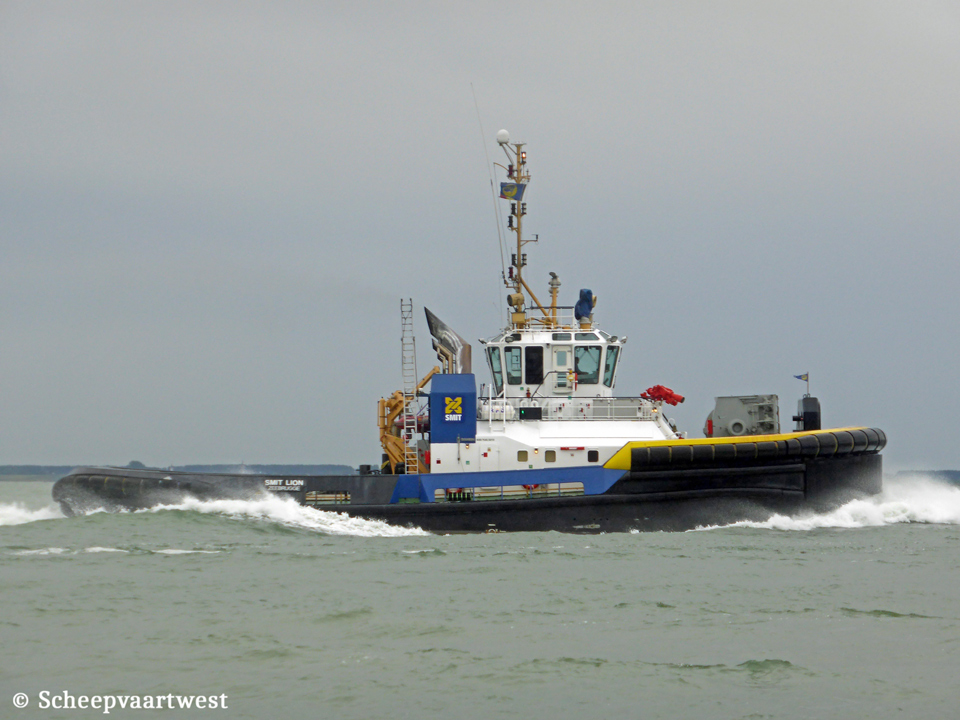

| Westerschelde 22/06/15 | Westerschelde 22/06/15 | |
|
Name |
SMIT LION |
|
Previous name |
2010 - 2012 Multratug 3 |
|
Type |
Tug - Fire-Fighting ship - Damen ASD Tug 3213 |
|
IMO-number |
9537408 |
|
Call sign |
ORQS |
|
Flag |
Belgium |
|
Port of registry |
Zeebrugge |
|
Previous flag |
2010 - 2012 St. Vincent and Grenadines, Kingstown - Call sign: J8B4397 2012 - 2016 The Netherlands, Terneuzen - Call sign: PBOZ |
|
GT |
484 t |
|
DWT |
276 t |
|
NT |
145 t |
|
Displacement |
1.017 t |
|
Length |
32,14 m overall 29,55 m between perpendiculars |
|
Breadth |
12,50 m registered |
|
Draught |
Aft: 6,31 m |
|
Depth at side |
5,50 m |
|
Speed |
13,7 knots |
|
Built |
2010 |
|
Keel laid |
01/09/2008 |
|
Launch date |
09/06/2009 |
|
Date of completion |
28/09/2010 |
|
Builder casco |
Song Cam Shipyard 47 Chi Lang Street Hon Bang District Hai Phong Socialist Republic of Vietnam |
|
Builder completion |
B.V. Scheepswerf Damen Gorinchem Yard The Netherlands |
|
Yard number |
513015 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull |
|
Watertight bulkheads |
3 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar C280 8/L - 4 stroke single acting 8 cylinder 280 x 300 mm combustion engines each Mcr 2.710 kW Total: Mcr 5.420 kW / 7.370 hp at 1.000 rpm with 2 azimuth thrusters Roll Royce U285 Built: 2008 Manufacturer: Caterpillar, Inc. 100 N.E. Adams Street 61629 Peoria IL United States of America |
|
Propeller type |
Rudder propeller, controllable pitch - aft at 215 rpm Diameter: 3.000 mm |
|
Electric installations |
2x Plant each 400 V - 183 kVA |
|
Generators |
2x Caterpillar C9 TA - 4 stroke 6 cylinder 112 x 149 mm diesel engines each Mcr 296 kW connected with generators each 162W / 230/400 Volt 50 Hz |
|
Compressed air receivers |
4x Receivers each 250 litres - 30,0 bar 1x Receive r30 litres - 30,0 bar |
|
Bollard pull |
97,7 t |
|
Fire fighting |
2x Main engine driven pumps each 1.450 m³/h |
|
FiFi monitor |
2x 1.200 m³/h |
|
Deck lay-out |
Hydraulically driven escort winch with double drum: Type: Kraayeveld KAS-100-H-TR 2x 150 m - diameter 104 mm - brake capacity: 250 t Towing winch aft: Type Kraayeveld KAS-50-H-TR 1.000 m - diameter: 60 mm - brake capacity: 200 t Stern roller: SWL 126 t Towing hook aft: 100 t Capstan: 5 t |
|
Tank capacity |
Fuel oil: 200 m³ Fresh water: 65,6 m³ Lubrication oil: 10,7 m³ Foam: 14,3 m³ Dispersant: 3 m³ Dirty oil: 4,9 m³ Bilge water: 4,9 m³ |
|
Anchor equipment |
3x Anchors weight each 780 kg Chain length: 330,00 m Diameter: 24 mm |
|
Accommodation |
3x 1 Main cabins 3x 3 Men cabins 1x Mess room 1x Gallery |
|
Crew |
3 |
|
Owner |
Multratug 3 B.V Terneuzen. The Netherlands In charter bij: Smit Towage Northwest Europe B.V., Antwerpen - Belgium |
|
Renamed |
2018 Multratug 3 The Netherlands, Terneuzen - Call sign: PCBD Owner: Multratug 3 BV Manager: Multraship Towage & Salvage BV |
|
Latest data adjustment |
23 September 2023 |
