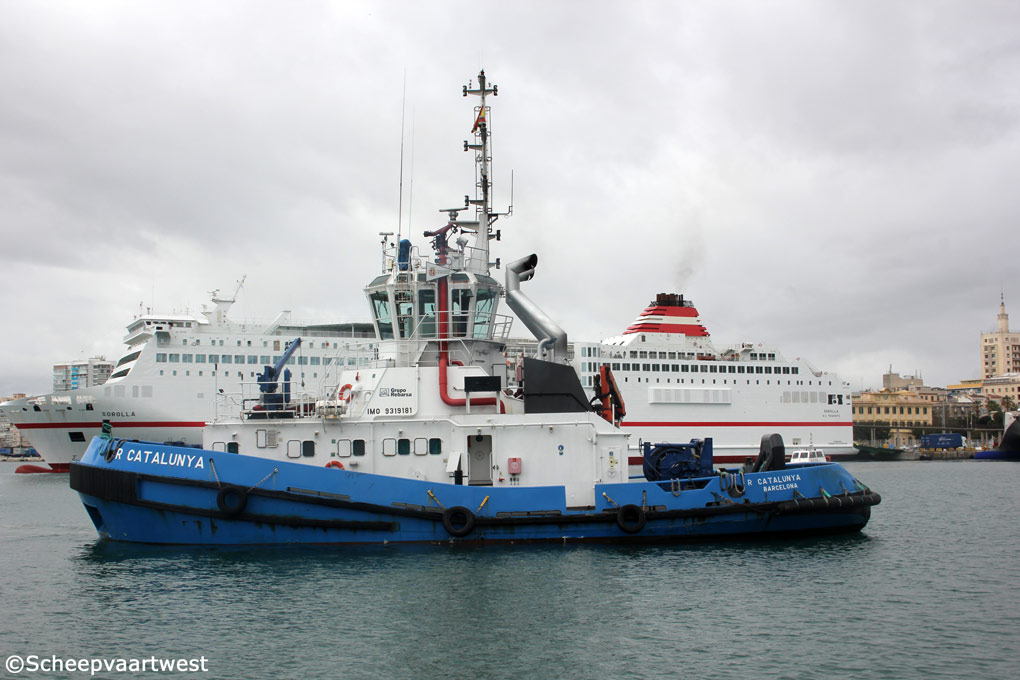

R Catalunya 03

Malaga, Spain 12 February 2014

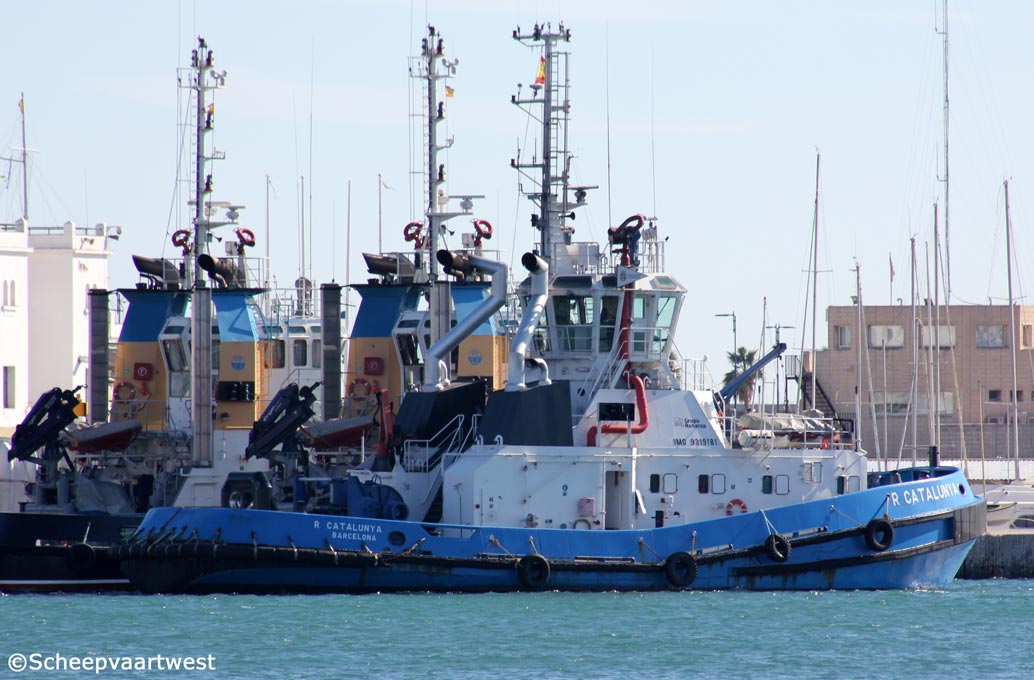

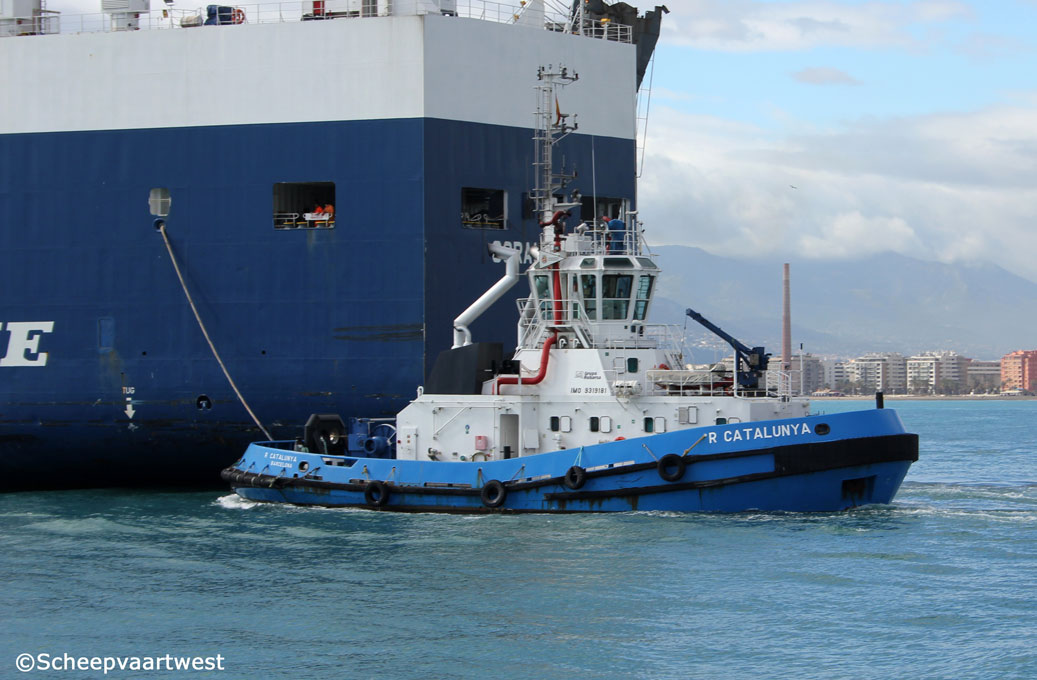

R Catalunya 02   R Catalunya 01
Malaga, Spain 03/02/14 Malaga, Spain 30/01/14


Name

R CATALUNYA

Type

Tug boat / Fire fighting ship

IMO-number

9319181

Call sign

EALC

Flag

Spain

Port of registry

Barcelona

GT

386 t

DWT

Summer: 210 t

NT

116 t

Length

29,50 m overall

27,94 m between perpendiculars

Breadth

11,00 m

Draught

6,90 m

Freeboard

767 mm

Depth

4,00 m

Speed

12,0 knots

Built

2005

Date of completion

29.07.2005

Builder

Astilleros Zamakona S.A.
Santurce (Vizcaya)
Spain

Yard number

614

Hull material

Steel

Watertight compartments

5

Continuous decks

1

Main engine

2x Rolls-Royce - 4 stroke 8 cylinder 250 x 330 mm diesel engine - total power 4.800 kW / 6.522 hp at 1.000 rpm

Built: 2004

Builder: Rolls-Royce Marine AS, Engines Dpt Bergen - Norway

Propellers

2x Ulstein Aquamaster US 255 FP - at 226 rpm

Electric installations

Power voltage: 400 V

Lighting voltage: 220 V

Frequency: 50 Hz

Generators

2x Diesel generatorsets each 204 kVA - 150 kW - 231 hp

Bollard pull

80 t

Tank capacities

Fuel oil: 137 m³

Fresh water: 27 m³

Oil: 9,2 m³

Manager

Remolcadores Barcelona S.A.
Muelle Evaristo Fernández, 28 (Edifici Remolcadors)
Barcelona
Spain

Owner

Remolcadores Barcelona S.A.
Barcelona
Spain

Latest data adjustment

02 April 2014
