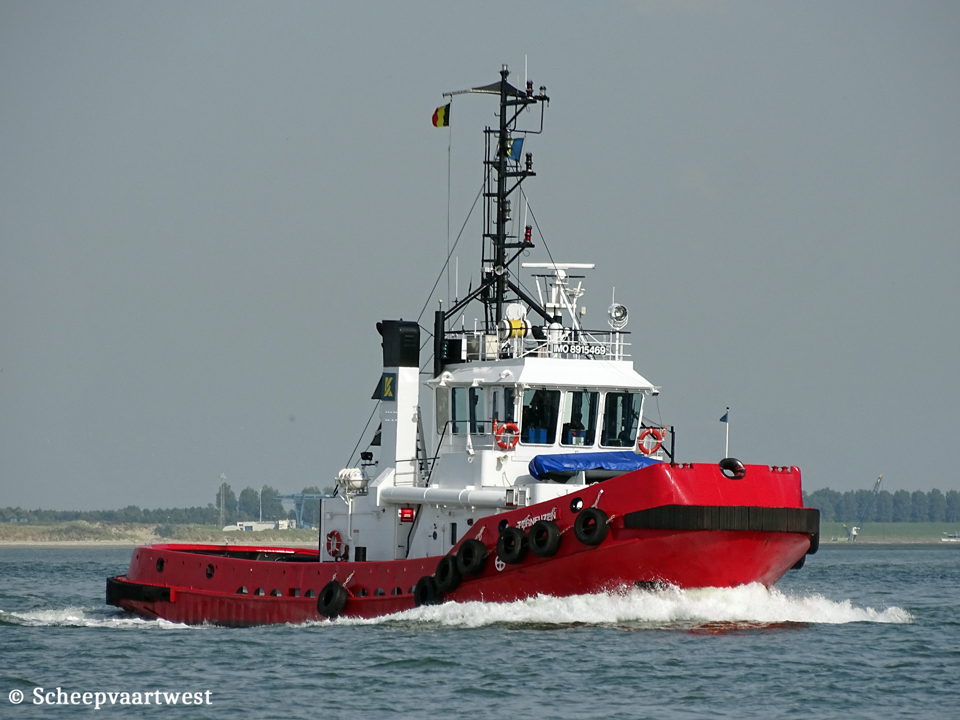

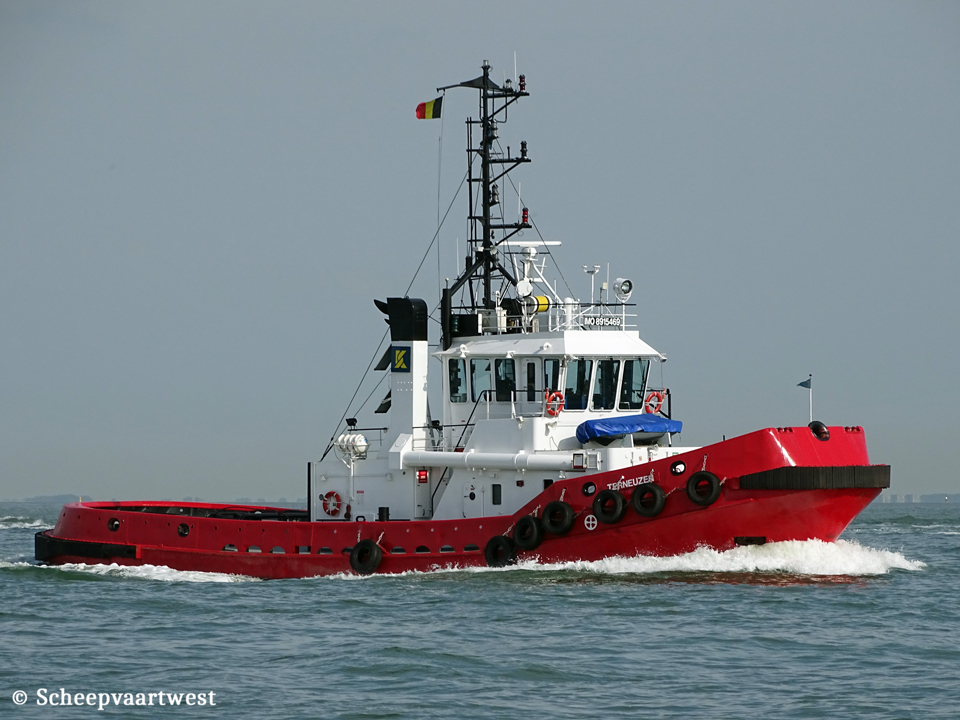

Westerschelde 15 June 2020 |
 |
 |
 |
 |
|||||||

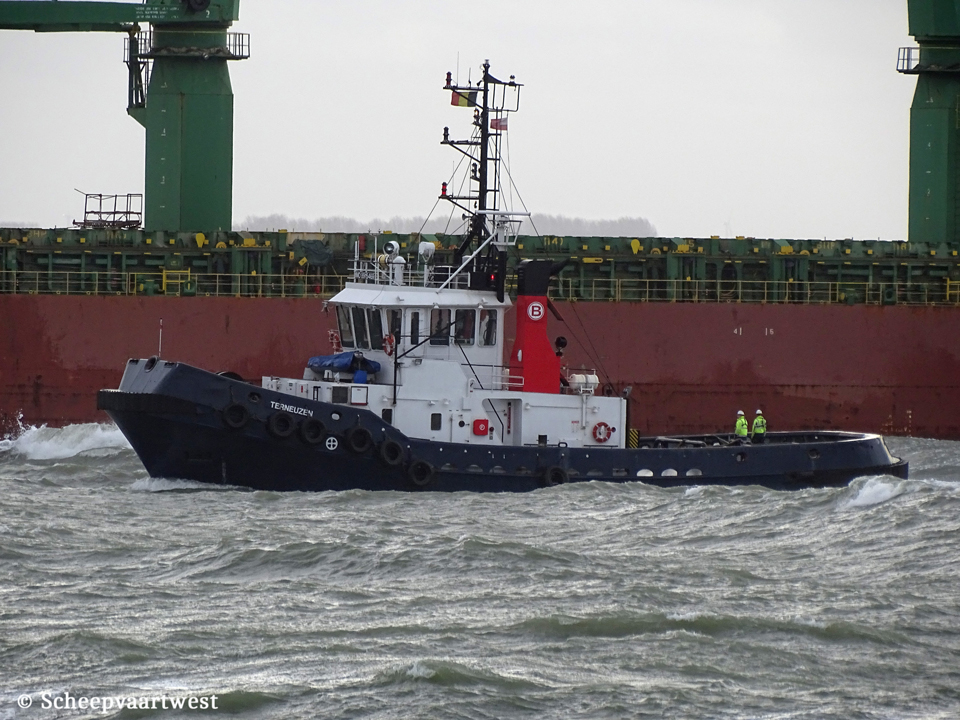

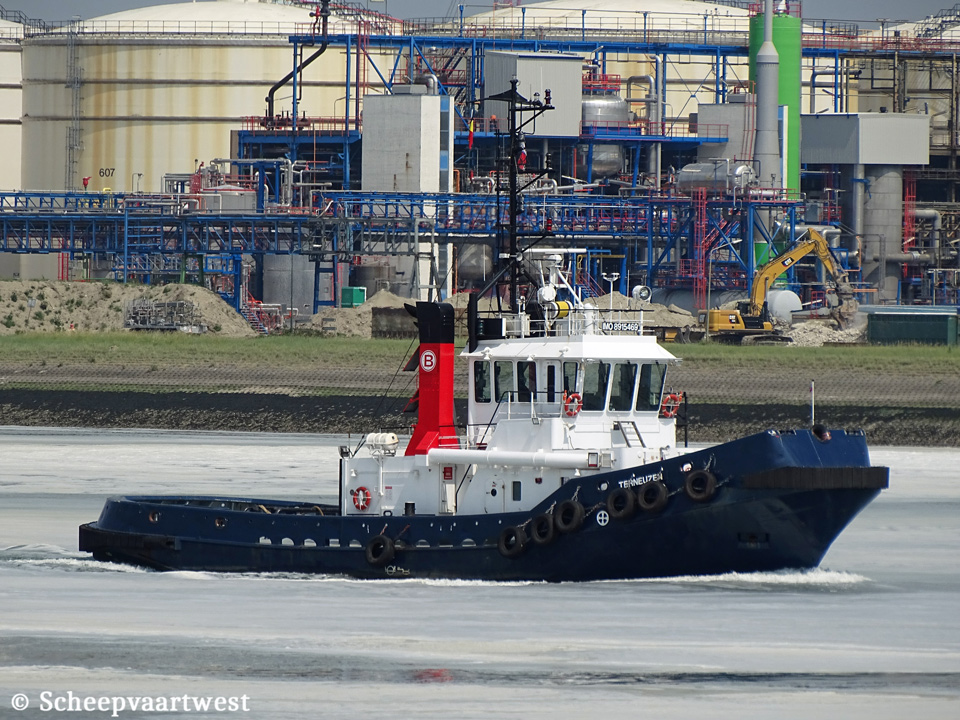

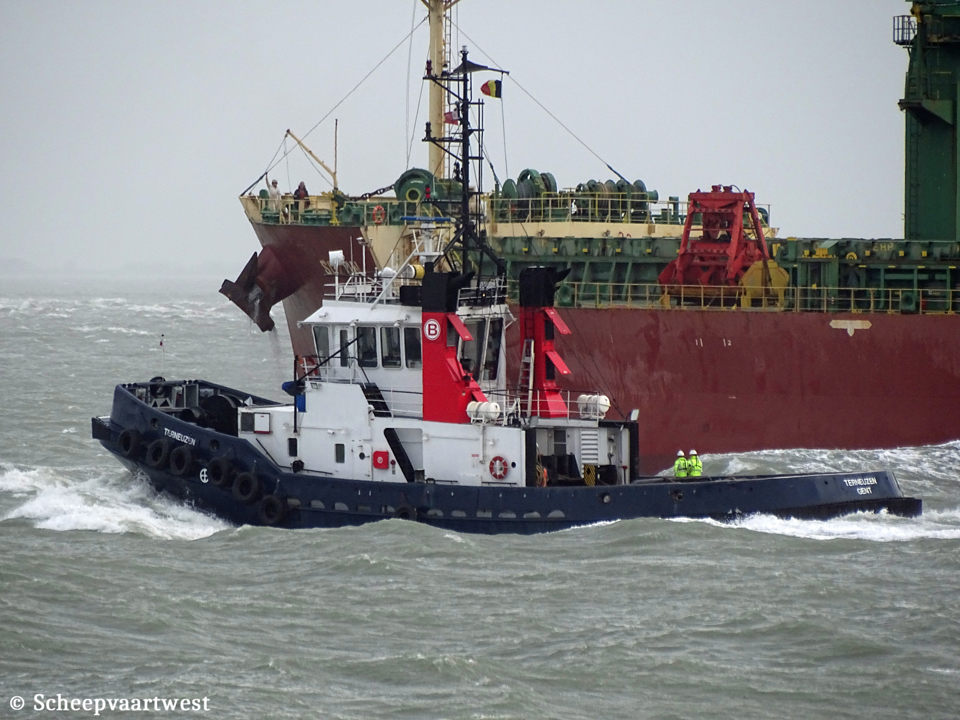

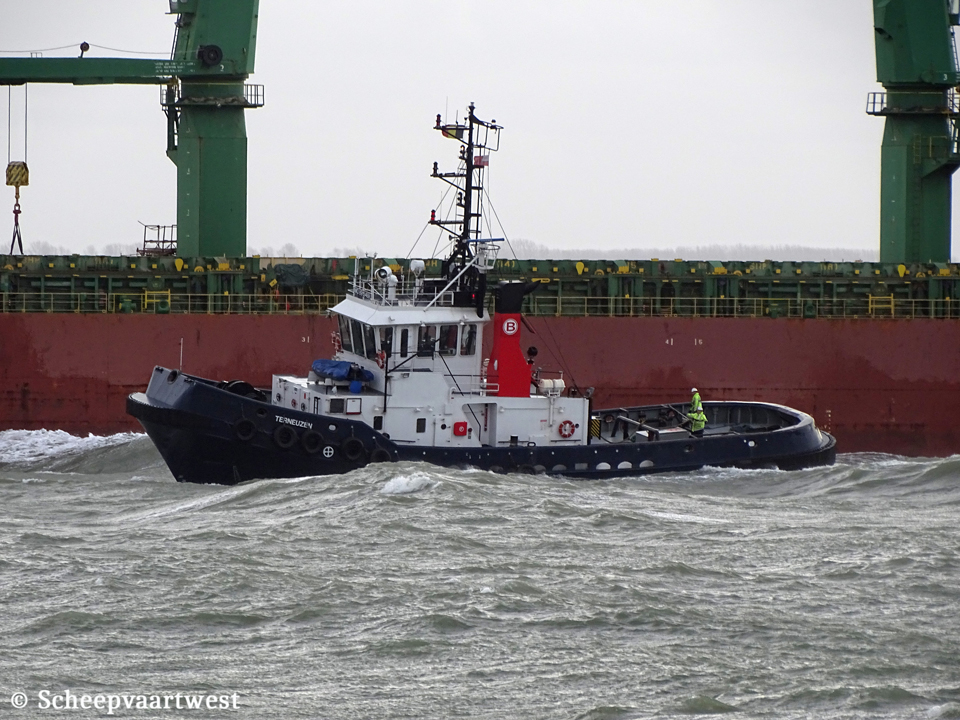

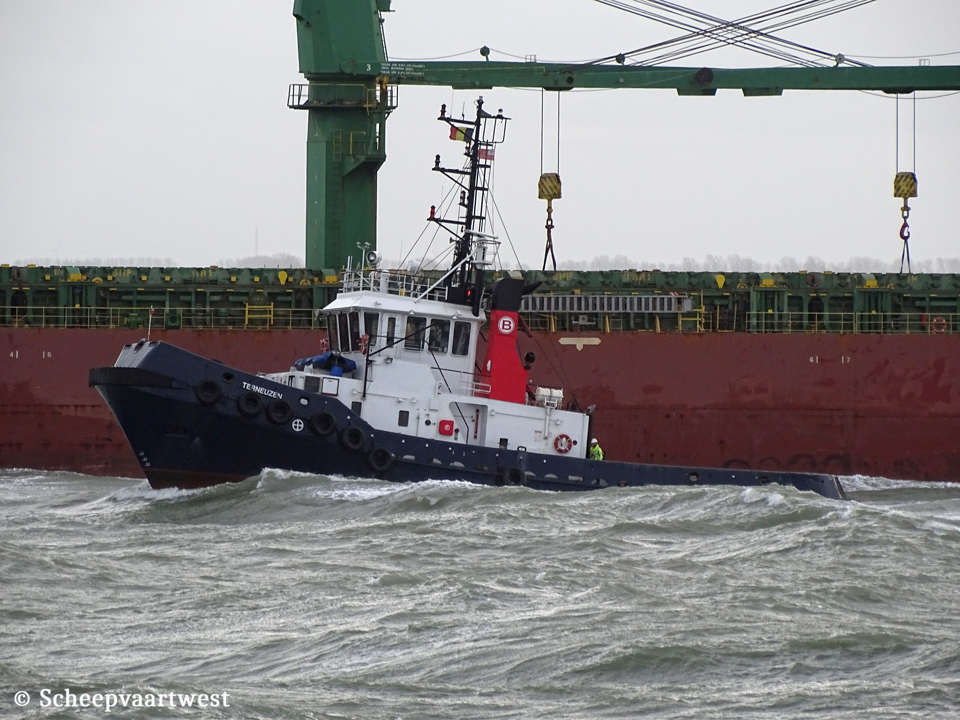

| Westerschelde 02/02/20 | Westerschelde 02/02/20 | Westerschelde 02/02/20 | Westerschelde 02/02/20 | |||||||
 |
 |
 |
 |
 |
||||||

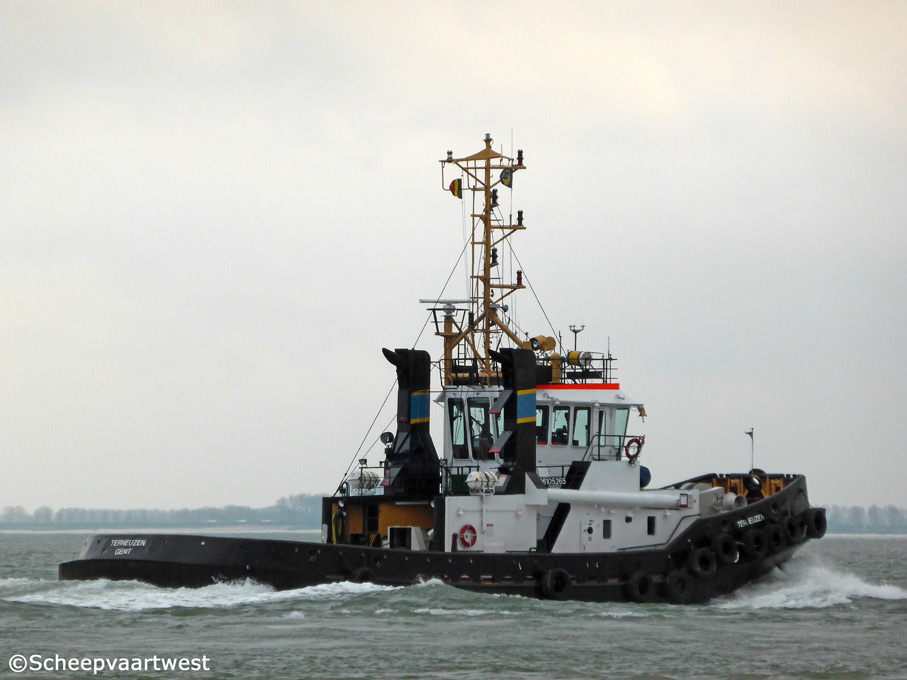

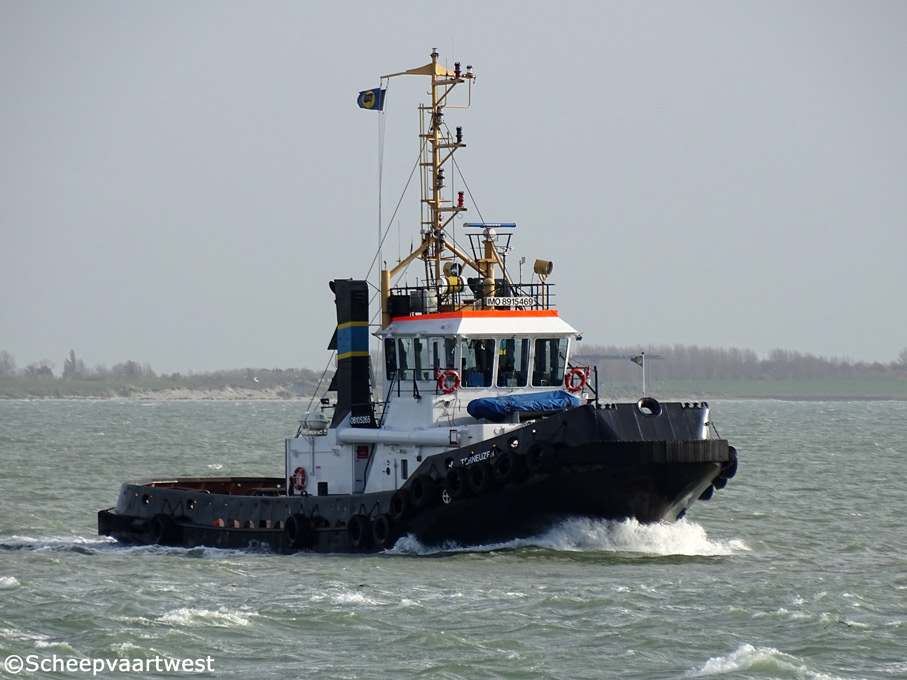

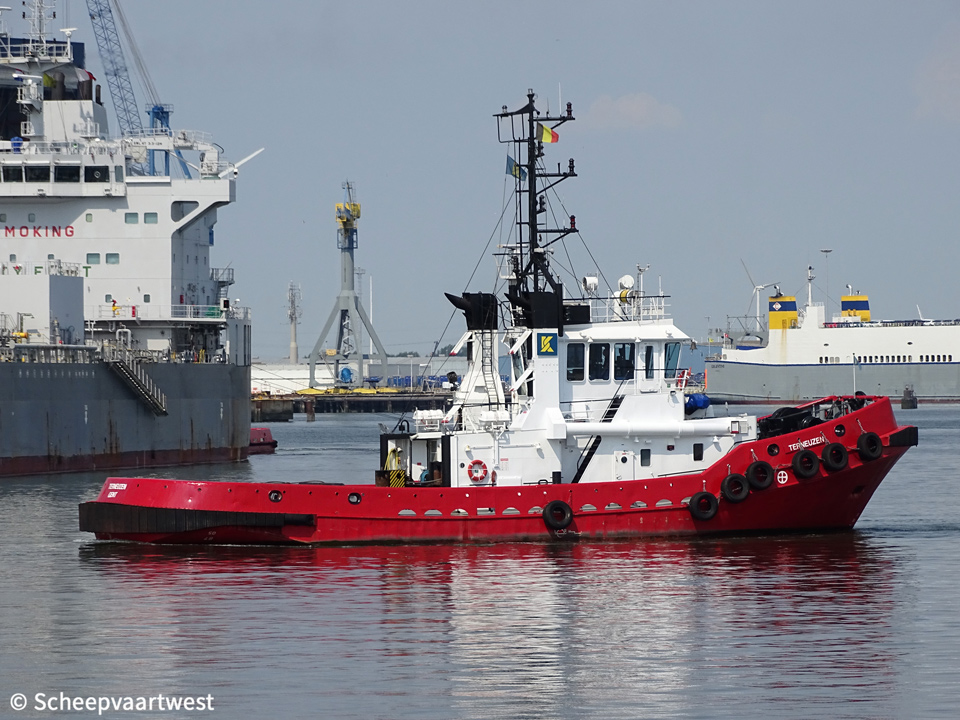

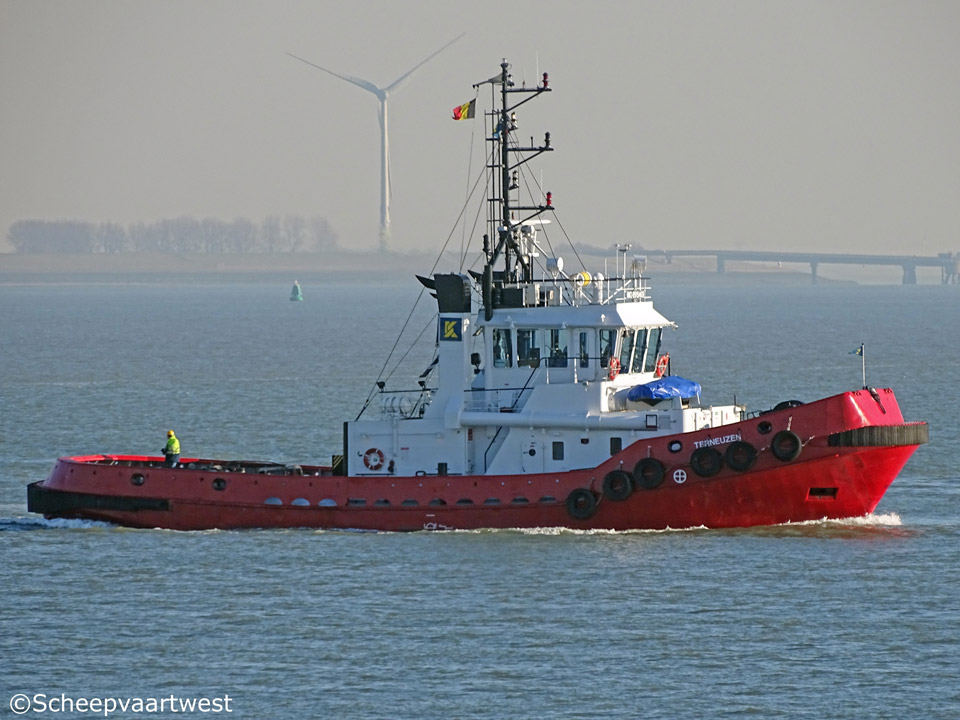

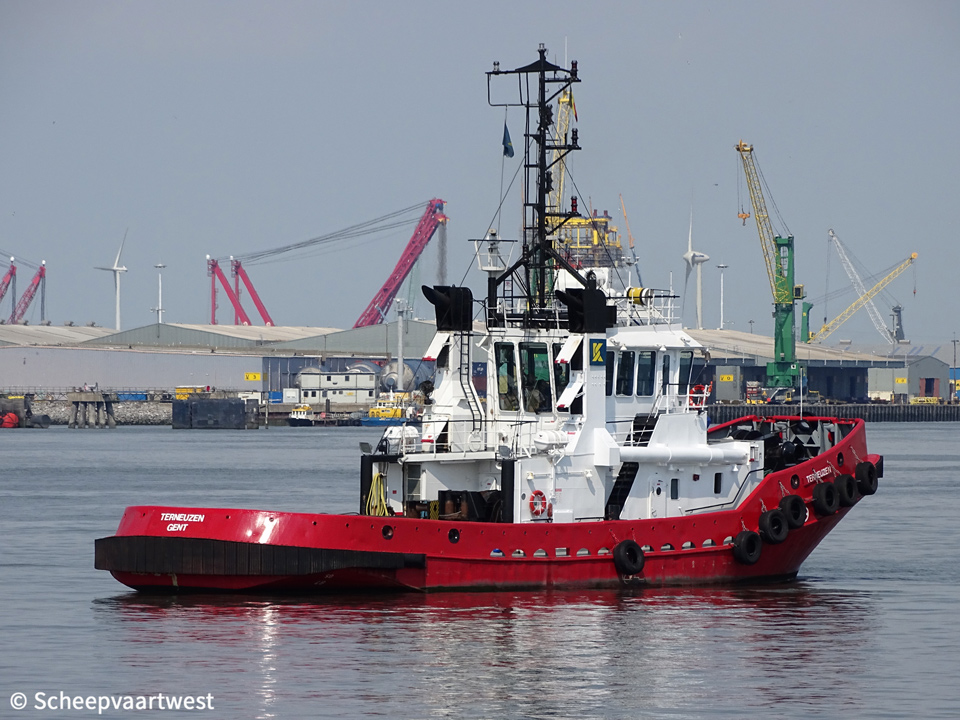

| Westerschelde 21/01/17 | Vlissingen 16/07/18 | Vlissingen 16/07/18 | Westerschelde 21/01/17 | Westerschelde 21/01/17 | ||||||
 |
 |
 |
 |
 |
 |
|||||

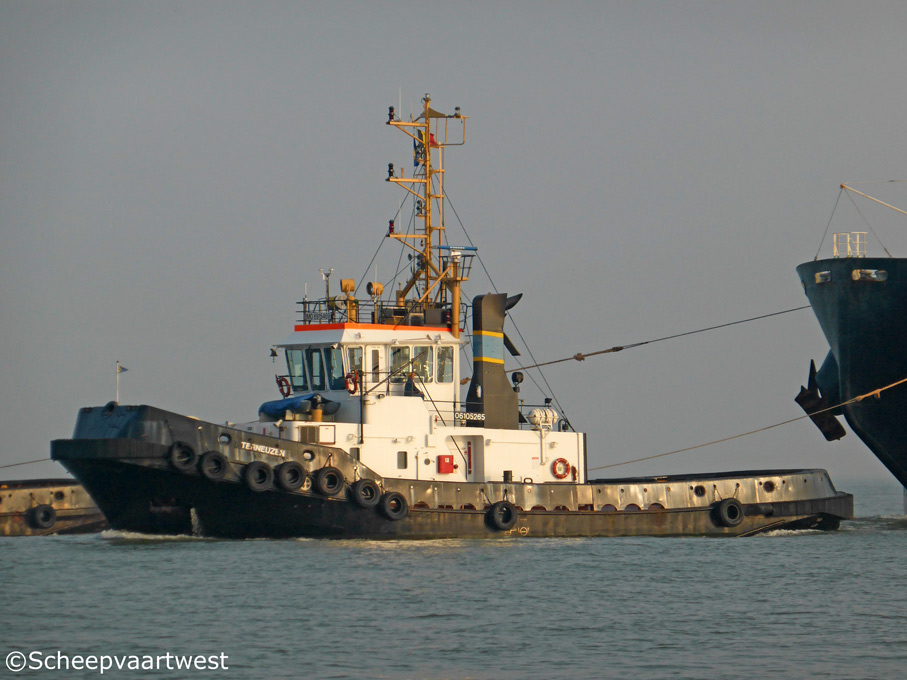

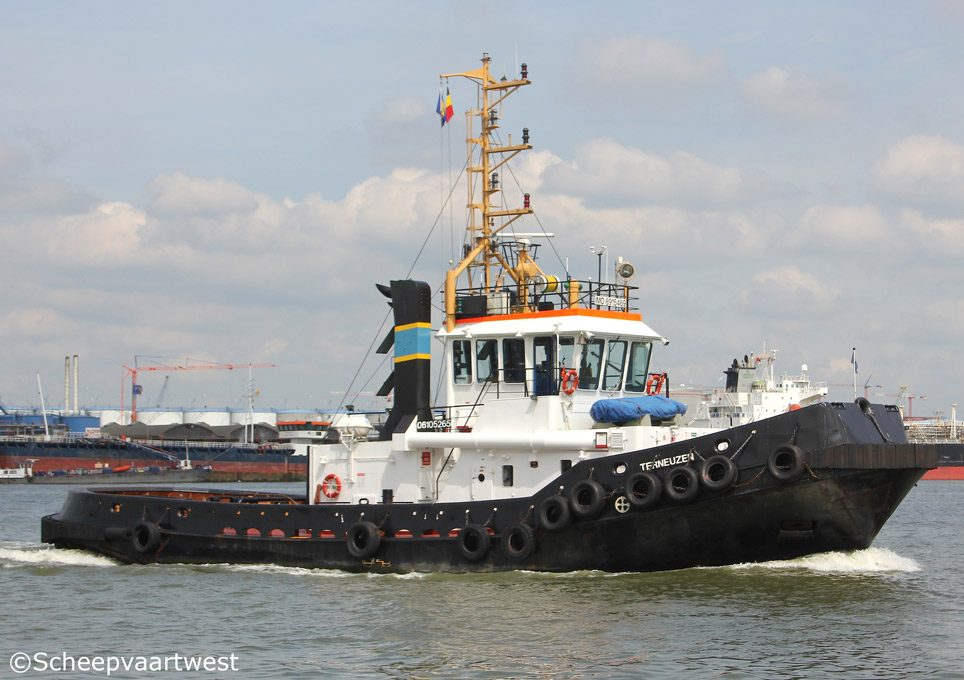

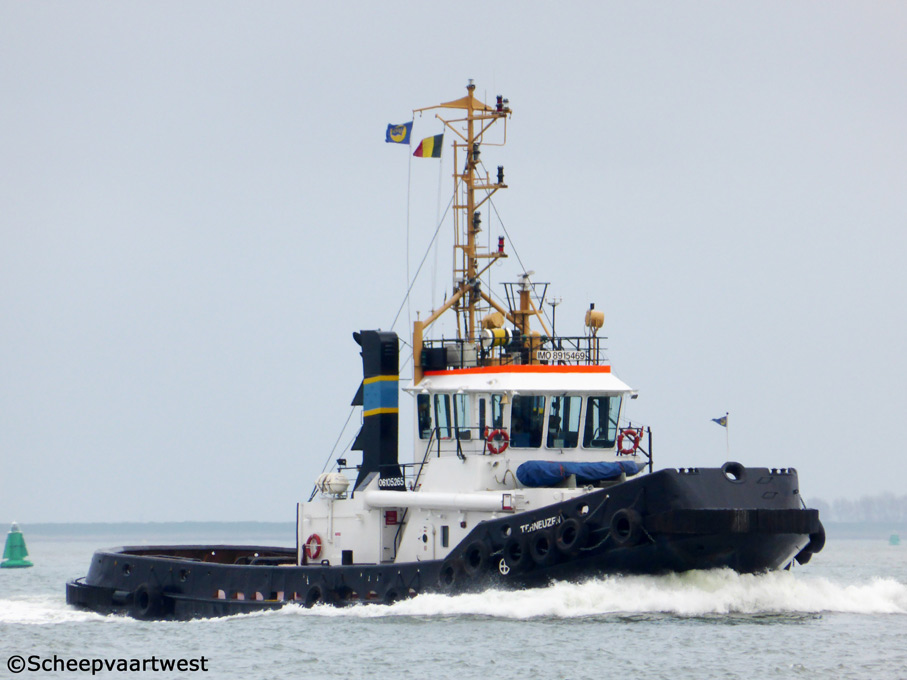

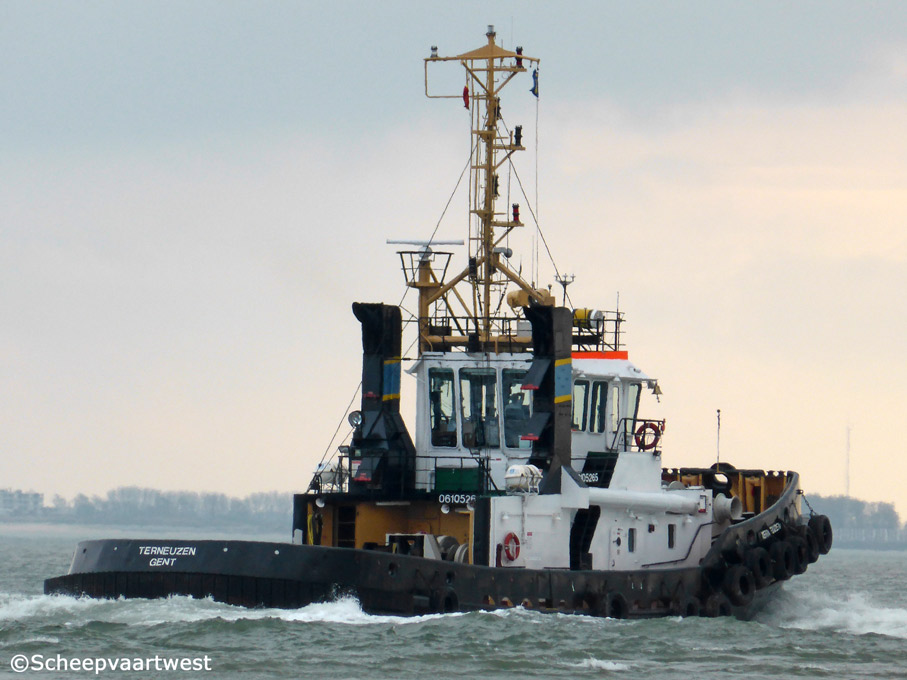

| Westerschelde 04/04/14 | Westerschelde 04/04/14 | Westerschelde 04/04/14 | Westerschelde 09/1/15 | Antwerpen 11/08/15 | Westerschelde 09/04/15 | |||||
|
Name |
TERNEUZEN |
|
Previous names |
1991 - 06/2004 Terneuzen - Unie van Redding en Sleepdienst N.V., Antwerpen - Belgium 2004 - 06/2010 Fairplay XVI - Antiqua and Barbuda , St. john's - Call sign: V2OS7 - charter naar Fairplay Towage B.V., Rotterdam - The Netherlands |
|
Type |
Coastal tug - Pusher |
|
IMO-number |
8915469 |
|
Registration number |
01 00299 1996 |
|
Call sign |
ORMT |
|
Flag |
Belgium |
|
Port of registry |
Gent |
|
Previous flag |
Antigua & Barbuda, St. John's - Call sign: V2OS7 |
|
GT |
249 t |
|
DWT |
134 t |
|
NT |
74 t |
|
Length |
31,99 m overall 27,28 m between perpendiculars |
|
Breadth |
8,70 m moulded 9,05 m extreme |
|
Draught |
Max.: 4,65 m |
|
Air draft |
16, 50 m |
|
Depth |
4,67 m |
|
Speed |
Max.: 13,5 knots Economic: 9,0 knots |
|
Built |
1991 |
|
Keel laid |
14/12/1990 |
|
Date of completion |
09/08/1991 |
|
Builder |
Scheepswerf van Rupelmonde (St. Pieter) Rupelmonde Belgium |
|
Yard number |
464 |
|
Hull material |
Steel |
|
Number of decks |
1 |
|
Main engine |
1x ABC 8MDZC-800-173K - 4 stroke 8 cylinder 256 x 310 mm combustion engine 2.130 kW at 800 rpm Builder:Anglo Belgian Corporation NV Wiedauwkaai 43 9000 Gent Belgium |
|
Propellers |
1x Fixed pitch - 4 blades propeller with nozzle |
|
Bow thruster |
Guascor 600 hp |
|
Bollard pull |
39 t ahead |
|
Deck equipment |
Hydraulic fore winch: Double drum - 80 t brake load Line pull 18 t at 13,4 m/min. on 1st layer Towing hook: Brusselle HH30/60 - SWL 60 t Hydraulic aft winch: Double drum - 80 t brake load Line pull 18 t at 13,4 m/min. on 1st layer |
|
Tank capacities |
Fuel oil: 79 m³ Potable water: 19 m³ |
|
Accommodation |
Air-conditioned accommodation for 8 persons |
|
Navigation & communication equipment |
Magnetic compass: Cassens & Plath Type 11 Echo sounder: Furuno FCV-585 VHF: Sailor RT -2048/RT -2047 Radar: Furuno FR-2115 GPS: Raytheon NAV-398 |
|
Owner |
BOLUDA Corporation Maritima Valencia Spain |
|
Head office |
Boluda Towage Europe Waalhaven Zuidzijde 21 3089 JH Rotterdam The Netherlands |
|
Previous names & owners |
1991 - 2004 Terneuzen - Unie van Redding & Sleepdienst NV, Antwerpen - Belgium 2004 - 2010 Fairplay XVI - R. Borchard Schleppdampfschiffahrt GmbH & Co KG, Hamburg - Germany 2010 - 2011 Terneuzen - Unie van Redding & Sleepdienst NV, Antwerpen - Belgium 2011- 2016 Terneuzen - Smit Harbour Towage Europe NV, Antwerpen - Belgium 2016 - 2019 Terneuzen - Kotug Smit Towage, Rotterdam - The Netherlands |
|
Latest data adjustment |
19 February 2022 |
