Spijkenisse, The Netherlands 17 March 2012 |
|
Name |

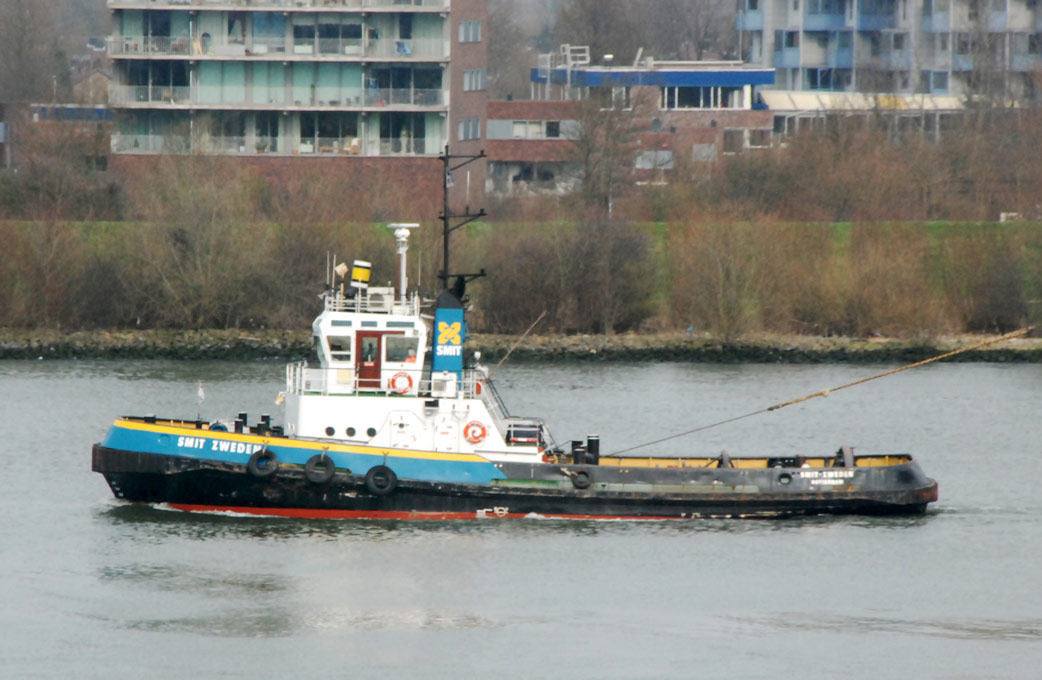

SMIT ZWEDEN |
|
Previous names |
1979 - 08.2012 Smit Zweden 08.2012 - 09.2012 Zweden - St. Vincent & Grenadines, roepsein J8B4734 - Owner: Marsadel Co. Ltd. (TOS Ship Delivery) |
|
Type |
Harbour tug - Coastal area |
|
IMO-number |
7800461 |
|
Call sign |
PHQQ |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
193 t |
|
NT |
58 t |
|
Length |
28,42 m overall 25,52 m between perpendiculars |
|
Breadth |
8,80 m overall |
|
Draught |
Max.: 3,34 m |
|
Depth |
4,20 m |
|
Speed |
Max.: 12,0 knots Economic: 9,0 knots |
|
Built |
1979 |
|
Launch date |
13.11.1978 |
|
Date of completion |
05.02.1979 |
|
Builder |
IHC Merwede Scheepswerf Hardinxveld Giessendam |
|
Yard number |
620 |
|
Hull material |
Steel |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
2x Stork Werkspoor Diesel Kromhout type 6FCHD 240 -4 stroke 6 cylinder 240 x 260 mm diesel engines - Total 1.820 bhp / 1.339 kW at 1.000 rpm Built: 1979 Builder: Stork-Werkspoor Diesel B.V., Zwolle - The netherlands |
|
Gearbox |
2x Reduction gears |
|
Propellers |
2x Controllable pitch conventional- aft at 250 rpm |
|
Generators |
2x Volvo Penta diesel generatorsets each 47 kVA |
|
Bollard pull |
28,0 t |
|
Deck equipment |
Aft winch: Electric single drum - 50,0 t Brake load line pull 15,0 t. @ 10 m/min. on 1st layer Towing hook: 1x Mampaey 40 t
|
|
Tank capacities |
Potable water: 14 m³ Fuel oil: 89 m³ Ballast water: 16 m³ Tank foam: 8 m³ |
|
Accommodation |
Air-conditioned accommodation for 6 persons |
|
Navigation & Communications |
1x Furuno RHRS-2001R Radar 1x Observator Magnetic Compass 1x MLR Valsat 02L GPS 1x Simrad Echo Sounder 2x Sailor RT-2048 VHF 1x Nova Marine RT-16 Handheld VHF 1x JRC NCR-300A Navtex 1x AIS |
|
Owner |
27-03-2002 SMIT ZWEDEN Smit Harbour Towage Rotterdam B.V., Rotterdam - The Netherlands |
|
Previous owners |
24-01-1979 SMIT ZWEDEN Smit Internationale Havensleepdienst B.V., Rotterdam - The Netherlands 18-01-1984 SMIT ZWEDEN Smit Internationale Havensleepdiensten B.V., Rotterdam - The Netherlands 22-06-1988 SMIT ZWEDEN Smit Havensleepdiensten B.V., Rotterdam - The Netherlands |
|
Renamed |
10.2012 Ureka XII |
|
Latest data adjustment |
29 June 2014 |
