Duke II 02

Westerschelde 23 January 2016

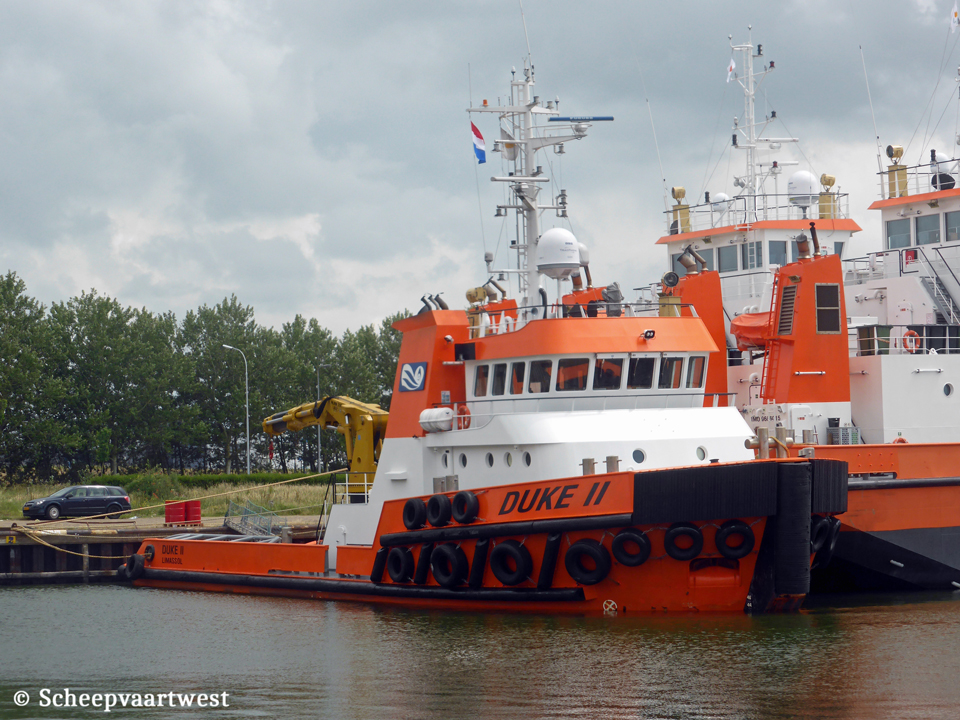

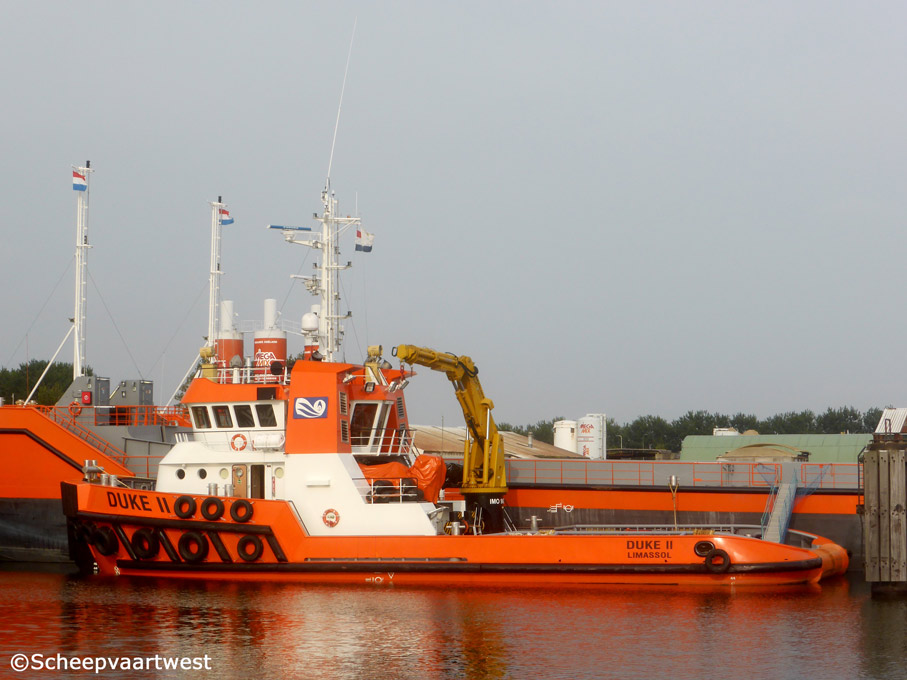

Duke II 01   Duke II IMO 9677947 03
Vlissingen 29/05/14   Vlissingen 19/06/15


Name

DUKE II

Type

Tug

IMO-number

9677947

Call sign

5BVM3

Flag

Cyprus

Port of registry

Limassol

GT

438 t

DWT

Summer: 600 t

NT

126 t

Length

34,30 m overall

30,20 m between perpendiculars

Breadth

11,00 m

Draught

4,20 m

Freeboard

751 mm

Depth

4,25 m

Speed

Service: 10,0 knots

13,5 knots free running

Built

2013

Launch date

25/10/2012

Date of completion

28/03/2013

Builder casco

Barkmet in Usti nad Labem

Czech Republic

Builder completion

Scheepswerf Gebroeders Kooiman

Zwijndrecht

The Netherlands

Yard number

200

Hull material

Steel

Watertight compartments

6

Continuous decks

1

Main engine

2x Mitsubishi S12 U MPTK - 4 stroke single acting 12 cylinder 240 x 260 mm combustion engines total 4.476 kW / 6.083 hp at 1.150 rpm

Built: 2012

Builder: Sagamihara machinery Works Mitsubishi heavy industry, Sagamihara - Japan

Gearbox

2x Reintjes WAF-4566 - Reduction: 5,5:1

Propellers

2x Screw propeller solid - aft at 198 rpm

4 bladed

Generators

2x Mitsubishi 6D 16T-TE2 - 6 cylinder 118 x 115 mm main diesel engines generatorsets each 133 kVA - 106 kW - 144 hp at 1.500 rpm

Built: 2012

Manufacturer: Mitsubishi Heavy Industries Ltd.

Bow thruster

1x ZF TT-4004-FP - 440 kW

Towing equipment

Anchor Handling/Towing winch:

Kraaijeveld KAS-60H-TR/TR

Main drum 1.000 m 58 mm

2x Drums 700 m 58 mm

Brake holding power: 180 t

Pulling speed: 80 t

Towing pins

Push Bow: Rubber Fender

Stern Roller: 8.500 x 1.800 dia m

Tuggerwinch: 2x 8.500 kn wire 18 mm, 40 m

Bollard pull

83,1 t

Deck area

140 m²

Hydraulic set

1x Mitsubishi S6R-MPTK - 6 cylinder 170 x 180 mm diesel engine 605 kW at 1.800 rpm

Built: 2012

Manufacturer: Mitsubishi Heavy Industries Ltd.

Tank capacities

Fuel Oil: 293 m³

Fresh water: 24 m³

Dirty Oil: 3,8 m³

Lub oil: 3,8 m³

Sewage: 16 m³

Lifting equipment

1x Heila HLRM 230-4SLK hydraulic deck crane - SWL 9,8 t at 16,50 m

Accommodation

8 persons

Navigation & communications

2x Radars

1x SART

1x EPIRB

1x Navtex

1x GPS

2x VHF

2x Handheld VHF

1x Watch Receiver

1x SSB Radio

1x Inmarsat-C

1x Magnetic Compass

1x Gyro Compass

1x Autopilot

1x AIS

1x Speedlog

Manager

Mezhregiontruboprovodstroy

18, Novocheryomushkinskaya st

Moscow

Russian Federation

Registered owner

Probus Mare Marine Ltd.

Nicosia

Cyprus

Latest data adjustment

28 August 2024
