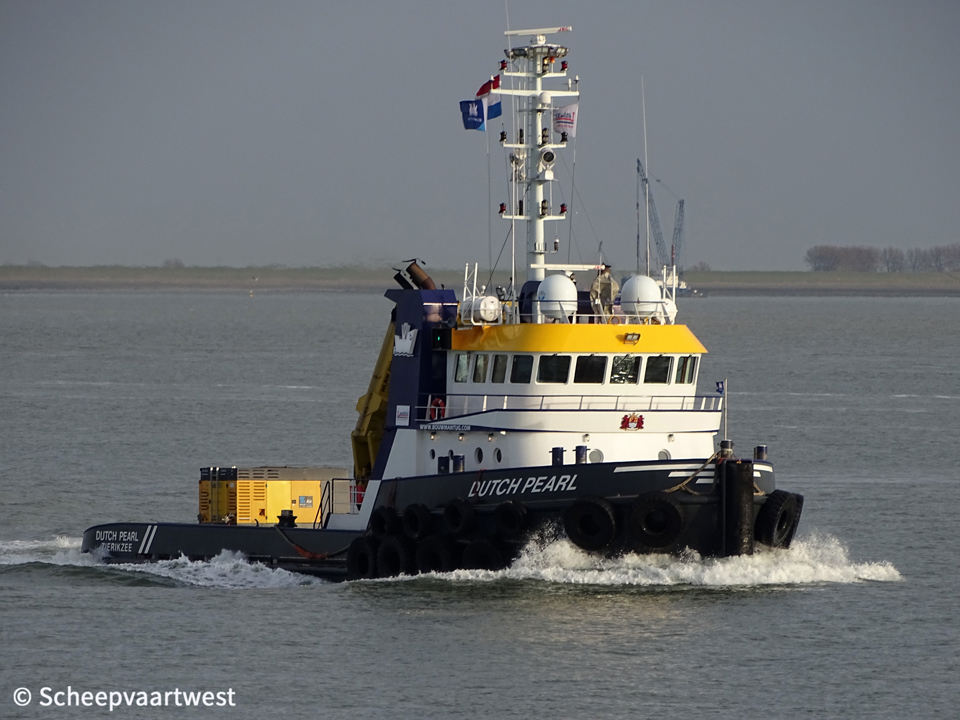

Dutch Pearl 02


Westerschelde 12 February 2019

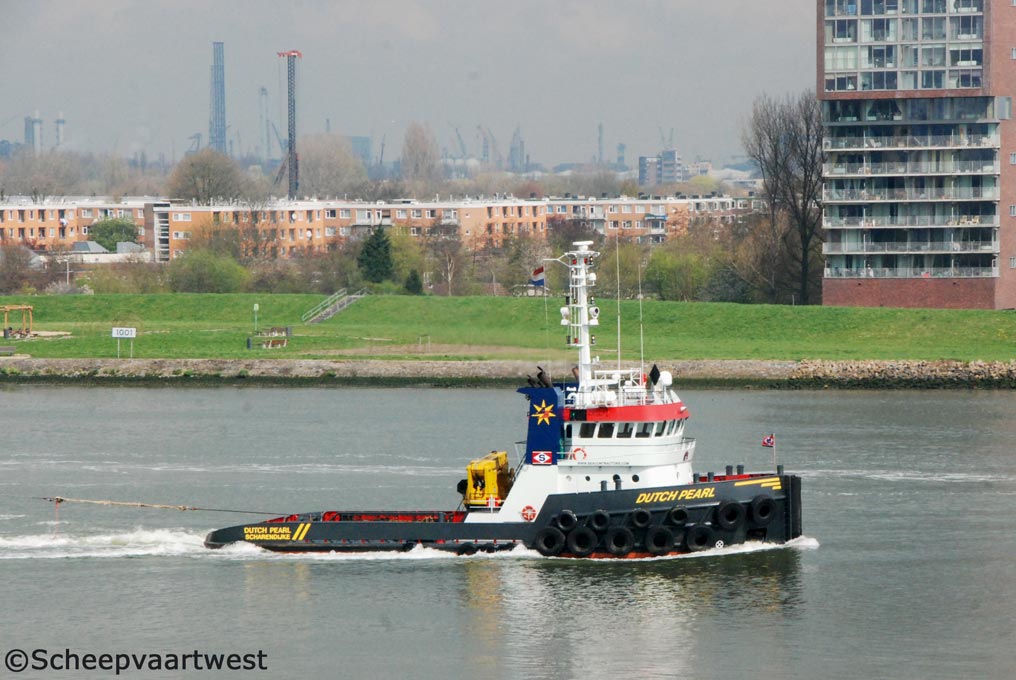

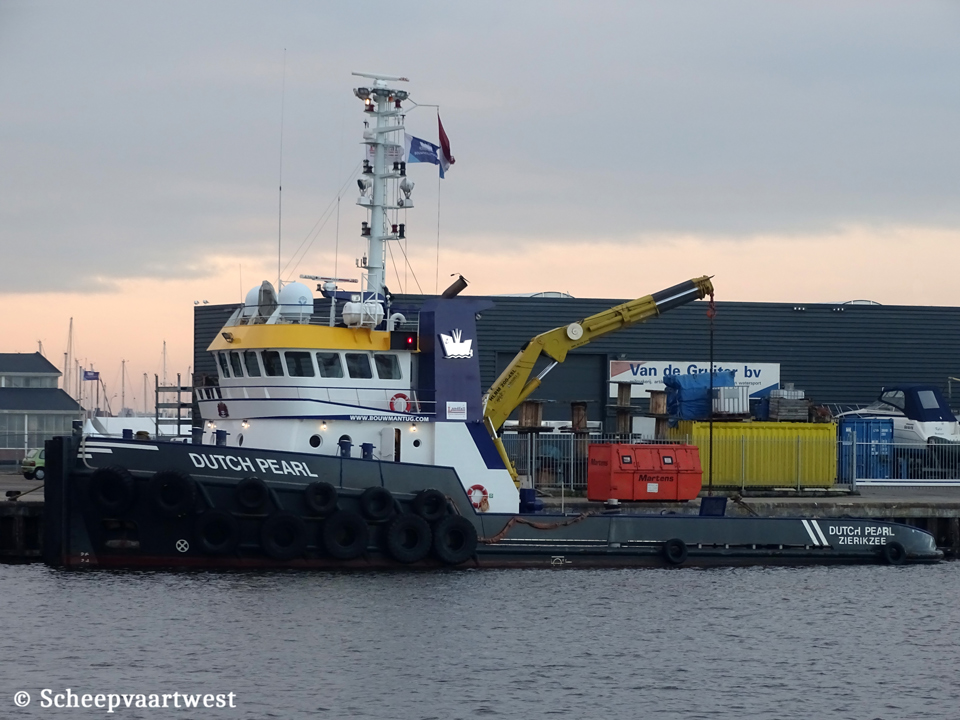

Dutch Pearl 01   Dutch Pearl IMO 9547881 03
Spijkenisse 13/04/12 Vlissingen 05/02/19


Name

DUTCH PEARL

Type

Tug

AHTS - Anchor handling tug supply

IMO-number

9547881

Call sign

PBZP

Flag

The Netherlands

Port of registry

Zierikzee

Previous flag

The Netherlands, Scharendijke - Call sign: PBZP

GT

254 t

DWT

Summer: 136 t

NT

76 t

Displacement

363 t

Length

31,10 m overall

Breadth

9,50 m overall

Draught

2,60 m

Depth

3,10 m at sides

Speed

12,5 knots

Built

2010

Launch date

15/03/2010

Date of completion

02/04/2010

Builder

Scheepswerf Gebroeders Kooiman B.V.

Zwijndrecht

The Netherlands

Yard number

190

Hull material

Steel

Continuous decks

1

Main engine

2x Mitsubishi S16R- S16R-MPTA - 4 stroke single acting 16 cylinder 170 x 180 mm diesel engines each 1.170 kW / 1.591 hp at 1.600 rpm

Built: 2009

Builder: Mitsubishi Heavy Industries Ltd.

Gearbox

2x Reverse reduction gears Reintjes type WAF 763 - reduction 5,570:1

Propulsion

2x Solid propeller with nozzle - aft at 278 rpm

4 blades - Diameter: 2.100 mm

Generators

2x Mitsubishi 6D16 T each 65 kW - 6 cylinder 118 x 115 mm diesel engine driving Stamford UCM274C generators each 71 kVA at 1.500 rpm

Built: 2009

Builder: Mitsubishi Heavy Industries Ltd.

Hydraulic set

1x Mitsubishi S6A3-MPTA - 6 cylinder 150 x 175 mm diesel engine 460 kW / 540 hp at 1.800 rpm

Built: 2009

Builder: Mitsubishi Heavy Industries Ltd.

Bow thruster

Tunnel thrusters 340 kW

Deck equipment

Towing Hook: 1x Mampaey towing hook

Towing equipment aft: 1x Maaskant M2-H2-453 hydraulically driven split drum:

Big drum 90 t - Wire: 700 m - diameter 38 mm

Small drum 30 t - Wire: 350 m - diameter 38 mm

Stern roller: length: 4.840 mm x diameter 700 mm

Deck area: 108 m²

Deck load: 15,0 t/m²

Bollard pull

45,2 t

Tank capacities

Fuel oil: 112 m³

Potable water: 31 m³

Lub oil: 2,56 m³

Dirty oil: 2,56 m³

Sewage: 12,72 m³

Lifting equipment

1x Crane type HLRM 200-4SL - SWL 9,0 at 16,31 m

Accommodation

8 berths

Navigation & communications

1x Alphatron Alphaminicourse Gyro Compass

1x Alphatron Alpharpilot Riverpilot

1x Alphatron Alphachart T ECDIS

1x JRC JMA-609 Radar

1x JRC JMA-5210 Radar

1x JRC NWZ-4570 GPS

1x JRC JFE-380 Echo Sounder

1x JRC JHS-182 AIS

1x JRC NCR-333 Navtex

1x JCR Fleet-33 Inmarsat F

2x Sailor TT-300E Inmarsat C

2x Sailor RT-5022 VHF

1x Sailor System 5000 SSB Radio 150 W

2x Sailor Satcom-C

2x Sailor SP-3520 Handheld VHF

1x McMurdo E3 EPIRB

Previous manager

Sea Contractors B.V., 4331 LC Middelburg - The Netherlands

Owner

Bouwman Towing & Shipping B.V.

Engelse Kade 5

4301 NA Zierikzee

The Netherlands

Previous owner

F.J.M. Hubregtse en v.d. Berge V.O.F., Scharendijke - The Netherlands

Latest data adjustment

06 February 2020
