Sea Echo - IMO 9444663

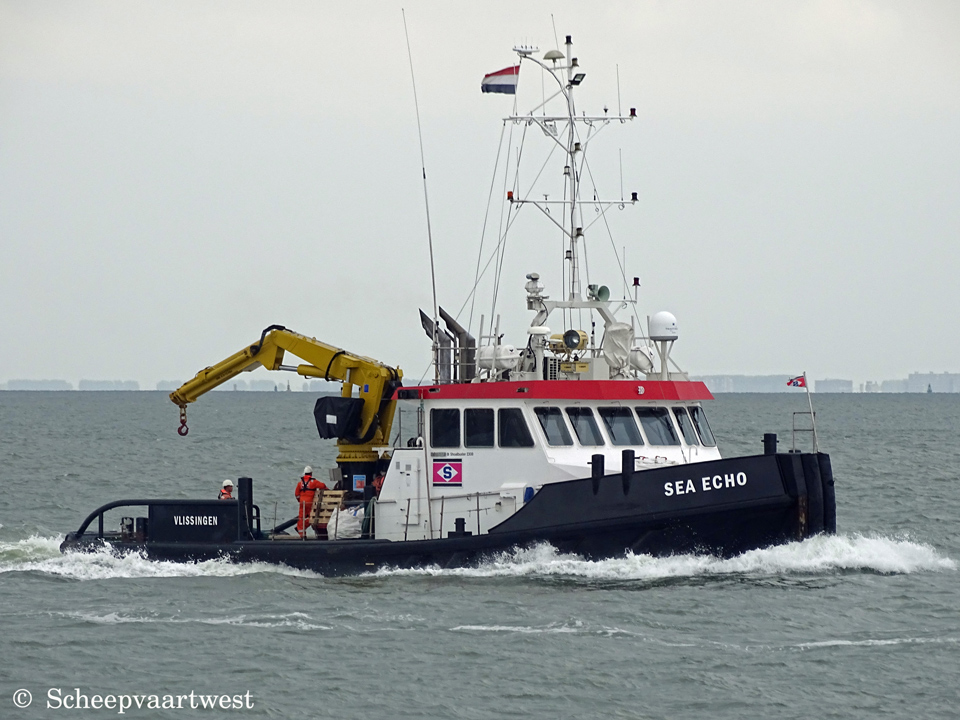

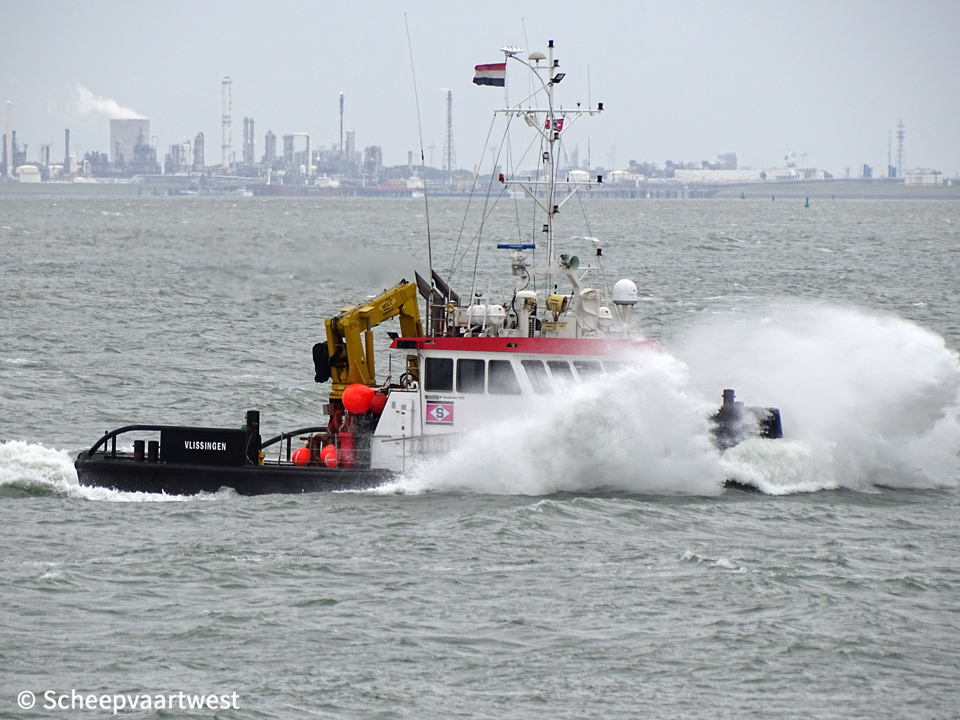

Westerschelde 18 August 2018

Name

SEA ECHO

Previous names

2007 - 04/2010 Odin

Type

Tug - Shoalbuster 2308

Basic functions

Towing, mooring, pushing, anchor handling and dredging

support

IMO-number

9444663

Call sign

PHLP

Flag

The Netherlands

Port of registry

Vlissingen

GT

123 t

NT

37 t

Displacement

165 t

Length

23,35 m overall

18,35 m between perpendiculars

Breadth

8,00 m moulded

Draught

Min.: 1,90 m

Max.: 2,20 m aft

Air draft

Min.: 6,60 m

Max.: 13,50 m

Depth

2,99 m at sides

Speed

Max: 10,5 knots

Economic: 7,0 knots

Built

2007

Date of completion

21/09/2007

Builder casco

Damen Shipyard Kozle S.A.

Kedzierzyn-Kozle

Poland

Builder completion

Damen Shipyard Hardinxveld

Hardinxveld Giessendam

The Netherlands

Yard number

1582

Hull material

Steel

Watertight compartments

4

Continuous decks

1

Main engine

2x Caterpillar type 3421D T - 4 stroke 12 cylinder 145 x 162 mm combustion engines total 1.264 kW / 1.696 bhp at 1.600 rpm

Built: 2006

Builder: Caterpillar INC., Peoria - Illinois (USA)

Gearbox

2x Reintjes WAF 464L - reduction: 5,042:1

Propulsion

2x Promarine fixed propellers each 1.606 mm with Giessen Optima nozzles

Generators

2x Caterpillar 3054 diesel generatorsets each 45 kVA - 36 kW - 52 hp at 1.500 rpm

Hydraulic power

1x Caterpillar C9 diesel hydraulic set 208 bkW at 1.800 rpm

Bow thruster

1x 120 hp, hydraulically driven

Bollard pull

23,9 t

Deck lay-out

• Towing winch: type Ridderinkhof double drum side by side

• Towing drum 30 t @ 3,00 m/min pulling force

• Towing drum 40 t holding force

• Towing wire fitted: 500 m - 32 mm

• Anchor handling winch Ridderinkhof hydraulic 30 t pulling force at 3,00 m/min

• Anchor handl./tow 80,00 m - 30 mm

• Tugger winch Pull 8 t - 4,5 m/min / 0,5 t - 20,00 m/min

• Towing hook Mampaey - SWL 25 t

• Anchor winch Ridderinkhof , hydraulic tow

• Pins / Guide Pins WK hydraulics, triple pin type - SWL 40 t

• Pushbow

• Stern roller - SWL 40 t

• Moonpool, dimensions 300 x 500 mm

• Free deckspace: 45,0 m²

• Deck strength 5,0 t/m²

• A-frame optional

Auxiliary equipment

Fuel oil transfer pump: 20 m³/h @ 1,5 bar

Fresh water transfer pump: 25 m³/h @ 1,5 bar

Powerpack: 1x CAT C9

Tank capacities

Fuel oil: 45,50 m³

Fresh water: 13,90 m³

Lubricating oil: 1,90 m³

Hydraulic oil: 0,90 m³

Dirty oil: 3,50 m³

Sewage: 1,90 m³

Bilge water: 0,90 m³

Anchor equipment

2 x 200 kg pool (H.H.P.)

Lifting equipment

1x Heila HLRM 80 ton-3SL - SWL 5,3 t @ 12,05 m

Accommodation

Heated and air-conditioned living spaces for 5 persons, consisting of a captains cabin, a chief engineers cabin, one single cabin, a double cabin, a galley and sanitary facilities.

Berths: 5

Nautical & Communication

equipment

• Searchlights: Pesch 2.000 W + Pesch 200 W

• GMDSS: A equipped

• Radar: Furuno FAR-2117

• VHF radio telephone: 3x Sailor RT 5022, 25 Watt

• Handheld VHF: 2x Jetron

• Navtex: Furuno NX-700

• Electronic Chart system: Tresco

• Autopilot: Radio Holland Seapilot 75

• Inmarsat C: 1x Felcom 15

• Echo sounder: 1x Furuno FE-700

• GPS: 1x Furuno GP-150

• Compass: 1x Cassens & Plath

• Gyro Compass: 1x Raytheon STD 22

• AIS: Furuno FA-50

• Speed log: Furuno DS-80

• Satcom. System: 1x SP-radio H2095C

• Intercom: RZ Delta 70

• Chart system: Tresco

• Watch alarm: Marble 421

Operator

Seacontractors BV

Visserijkade 95

4382 ZA Vlissingen

The Netherlands

Registered owner

Sea Alfa BV

Visserijkade 95

4382 ZA Vlissingen

The Netherlands

Previous names & owner

2007 - 04/2010 Odin - S.T. Marine Support B.V., (V. Tammes & R. Swytink), Harlingen.- The nether lands

Renamed

Dela

Belize, Belize City - Call sign: V3PL9

Operator: Marine Contractors Ltd - Trinidad

Latest data adjustment

24 May 2024
