Spijkenisse, The Netherlands 05 May 2012 |
|
Name |

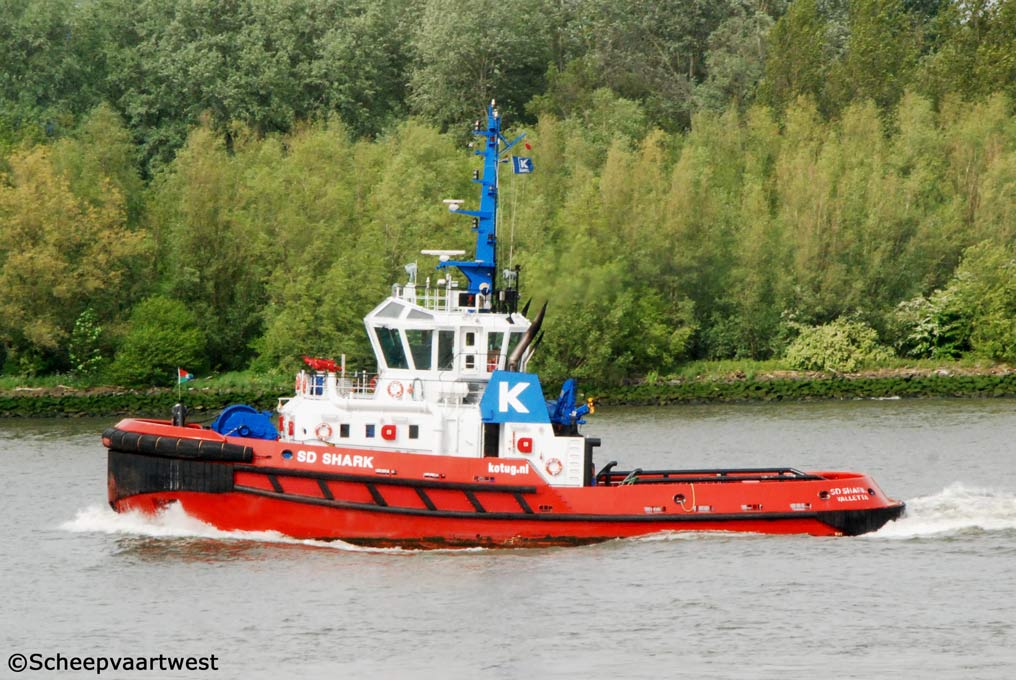

SD SHARK |
|
Type |
Tug boat type Rampart 3200 - Fire fighting ship - Escort tug - Water spraying |
|
IMO-number |
9410715 |
|
Call sign |
9HBU9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
483 t |
|
DWT |
Summer: 225 t |
|
NT |
145 t |
|
Length |
32,00 m overall 30,46 m between perpendiculars |
|
Breadth |
11,60 m |
|
Draught |
4,30 m |
|
Air draft |
20,00 m |
|
Depth |
5,36 m |
|
Speed |
Max.: 14,8 knots Service: 12,0 knots |
|
Built |
2008 |
|
Launch date |
14.01.2008 |
|
Date of completion |
06.03.2008 |
|
Builder |
Med Yilmaz Tersanesi AS Zonguldak |
|
Yard number |
04 |
|
Hull material |
Steel |
|
Watertight compartments |
3 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3516 (C) DI-TA electronic - 4 stroke 16 cylinder 170 x 215 mm diesel engines each 1.920 kW total 3.840 kW / 5.225 bhp at 1.600 hp Built : 2007 |
|
Propellers |
2x Azimuth thruster controllable pitch - aft at 1.600 rpm |
|
Generators |
2x Scania DI 1262 M diesel generatorsets each 243 kVA - 194 kW - 238 hp |
|
Bollard pull |
65,26 t / 60 t |
|
Towing equipment |
Aft. towing winch: Single drum 600 m - 51 mm steel wire and spare wire on reel For towing winch: 1 drum capacity 180 m - 76 mm Ultraline Towing hook |
|
Fire fighting |
Fire pump 2.700 m³/h |
|
Bunkers |
Fuel oil: 132 t Fresh water: 40 t Ballast water 36.000 litres Foam: 17.500 litres |
|
Lifting equipment |
1x Deck crane - SWL 750 kg |
|
Accommodation |
2x single cabins 2x double cabins Smokers cabin |
|
Communication navigation |
GMDSS A3 2x Radar Autopilot Gyro-compass Magnetic compass GPS MF/VF Radio DSC 2x VHF DSC 2x VHF Handheld Navtex Epirb Mini M Sart Ais Joystick GSM Mobile phone Inmarsat C. Echo sounder |
|
Manager |
KOTUG International B.V. The Netherlands |
|
Registered owner |
SD Shark Ltd. Valletta |
|
Latest data adjustment |
15 November 2014 |
