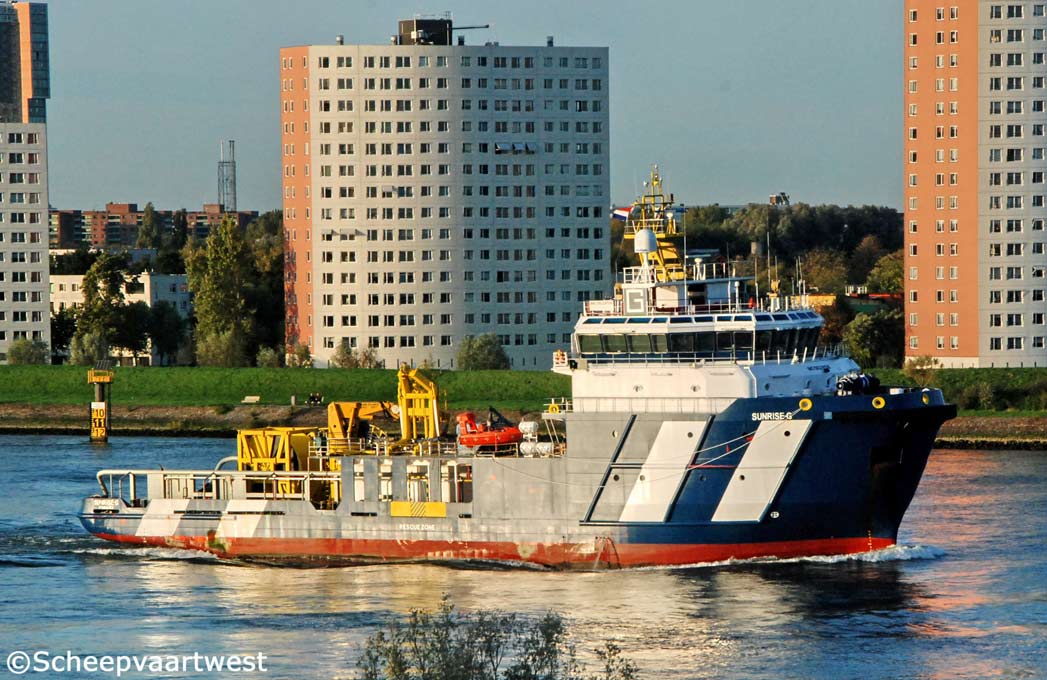

Spijkenisse, The Netherlands 18 October 2014 |
|
Name |
SUNRISE-G |
|
Previous names |
15.02.2014 - 24.02.2014 Cassandra 7 |
|
Type |
Tug - Supply vessel - Seismic research support vessel |
|
IMO-number |
9628518 |
|
Call sign |
3FKF6 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
15.02.2014 - 24.02.2014 Malaysia, Kuching |
|
GT |
2.194 t registered |
|
DWT |
Summer: 1.800 t |
|
NT |
658 t registered |
|
Length |
59,90 m overall 52,80 m between perpendiculars |
|
Breadth |
16,50 m moulded |
|
Draught |
5,40 m |
|
Freeboard |
1.412 mm |
|
Depth |
6,80 m moulded |
|
Speed |
Max.: 11,5 knots Eco: 10,0 knots |
|
Built |
2014 |
|
Keel laid |
09.12.2010 |
|
Launch date |
30.10.2012 |
|
Date of completion |
15.02.2014 |
|
Builder |
Sealink Engineering & Slipway |
|
Yard number |
SSS170A |
|
Hull material |
Ordinary strength steel |
|
Bulkheads |
Water tight: 17 Oil tight: 6 |
|
Main engine |
2x Caterpillar 3516B - 16 cylinder 170 x 190 mm diesel engines each 1.566 kW / 2.100 bhp at 1.600 rpm |
|
Propellers |
2x Controllable pitch propeller in fixed nozzles |
|
Shaft generator |
1x Twin disc 800 kW each |
|
Generators |
3x Cummins HCM534C1 diesel generatorsets each 355 hp / 250,4 kW Manufacturer: Cummins Generator Technologies |
|
Emergency generator |
1x Cummins 80 kW / 100 kVA - 240/415 Volt 50 Hz |
|
Bow thruster |
1x 9 t tunnel thruster |
|
Bollard pull |
38,0 t Clear Deck: 300 m² Deck Cargo: 800 m³ |
|
Deck space |
Clear deck: 300 m² |
|
Deck cargo |
800 m³ |
|
Deck equipment |
Anchor Windlass: 1x Double gypsies for 42 mm diameter Grade 2 chain, Rating: 7,5 t x 15 m/min for anchor chain, 7,5 t x 15 m/min for centre declutchable mooring drum Capstan: 2x 5,0 t Reefers con.: 2x 415 Volt - 3ph /50hz, 4x 230 Volt - 1ph/50hz Twin Hose reel: 2x 240 m 5” hose with 4” Todo Cable Reel: 1x 8.000 m Towing Hook: 50 / 65 SWL Deck Crane: 25 t by 7,50 m : Max outreach is 16,50 m Workboat Davit: Vestdavit SWL 12,0 t |
|
Cargo handling equipment |
Cargo fuel oil pump: 1x 160 m³/h at 9,0 bar (approx 96 m head) Vertical Screw Pump 1x 120 m³/h Vertical Twin Screw Pump Cargo fresh water pump: 1x 100 m³/h at 60 m Vertical centrifugal pump Drill water pump: 2x 100 m³/h at 60m Vertical centrifugal pump |
|
Safety equipment: |
Rescue Boat: 6 Person rigid rescue boat c/w A-frame Rudders: 2x Highlift rudder Standard LSA as per SOLAS & flag administration rule. For 50 men |
|
Number of tanks |
Ballast: 25 Cargo oil: 9 Diesel oil: 8 Fresh water: 8 Lubricating oil: 4 Sludge: 3 Chemical: 2 Chain: 2 Waste water: 2 Fuel oil: 1 Thermal Oil1 |
|
Bunker/Towing/Storage capacity |
Fresh water: 362,4 m³ Drill water/SWB: 830,0 m³ MGO: 343,8 m³ Heavy fuel oil Cargo: 995,6 m³ Dirty oil: 13,0 m³ Oily water: 30,0 m³ Lube oil storage: 21,2 m³ Sewage holding: 30,0 m³ Grey water: 30,0 m³ Sludge: 19,0 m³ Thermal fluid: 10,0 m³ |
|
Accommodation |
48 pers. total 1x Hospital |
|
Communication equipment |
GMDSS Compl.: A1 – A2 – A3 Sat Comm.: Broadband / VSAT |
|
Manager |
Groen Rederij BV The Netherlands |
|
Registered owner |
Rederij Groen II B.V. |
|
Latest data adjustment |
13 December 2014 |
