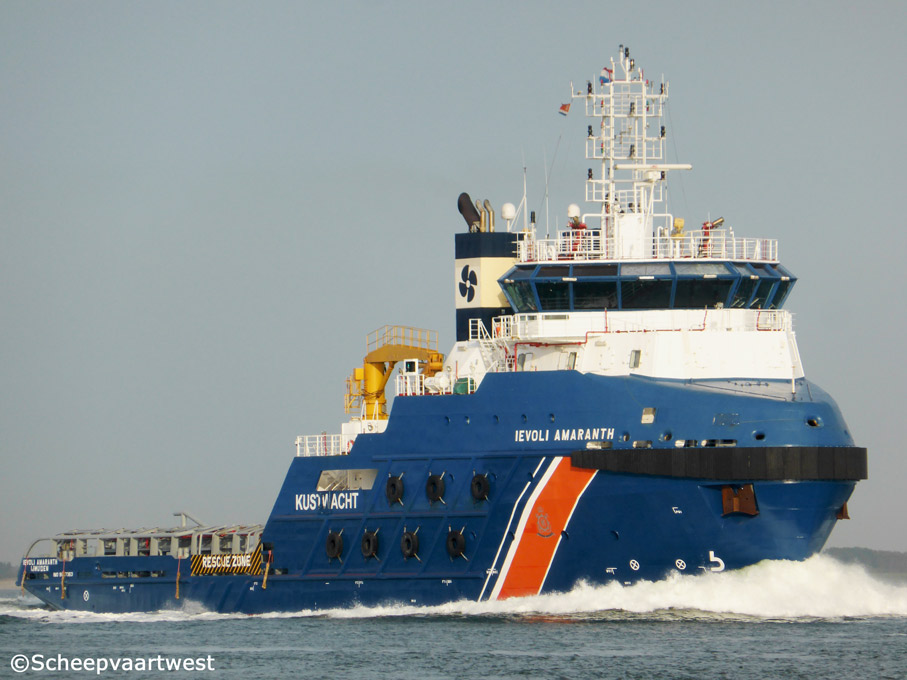

Ievoli Amaranth - IMO 9637363

Westerschelde 11 May 2015

Name

IEVOLI AMARANTH

Type

Anchor handling / Tug / Supply (AHTS)

Offshore Support,Towing, Pushing/Anchor Handling and Fire Fighting Vessel
Coast guard

IMO-number

9637363

Call sign

PCSY

Flag

The Netherlands

Port of registry

IJmuiden

GT

2.637 t registered

DWT

1.456,5 t

NT

820 t

Length

65,72 m overall

60,50 m between perpendiculars

Breadth

15,50 m moulded

Draught

6,00 m

Freeboard

1.811 mm

Depth

7,80 m moulded

Speed

Max: 15,1 knots

Built

2012

Keel laid

02/06/2011

Delivery date

18/01/2013

Builder

Selah Shipyard (Selah Makine Ve Endustri Tic. A.S.)

Tuzla

Turkey

Yard number

65

Hull material

Cast steel

Watertight bulkheads

4

Continuous decks

1

Main engine

2x MaK 8M32 C - 4 stroke single acting 8 cylinder 320 x 320 mm combustion engines each 4.000 kW at 600 rpm

Manufacturer: Caterpillar Motoren GmbH & Co. KG - Germany

Gearbox

2x Reintjes LAF6745 K 41 A - reduction 5,47:1

Propellers

2x Controllable pitch propellers

Diameter: 3.400 mm

Manufacturer: Berg Propulsion

Shaft generator

2x AVK 1.250 kVA

Generators

2x Volvo Penta D16-MG main diesel generatorsets each 410 kW

Port / Emergency generator

1x Volvo Penta D7A-AT, diesel generatorset 100 kW / 125 kVA - 3x 380 Volt 50 Hz

Bow thruster

2x Tunnel bow thruster each 600 kW, forward

1x Tunnel bow thruster each 600 kW, aft

Bollard pull

Continuous Rated 134 t

Maximum Rated 149 t

Deck space / strength

Length: 28,00 m

Breath: 12,00 m

Total: 340 m²

Max deck load: 750 t

Deck strength:7,5 t/ m²

Deck equipment

Towing / anchor handling winch:

• 1x Towing Drum Wire 1.500 m / 70 mm

• Line Pull 150 t - 15 m/min (1st speed)

• Brake Holding 300 t

• 1x Anchor Handling Drum Wire 1.000 m / 86 mm

• Line Pull 200 t - 12m/min (1st speed)

• Brake Holding 400 t

• All drums are declutchable

• Automatic tension compensator

• 2x Gypsies for 3” and 3 ¼” rig chain

• Spooling Device: 20 t Spooling Device for towing drum

• Capstan: 2x 10 t, Diam: 500 mm

• Crane: 6 t /15,00 m, Knucle type

• Tugger winch:2x 12 t / 15 m/min

• Brake capacity 15 t

• Windlass: 83,8 KN 09 m/min

• Brake capacity 403 KN

• Chain dia. 40 mm

• Shark Jaw: SWL 400 T

• Operated from bridge and locally

• Towing pins: Angular Type - SWL 300 t

• Operated from bridge and locally

• Stern Roller: Diam.2500 x 5700 mm - SWL 320 t

Number of tanks

Ballast: 14

Diesel oil: 11

Fuel oil: 9

Fresh water: 6

Chain: 4

Lubricating oil: 3

Chemical: 2

Slop: 1

Sludge: 1

Waste water: 1

Thermal oil: 1

Gasoline: 1

Tank capacities 100%

Diesel Oil: 365,65 m³

Freshwater: 291,41 m³

Fuel Oil: 654,95 m³

Lube Oil: 18,88 m³

Tank Ballast: 1.103,85 m³

Lifting equipment

1x Deck crane knucle type - SWL 6,0 t

Manufacture: Gurdesan

Accommodation

1-man cabin: 17

2-men cabin: 6

Survival: 4

Hospital: 1-2 persons

Dispensary: 1

Meeting room: 1-10 persons

Mess rooms: 2-30 persons

Daily rooms: 2

Navigation equipment

1x Radar, JRC Marine ARPA X-band

2x high resolution color display, radar plotter 21”

1x Radar, JRC Marine ARPA S-band

1x Radar repeater (slave radar) at aft wheelhouse console

1x GPS JRC 1X DGPS JRC

1x Navtex JRC

1x Echo Sounder JRC ESOND

1x Speed Log JRC

1x AIS JRC

2x Gyro Compasses YOKOGAWA

1x Magnetic Compass C-PLATH

1x Autopilot NAVITRON

2x Wind Speed/Direction SENSORS

1x Weather Fax JRC

Communication equipment

GMDSS Station Area A1+A2+A3

1x HF/MF DSC sailor

3x Emerg portable VHF GMDSS JOTRON

2x VHF DSC JRC

3x portable VHF ICOM

2x Inmarsat C JRC (SSAS & LRIT))

1x Radio telex Felcom 15

1x EPIRB JOTRON

2x SART JOTRON

1x BNWAS NAVITRON

1x Public Address System

Operator

Rijkswaterstaat - Kustwacht

The Netherlands

Chartered

Ministerie van Infrastructuur en Milieu van Svitzer Salvage

Owner

Marnavi

Via S. Brigida 39

80133 Napoli

Italy

Registered owner

Marnavi SPA

Renamed

02/2016 Guardian

The Netherlands, Den Helder - Call sign: PCSY

Manager: Multraship Towage & Salvage BV; Terneuzen - The Netherlands

Latest data adjustment

21 September 2023
