Westerschelde 09 June 2015 |
 |
|
| Westerschelde 01/06/15 | |
|
Name |

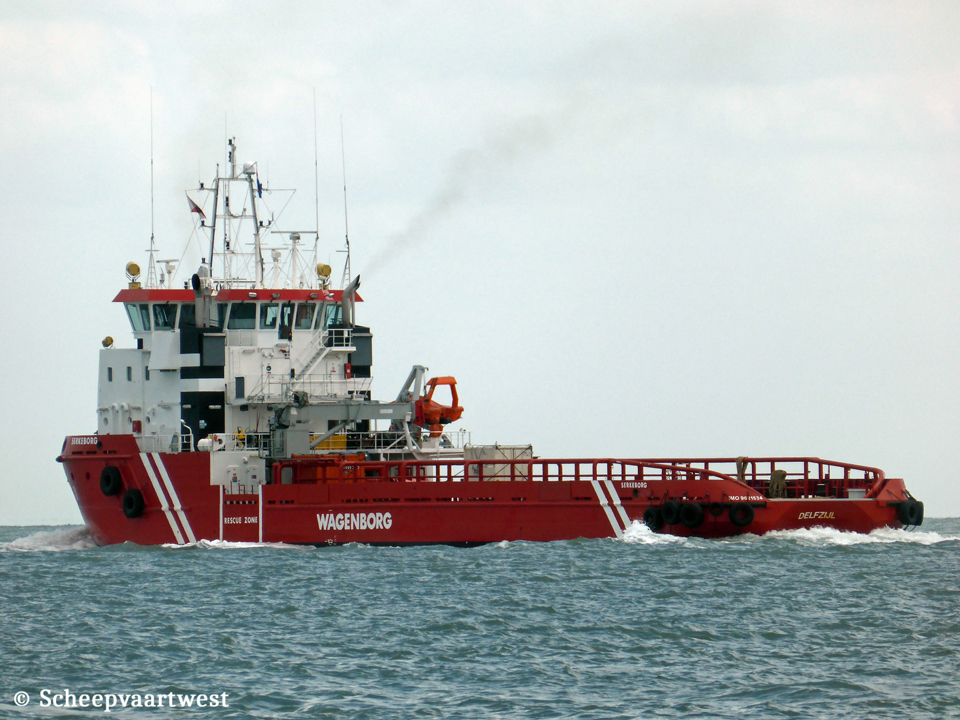

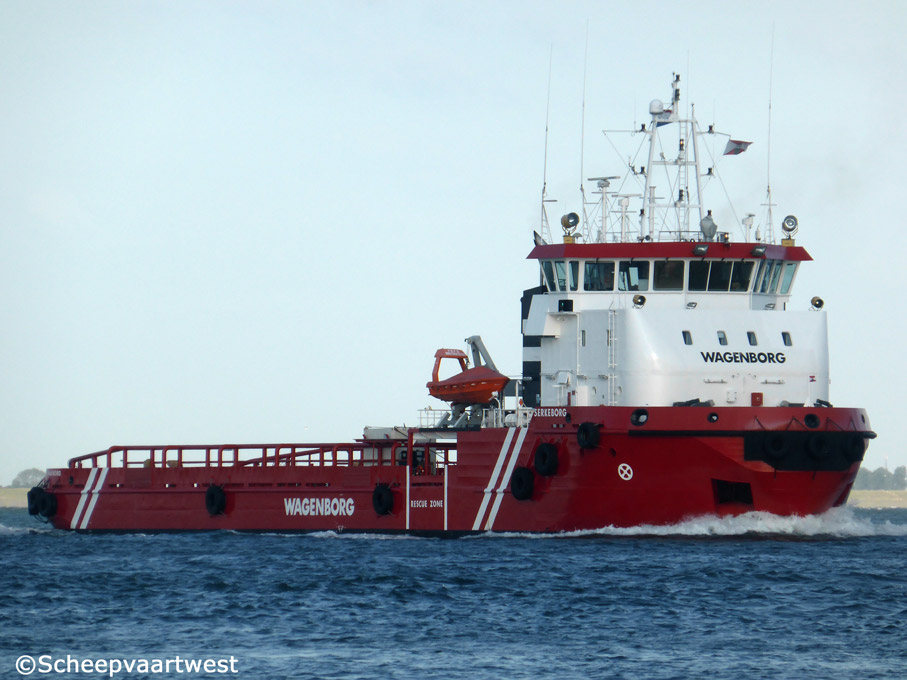

SERKEBORG |
|
Type |
Tug - Ice breaking - Support vessel AHTS - Anchor Handling Tug Supply IMSC - Icebreaking multi-purpose support and supply vessel |
|
IMO-number |
9621534 |
|
Call sign |
PBPB |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
1.520 t |
|
DWT |
991 t at max. draught |
|
NT |
456 t |
|
Length |
68,20 m overall 64,89 m between perpendiculars |
|
Breadth |
14,30 m overall 14,00 m moulded |
|
Draught |
3,15 m |
|
Freeboard |
1.659 mm |
|
Depth |
5,10 m |
|
Speed |
12,5 knots at 75% Mcr of drive motor at maximum draught 13,3 knots at 75% Mcr of drive motor at design draught Speed in ice over 4,0 knots ahead in 0,6 m level ice |
|
Built |
2012 |
|
Keel laid |
13/06/2011 |
|
Launch date |
28/06/2012 |
|
Date of completion |
10/10/2012 |
|
Builder |
Royal Niestern Sander BV Delfzijl The Netherlands |
|
Yard number |
845 |
|
Hull material |
Special steel |
|
Main engine power |
2x Caterpillar 3516 HD diesel electric oil engines driving 2 generators Total: 3.500 kW / 4.756 hp |
|
Electrical propulsion engine |
2x 1.750 kW at 1.440 rpm each |
|
Electrical propulsion gen. |
2x Indar 1.750 kW - 3 ph 690 VAC / 60 Hz each |
|
Propellers |
2x Azimuth thruster solid |
|
Generators |
1x Caterpillar C9 diesel generatorset 250 kW - 3 ph 440 VAC / 60 Hz |
|
Emergency generator |
1x Caterpillar C4.4 diesel generatorset 58 KW - 3 ph 440 VAC / 60 Hz |
|
Bow thruster |
1x Veth - 200 kW |
|
Bollard pull |
34,0 t |
|
Deck equipment |
Towing winch: Waterfall 2x 30,0 t line pull Tugger winch: 2x 5,0 t Capstan aft deck: 1x 5,0 t Towing pins: 2x SWL 100 t Chain stopper: 1x SWL 100t Deck crane: 10,0 ton @ 8,00 m / 5,0 ton @ 19,5 m Reefer container sockets: 16 Stern roll: Optional |
|
Cargo Deck |
425 m² Max. permitted loads: 5,0 t/m² |
|
Tank capacities |
Fuel oil bunkers: 780 m³ Fuel set and day tanks: 37 m³ Treated water: 263 m³ Potable water: 330 m³ |
|
Accommodation |
12 persons Cabins: 3 single cabins, 4 double cabins Other facilities : treatment room/ spare cabin, Citadel function with BA plugs on aft deck with an endurance of two hours, day-/messroom and wheelhouse. |
|
Safety equipment |
Lifesaving arrangement in accordance with SOLAS Fast rescue boat - Norsafe Merlin 615 diesel jet with NDA – type luffing davit Rescue zone and hoisting equipment for rescue operations 2x Life rafts (16 pers each) 18 Survival suits 4 Anti-exposure immersion suits 20 Life jackets |
|
Navigation |
Integrated bridge system fore and aft bridge X-Band Radars: 1x 8’ Scanner & 1 x 5’ Scanner 1x Rutter Ice Radar system, with dedicated scanner 1x Gyro & 1 magnetic compass 1x standard and 1 x shallow water echo sounder 1x Meteo system ECDIS: 1 x SAM Electronics & 1 x Transas 2x 2.000 W Xenon search lights 2x 1.000 W Halogen search lights |
|
Communication |
Full GMDSS area A3 installation 1x Mini V-SAT for data communication 1x Aeronautical band communication |
|
Manager |
Wagenborg Offshore Services Marktstraat 10 Delfzijl The Netherlands |
|
Registered owner |
Noordereems B.V. Delfzijl The Netherlands |
|
Renamed |
2017 - 2018 Redborg The Netherlands - Call sign: PBPB 2018 Statiaborg The Netherlands - Call sign: PBPB Owner: Noordereems BV, Delfzijl - The Netherlands |
|
Latest data adjustment |
12 October 2023 |
