Westerschelde 29 July 2016 |
 |
 |
|

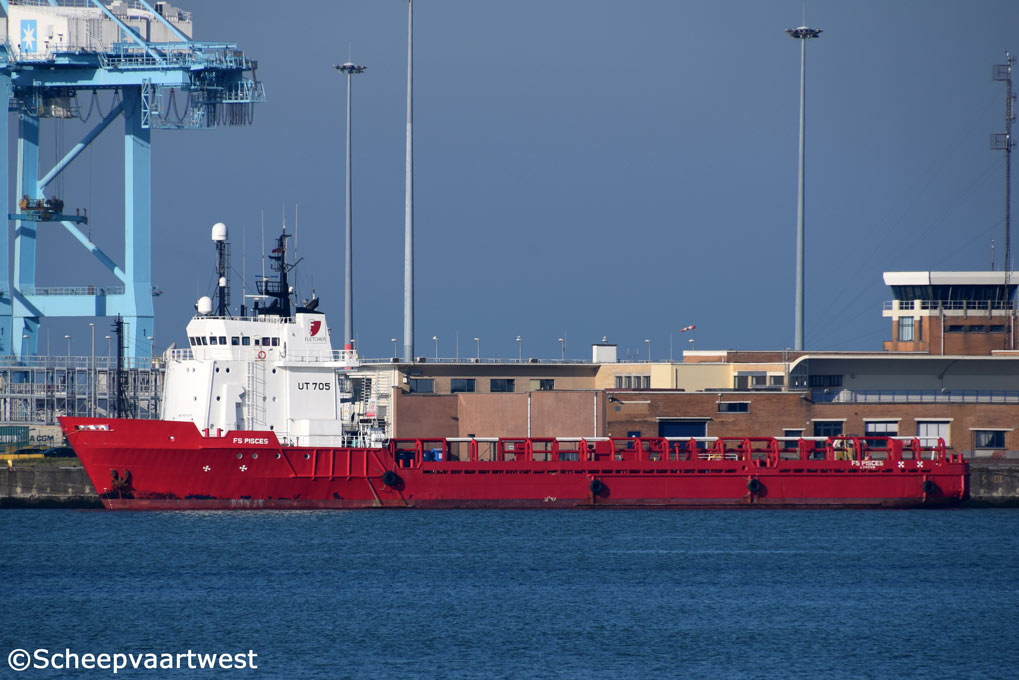

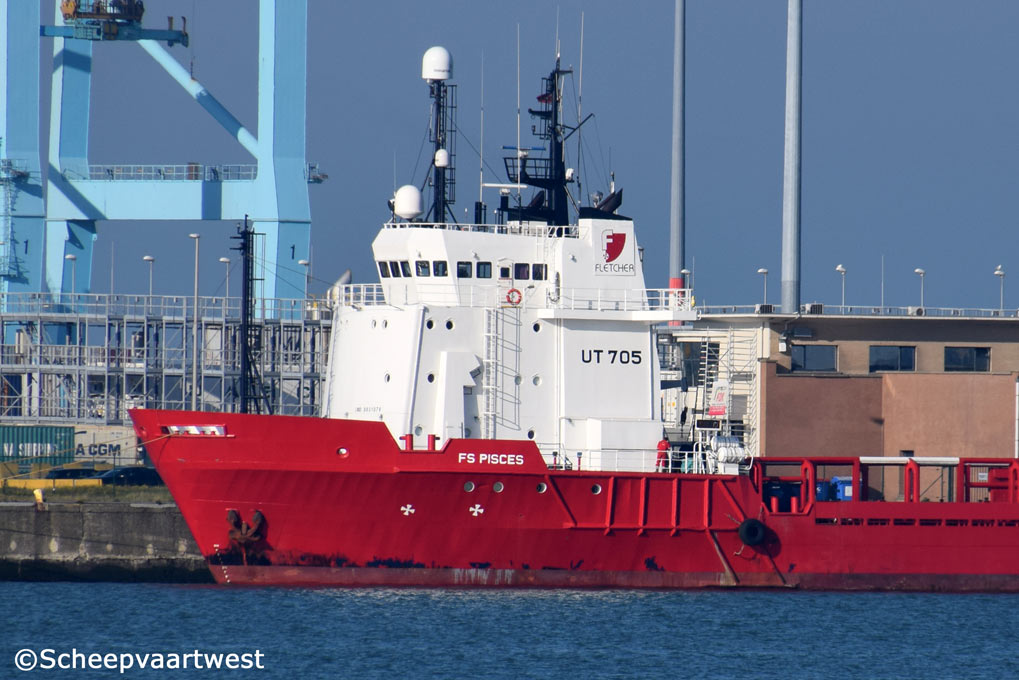

| Zeebrugge 26/10/15 | Zeebrugge 26/10/15 | |
|
Name |
FS PISCES |
|
Previous names |
1992 - 09/2013 Highland Pride |
|
Type |
Platform supply / Pipe carrying vessel UT 705 |
|
IMO-number |
9031076 |
|
Call sign |
MPYY3 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
2.610 t |
|
DWT |
2.988 t |
|
NT |
783 t |
|
Length |
81,90 m overall 76,20 m between perpendiculars |
|
Breadth |
18,00 m moulded |
|
Draught |
Summer: 4,98 m |
|
Depth |
7,10 m moulded |
|
Speed |
Service: 12,0 knots Max.: 15,0 knots |
|
Built |
1992 |
|
Keel laid |
15/04/1991 |
|
Launch date |
07/12/1991 |
|
Date of completion |
24/03/1992 |
|
Builder |
Brattvaag Skipsverft AS Norway |
|
Yard number |
52 |
|
Hull material |
Steel |
|
Hull type |
Single hullSteel |
|
Bulkheads |
Transverse: 4 |
|
Continuous decks |
1 |
|
Main engine |
2x BMV BRM6 combustion engines each 3.300 bhp total 6.600 bhp |
|
Propellers |
2x Ulstein controllable pitch propellers diameter 2.650 mm |
|
Generators |
2x Caterpillar 3406 DITA diesel generatorsets |
|
Emergency generator |
1x Cummins 4B3.9 GM diesel generatorset |
|
Bow thruster |
2x 1.00 bhp, forward 2x 800 bhp, stern |
|
Capstans |
2x 10,0 t |
|
Tugger winch |
2x 9,5 t |
|
Deck area |
Max.: 15,70 x 56,50 m (887 m²) Usable: 15,70 x 56,30 m (868 m²) |
|
Deck load |
2.500 t at 5,0 t/m² |
|
Dry Bulk |
14.000 ft³ @ 100% |
|
Discharge rates |
Fuel: 250 m³/h Pot water: 250 m³/h Oil based mud: 2x 75 m³/h Brine: 100 m³/h Drill water: 250 m³/h Dry bulk: 2x 18,4 m³/h @ 5,6 bar |
|
Tank capacities |
|
|
Lifting equipment |
2x Deck crane - SWL 2,0 t at 8,00 m |
|
Accommodation |
15x 1 Man 2x 2 Man 1x 4 Man 1x Gym |
|
Crew |
11 |
|
Communications equipment |
1x Furuno MF/HF Transmitter 1x Furuno MF/HF Receiver 1x Sailor R501 Watch Receiver 1x Sailor VHF RT 2047 1 x Sailor VHF RT 2048 3x Tron VHF 1x Sailor MF/HF DSC Decoder 2x Inmarsat C 2x Fleet 77 Inmarsat 1x Navtex 2x Tron Radar Transponder |
|
Navigation equipment |
1x Furuno ARPA Radar 1x Furuno ARPA Radar 1x Anschutz Gyrocompass 1x Anschutz Autopilot 1x Trimble GPS Sat Nav 1x Furuno DGPS Sat Nav 1x Skipper Echo Sounder 1x Sagem Speed Log |
|
Manager |
Fletcher Shipping Ltd. Badentoy Avenue Badentoy Park Portlethen Aberdeen AB12 4YB United Kingdom |
|
Previous managers |
1992 - 2013 GulfMark UK Ltd. |
|
Registered owner |
FS Shipping Ltd. |
|
Previous owners |
1992 - 2013 GulfMark UK Ltd. 2013 - 2015 Fletcher Shipping Ltd |
|
Sister ships |
1991 FS Taurus |
|
Scrapped |
2018 at Leith - United kingdom |
|
Latest data adjustment |
26 May 2023 |
