Vlissingen, The Netherlands 22 February 2014 |
 |
 |
 |
 |
|||
| Vlissingen 22/02/14 | 01/10/17 | 01/10/17 | Vlissingen 22/02/14 | |||
|
Name |

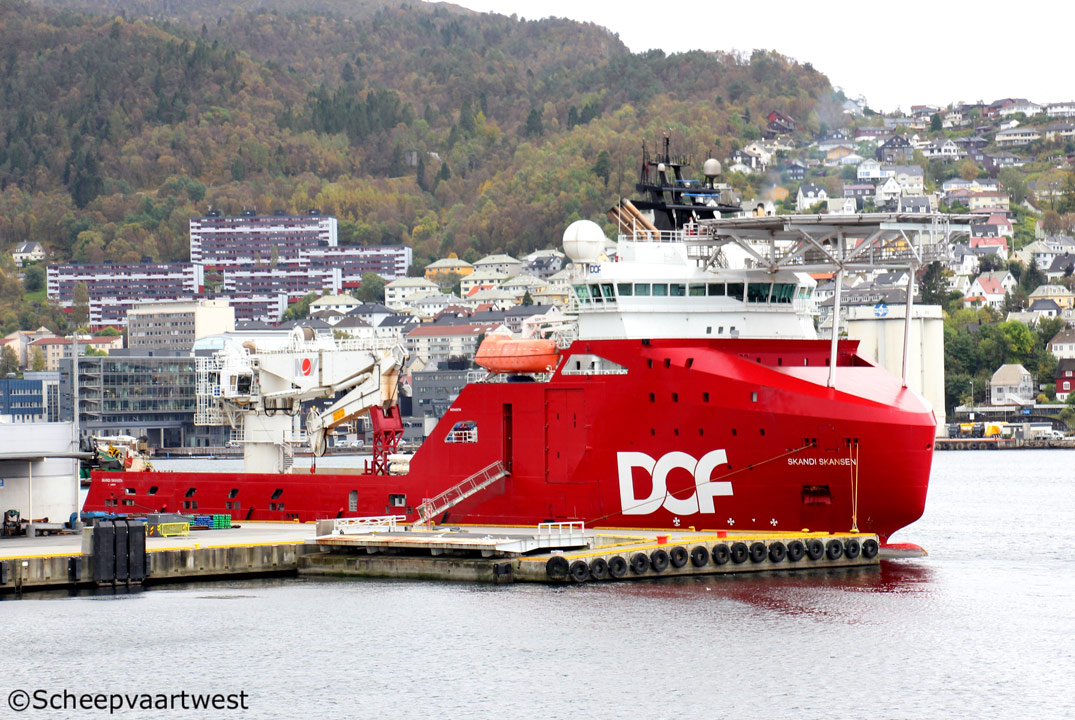

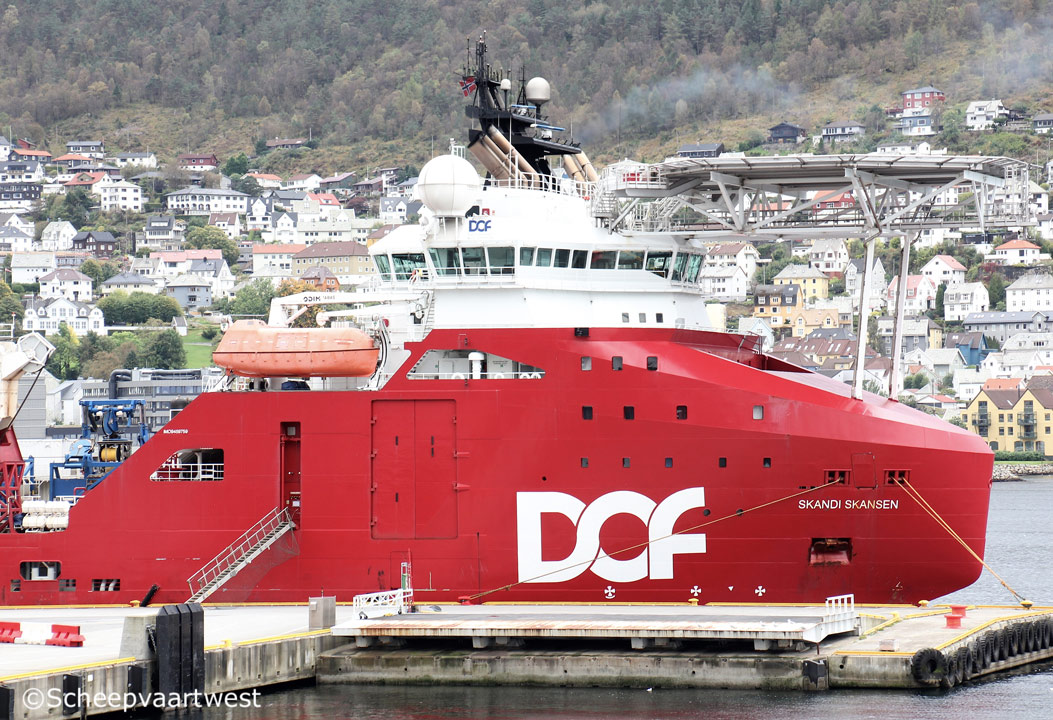

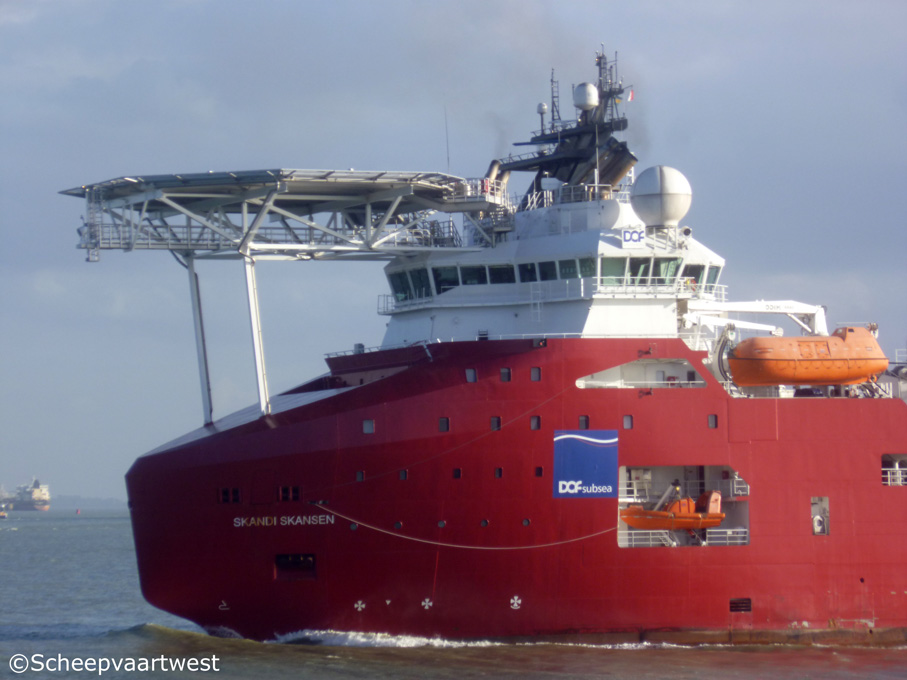

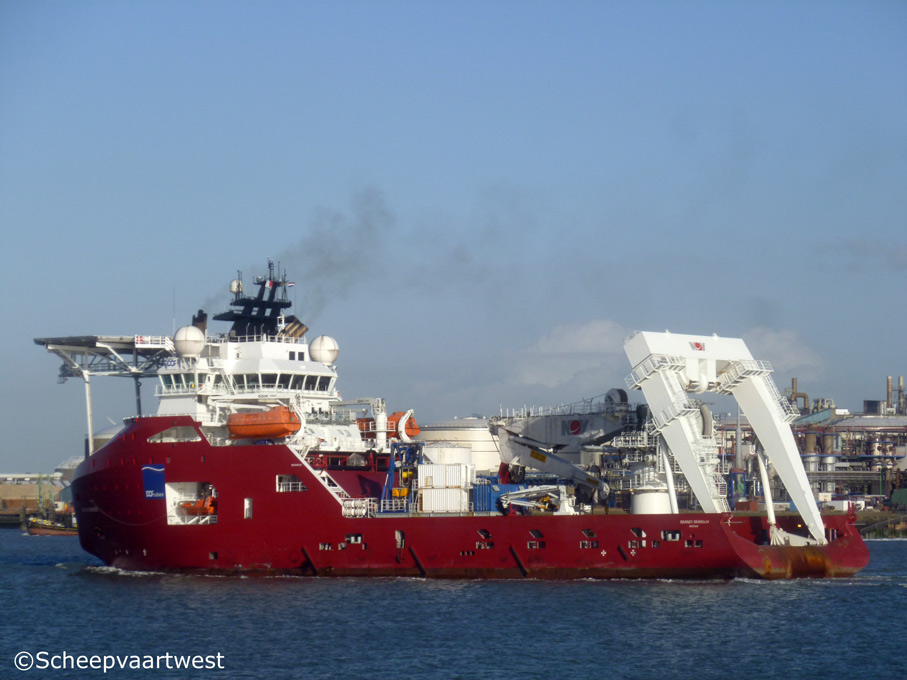

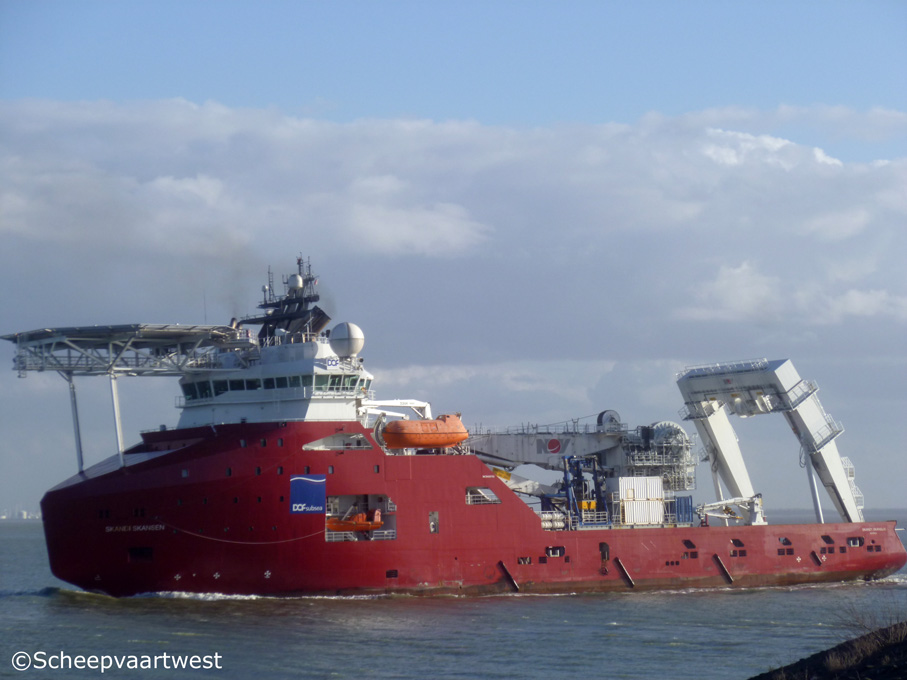

SKANDI SKANSEN |
|
Previous names |
Skandi Bergen |
|
Type |
Tug / supply vessel High powered anchor handling vessel |
|
IMO-number |
9459759 |
|
Call sign |
MAXR6 |
|
Flag |
United Kingdom |
|
Port of registry |
Aberdeen |
|
Previous flags |
2011 - 2011 Norway 2011 - 2017 Bahamas, Nassau - Call sign: C6ZK9 |
|
GT |
8.222 t |
|
DWT |
Summer: 4.982 t |
|
NT |
2.467 t |
|
Length |
107,20 m overall 97,90 m between perpendiculars |
|
Breadth |
24,00 m extreme |
|
Draught |
7,80 m |
|
Depth |
9,80 m |
|
Speed |
Max.: 18,5 knots Economic: 12,0 knots |
|
Built |
2011 |
|
Keel laid |
08.01.2010 |
|
Launch date |
17.09.2010 |
|
Date of completion |
01.07.2011 |
|
Builder |
STX OSV |
|
Yard number |
723 |
|
Hull material |
Steel |
|
Main engine |
2x Wärtsilä 16V32 - diesel electric poden 16 cylinder diesel engines each 7.680 kW / 10.300 hp at 720 rpm |
|
Propellers |
2x LIPS 4E 1300 controllable pitch propellers Diameter: 4.600 mm |
|
Generators |
4x Wärtsilä 8L26B2 diesel generatorsets each 2.600 kW at 900 rpm |
|
Emergency & harbour gen. |
1x Scania Nogva DI12 M EMS diesel generatorset 220 kW |
|
Bow thruster |
2x Wärtsilä FT250M-D each 1.200 kW 2x Wärtsilä FT275M-D each 1.500 kW |
|
Bollard pull |
349 t |
|
Deck space |
Main deck area:1.070 m² @ 10,0 t/m² Deck material: Timber / steel Moonpool: 7,00 x 7,00 m Chain capacity: 4x lockers total 1.190 m³ |
|
Winches |
Main: 1x BRATTVAGG Water Fall triple drum (SL500W-3)
Towing / working drums - 500 t 1x Declutchable towing drum 1.500 mm Ø x 3.750 mm Ø x 4.100 mm length 1x Declutchable working drum 1.500 mm Ø x 3.750 mm Ø x 4.100mm length Wire capacity 6.700 m of Ø 76 mm each
Anchor handling drum - 500 t 1x Declutchable ah/wire drum 3.500 mm Ø x 5.400 mm Ø x 8.200 mm length With dividing flange socket part 18.700 m of Ø 76 mm wire 2x BRATTVAAG secondary winches 170 t pull @ 0 - 23 m /min
Additional 2x Hydraulic tugger (fwd) 24 t pull 2x Hydraulic tugger (aft) 17 t pull |
|
Tank capacities |
Fuel oil: 2.400 m³ fresh water: 1.00 m² Water ballast: 3.600 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Lifting equipment |
2x Provision crane 3,0 t / 16,00 m 2x AH-cargo rail cranes 5,0t / 2.,60 - 10,00 m with manipulators (safe deck) 3,0 t / 2,60 - 14,3 m A frame 260 t SWL |
|
Cargo gear |
1x AHC Knuckleboom crane: Main Hoist: SWL 250 t @ 13,00 m Auxiliary hoist: SWL 20,0 t @ 40,00 m Manufacturer: National Oilwell Varco (NOV) |
|
Navigation equipment |
Furuno FAR-2137S BB radar FCR-2117X BB radar Furuno FE-700 echo sounder Furuno DS-80 log Navipol 4000 magnetic compass Plath Navigat X MkII gyrocompass Furuno GP-150 GPS Furuno FAX-30 Sailor System 5000 150 W D1 MF/HF GMDSS A3 radio station Furuno FA-150 AIS Furuno VR-3000 VDR ICS NAV 7 navtex Sailor SE406-II Epirb Sailor SART, Sailor SP 3520 portable VHF Motorola GP340 VHF og Sailor TT3000EB Mini C satcom |
|
Accommodation |
90 persons in 55 single / double cabins |
|
Manager |
DOF UK Ltd. |
|
Owner |
DOF Installer ASA |
|
Previous owners |
2011 - 2011 DOF ASA (District Offshore ASA) |
|
Latest data adjustment |
12 February 2018 |
