Bugsier 22 - IMO 9763253

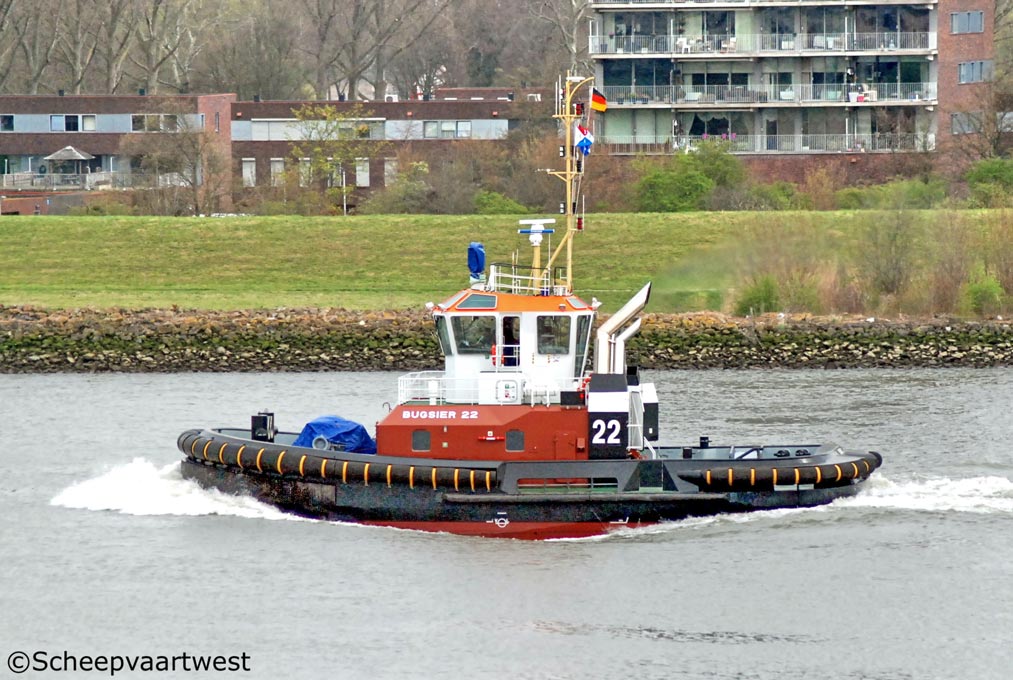

Spijkenisse, The Netherlands 09 April 2016

Name

BUGSIER 22

Type

Tug

IMO-number

9763253

Call sign

DCPL2

Flag

Germany

Port of registry

Hamburg

GT

270 t

Length

24,47 m

Breadth

11,33 m

Draught

5,35 m

Depth

4,60 m

Speed

13,0 knots

Built

2016

Builder

Damen Shipyards Sharjah FZE
Sharjah

United Arab Emirates

Yard number

512297

Hull material

Steel

Main engine

2x Caterpillar 3516C TA HD/D - 4 stroke single acting 16 cylinder 170 x 215 mm diesel engines with total power of 2x 2.100 kW / 2x 2.856 hp at 1.600 rpm

Built: 2014

Manufacturer: Caterpillar Tractor Co.

Propulsion

2x Azimuth stern drive propellers - Rolls-Royce US 255-FP twin-screw rudder-propeller in Kort nozzles

Diameter: 2.600 mm - 5 blades

Builder: Rolls Royce Marine Benelux B.V.

Generators

2x Caterpillar C4.4 TA - 4 cylinder 105 x 127 mm 75 kW at 1.500 rpm diesel engines coupled with Leroy Somer LSAM 44.2VS3 C 6/4 generators each 86 kVA

Bollard pull

70 t

Towing equipment

1x Damen ATW211-H19K2 double drum winch

Brake holding power front: 150 t

Pull front: 33 t

Pulling speed front: 11,00 m/min / 51,00 m/min

Tank capacities

Portable water: 8,8 m³

Fuel oil: 68,2 m³

Lub oil: 4,8 m³

Dirty oil: 2,9 m³

Sewage: 3,1 m³

Bilge water: 1,9 m³

Navigation & communications

1x Furuno FAR-2117 Radar
1x Cassens & Plath Kotter Type Magnetic Compass
1x Furuno SC-50 Satellite Compass
1x Simrad AP-70 Autopilot
1x Furuno GP-150 GPS
1x Furuno FE-800 Echo Sounder
2x Sailor 6222 VHF
2x Jotron Tron TR-20 Handheld VHF
1x Furuno FS-2575C SSB Radio
1x Furuno NX-700 Navtex
1x Furuno FA-150 AIS
1x Jotron Tron-40S EPIRB
1x Jotron Tronsart-20 SART

Manager

Bugsier-, Reederei- und Bergungs-Gesellschaft mbH & Co. KG
Johannisbollwerk 10
20459 Hamburg
Germany

Owner

Bugsier-, Reederei- und Bergungs-Gesellschaft mbH & Co. KG
Johannisbollwerk 10
20459 Hamburg
Germany

Latest data adjustment

05 June 2016
