Spijkenisse, The Netherlands 08 April 2016 |
 |
| Spijkenisse 09/04/16 |
|
Name |

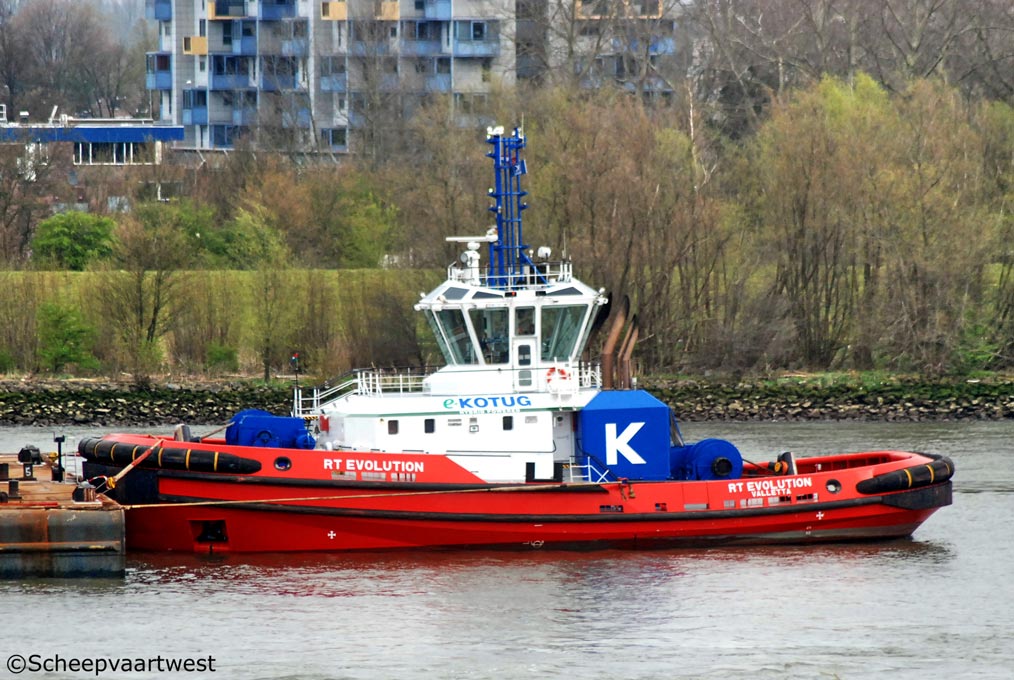

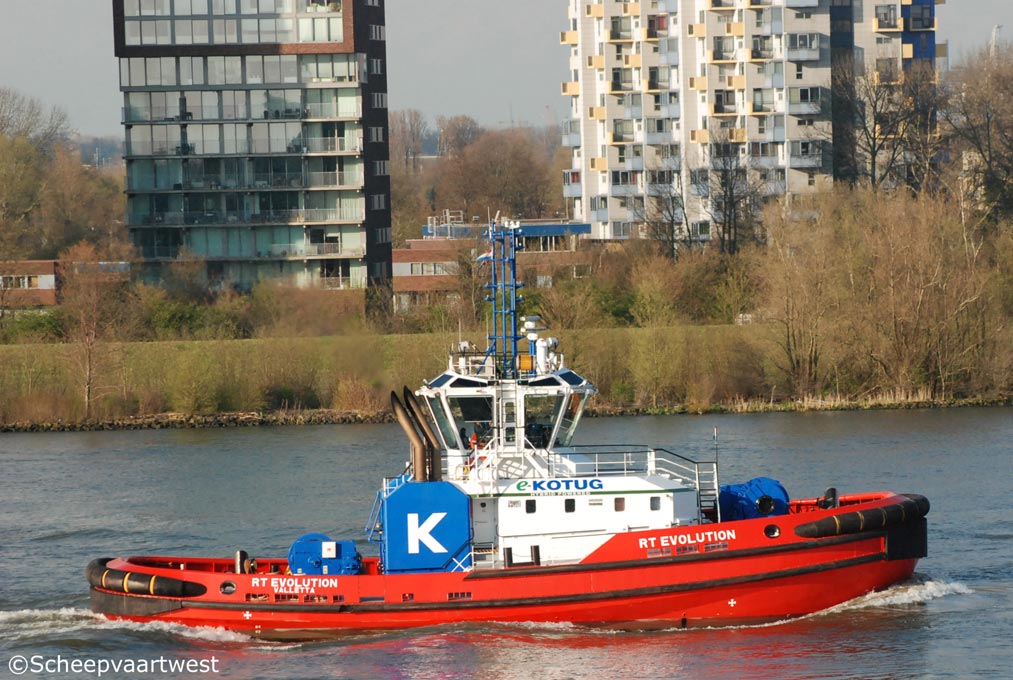

RT EVOLUTION |
|
Type |
Hybrid rotor tug |
|
IMO-number |
9691357 |
|
Call sign |
9HA3623 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
10.2014 - 12.2014 Vincent and Grenadines - Call sign: J8B5097 |
|
GT |
491 t |
|
DWT |
350 t |
|
NT |
147 t |
|
Length |
31,95 m overall 30,25 m between perpendiculars |
|
Breadth |
12,63 m |
|
Draught |
5,91 m Max.: 6,30 m |
|
Speed |
Max.: 13,5 knots |
|
Built |
2014 |
|
Launch date |
07.03.2014 |
|
Date of completion |
15.10.2014 |
|
Builder casco |
Nauta Shipyard S.A. |
|
Builder completion |
Damen Shipyards BV |
|
Yard number |
571714 |
|
Hull material |
Steel |
|
Main engine |
3x Caterpillar 3512C-TA/HD - 4 stroke 12 cylinder diesel engines each 1.765 kW / total of 5.395 kW / 7.150 hp Manufacturer: Caterpillar Motoren Inc., Lafayette - USA |
|
Propulsion |
3x Schottel SRP 3000 FP |
|
Generators |
1x Caterpillar C 18 diesel generatorset 450 kW 1x Caterpillar C 9 diesel generatorset 200 kW |
|
Hydrid |
Hybrid system: Xeropoint Hybrid provisions: 2x Lithium polymer battery banks Motor/Generator: 3x 500 kW |
|
Bollard pull |
80,0 t |
|
Towing equipment |
Aft. towing winch: Single drum / Brake force 230 t 200,00 m ultra line 80 mm + Ko-link +20,00 m 64 mm Dyneema ASB For towing winch: Single drum / Brake force 230 t 200,00 m ultra line 80 mm + Ko-link +20,00 m 64 mm Dyneema ASB |
|
Tank capacities |
Fuel: 200 m³ fresh water: 32,8 m³ |
|
Communication navigation |
GMDSS A1 2 x Radar (sea/river) Autopilot Satellite compass Magnetic compass GPS 2 x VHF DSC 2 x VHF Handheld Navtex Epirb Lrit Sart AIS Speedlog Echo sounder ECDIS |
|
Manager |
Kotug International BV |
|
Owner |
RT Evolution Ltd. |
|
Latest data adjustment |
06 June 2016 |
