Spijkenisse, The Netherlands 02 May 2016 |
|
Name |

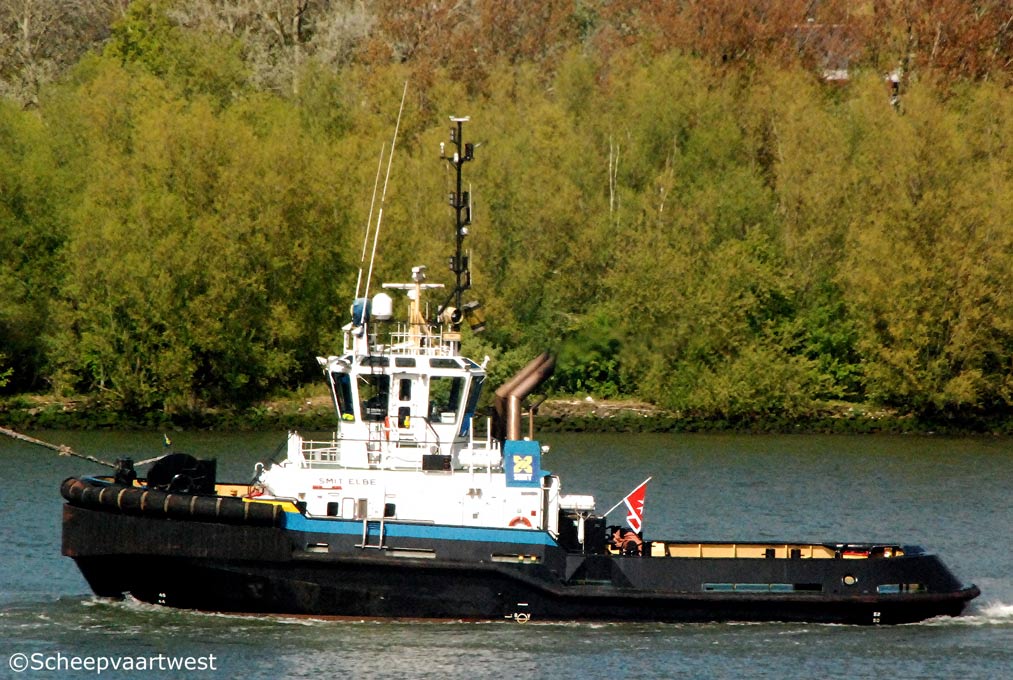

SMIT ELBE |
|
Type |
Harbour tug |
|
IMO-number |
9389485 |
|
Call sign |
9HB4829 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2007 -2010 The Netherlands, Rotterdam - call sign: PHIU 2010 - 2016 Bahamas, Nassau - Call sign: C6XN2 2016 - 2016 Sweden |
|
GT |
294 t |
|
NT |
86 t |
|
Length |
28,67 m overall 27,90 m between perpendiculars |
|
Breadth |
10,43 m overall |
|
Draught |
Max.: 4,80 m |
|
Freeboard |
1.000 mm |
|
Depth |
4,61 m |
|
Speed |
Max.: 13,6 knots Economic: 9,0 knots |
|
Built |
2007 |
|
Date of completion |
06.07.2007 |
|
Builder casco |
Damen Shipyards S.A. (Marine Products Yard) Gdansk Poland |
|
Builder completion |
Damen Shipyards Gorinchem The Netherlands |
|
Yard number |
511534 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3516B TA HD/C - 4 stroke 16 cylinder 170 x 215 mm combustion engines total 3.678 kW / 5.066 hp at 1.600 rpm Starter type: Electrical starter Built: 04/01/2007 Builder: Caterpillar Inc., Lafayette, IN - USA |
|
Propulsion |
2x Rolls Royce US-205 Azimuth fixed pitch ASD propeller Diameter: 2.400 mm |
|
Generators |
2x Caterpillar 3056 T - 6 cylinder 100 x 127 diesel engines each 126 hp at 1.500 rpm coupled with generators each 84 kW |
|
Bollard pull |
Ahead: 57 t Astern: 54,7 t |
|
Deck equipment |
Fore winch: Hydraulic Single drum - 130 t brake load Line pull 30 t @ 11,00 m/min. on 2nd layer Towing hook Mampaey, disc type, 65 t SWL Aft winch: Hydraulic Single drum - 130 t brake load Line pull 18 t @ 11,00 m/min. on 2nd layer |
|
Tank capacities |
Potable Water: 14,9 m³ Fuel: 96,6 m³ Lubricating Oil: 6,2 m³ Dirty Oil: 2,2 m³ Foam: 8,0 m³ Sewage: 2,2 m³ Bilge Water: 5,5 m³ Sludge: 2,2 m³ Dispersant: 4,6 m³ |
|
Accommodation |
Air-conditioned accommodation for 6 persons |
|
Navigation & communication equipment |
1x JRC JMA-5106 Radar 1x JRC JMA-609 Radar 1x Magnetic Compass 1x JRC 10T Satellite Compass 1x Alphatron Alphaturn Rate of Turn Indicator 1x Raytheon NP-60 Autopilot 1x JRC JNAV-500 GPS 1x JRC FE-380 Echo Sounder 2x Sailor RT-5022 VHF 2x McMurdo R2 Handheld VHF 1x Sailor 4000 SSB Radio 1x JRC NCR-333 Navtec 1x JRC-JHS-182 AIS |
|
Operator |
Smit Harbour Towage Division B.V. Rosmolenweg 20 3356 LK Papendrecht The Netherlands |
|
Registered owner |
Smit Shipping Singapore Private Limited |
|
Group |
Royal Boskalis Westminster N.V. Rosmolenweg 20 3356 LK Papendrecht The Netherlands |
|
Renamed |
VB Elbe Malta, Valletta - Call sign: 9HB4829 Owner: Boluda Corporacion Maritima |
|
Latest data adjustment |
27 June 2016 |
