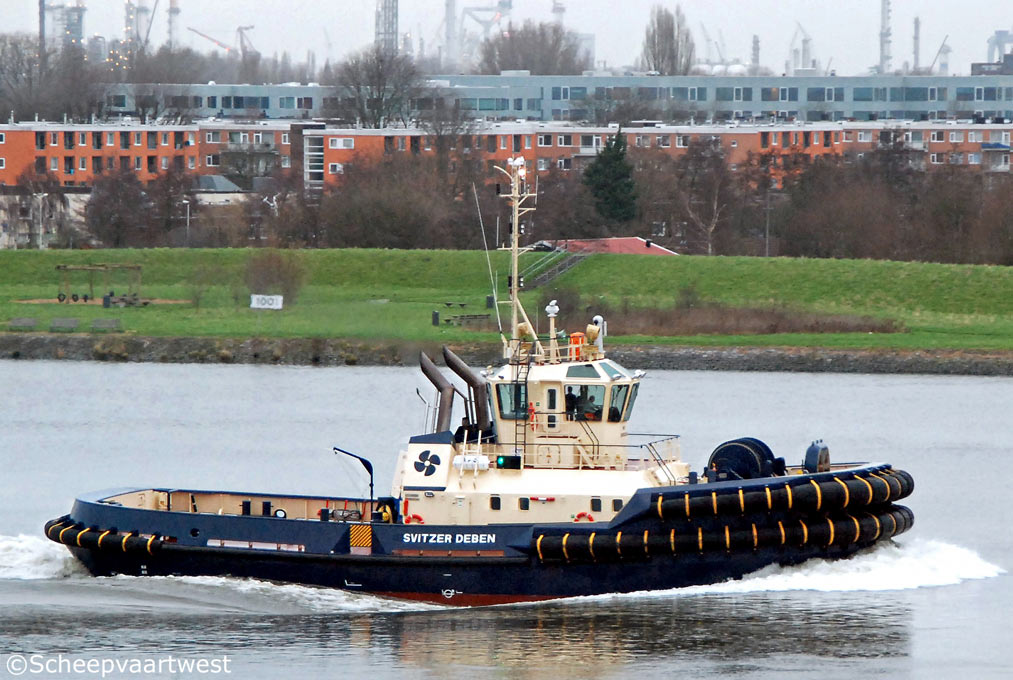

Svitzer Deben 01

Spijkenisse, The Netherlands 18 December 2015



Name

SVITZER DEBEN

Type

Escort tug

IMO-number

9695585

Call sign

2IVL5

Flag

United Kingdom

Port of registry

Felixstowe

GT

447 t

DWT

150 t

Length

32,70 m overall

Breadth

12,82 m

Draught

5,25 m

Depth

5,35 m

Speed

14,6 knots

Built

2015

Date of completion

06.11.2015

Builder

Damen Song Cam Shipard
Haiphong
Vietnam

Yard number

512539

Hull material

Steel

Continuous decks

1

Main engine

2x Caterpillar 3516C HD TA/D - 4 stroke single acting 16 cylinder 170 x 2015 mm diesel engines - total output: 5.050 kW at 1.800 rpm

Built : 2014

Manufacturer: Caterpillar Tractor Co.

Propellers

2x Rolls Royce US-255-P30-CP Azimuth stern drive propellers

Diameter: 2.800 mm - 4 blades

Generators

2x Caterpillar C6.6 TA Acert - 6 cylinder 105 x 127 mm diesel engines at 1.500 rpm coupled with generators each 125 kVA

Built: 2014
Manufacturer: Caterpillar Tractor Co.

Bollard pull

80 t ahead

72,1 t astern

Towing equipment

Front:

1x DMC T320-HH2-N2-22DAM Hydraulic double drum winch

Wire length: 2x 200 m

Diameter: 2x 60 mm

Pull: 60 t

Brake holding: 200 t

Pulling speed: 30 m/min

Aft:

1 DMC T320-HH1-N2-ESD Hydraulic single drum winch

Wire length: 750 m

Diameter: 54 mm

Pull: 35 t

Brake holding: 200 t

Pulling speed: 30 m/min

Towing hook

1x Mampaey SWL 100 t

Tank capacities

Potable Water: 15,5 m³

Fuel oil: 146,4 m³

Lubricating Oil: 8,2 m³

Hydraulic Oil: 2,8 m³

Dirty Oil: 4,2 m³

Foam: 12,5 m³

Sewage: 5,1 m³

Bilge Water: 6,7 m³

Tanks Sludge: 2,4 m³

Anchor equipment

2

Length: 302,50 m each

Weight: 495 kg each

Navigation & communication

1x Furuno FAR-2117 Radar
1x Kotter Magnetic Compass
1x Simrad AP-70 Autopilot
1x Furuno GP-150 GPS
1x Furuno FE-800 Echo Sounder
1x Furuno DS-80 Speedlog
2x Sailor 6222 VHF
2x Handheld VHF
1x Furuno NX-700A Navtex
1x Furuno FA-150 AIS
1x Furuno FS-1575 SSB Radio
1x Jotron TRON-40S EPIRB
1x Jotron TRONSART-20 SART
1x Furuno Felcom-19 Inmarsat-C
1x Windsonic OMC-115 Anemometer

Operator

Svitzer Matine Ltd.
Middlesborough
United Kingdom

Latest data adjustment

08 June 2016
