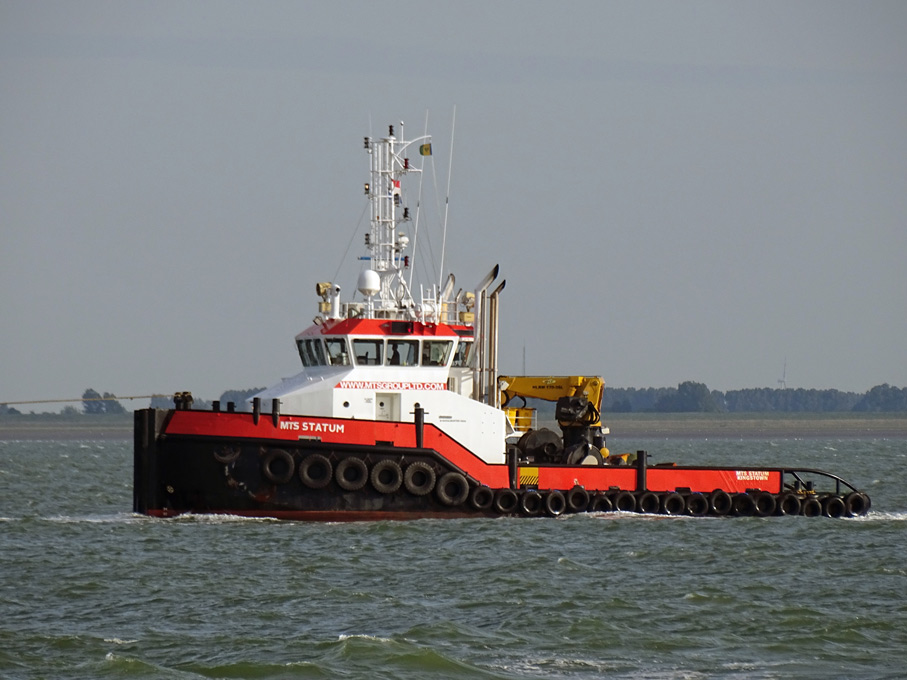

MTS Statum 01

Westerschelde 15 July 2016

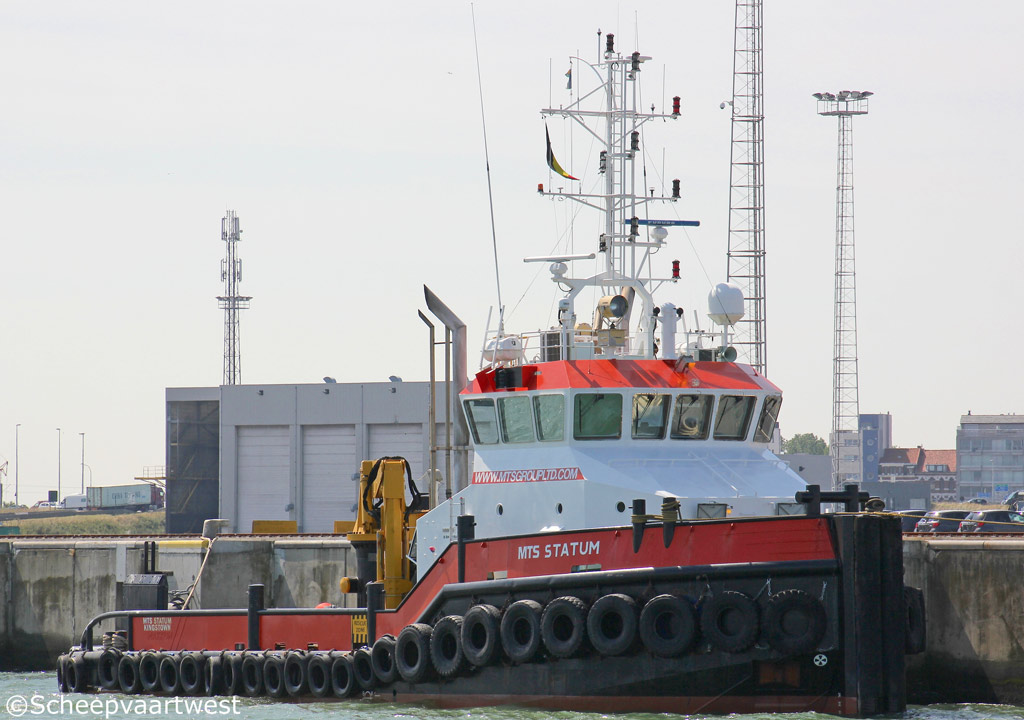

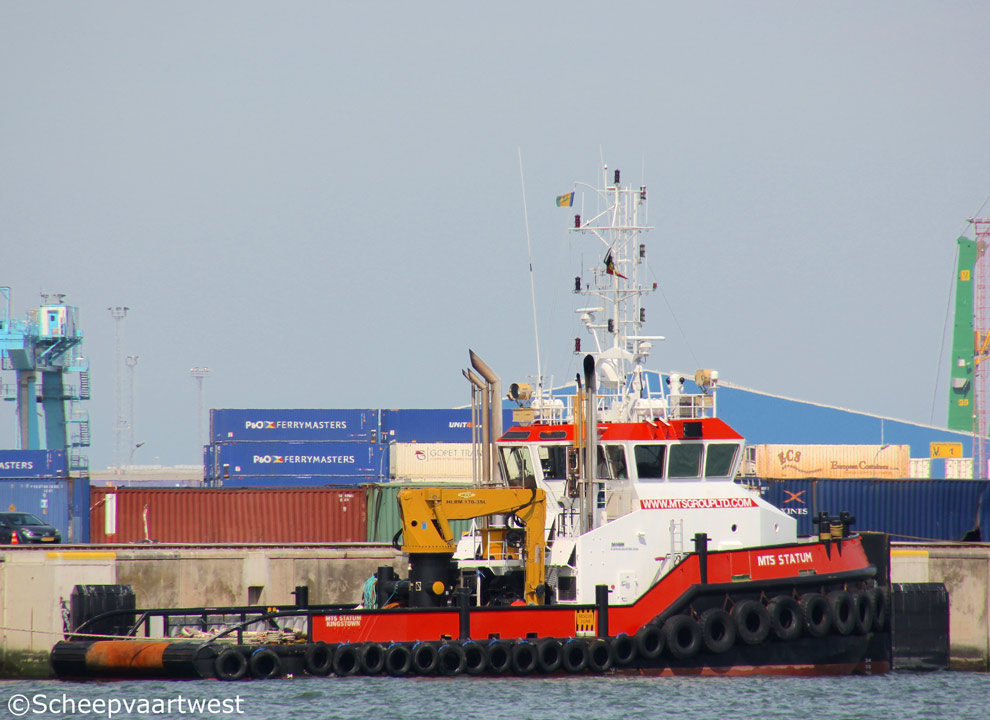

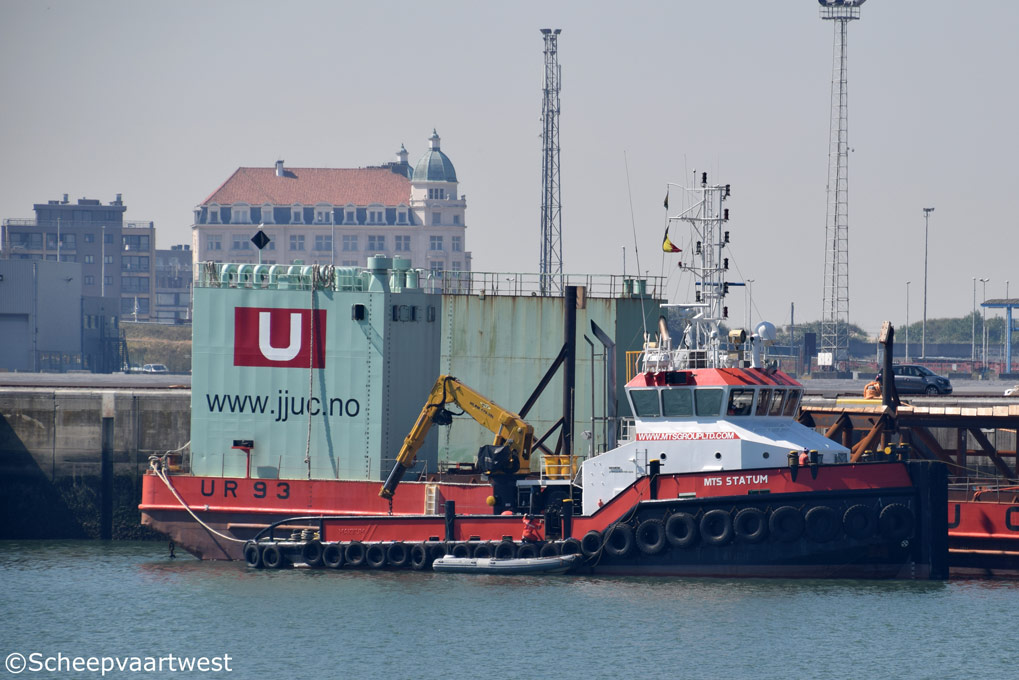

MTS Statum 02   MTS Statum 03   MTS Statum 04
Zeebrugge 25/08/16 Zeebrugge 16/08/16 Zeebrugge 16/08/16


Name

MTS STATUM

Previous names

2008 - 2012 Statum - The Netherlands, Makkum - Call sign: PBOP

2012 Bhagwan Satum

Type

Tug boat - Shoalbuster 3009 AHT

Basic functions

Towing - Mooring - Anchor handling - Dredging support - Salvage

IMO-number

9510670

Call sign

J8B5265

Flag

Saint Vincent and the Grenadines

Port of registry

Kingstown

Previous flags

2008 - 2012 The Netherlands, Makkum - Call sign: PBOP

GT

309 t

NT

92 t

Displacement

350 ton (empty tanks)

Length

30,08 m overall

29,38 m between perpendiculars

Breadth

9,10 m

Draught

3,20 m aft

Freeboard

608 mm

Depth

4,40 m at sides

Speed

Max.: 11,6 knots

Built

2008

Date of completion

23/04/2008

Builder casco

Damen Kozle Shipyard

Kedzierzyun Kozle

Poland

Yard number: 1124

Builder completion

Damen Shipyards

Hardinxveld-Giessendam

The Netherlands

Yard number: 1598

Hull material

Steel

Hull type

Single hull

Watertight compartments

7

Continuous decks

1

Main engine

2x Caterpillar CAT3512 B TA - 4 stroke 12 cylinder 170 x 190 mm combustion engines total 2.460 kW / 3.342 hp at 1.600 rpm

Gearboxes

2x Reintjes WAF773L

Propellers

2x Fixed pitch propellers

Diameter: each 2.250 mm in Optima nozzles

Generators

2x Caterpillar C-4.4 TA diesel generatorsets each 107 kVA

Bow thruster

Hydraulic 250 bhp

Bollard pull

48 t

Deck lay-out

  • Anchor: 2 x 300kg Pool (HHP)

  • Anchor Winch: WK hydraulics / Ridderinkhof b.v. Waterfall

  • Anchor Handling / Towing Winch: 100 t / 50 t brake holding

  • 1st drum: 750 m x 44 mm

  • 2nd x drum: 600 m x 40 mm

  • Tugger Winch :WK hydraulics

  • Stern Roller: SWL 100 t

  • Tow Pins: Hydraulic

  • Shark Jaw: Hydraulic 100T SWL

  • Deck Crane: Heila HLRM 170-3s

  • Push Bow: Full length rubber fendered push bow

Tank capacities

Fuel Oil: 175 m³

Fresh Water: 41 m³

Lub oil: 7,3 m³

Dirty Oil: 4,3 m³

Bilge Water: 4,3 m³

Accommodation

Heated and fully air-conditioned living spaces for 7 persons, a galley / mess & Sat TV

Nautical & Communication Equipment

  • Mag Compass - Cassens & Plath GmbH

  • Radar - Furuno Radar / ARPA/ Far 2117

  • GPS - Furuno GP-150

  • Chart System -MARIS ECDIS900

  • AIS - Furuno FA-150

  • Autopilot - Radio Holland / SeaPilot 75

  • Searchlights - SEEMATZ / 74651 Type 525HGS

  • Echosounder -Furuno FE-70

  • VHF Radios - 3 x Sailor RT5022

  • Navtex - Furuno NX-700

  • Wind Measurement - OMC 139

  • Computer, Intercom, Weather Station, Auto Pilot, Internet, 24 V Emergancy steering, Forward and Aft steering stations, DSC, Phone / Fax / Sat Phone / Email

Owner

MTS - Marine and Towage Services Group Ltd.

Kings Quay, King Street

Brixham

Devon TQ5 9FW

United Kingdom

Previous owners

2008 - 2012 Rederij Engelsman Towage & Salvage, 8754 GJ Makkum - The Netherlands

2012 Bhagwan Satum

Latest data adjustment

07 January 2024
