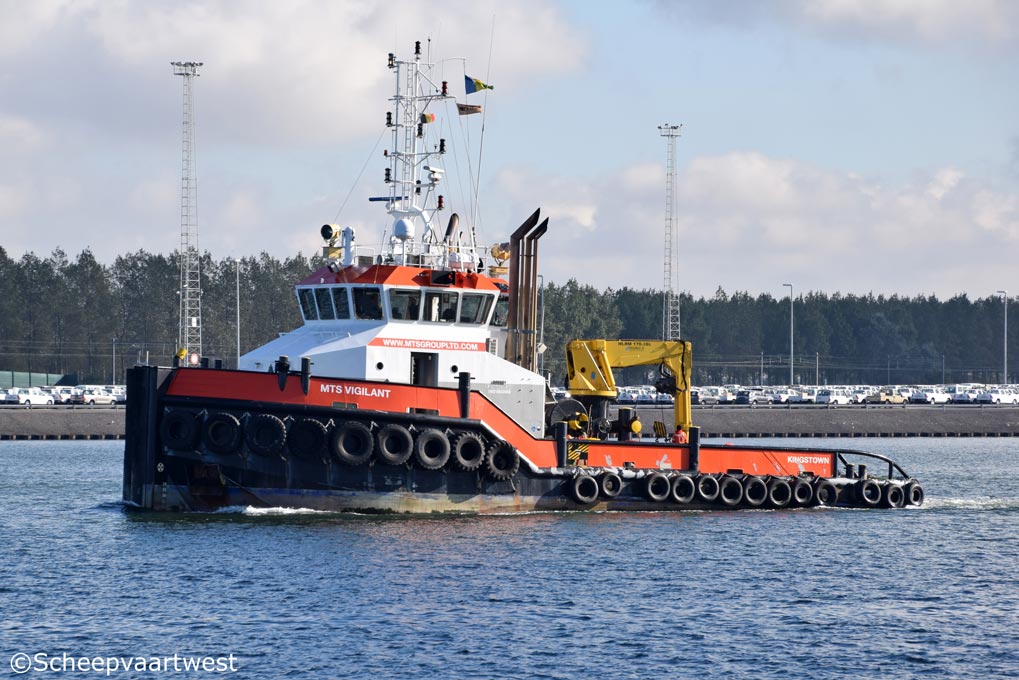

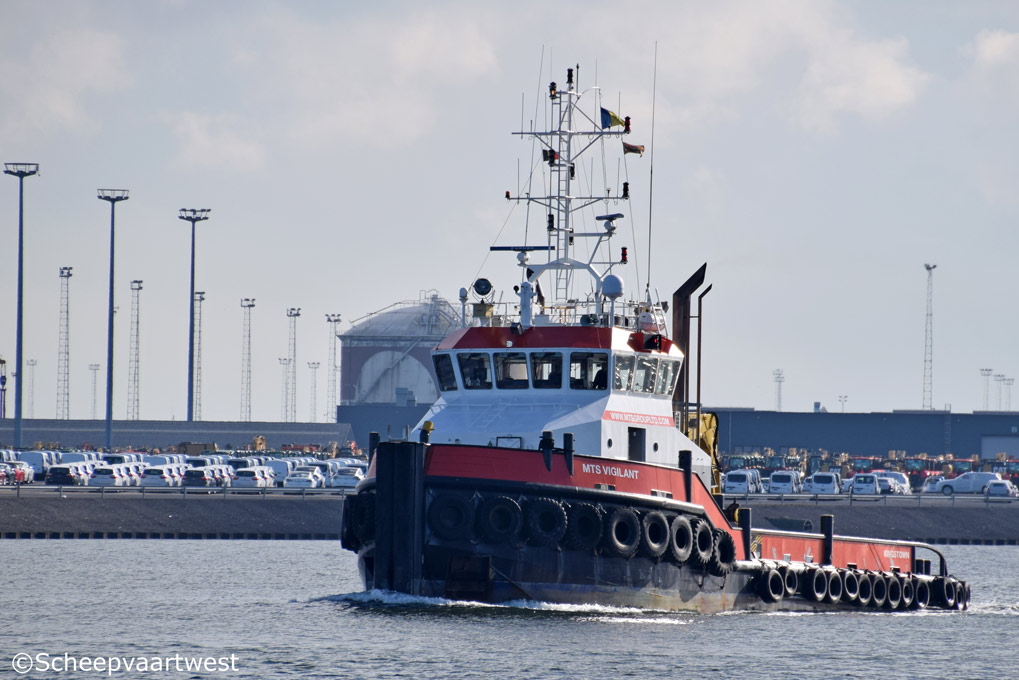

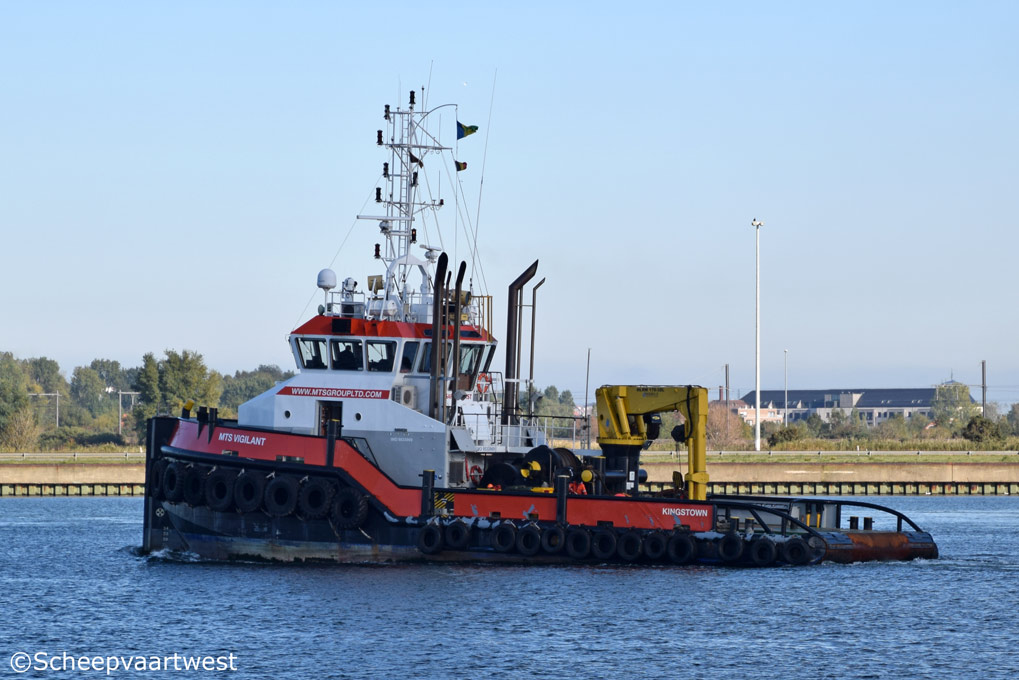

Zeebrugge 22 October 2016 |
 |
 |
|
| Zeebrugge 22/10/16 | Zeebrugge 22/10/16 | |
|
Name |
MTS VIGILANT |
|
Previous names |
2009 - 07.2012 Vigilant |
|
Type |
Tug - Shoalbuster 3009 |
|
Basic functions |
Towing, Mooring, Anchor handling, Dredging support, Salvage |
|
IMO-number |
9533969 |
|
Call sign |
JB5266 |
|
Flag |
St Vincent and The Grenadines |
|
Port of registry |
Kingstown |
|
GT |
309 t |
|
DWT |
184,76 t |
|
NT |
92 t |
|
Length |
30,08 m overall 29,38 m between perpendiculars |
|
Breadth |
9,10 m extreme |
|
Draught |
Aft: 3,20 m |
|
Depth |
4,40 m at sides |
|
Speed |
Max.: 11,6 knots |
|
Built |
2009 |
|
Keel laid |
01.01.2008 |
|
Launch date |
13.07.2008 |
|
Date of completion |
24.04.2009 |
|
Builder |
Damen Shipyards Kozle Sp. z o.o. |
|
Yard number |
1617 |
|
Hull material |
Steel |
|
Main engine |
2x Caterpillar CAT3512 B TA diesel engines total 2.460 kW / 3.300 hp |
|
Propellers |
2x Fixed pitch propellers Diameter 2.250mm in Optima nozzles |
|
Generators |
2x Caterpillar C-4.4 TA diesel generatorsets each 107 kVA |
|
Hydraulic |
1x Caterpillar C18 TA/B |
|
Bow thruster |
1x Hydraulic 250 bhp |
|
Bollard pull |
48 t |
|
Deck lay-out |
Anchor: 2x 300 kg Pool (HHP) Anchor winch: WK Hydraulics / Ridderinkhof b.v. Waterfall Anchor handling / Towing winch: 100 t / 50 t brake holding 1st drum: 750 m x 44 mm 2nd x drum: 650 m x 44 mm Tugger winch: WK Hydraulics Stern roller: SWL 100 t Tow pins: Hydraulic Shark jaw: Hydraulic 100 t SWL Deck crane: Heila HLRM 170-3s Push Bow: Full length rubber fendered push bow |
|
Tank capacities |
Fuel oil: 175.000 litres Fresh water: 41.000 litres Sewage: 3.300 litres Lub oil: 7.300 litres Dirty oil: 4.300 litres Bilge water: 4.300 litres |
|
Crew |
5 |
|
Accommodation |
Heated and fully air-conditioned living spaces for 7 persons, a galley/mess & Sat TV |
|
Nautical & Communication equipment |
Mag Compass - Cassens & Plath GmbH Sat Compass - Furuno RD30 Gyro Compass - Tokimec ES-160 Radar - Furuno Radar / ARPA/ Far 2117 GPS - Furuno GP-150 Chart System - Transas Navi sailor 4000 ECDIS AIS - Furuno FA-150 Autopilot - Radio Holland / SeaPilot 75 Searchlights - SEEMATZ / 74651 Type 525HGS Echosounder -Furuno FE-70 VHF Radios - 3x Sailor RT5022 Navtex - Furuno NX-700 Wind Measurement - OMC 139 Computer, Intercom, Weather Station, Auto Pilot, Internet, 24v Emergancy steering, Forward and Aft steering stations, DSC, Phone / Fax / Sat Phone / Email |
|
Managers |
Marine & Towage Services Group Ltd. |
|
Owner |
Contact MTS Group Limited Contact Marine & Towage Services |
|
Latest data adjustment |
20 November 2016 |
