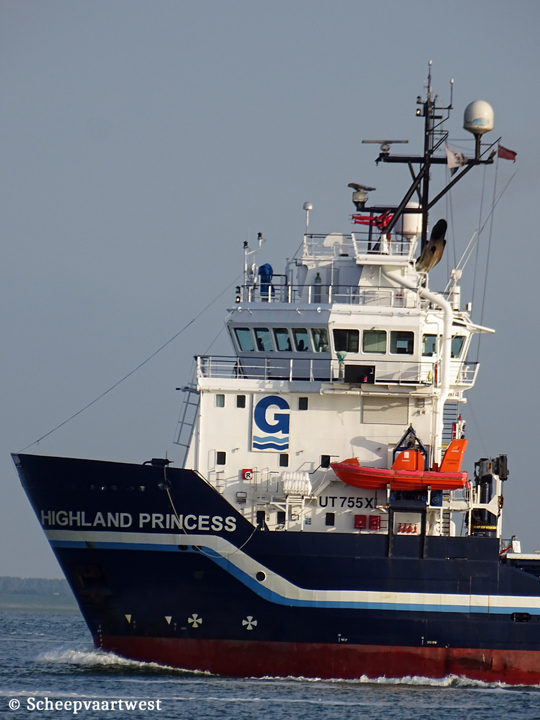

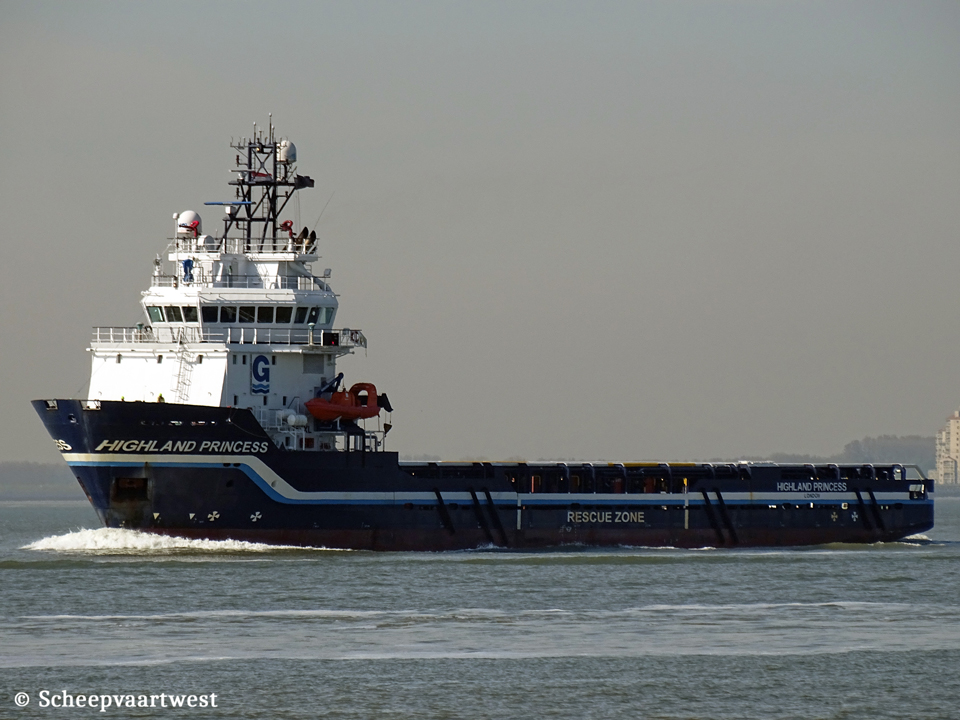

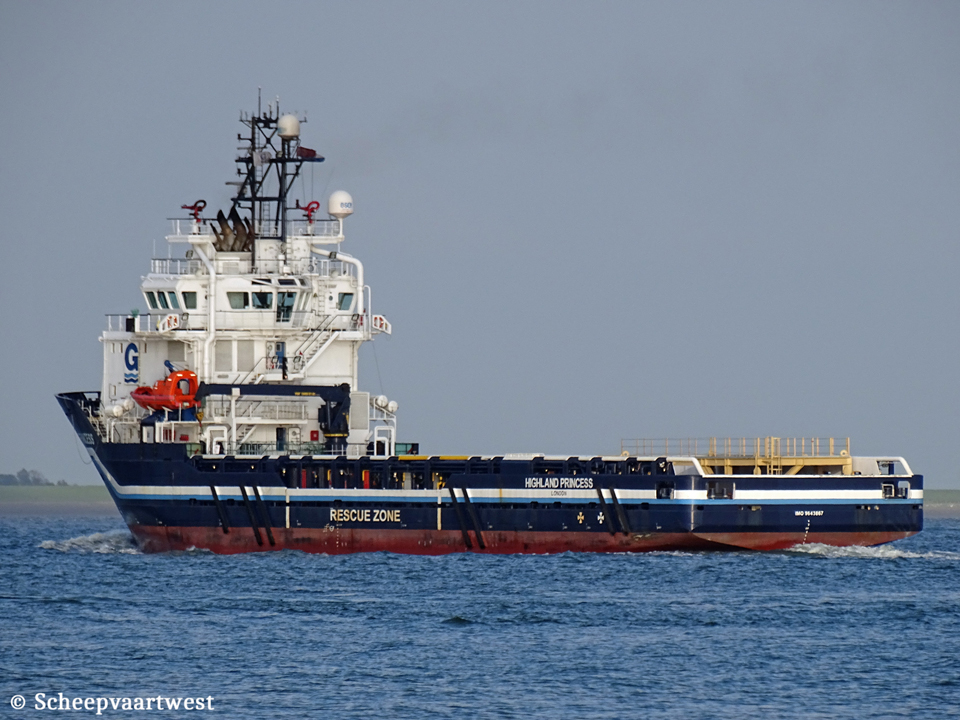

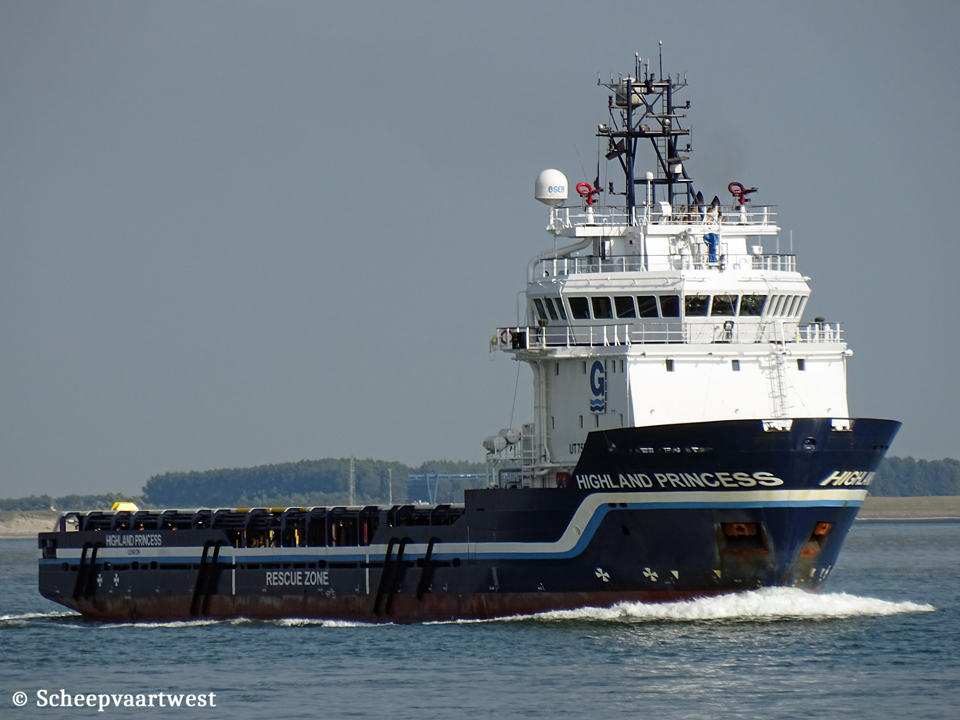

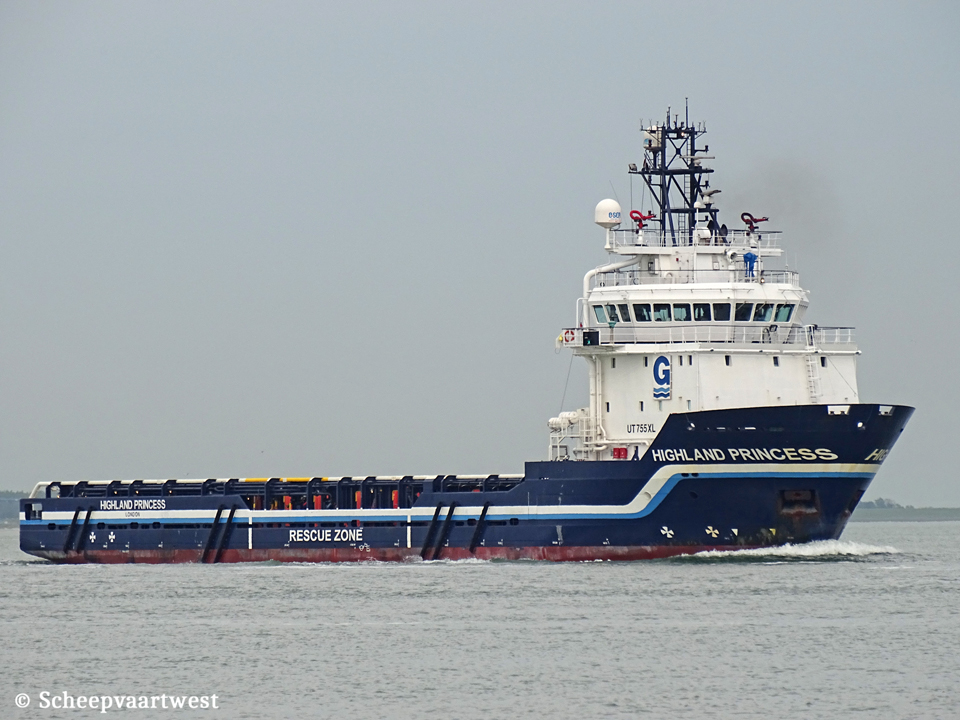

Highland Princess - IMO 9643867

Westerschelde 05 September 2016

Name

HIGHLAND PRINCESS

Type

Platform supply vessel - Fire fighting vessel - Oil recovery

UT 755 XL class

IMO-number

9643867

Call sign

YJXH4

Flag

Vanuatu

Port of registry

Port Vila

Previous flags

United Kingdom, London - Call sign: 2FUD4

GT

2.202 t registered

Suez: 2.414,14 t

DWT

Summer: 3.081,2 t

NT

783 t registered

Panama: 1.900 t

Suez: 1.580,22 t

Displacement

5.020,9 t

Length

74,95 m overall

66,80 m between perpendiculars

Breadth

16,00 m moulded

Draught

Max: 5,85 m

Light: 2,70 m

Freeboard

1.158 mm

Depth

7,00 m moulded

Speed

Max: 14,5 knots

Built

2014

Keel laid

26/10/2012

Launch date

10/10/2013

Delivery date

20/03/2014

Builder

Rosetti Marino Spa.

Via Trieste, 230

Ravenna, 48122

Italy

Yard number

C111

Hull material

Ordinary strength steel

Main engine

2x General Motors GE 16V228 MDF - 16 cylinder 228,6 x 266,7 mm combustion engines each 2.790 kW / 3.741 bhp at 955 rpm

Rudders

2x Rolls Royce high lift

Propellers

2x Controllable pitch propeller

Manufacturer: Rolls-Royce AB

Shaft generator

2x 1.800 kW each 450 Volt 60 Hz

Manufacturer: Marelli Motori Spa.

Generators

2x Auxiliary generators each 296 kW / 450 Volt 60 Hz

Bow thruster

Thrusters Bow: 2x 885 bhp / 660 kW

Thrusters Stern: 2x 791 bhp / 590 kW

Cargo Deck Area

7,696 ft² (174 ft x 44 ft)

715,5 m³ (53,00 m x 13,50 m)

Deck Load

1.650 t

Max permitted loads

Aft deck: 5,0 t/m²

Cargo discharge

Fuel Oil: 200 m³/h @ 90 m hd

Pot Water: 200 m³/h @ 90 m hd

Oil Based Mud: 2 x 100 m³/h @ 180 m hd

Base Oil: 90 m³/h @ 90 m hd

Brine: 100 m³/h @ 180 m hd

Cement: 80 t/h @ 90 m hd

Barytes: 60 t/h @ 90 m hd

Bentonite: 100 t/h @ 90 m hd

Drill Water: 150 m³/h @ 90 m hd

Tugger winch

2x Brattvaag/Lakmx22010 - 10,0 t

Capstans

2x Brattvaag/Lc.Cx22009 - 8,0 t

Fire Fighting

FiFi 1 with Self Drenching System

2x 1.800 m³/h pumps

2x 1.200 m³/h monitors

(No foam, water only)

Additional features

Deck power outlets: 2x 500 Amp Outlets (440 Volt)

Reefer sockets: 12x 110 Volt / 32 Amp

FRC NDM Model

NPT60RB – 6 man 140 bhp inboard water jet

Dispersant spraying: 2x 10,00 m stainless steel booms

Dispersant storage: 9 m³

Oil recovery: 800 m³

Power pack For oil rec. equipment

Number of tanks

Diesel oil: 11

Mud: 10

Ballast: 9

Cargo oil: 8

Fresh water: 8

Cement: 5

Lubricating oil: 4

Sludge: 2

Waste water: 2

Chain: 2

Sewage: 1

Chemical: 1

Potable water: 1

Hydraulic oil: 1

Tank capacities 100%

Cargo oil: 475,8 m³

Diesel oil: 494,6 m³

Fresh water: 335,6 m³

Hydraulic oil: 3,7 m³

Lube oil: 22,2 m³

Tank ballast: 983,3 m³

Anchor equipment

2x Anchors each 3.695 kg

Length: 250,00 m

Diameter: 40 mm

Lifting equipment

1x Deck crane - SWL 6,0 t @ 16,00 m

Manufacture: Nuova Co. VIS. SRL

Accommodation

24 persons

8x 1 Man cabins

4x 2 Man cabins

Dynamic positioning system

Konsberg – Simrad K-POS DP-21 Green DPS (DP II)

References:

1x Radius 1000 Radar Positioning System

1x DGPS DPS-200 with IALA receiver

1x DGPS DPS-100

Navigation equipment

1x Furuno 10cm ARPA Radar

1x Furuno 3cm Radar

1x Furuno GPS Satellite Navigator

3x Raytheon Gyro Compass

1x Raytheon Autopilot

1x Furuno AIS FA 150

1x Furuno Echosounder

1x Furuno Naviknot Speed Log

1x Furuno Weather Fax

Communication equipment

2x Inmarsat C

1x Internal Intercom System

Radio plant according to GMDSS A3 requirements

4x Motorola GP 340 – Handheld UHF

2x Furuno VHF RT 5022

1x Furuno VHF External communication according to

GMDSS 3 x sailor SP 3520

1x Sailor 406 MHz EPIRB McMurdo

1x KU Band Satellite Communications System

1x Fleetbroadband 250

Operator

Tidewater Marine

Previous Operator

Gulfmark UK Ltd.

The Exchange No. 1

62-104 Market Street

Aberdeen, AB11 5PL

United Kingdom

Registered owner

Al Wasl Marine LLC (Tidewater Marine)

Jebel Ali - Jebel Ali Freezone

Dubai

United Arab Emirates

Previous owner

Gulfmark UK Ltd

Latest data adjustment

21 March 2024
