Malaga, Spain 05 March 2018 |
 |
 |
 |
||
| Malaga, Spain 16/03/18 | Malaga, Spain 16/03/18 | Malaga, Spain 11/03/18 | ||
|
Name |

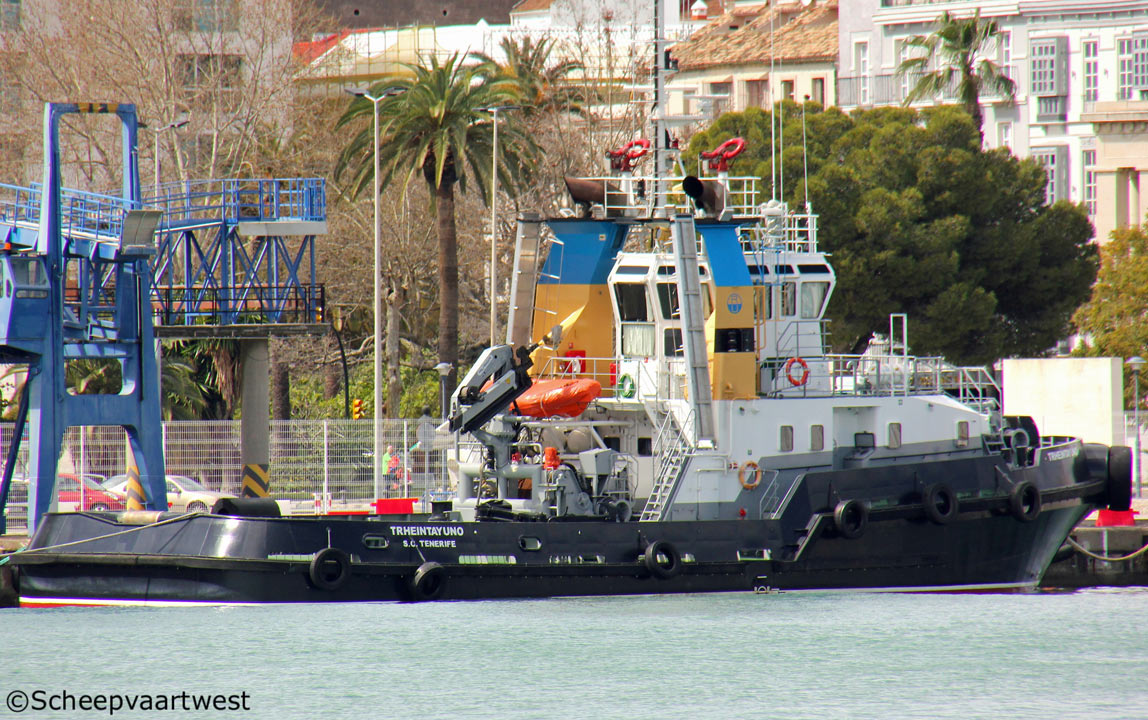

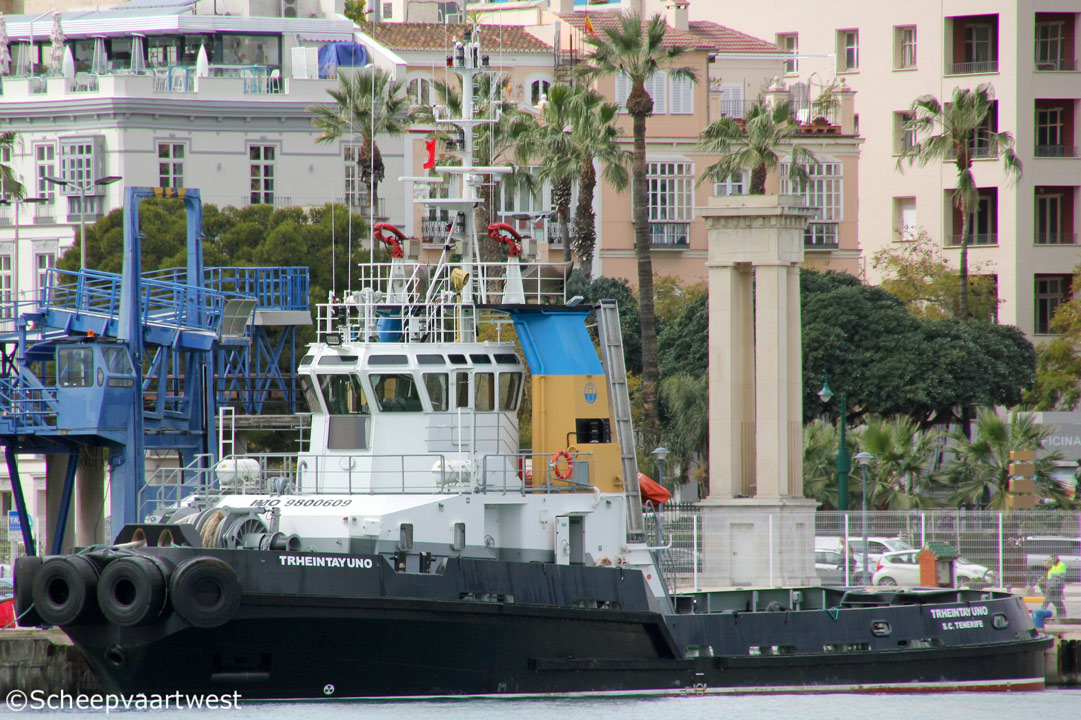

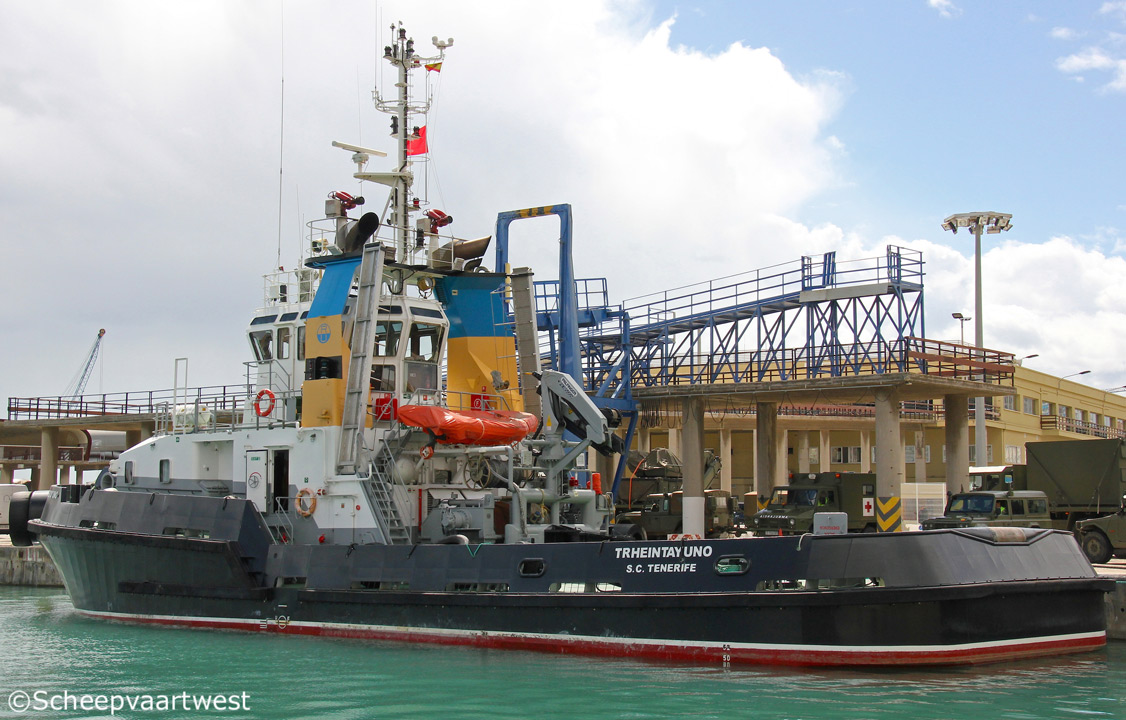

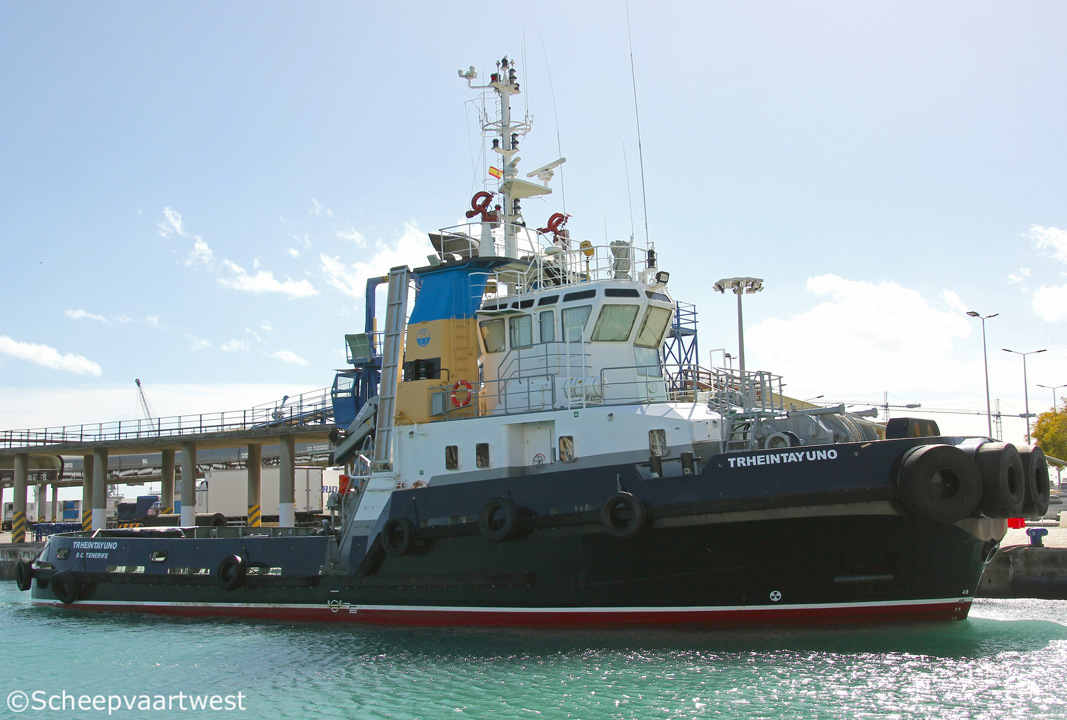

TRHEINTAYUNO |
|
Type |
Tug - Fire fighting ship - Water spraying - Oil recovery ship |
|
IMO-number |
9800609 |
|
Call sign |
EABR |
|
Flag |
Spain |
|
Port of registry |
Santa Cruz de Tenerife |
|
GT |
437 t |
|
DWT |
Summer: 393 t |
|
NT |
131 t |
|
Length |
31,50 m overall 27,30 m between perpendiculars |
|
Breadth |
11,20 m |
|
Draught |
5,02 m |
|
Freeboard |
395 mm |
|
Depth |
5,40 m |
|
Speed |
Max: 13,5 knots |
|
Built |
2016 |
|
Date of completion |
04/07/2016 |
|
Builder |
Astilleros Armon SL Navia |
|
Yard number |
C767 |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3516C - 4 stroke 16 cylinder 170 x 215 mm combustion engines each 2.204 kW - total: 4.480 kW / 6.086 hp at 1.800 rpm Built: 17/06/2015 Manufacturer: Caterpillar, Lafayette, Ind - USA |
|
Propelling system |
2x Azimutal Schottel stern drive at 225 rpm |
|
Generators |
2x Main diesel generatorsets each 108 kVA - 86 kW - 125 hp |
|
Bollard pull |
90,6 t |
|
Tank capacities |
Fuel oil: 301,57 m³ |
|
Manager |
Remolques Unidos SL |
|
Owner |
Remolques Unidos SL |
|
Latest data adjustment |
11 April 2018 |
