Zeebrugge 15 May 2018 |
 |
 |
|
| Zeebrugge 15/05/18 | Zeebrugge 15/05/18 | |
|
Name |

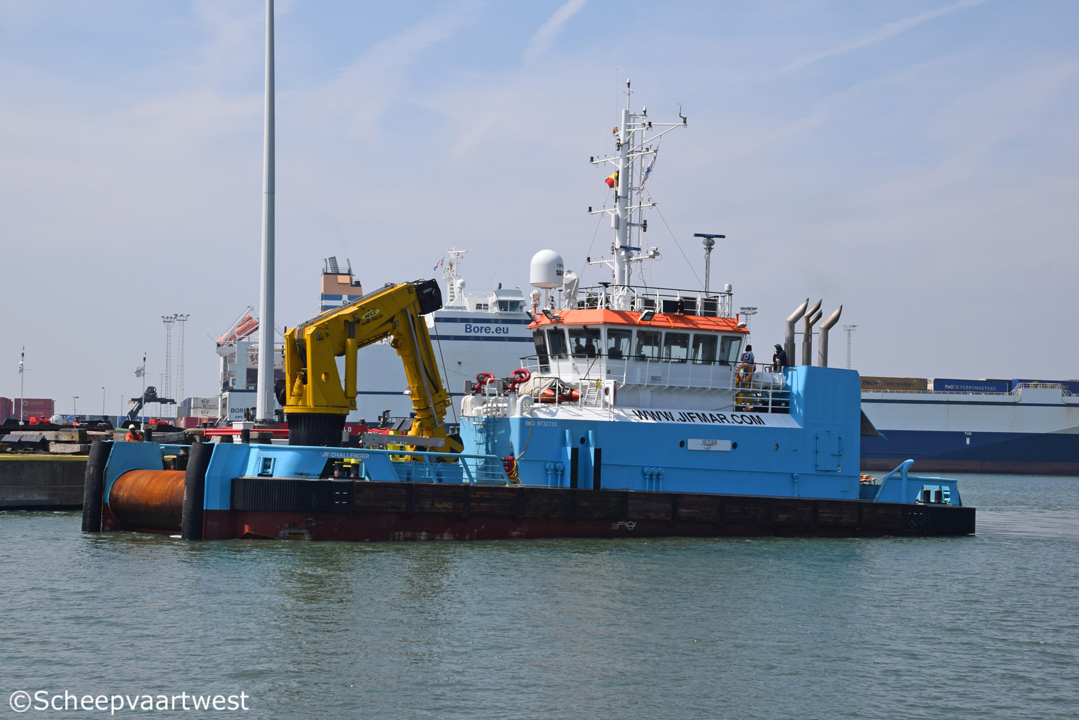

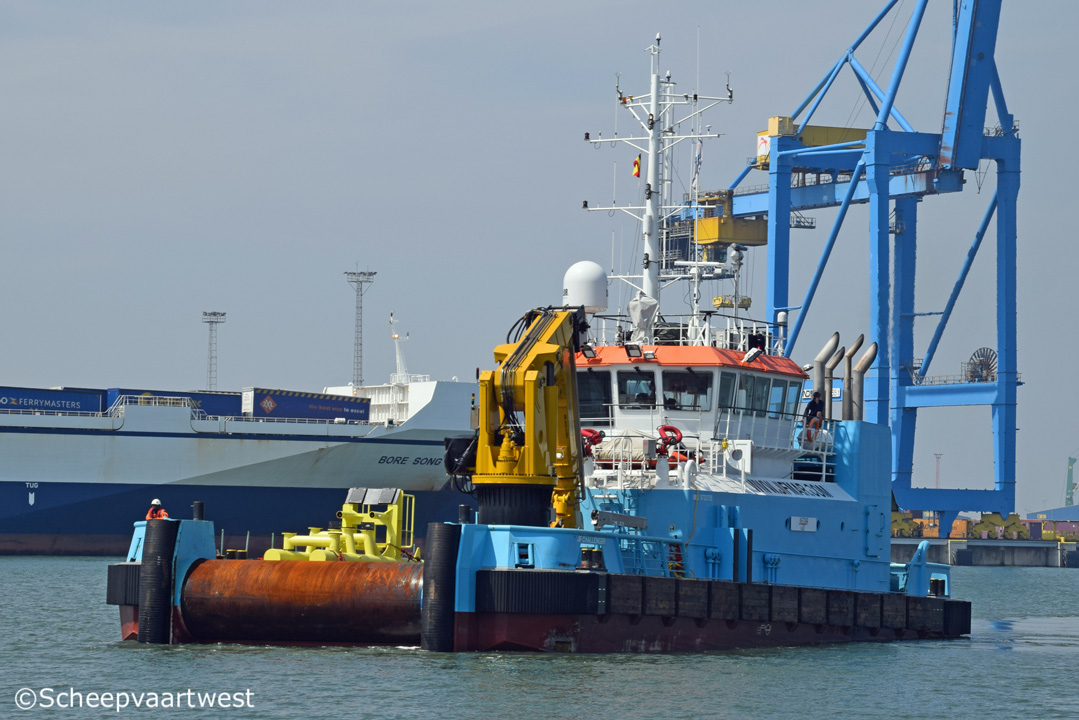

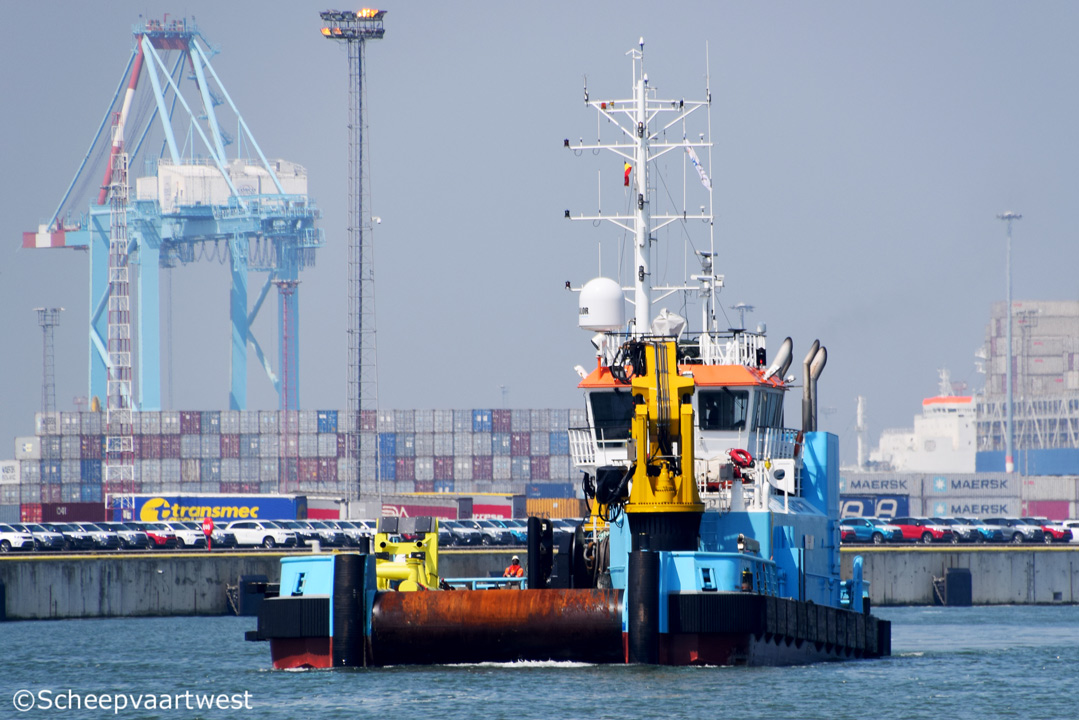

JIF CHALLENGER |
|
Previous names |
Inne K |
|
Type |
Tug - Multi purpose offshore vessel - Fifi DP II |
|
IMO-number |
9732735 |
|
Call sign |
FIYA |
|
Flag |
France |
|
Port of registry |
Marseille |
|
GT |
499 t |
|
NT |
149 t |
|
Length |
34,00 m overall 31,31 m between perpendiculars |
|
Breadth |
14,00 m |
|
Draft |
3,19 m |
|
Freeboard |
1.259 mm |
|
Depth |
4,41 m moulded |
|
Speed |
Cruising: 10,0 knots |
|
Built |
2015 |
|
Date of completion |
06/11/2015 |
|
Builder |
Neptune Shipyards B.V. |
|
Yard number |
454 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3512 - 4 stroke 12 cylinder 170 x 215 mm combustion engines each 1.140 kW at 1.800 rpm Built: 2015 Builder: Caterpillar Inc., Lafayette - USA |
|
Propulsion |
2x Well Mounted azimuth propulsion (Z-Drive) ZF AT 6111 at 323 rpm |
|
Generators |
2x Generators each 615 kVA - 492 kW - 668 hp |
|
Bow thruster |
Shallow draught thruster (L-Drive) ZF SDT 4010 |
|
Bollard pull |
40 t |
|
Deck space |
236,6 m² |
|
Deck load |
8,5 t/m² Max: 245 t |
|
Deck equipment |
Anchor handling winch: 125 t Towing winch: 50,0 t Tugger winch: 2x 15,0 t Mooring winch: 2x 7,0 t Anchor handling pins: AS 4 Point mooring shark Jaw H-200 SWL 200 t / Max. 3’’ chain Moonpool: Diameter 600 mm ready for USBL multi beam echo sounder Boat landing: Removable for surfers up to 32,00 m Grounding: 2x Spuds legs for station keeping during grounding |
|
Fire fighting |
FIFI 1 Certified 2x 1.200 m³/h |
|
Tank capacities |
Fuel oil: 221,1 m³ Fresh water: 87 m³ Dirty oil: 73,5 m³ Sewage: 17 m³ |
|
Lifting equipment |
Forward: 1x HEILA HLRM 340-2S (350 T/M) 32,85 y @ 8,70 m to 20,50 t @ 14,05 m 15 t winch Aft: HEILA HLRM 230-4S (230T/M) 25 t @ 7,50 m to 9,8 t @ 16,50 m 8t winch |
|
Communication & navigation equipment |
Sounder: Furuno GDS-101 Set radar: Furuno FAR-2117 Autopilot: Anschutz Pilotar D GPS: Furuno GP-150D DGPS 1: Simrad MX521/MX610 DGPS 2: Simrad MX521/MX610 Gyrocompass: 2 x Ixblue Qaudrans Sart: 2x Jorton TronSART-20 DP System: DP1 Sirehna easy DP |
|
Owner |
Jifmar offshore services |
|
Latest data adjustment |
13 June 2018 |
