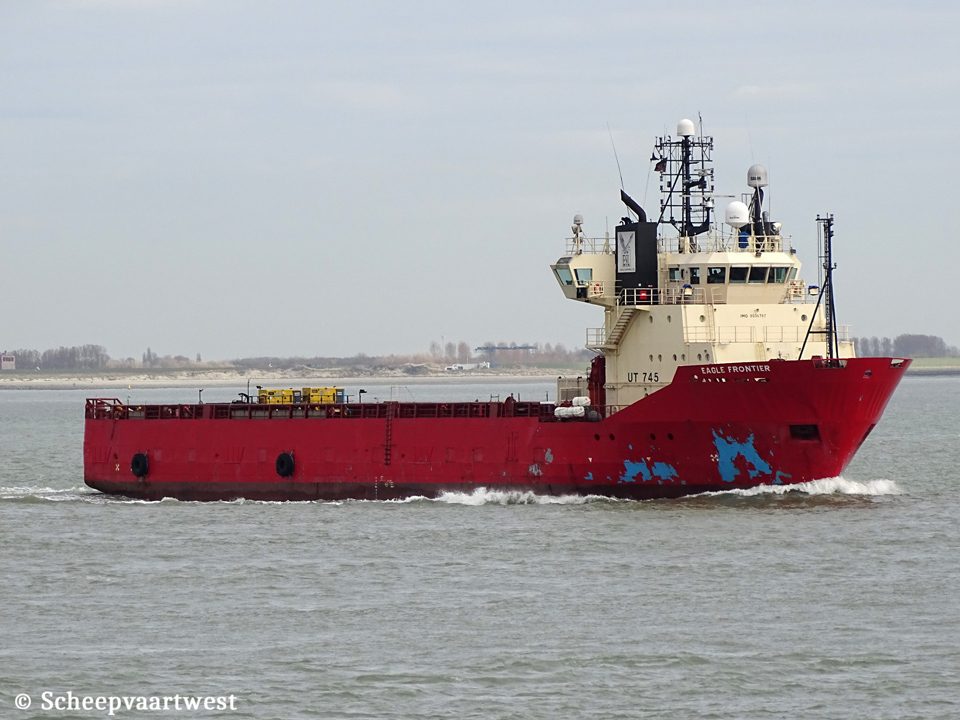

Eagle Frontier IMO 9034767 09

Westerschelde 18 March 2020

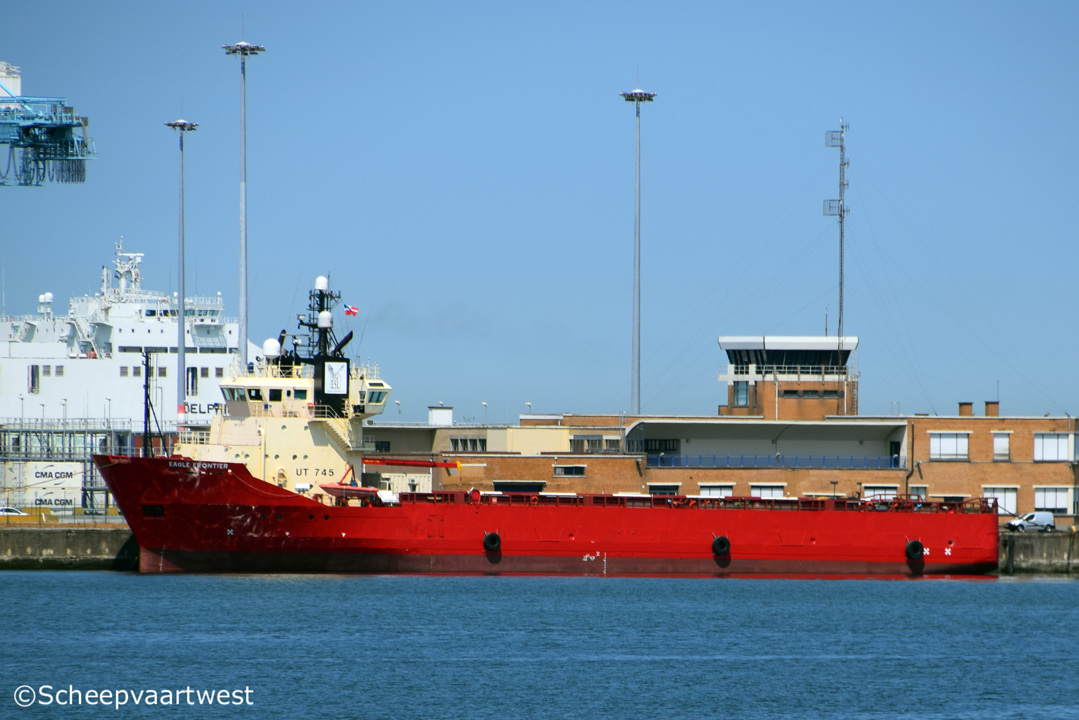

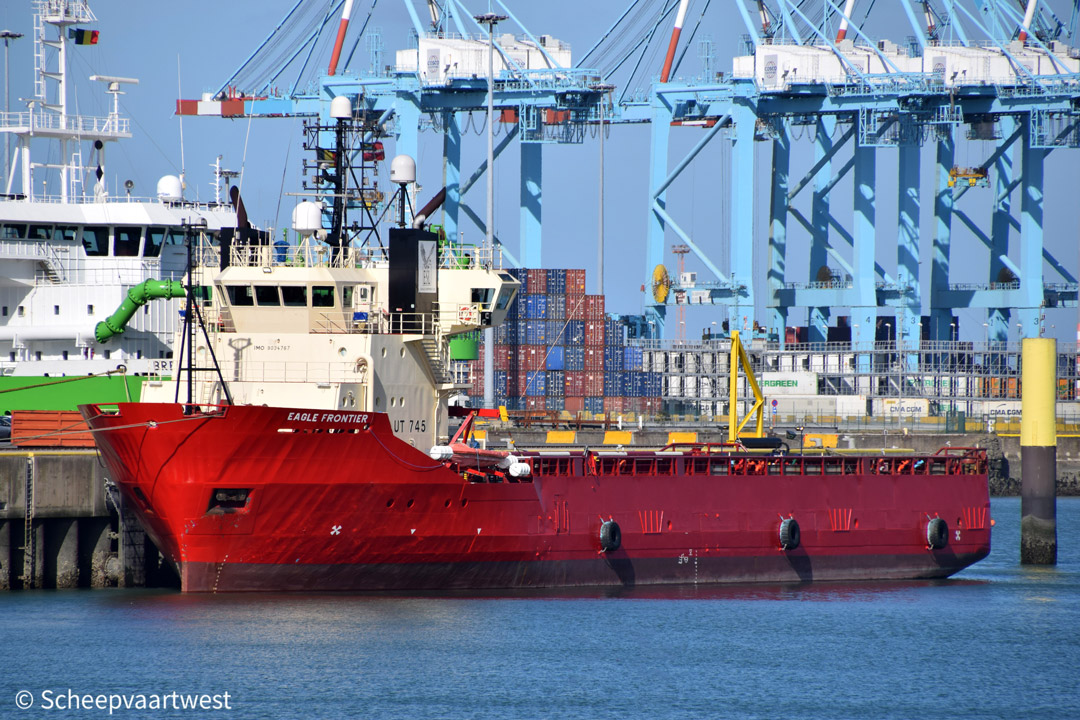

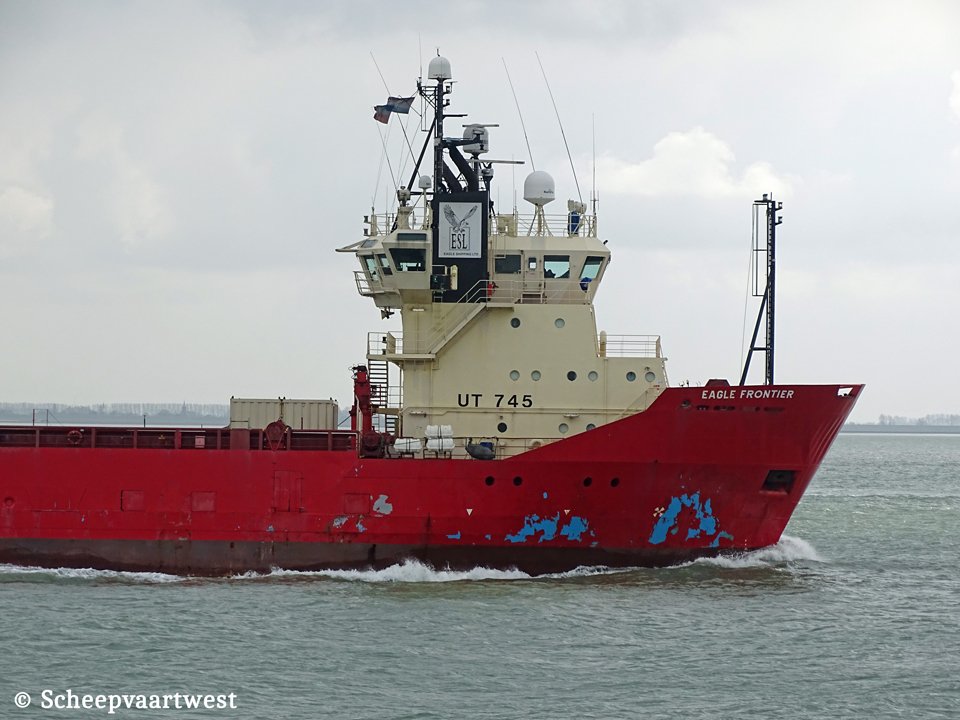

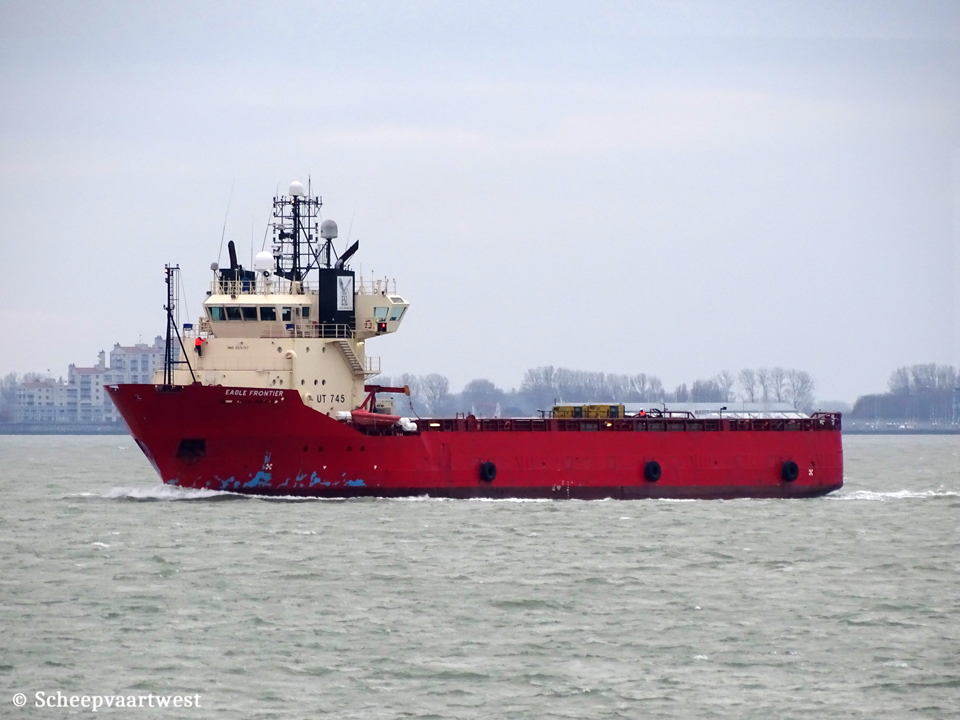

Eagle Frontier 08 Eagle Frontier 01 Eagle Frontier IMO 9034767 10   Eagle Frontier IMO 9034767 11
Zeebrugge 03/10/18 Zeebrugge 24/07/18 Westerschelde 11/01/20   Westerschelde 06/03/20


Name

EAGLE FRONTIER

Previous name

2009 - 2018 Maersk Frontier

Type

UT 745 Offshore supply ship - Strengthened for heavy cargoes

IMO-number

9034767

Call sign

C6DX7

Flag

Bahamas

Port of registry

Nassau

Previous flags

2009 - 2018 Denmark, Frederikshavn - Call sign: OXNZ5

GT

2.961 t

DWT

4.571 t at max draft

NT

1.234 t

Lightship

2.115 t

Length

82,50 m overall

76,20 m between perpendiculars

Breadth

18,85 m moulded

Draught

Summer: 6,23 m

Keel to mast end

30,00 m

Freeboard

1.370 mm at max draft

Depth

7,60 m to main deck

Speed

14,0 knots

Service: 11,0 knots

Built

1992

Date of completion

06/1992

Builder

Ulstein Verft AS

Ulsteinvik

Norway

Yard number

227

Hull material

Steel

Number of decks

1

Main engine

2x Ulstein Bergen BRM-6 - 4 stroke single acting 6 cylinder 320 x 260 mm combustion engine each 2.650 kW / 3.603 hp at 750 rpm

Manufacturer: Bergen Diesel AS - Norway

Propellers

2x Ulstein 850/4 controllable pitch propellers - aft at 190 rpm

Electric installations

440/220 Volt

Shat generators

2x Siemens each 1.800 kW / 440 Volt 60 Hz.

Generators

2x Cummins NTA-855-M - 4 stroke 6 cylinder 140 x 152 mm diesel engines each 358 kW connected with generators each 300 kW / 440 Volt 60 Hz.

Emergency generator

1x Diesel generatorset 68 KW

Thrusters

1x Controllable pitch thruster 883 kW / 1.200 bhp, forward

2x Tunnel thrusters 588 kW / 800 bhp each, aft

1x Retract azimuth directional thruster 883 kW / 1.200 bhp, forward

Deck cargo

2.950 t

Deck cargo area

907 m³

58,80 x 15,50 m

Dry bulk

400 m³

Deck strength

Aft: 10,0 t/m²

Fore: 5,0 t/m²

Windlass

1x 25,0 t

Capstans

2x 10,0 t each

Tugger winches

2x 9,5 t each

Cargo discharge capacities

Fuel oil: 250 m³/h at 9,0 bar with Flowmeter (range 460-6.400 l/min)

Ballast/Drill water: 250 m³/h at 9,0 bar

Fresh water: 250 m³/h at 9,0 bar

Tank capacities

Gas oil: 963 m³

Ballast: 1.365 m³

Fresh water: 757 m³

Liquid mud: 662 m³

Methanol: 171 m³

Brine: 216 m³

Base oil: 303 m³

Lifting equipment

1x Crane - SWL 1.400 kg @ 17,00 m

Accommodation

Accommodation for 26 persons in total of which:

2x Off one-bed cabins with dayroom, bedroom and toilet

12x Off one-bed cabins with toilet

2x Off 6-men cabins with toilet

In addition:

1x Hospital

1x Reception

Officers and crew mess rooms

Crew size

26

Rescue equipment

  • MOB boat: 1x MOB boat - Norsafe, 40 HP 6 persons

  • MOB Davit Vest Davit PL-1500 554

  • Life rafts 6x 16 DK Viking

  • Lifejackets 33x Merman 16 A, 4x Merman(for Children)

  • Survival suits: 31x Viking PS2014 , 2x Viking (Oversize)

Navigation equipment

  • X-band Radar: 1x Sperry Marine RASCAR 3400M-314

  • S-band Radar: 1x Sperry Marine RASCAR 3440-27

  • GPS: 1x Leica MK 12 Prof Navigator

  • Electronic chart System: 2x ECDIS Transas RS-6 Navi sailor 4000

  • Magnetic compass: 1x H. Iversens

  • Gyro compass: 3x Simrad GC80/GC85

  • Doppler Log: 1x JRC JLN-205

  • Echo sounder: 1x JRC JFE-585

  • Autopilot: 1x Robertson AP-9 MKII

  • AIS: 1x SAAB R4-AIS

  • Wind gauge: 2x WindObserver II Ultrasonic

  • Joystick System: 1x MT Compact OS, 4 connection point

Communication equipment

  • MHF/HF DSC: 1x Sailor 5100 DSC

  • VHF: 1x Sailor RT 2047, incl. Private Channels & 2x Sailor RT 5022 DSC, incl. Private Channels

  • VHF DSC: 2x Sailor RM 2042

  • EPIRB: 2x 3SI Guardian

  • Inmarsat C: 2x Sailor TT-3020C

  • Navtex Receiver: 1x JRC NCR333

  • S.P Radio: 1x R109

  • Portable VHF: 3x Sailor SP35

  • Portable UHF: 5x Motorola GP340

  • Fleet 77: 1x FBB NERA F77

  • SART: 2x McMurdo S4

  • LRIT: 1x Thrane & Thrane 6130 LRIT

Manager

Eagle Shipping Ltd.

Bannholzstrasse 16

9490 Vaduz

Liechtenstein

Registered owner

Eagle Shipping Ltd.

Renamed

07/2021 Rubin

Russia - Call sign: UBHW5

Owner & manager: Alliance LLC, St. Petersburg - Russia

Latest data adjustment

05 October 2022
